Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,farms,restaurant,HOME USE,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,Indurstry; | Direction For Load: | Four Point; |
Temperature Range: | -30° to 110 ℃; | Material: | Gcr15 Chrome Steel; |
Single gross weight: | 1.0 KG; | Selling Units: | Single item; |
Precision Rating: | P5 P4 P2 P6 P0; | Packaging Detail: | 1.Plastic Tube+Carton+Pallet; 2.Single color box+Carton+Pallet; 3.According to customers' requirement; |
Number of Row: | single row; | Place of Origin: | Shandong; |
Dynamic (N): | 6570; | Single package size: | 25X20X15 cm; |
Package Preview: | ; | Model Number: | K10008XP0; |
Type: | BALL; | Dimension: | 100x116x8mm; |
Structure: | Angular Contact; | Seals Type: | Open; |
Lubrication: | Lubricated; | Static (N) Raidal: | 10395; |
Product Name: | Realislim 8mm Series Type X Thin Section Four Point Ball Bearings; | Weight: | 0.14 kg; |
Brand Name: | SEMRI; |

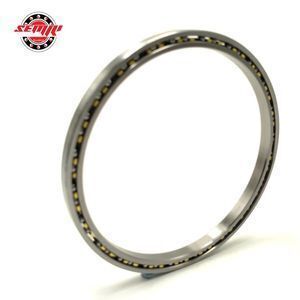

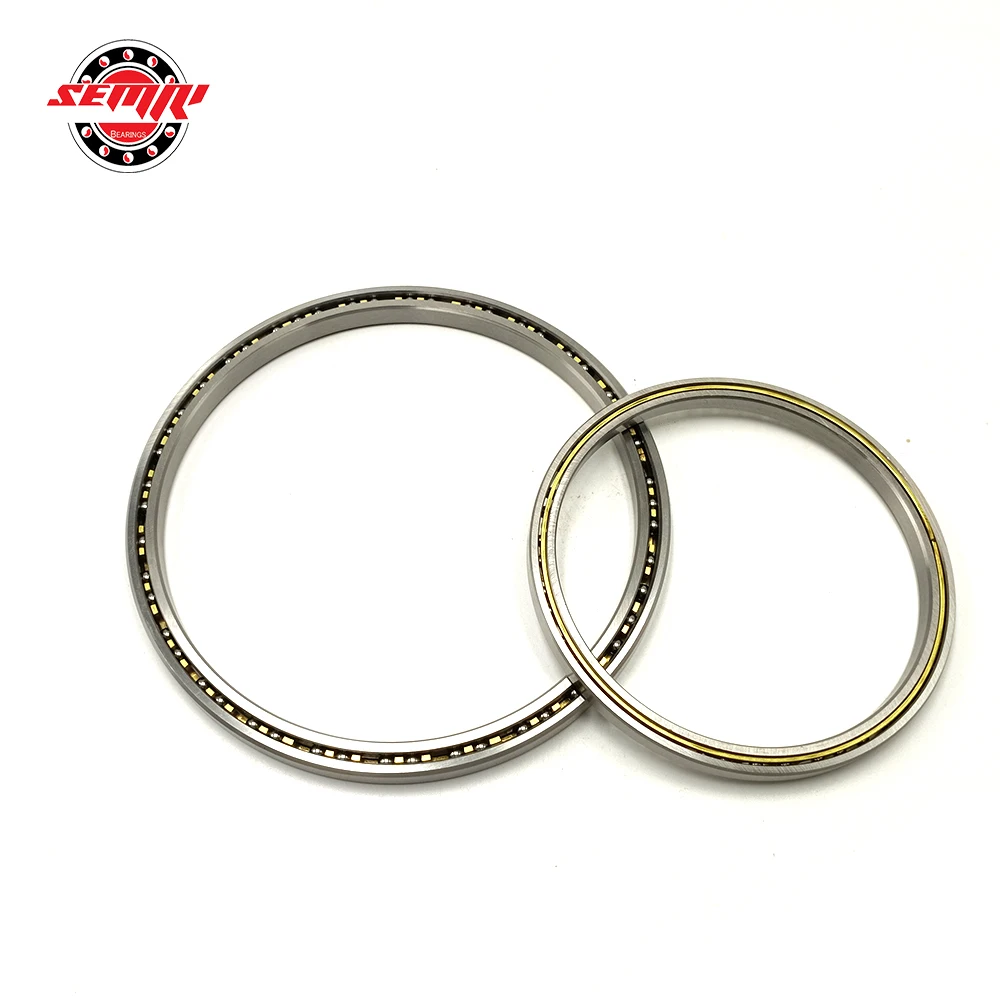

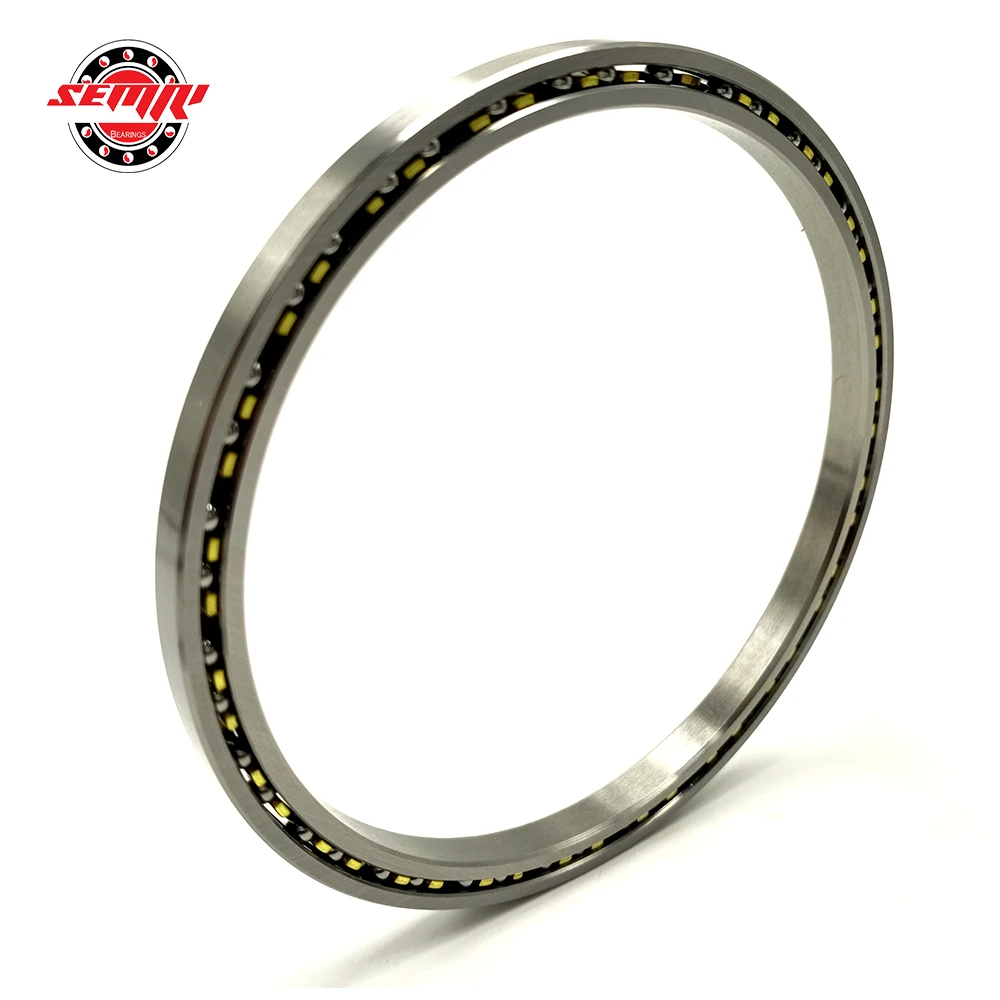

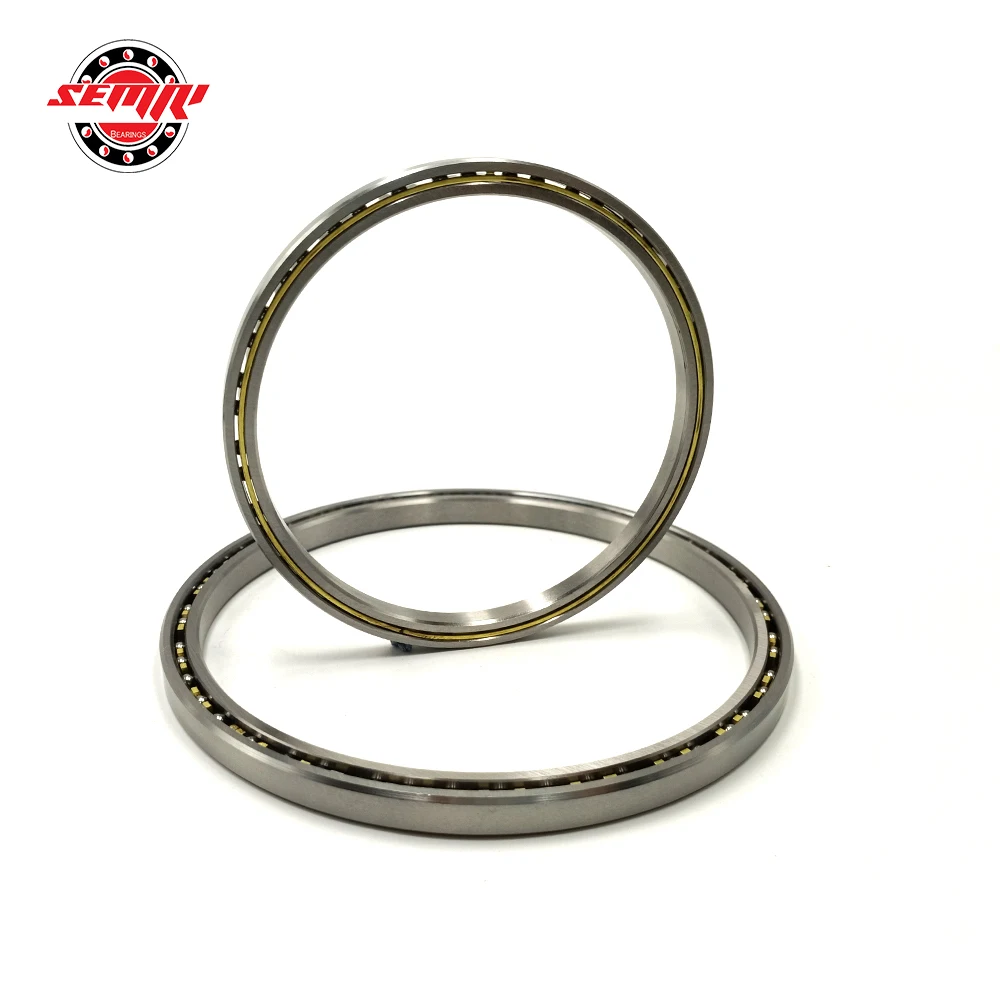

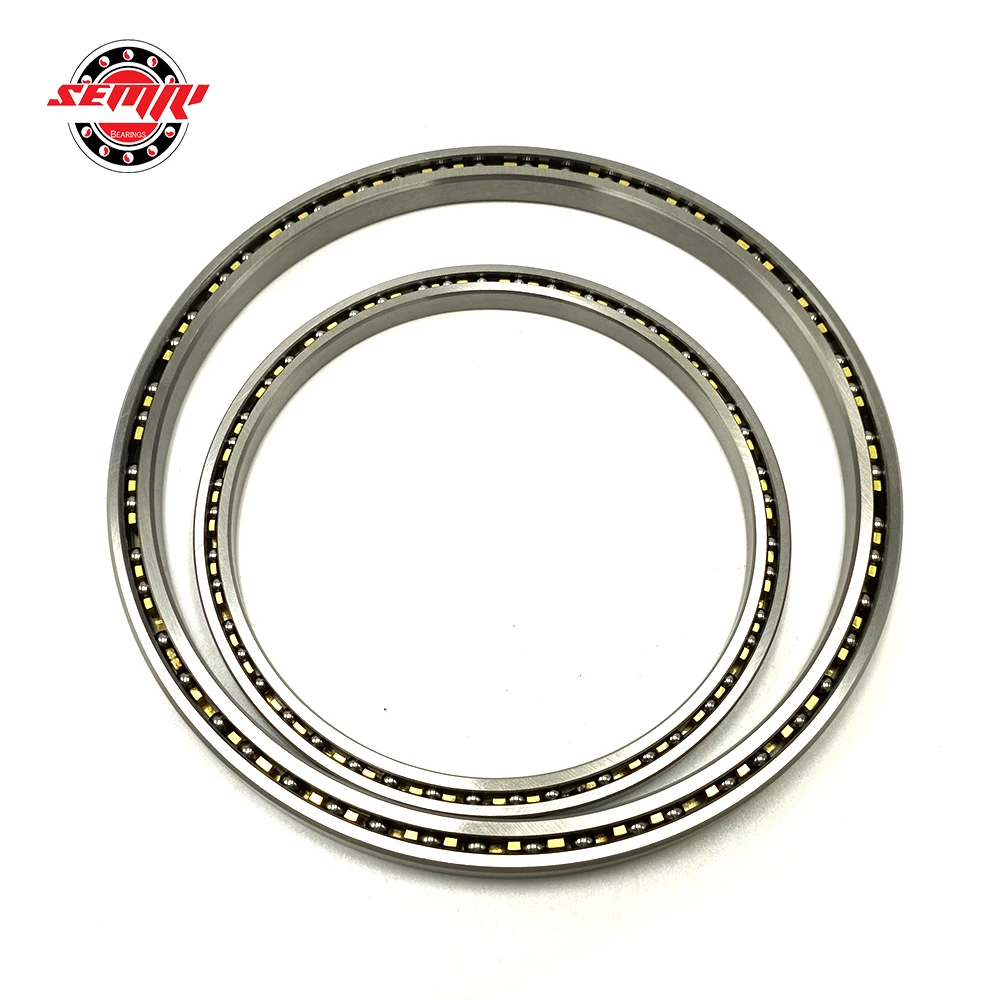

Realislim 8mm Series Type X Thin Section Four Point Ball Bearings K10008XP0
Advantages of thinl-section bearings: Solved the size/weight problem of conventional bearings, as well as the size/weight of shafts and housings. The extremely thin bearing section, miniaturization/lightweight of the product, and the variety of products expands its range of applications.
Features of thin-section bearings: For low friction torque/high rigidity/good rotation accuracy of bearings, steel balls with small outer diameters are used, and the use of hollow shafts ensures space for light weight and wiring. Thin-walled bearings are highly accurate, very quiet and have a high load carrying capacity. Even with larger shaft diameters and bearing bores, the cross-section remains the same. Therefore, these bearings are called thin sections.
Size:The inner diameter is from 1 inch to 40 inches.
Cross-sectional dimensions range from 0.1875X0.1875 inches to 1.000X1.000 inches.
Two series:
1. Open series: KAA/KA/KB/KC/KD/KF/KG
2, sealed series: JA / JB / JU / JG
Bearing Type | Ball | |
For Load Direction | Four Point | |
Construction | Single Row | |
Seal Type | Open | |
Cross Section | 8 mm | |
Part Number | K10008XP0 | |
For Shaft Diameter | 100 mm | |
Bore Dia (d) | 100 mm | |
Bore Dia Tolerance | -0.02mm to 0 | |
For Housing ID | 116 mm | |
Outer Dia (D) | 116 mm | |
Outer Dia Tolerance | -0.015mm to 0 | |
Width (B) | 8 mm | |
Width Tolerance | +.000 –.127mm | |
Land dia.L1 | 105.9 | |
Land dia.L2 | 110.1 | |
Ring Material | 52100 Chrome steel | |
Ball Material | 52100 Chrome steel | |
Cage Material | Brass | |
Dynamic (N) | Radial | 6570 |
Thrust | 10052 | |
Moment | 266 | |
Static (N) | Radial | 10395 |
Thrust | 25997 | |
Moment | 562 | |
Lubrication | Lubricated | |
Shaft Mount Type | Press Fit | |
Temperature Range | -30° to 110 ℃ | |
ABEC Rating | ABEC-1 | |
Radial Clearance | 0.0000 – 0.0005" | |
RoHS | Compliant | |
Weight (kg) | 0.14 |
Other Ralated Models of 8 mm Series Type X Thin Section Bearings :
8 mm Series Type X Thin Section Bearings | |||||||||||
Product Number | For Load | Bore Dia | Outer Dia | Width | Dynamic (N) | Static (N) | Weight | ||||
Direction | (d) | (D) | (B) | Radial | Thrust | Moment | Radial | Thrust | Moment | (kg) | |
K02508XP0 | Four Point | 25 mm | 41 mm | 8 mm | 3246 | 4599 | 40 | 3275 | 7433 | 49 | 0.06 |
K05008XP0 | Four Point | 50 mm | 66 mm | 8 mm | 4511 | 6531 | 98 | 5443 | 13621 | 158 | 0.08 |
K06008XP0 | Four Point | 60 mm | 76 mm | 8 mm | 4962 | 7306 | 127 | 6433 | 16093 | 219 | 0.09 |
K07008XP0 | Four Point | 70 mm | 86 mm | 8 mm | 5384 | 8032 | 158 | 7424 | 18574 | 290 | 0.1 |
K08008XP0 | Four Point | 80 mm | 96 mm | 8 mm | 5796 | 8728 | 191 | 8424 | 21045 | 370 | 0.11 |
K09008XP0 | Four Point | 90 mm | 106 mm | 8 mm | 6188 | 9405 | 228 | 9405 | 23526 | 461 | 0.13 |
K10008XP0 | Four Point | 100 mm | 116 mm | 8 mm | 6570 | 10052 | 266 | 10395 | 25997 | 562 | 0.14 |
K11008XP0 | Four Point | 110 mm | 126 mm | 8 mm | 6933 | 10689 | 307 | 11395 | 28469 | 672 | 0.15 |
K12008XP0 | Four Point | 120 mm | 136 mm | 8 mm | 7286 | 11297 | 350 | 12376 | 30950 | 792 | 0.16 |
K13008XP0 | Four Point | 130 mm | 146 mm | 8 mm | 7630 | 11886 | 395 | 13366 | 33431 | 923 | 0.18 |
K14008XP0 | Four Point | 140 mm | 156 mm | 8 mm | 7963 | 12464 | 442 | 14367 | 35902 | 1063 | 0.19 |
K15008xp0 | Four Point | 150 mm | 166 mm | 8 mm | 8296 | 13033 | 492 | 15347 | 38383 | 1213 | 0.2 |
K16008XP0 | Four Point | 160 mm | 176 mm | 8 mm | 8610 | 13592 | 543 | 16338 | 40855 | 1373 | 0.2 |
K17008XP0 | Four Point | 170 mm | 186 mm | 8 mm | 8924 | 14131 | 596 | 17328 | 43326 | 1543 | 0.2 |
K18008XP0 | Four Point | 180 mm | 196 mm | 8 mm | 9228 | 14661 | 651 | 18319 | 45807 | 1722 | 0.21 |
K19008XP0 | Four Point | 190 mm | 206 mm | 8 mm | 9444 | 15063 | 701 | 19064 | 47660 | 1888 | 0.21 |
K20008XP0 | Four Point | 200 mm | 216 mm | 8 mm | 9728 | 15573 | 759 | 20055 | 50141 | 2086 | 0.22 |
K25008XP0 | Four Point | 250 mm | 266 mm | 8 mm | 11111 | 18044 | 1075 | 25007 | 62517 | 3226 | 0.28 |
K30008XP0 | Four Point | 300 mm | 316 mm | 8 mm | 12366 | 20359 | 1429 | 29959 | 74903 | 4614 | 0.35 |
K32008XP0 | Four Point | 320 mm | 336 mm | 8 mm | 12847 | 21241 | 1580 | 31940 | 79856 | 5238 | 0.39 |
K34008XP0 | Four Point | 340 mm | 356 mm | 8 mm | 13239 | 22114 | 1728 | 33921 | 84808 | 5859 | 0.42 |
K36008XP0 | Four Point | 360 mm | 376 mm | 8 mm | 13690 | 22849 | 1890 | 35657 | 89133 | 6561 | 0.46 |
1.Q:Are you a factory or trading company?
A:SEMRI Bearing is specialized in manufacturing and exporting bearings.
SEMRI Bearing have own factory and warehouse.
2.Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, SEMRI Bearing are honored to offer you samples.Can you buy a ticket ?
3.Q:What is the payment?
A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
B: 100% L/C At Sight
4.Q:What is the MOQ for bearing?
A: SEMRI Bearing MOQ is 1 pc.
5.Q:What kind of service you can offer?
A:Technology support;Installation guidance;OEM.
