material: | stainless steel; | Condition: | New; |
Brand Name: | orangemech; | Certification: | ISO; |
Heating source: | electric ,steam; | Application: | Medicine Processing,Chemicals Processing,FOOD PROCESSING; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Capacity: | 1000kg; |
dimension: | 1380*1200*2000mm; | Weight: | 1500kg; |
Warranty: | 1 YEAR; | Supply Ability: | 1000 Set/Sets per Month; |
weight: | 2000kg; | trolly: | 1; |
Place of Origin: | Henan China; | trays: | 24; |
warranty: | 1 year; | name: | red chilli dryer/dehydrator drying machine industrial food dehydrator; |
After-sales Service Provided: | Video technical support; | Voltage: | 220V; |
Applicable Industries: | Food & Beverage Factory; | Key Selling Points: | Multifunctional; |
Dimension(L*W*H): | 1380*1200*2000mm; | Power(W): | 3kw; |
key word: | industrial food dehydrator; | Port: | China main port; |
Type: | Hot Air Furnace; | Packaging Detail: | export standard package; |
Brief introduction:

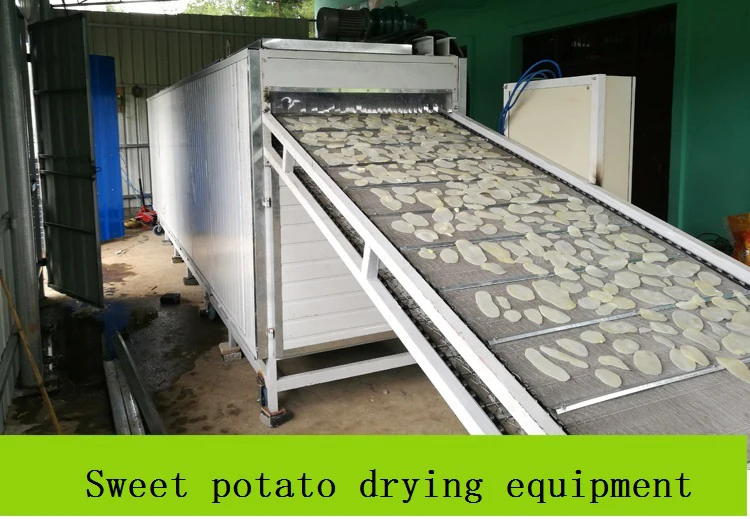

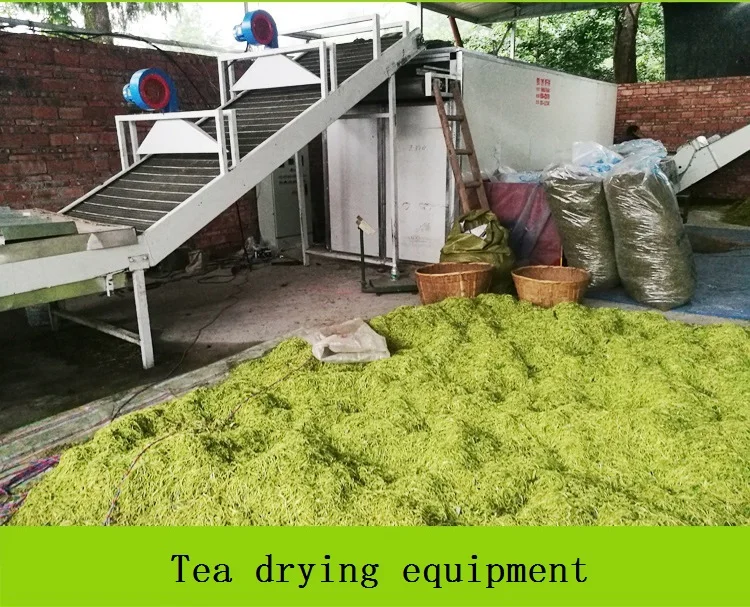

The mesh belt dryer is a food drying equipment, which can dry various materials, such as: agricultural product drying, Chinese herbal medicine drying, fruit drying, feed drying, tea drying, nut drying, chili drying , jujube drying, garlic drying, vegetable drying, etc. According to the characteristics of the product, the adjustment speed, wind speed, and temperature can be adjusted to achieve the stability of the product drying. This series of dryers have the advantages of fast drying speed, high evaporation strength and good product quality.

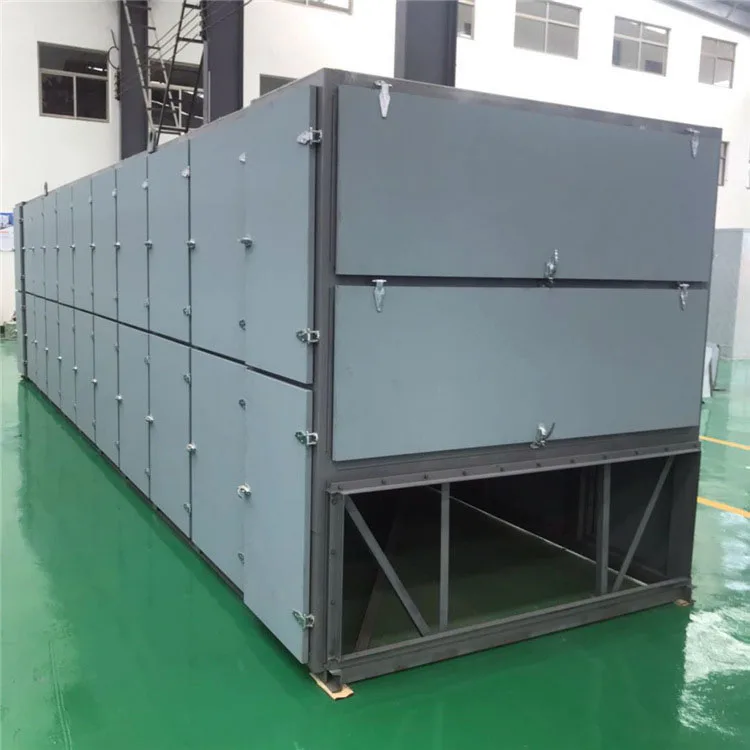

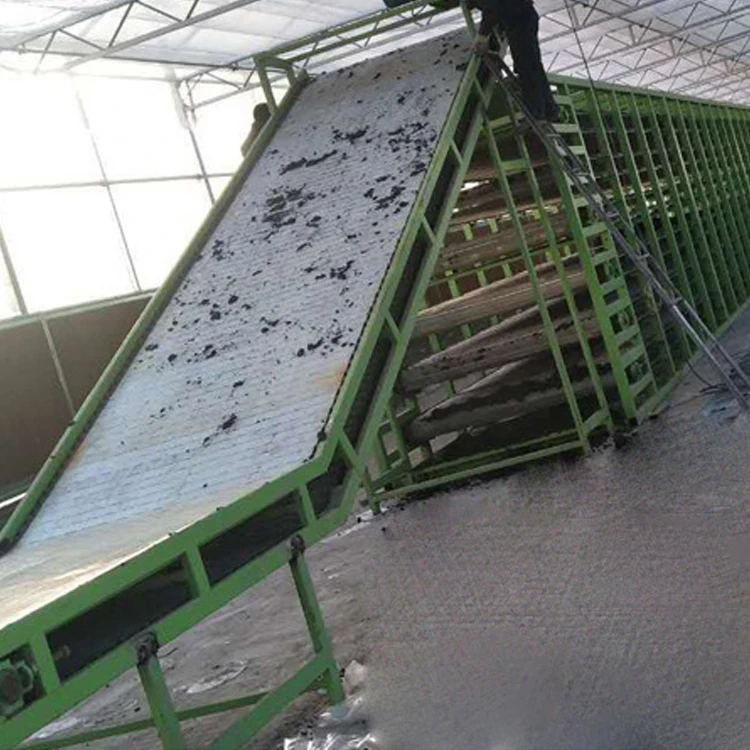

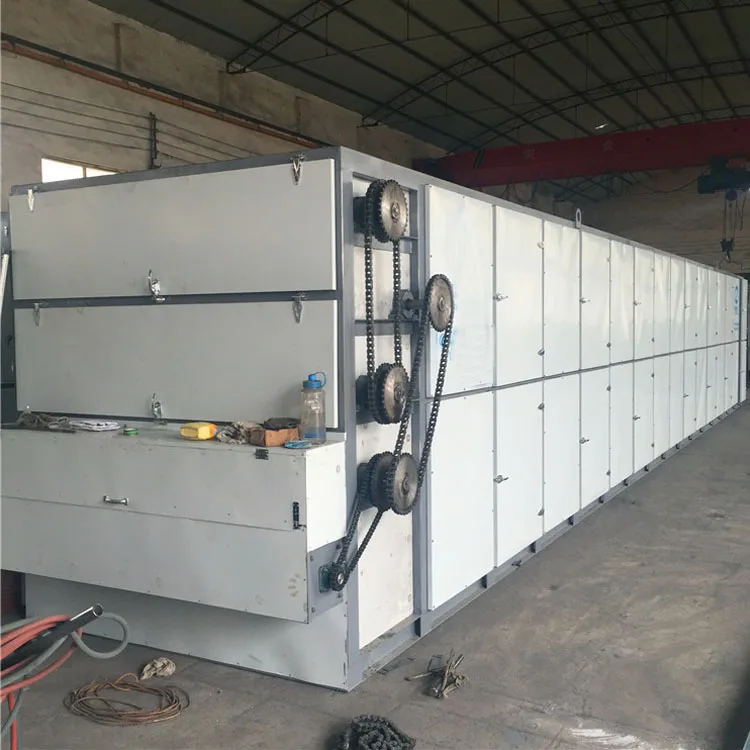

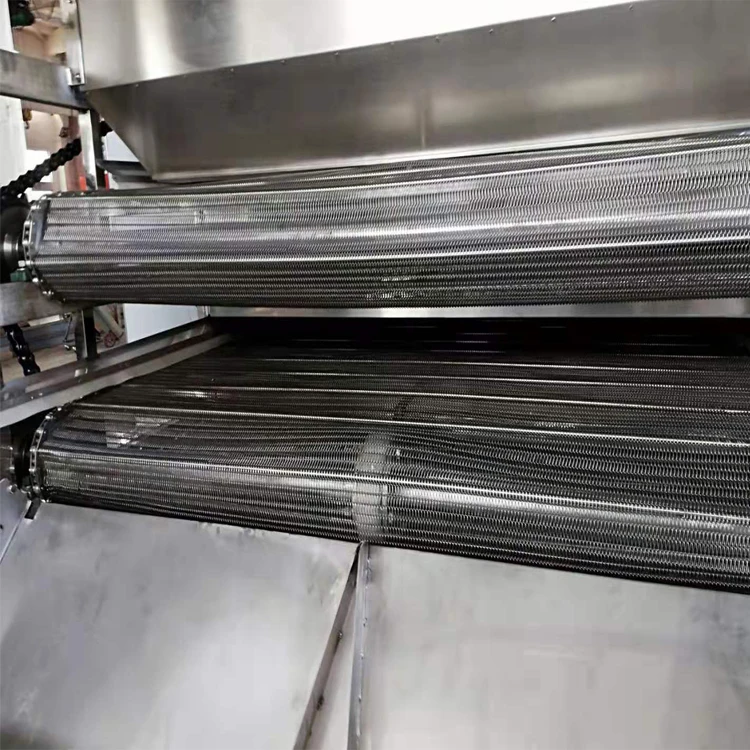

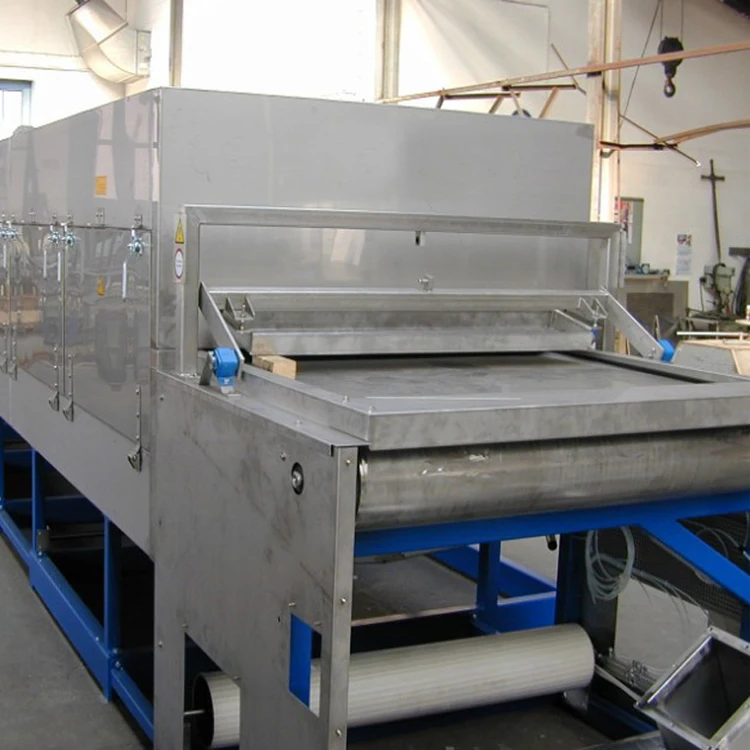

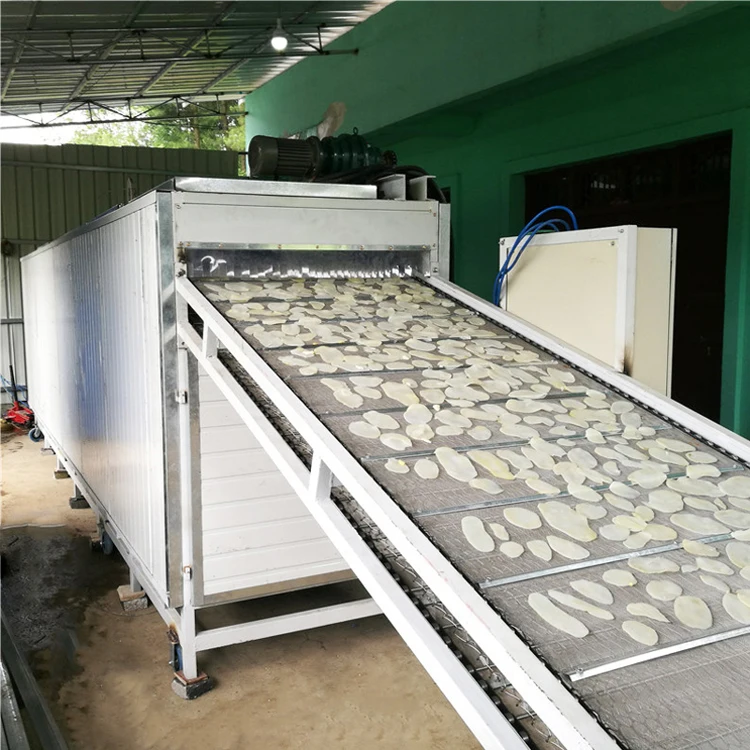

The mesh belt dryer is using hot air as drying medium,The Raw material is transported by multi-layers stainless steel mesh belt . The hot air across the mesh belt from the bottom layer to top layer, The final moisture comes out of the top of the dryer, the dried Finished product come out by discharge conveyor. The heat source have electricity,gas,diesel, wood, biomass. You can choose the one more your convenience and economical for you.
Technical parameter:
Model | 1.5*6m | 2*8m | 2*9m | 2*10m | 2*11m | 2*12m |
Layer | 4 | |||||
| 29 m2 | 54 m2 | 60 m2 | 68 m2 | 75 m2 | 83 m2 |
Power | YCT-1.1kw | YCT-1.5kw | YCT-1.5kw | YCT-2.2kw | YCT-2.2kw | YCT-3kw |
Evaporation | 300kg/h | 430kg/h | 500kg/h | 560kg/h | 620kg/h | 680kg/h |
Size of hot air stove | 3.2*1*2.7 | 3.9*1.26*3 | 3.9*1.26*3 | 4.7*1.5*3 | 4.7*1.5*3 | 4.7*1.5*3 |
Suction fan | 8C-11kw | 10C-15kw | 10C-15kw | 11C-22kw | 12C-22kw | 12C-22kw |
Total power | 13.72kw | 18.82kw | 18.82kw | 26.52kw | 27.32kw | 27.32kw |
Feeding conveyor | 0.12kw | |||||
Thickness | 50—200mm | |||||
Temperature | 40—120℃ | |||||
Period | 0.5-5 hour |
Pls feel free to contact me for any question at all times.
