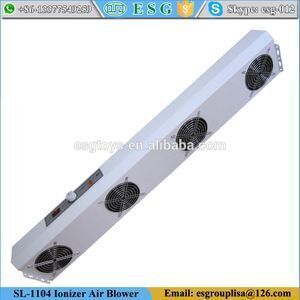

ESD Air Blower SL-1104 Stainless Antistatic Ionizing Air fan

Supplier: Shantou E-Star Group Technology Co., Limited
Region: Guangdong, China
Contact: Ms. Lu Iisa
Price: $130.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Rated Power:	80W;	Selling Units:	Single item;
Application:	Air Blower;	Size:	1100mm(L) x184mm(W) x110mm(H);
Delivery Detail:	0 days after payment;	Model Number:	SL-1104;
Application:	Industry;	Installation:	Overhead;
Pressure:	High Pressure;	Single gross weight:	10 KG;
Usage:	static eliminator;	Place of Origin:	Guangdong China (Mainland);
Air Coverage:	1280mmx1500mm;	Air Volume:	160-440CFM;
Single package size:	125X30X24 cm;	Brand Name:	ESG;
Noise:	60DB;	Material:	Stainless steel;
Weight:	8.5kg;	Rated Voltage:	110V/60Hz or 220V/50Hz;
Type:	Roots Blower;	Power Source:	Electric Blower;

ESD Air Blower SL-1104 Stainless Antistatic Ionizing Air fan

Product Description

SL-1104 Stainless Antistatic Ionizing Air Blower produces an air flow that is rich in positive and negative ions. Directing the air flow on an object that has static electricity charge will neutralize the charge. If the object has a negative static charge, it will draw positive ions from the air flow. Conversely, if the object has a positive static charge, it will draw negative ions from the air flow. The air ions are attracted to the oppositely charged object and neutralize the charge on the object.

Detailed Images

Application

The SL-1104 Stainless Antistatic Ionizing Air Blower has four small fans to produce air flow. The volume of air flow is controlled by a variable speed control which provides a wide range of air flow settings. The ionizing elements are energized with a low current, high voltage transformer. The transformer contains a current limiting resistor which enhances ionization stability and provides for safety. It is this electric field that creates alternating polarity ions in the air flow. The SL-1104 Stainless Antistatic Ionizing Air Blower also features a patented built-in emitter point cleaner. Using the point cleaner takes only seconds, cleaning the emitter points on a weekly basis prevents the built-up airborne debris all electrical ionizers are prone to. This keeps your antistatic ionizing air blower in the top form for the life of the unit.

Air Blower Fan SL-1104 Industrail Heater Blower with 4 Fans

The SL-1104 Stainless Antistatic Ionizing Air Blower was designed for use with sensitive electronic components, where electrostatic discharge is a problem. The antistatic ionizing air blower can also be used where static electricity causes problems such as: attraction of dirt to problem, misalignment of small parts due to electrostatic “jumpint” and undesirable adhesion of plastic films due to electrostatic charge.

Technical Parameter

Input Voltage	110V/60Hz or 220V/50Hz
Output voltage	AC 5.6KV
Balance	±10V
Ion Emission	AC Ionization
Air Coverage	1280mm×1500mm
Airflow	160~440CFM
Dimensions	1100mm(L) ×184mm(W) ×110mm(H)

Features

1. Rapidly neutralizes static charges.

2. Covers an extended distance with ionized air.

3. Variable speed fan with wide range of air flow.

4. Inherently balanced ion output.

5. Patented ion emitter cleaner.

6. Ionization indicator lamp.

7. Ion wattage heater for operator comfort.

8. Overhead installation to save more space.

9. Durable, electrically grounded metal enclosure.

Test Result

Test condition
Test Voltage: 1KV-100V Temperature: 22°C humidity: ≤60 percent
Distance	300mm	600mm	900mm	1200mm
300mm middle-line left	0.6 sec.	2.1 sec.	4.9sec.	6.1 sec.
Middle-line	0.6 sec.	1.9 sec.	4.2 sec.	5.7 sec.
300mm middle-line right	0.7 sec.	2.1 sec.	4.7 sec.	6.0 sec.

* 220V Antistatic Ionizing Air AC Blower neutralizing static time applied to ESD standard.

* Test result by ME268A measure equipment.

* Test result will be different due to different temperature & humidity.

Attentions:

The ionizing air blower must be grounded for safe operation. Plug the unit into a standard 3- terminal grounded receptacle. If an extension cord is necessary, use only a 3- wire extension cord that provides grounding.
