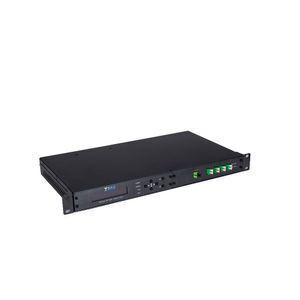

1550nm High Power EDFA Amplifier with WDM

Product details
Packaging Detail:by carton;Humidity:10%~85%;
Gain:30dB;Input Power:-3~+10dBm;
wavelength:1540-1560nm;Model Number:HA1810;
Brand Name:B&A;Output Pump leakage:<-45dBm;
Input Pump Leakage:<-35dBm;Noise Figure:6dB;
Output Power:24dBm~36dBm;Operating Temperature:-5~+60℃;
Supply Ability:4000 Piece/Pieces per Year 1550nm High Power EDFA Amplifier with WDM;Place of Origin:Shanghai China;
Name:1550nm High Power EDFA Amplifier with WDM;Payment Terms:L/C,T/T,Western Union;
Port:Shanghai;





Product Description

Features:



1550nm High Power EDFA Amplifier with WDM

Features

High power: up to 5W total, 1Unit for 2000~4000 optical node



Low CSO: below 5.5dB (@+5dBm input)



Er-Yb co-doped DCF amplify technology: Patent Pump DumpTechnology



Low CSO: <-70dBc



Controllability and maneuverability:    Dual CPU to deal Control loop and communication separately



High stability and reliability: MTBF>150000 hours



Redundancy Hot Swap Power module:   220VAC/-48VDC can plug mix



Perfect network interface: Ethernet,RS-485 and RS-232



Support Telnet and SNMP network management



Intelligent Temperature Control System



output power can be adjustable by network and manual



Application



1.Analog CATV Transmission



2.FTTH Optical Access



3. Optical Distribution



4.Free Space Optical



5.R&D and Training



Optical Characteristics



Parameter

Symbol

Min

Typ

Max

Unit

Wavelength

λc

1540

1550

1565

nm

Output Power(1)

Po

24

------

36

dBm

Input power

Pi

-3

------

+10

dBm

Gain

G

------

30

------

dB

Noise Figure(2)

NF

------

6

-----

dB

Output power stability

ΔPo

-----

±0.05

±0.2

dB

Input Isolator

ISOi

30

------

------

dB

Output Isolator

ISOo

30

------

------

dB

Input Pump Leakage

PumpLin

------

------

-35

dBm

Output Pump leakage

PumpLout

------

------

-45

dBm

Return Loss

RL

-------

-------

-45

dB

PDG

PDG

------

-------

0.3

dB

PMD

PMD

------

-------

0.5

ps



Electric Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

Power supply

Vps

85/170

110/220

132/264

VAC

Consumption

P

-----

-----

50

W

Environmental Characteristics



Parameter

Symbol

Min

Typ

Max

Unit

Operating Temperature

Tw

-5

-----

60

Storage Temperature

Ts

-40

-----

80

Humidity

------

10

------

85

%







Packaging & Shipping

 Packing Details: Standard export package or customized package

Delivery Details: 7-15days





Size

 483X364X44(mm)
