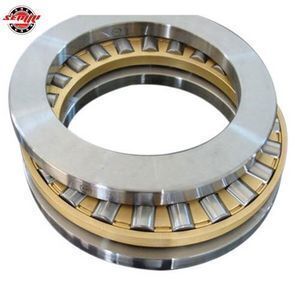

559724 Cylindrical Roller Thrust Bearing For Main Drive Gear

Supplier: Tianjin Semri Bearing Technology Co., Ltd.
Region: Tianjin, China
Contact: Ms Silent Zhang
Price: $30.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Reference speed:	850 r/min;
Bore diameter:	120 mm;	Place of Origin:	Shandong China;
Seals Type:	open;	Width:	30 mm;
Brand Name:	TFN;	Product name:	559724 Cylindrical Roller Thrust Bearing For Main Drive Gear;
Port:	Any China Port;	Mass bearing:	5.03 KG;
Precision Rating:	p5;	Designation:	81724;
Structure:	Thrust;	Number of Row:	single row;
Limiting speed:	1200 r/min;	Basic static load rating:	2471kN;
Basic dynamic load rating:	451kN;	Outside diameter:	215 mm;
Supply Ability:	100000 Piece/Pieces per Month;	Packaging Detail:	1.Industrial packaging: Plastic tube (10pcs in one tube)+ carton + plywood pallets; plastic bag + kraft paper + carton + plywood pallets; 2.Commercial packing: 1pc/plastic bag+ single color box+ carton + plywood pallets; 3.According to customer's requirement;
Type:	roller;	Model Number:	559724 81724;

Product Description

559724 Cylindrical Roller Thrust Bearing For Main Drive Gear

Product Name	559724 Cylindrical Roller Thrust Bearing For Main Drive Gear
Brand	TFN / SEMRI / OEM
Model Number	559724
Dimension	120x215x30 mm
Ring Material	Steel
Cage Material	Brass,Nylon,Steel
Precision	P0, P6, P5, or as requested
Vibration	ZV1, ZV2, ZV3, or as requested
Clearance	C0,C2,C3, or as requested
Type	292 series,293 series,294 series,811 series,812 series,893 series

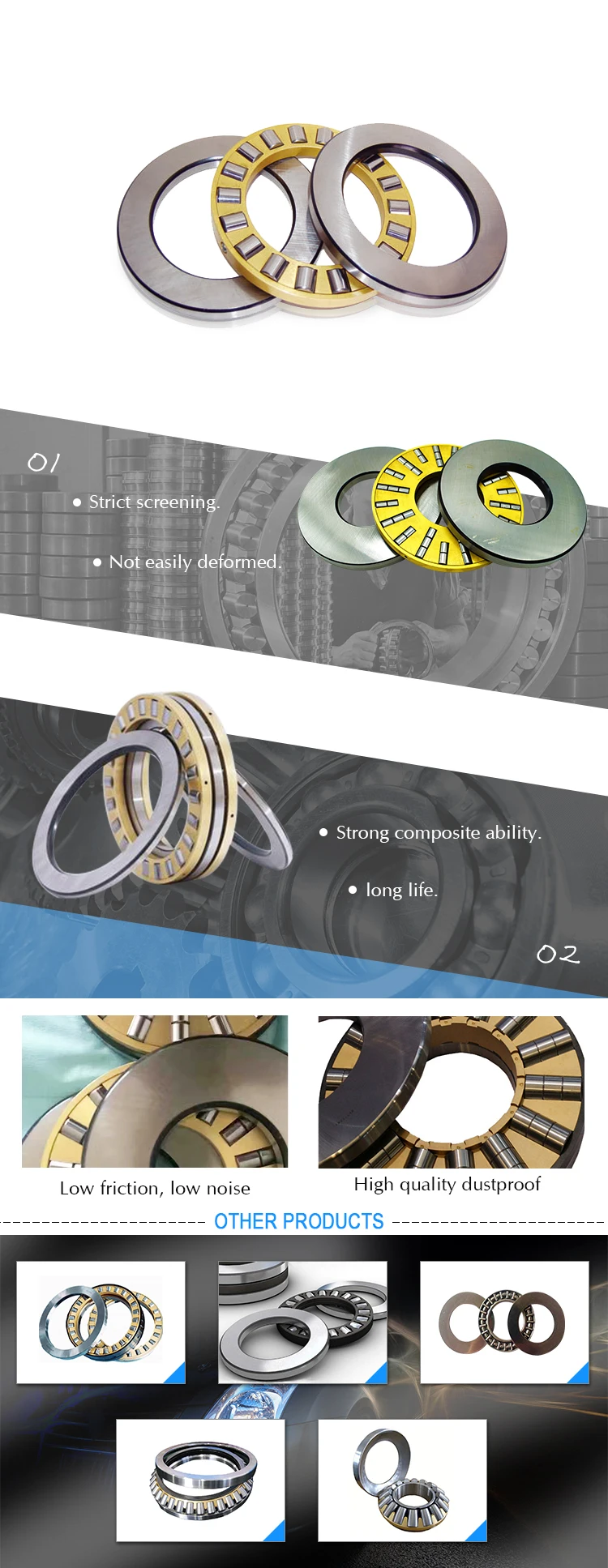

Features	High load carrying capacity ,Extended bearing service life,Separable design
Quality standard	ISO9001:2000/ SGS
Quality Control Process	1.Assembly
	2.Windage test
	3.Cleaning
	4.Rotary test
	5.Greasing and gland
	6.Noise inspection
	7.Appearance inspection
	8.Rust prevention
	9.Product packaging
Application	Cylindrical roller thrust bearings are designed to accommodate heavy axial loads and impact loads. They must not be subjected to any radial load. The bearings are very stiff and require little axial space. Separable design Shaft washer, housing washer, cylindrical roller and cage thrust assembly can be mounted separately. Extended bearing service life To prevent stress peaks, the roller ends are relieved slightly to modify the line contact between the raceway and rollers. Application in heavy duty machine tools, high power Marine gearboxes, oil RIGS, vertical motors and other machinery

Other Thrust roller bearing models :

Bearing Number	Boundary dimensions(mm)								Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)
	d	D	d1s	D1s	T	Dw	B	rs	Cr	Cor	Grease	Oil	(Approx.)
	d	D	max	min	T	Dw	B	min	Cr	Cor	Grease	Oil	(Approx.)
81102	15	28	28	16	9	3.5	2.75	0.3	12.9	28.6	2800	11000	0.026
81103	17	30	30	18	9	3.5	2.75	0.3	13.4	31	2500	10000	0.03
81104	20	35	35	21	10	4.5	2.75	0.3	20.2	46.5	2100	8500	0.004
81105	25	42	42	26	11	5	3	0.6	27.3	68	1800	7000	0.006
81106	30	47	47	32	11	5	3	0.6	27.8	72.5	1500	6000	0.007
81107	35	52	52	37	12	5	3.5	0.6	31	87	1400	5500	0.009
81108	40	60	60	42	13	6	3.5	0.6	43	121	1200	4800	0.135
81109	45	65	65	47	14	6	4	0.5	45.5	135	1100	4400	0.15
81110	50	70	70	52	14	6	4	0.5	48	150	1000	4000	0.165
81111	55	78	78	57	16	6	5	0.6	62.5	215	900	3600	0.25
81112	60	85	85	62	17	7.5	4.75	1	69	215	830	3300	0.285
81113	65	90	90	67	18	7.5	5.25	1	73	236	780	3100	0.34
81114	70	95	95	72	18	7.5	5.25	1	76.5	257	730	2900	0.365
81115	75	100	100	77	19	7.5	5.75	1	78	268	680	2700	0.425
81116	80	105	105	82	19	7.5	5.75	1	79.5	279	650	2600	0.445
81117	85	110	110	87	19	7.5	5.75	1	83	300	630	2500	0.475
81118	90	120	120	92	22	9	6.5	1	112	395	580	2300	0.67
81120	100	135	135	102	25	11	7	1	158	555	500	2000	1
81122	110	145	145	112	25	11	7	1	165	605	480	1900	1.1
81124	120	155	155	122	25	11	7	1	172	655	450	1800	1.17
81126	130	170	170	132	30	12	9	1	197	755	400	1600	1.74
81128	140	180	178	142	31	12	9.5	1	206	815	380	1500	1.95
81130	150	190	188	152	31	12	9.5	1	214	870	350	1400	2.07
81132	160	200	198	162	31	12	9.5	1	221	930	330	1300	2.19
81206	30	52	52	32	16	7.5	4.25	0.6	53.5	129	1500	6000	0.14
81207	35	62	62	37	18	7.5	5.25	1	54.5	139	1200	4900	0.235
81208	40	68	68	42	19	9	5	1	74.5	190	1100	4400	0.265
81209	45	73	73	47	20	9	5.5	1	82	222	1000	4100	0.31
81210	50	78	78	52	22	9	6.5	1	85	238	950	3800	0.385
81211	55	90	90	57	25	11	7	1	121	340	830	3300	0.61
81212	60	95	95	62	26	11	7.5	1	125	365	780	3100	0.66
81213	65	100	100	67	27	11	8	1	130	385	730	2900	0.775
81214	70	105	105	72	27	11	8	1	134	410	680	2700	0.815
81215	75	110	110	77	27	11	8	1	138	435	650	2600	0.86
81216	80	115	115	82	28	11	8.5	1	142	460	630	2500	0.95
81217	85	125	125	88	31	12	9.5	1	169	550	580	2300	1.28
81218	90	135	135	93	35	14	10.5	1.1	213	680	530	2100	1.82
81220	100	150	150	103	38	15	11.5	1.1	243	795	480	1900	2.24
81222	110	160	160	113	38	15	11.5	1.1	259	885	450	1800	2.45
81224	120	170	170	123	39	15	12	1.1	264	930	430	1700	2.69
81226	130	190	187	133	45	19	13	1.5	360	1210	380	1500	4.2
81228	140	200	197	143	46	19	13.5	1.5	370	1280	350	1400	4.57
89306	30	60	60	32	18	5.5	6.25	1	54	166	1300	5000	0.25
89307	35	68	68	37	20	6	7	1	66	214	1200	4600	0.36
89308	40	78	78	42	22	7	7.5	1	85	277	1000	4000	0.52
89309	45	85	85	47	24	7.5	8.25	1	102	345	900	3600	0.67
89310	50	95	95	52	27	8	9.5	1.1	125	445	800	3200	0.94
89311	55	105	105	57	30	9	10.5	1.1	158	570	730	2900	1.27
89312	60	110	110	62	30	9	10.5	1.1	162	600	680	2700	1.35
89313	65	115	115	67	30	9	10.5	1.1	166	635	650	2600	1.43
89314	70	125	125	72	34	10	12	1.1	205	790	600	2400	1.93
89315	75	135	135	77	36	11	12.5	1.5	239	920	550	2200	2.41
89316	80	140	140	82	36	11	12.5	1.5	246	970	530	2100	2.53
89317	85	150	150	88	39	12	13.5	1.5	281	1100	500	2000	3.14
89318	90	155	155	93	39	12	13.5	1.5	289	1160	480	1900	3.28
89320	100	170	170	103	42	13	14.5	1.5	335	1370	430	1700	4.19
89322	110	190	190	113	48	15	16.5	2	430	177	400	1600	6.03
