After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Machinery Test Report: | Provided; |
Single gross weight: | 56.0 KG; | Place of Origin: | Hubei China; |
Selling Units: | Single item; | Engine power: | 130hp; |
Weight: | 7300kg; | Washing height: | 21 m; |
Wheel drive: | 4X2; | Core Components: | PLC,engine,PRESSURE VESSEL,GEAR,pump; |
Certification: | CCC,CE, ISO9001-9002; | Condition: | New; |
Brand Name: | Hontop; | Package Preview: | ; |
Showroom Location: | UNITED KINGDOM,VIET NAM,philippines,brazil,SAUDI ARABIA,INDIA,Mexico,Thailand,Sri Lanka,Romania,BANGLADESH,UKRAINE,uzbekistan,japan,malaysia; | Sweeping speed: | 3-20 km/h; |
Dimension(L*W*H): | 7160X2250X2750 mm; | Warranty: | 1 YEAR; |
Warranty of core components: | 1 YEAR; | Tire: | 7.00R16 14PR; |
Single package size: | 56X35X38 cm; | Product name: | ISU-ZU Road Sweeper and cleaning truck; |
Sweep Width: | 3.5m; | Marketing Type: | New Product 2020; |
Local Service Location: | UNITED KINGDOM,philippines,INDIA,Mexico,spain,Thailand,Australia,argentina,UAE,Colombia,BANGLADESH,UKRAINE,NIGERIA,uzbekistan; | Wheelbase: | 3815; |
Video outgoing-inspection: | Provided; | Displacement: | 2999ml; |
Packaging Detail: | Ro-ro, Bulk, container; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,farms,Construction works ,Municipal sanitation; |
After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support; | Crew seat: | 2; |

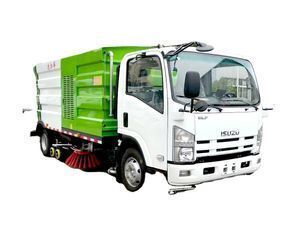

ISU-ZU 8-ton vacuum road Sweeper and cleaning truck for city street and airport runway
Brief introduction of ISUZU 4X2 8m3 Vacuum Road Washing and Sweeping Truck
The sweeping system is composed of vice engine, suction fan, clear water tank, garbage container, rear suction disc, left and right vertical sweepers, dust suppression and sweeping system, hydraulic system, electronic control system and auxiliary frame.
The washing system is composeing of water tank, water pump, the water spray nozzle and pipes.
1. Euro 5 engine, 130hp, 3815ml
2. 140hp vice engine
3. 4m3 clear water tank
4. 4m3 garbage container.
5. Vertical sweeper: equipped with water spray device, the front sweepers have automatic avoiding function.
6. Max sweeping width:3.5m
7. 21m high pressure hose reel
1. General Specification
Dimension |
7160×2250×2750mm |
Gross weight |
7300kg |
Rated load weight |
670kg |
Curb weight |
6500kg |
Max speed |
110km/h |
Crew seat |
2 |
Wheelbase |
3815mm |
2. Chassis Specification
Chassis brand |
ISU-ZU |
Transmission |
Manual |
Fuel |
Diesel |
Tire number |
6 |
Tire specification |
7.00R16 14PR |
Engine |
4KH1CN5HS |
Engine power |
130hp |
Displacement |
2999ml |
Emission standard |
Euro 5 |
3. Sweeping Specification
Sweeping speed |
3-20Km/h |
Sweeping efficiency |
≥98% |
Maximum suction size |
100mm |
Max sweeping width |
3.5m |
Max sweeping capacity |
60000m2/h |
Max angle for discharging the garbage container |
≥54° |
Garbage container volume |
4m³ |
Garbage cleaning |
Self-cleaning function |
Hydraulic oil tank volume |
60L |
Vice engine power |
140hp |
4. Washing Specification
Clear water tank volume |
4 m³ |
Water pump flow |
153L/m |
Water nozzle position |
Front, side, middle, rear |
Optional device |
Operation monitor, work platform, snow shovel |
