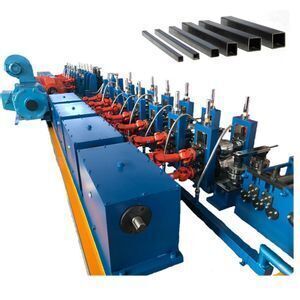

High frequency steel pipe machine steel pipe making machine pipe welding machine

Supplier: Cangzhou Zhongtuo International Trade Co., Ltd.
Region: Hebei, China
Contact: Mr Cary xu
Price: $38000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	High frequency steel pipe machine steel pipe making machine pipe welding machine package Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.;	Main Power Required:	One operator with one assistant;
Type:	Pipe Production Line;	Pipe Material:	Carbon Steel,STAINLESS STEEL;
Condition:	New;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;
Showroom Location:	INDIA;	Shipment Packing:	One or two 40ft container;
Power(W):	Customized;	Dimension(LWH):	Up to final design;
The pipe diameter:	10-168mm;	Place of Origin:	Hebei China;
Key Selling Points:	long service life;	Raw material:	CR or HR;
Port:	Tianjin;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Cutting Style:	Tracking flying saw;	Drive Line:	Gear box;
Productivity:	30-90m per minute;	Production Capacity:	30-90m/min;
Supply Ability:	20 Set/Sets per Month;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Voltage:	Customized,380v;	The wall thickness of tube:	0.4-5.0mm;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Application:	Energy Supply Pipe;
Local Service Location:	none;	Warranty:	5 years;
Brand Name:	ZHONGTUO;

High frequency steel pipe machine steel pipe making machine pipe welding machine

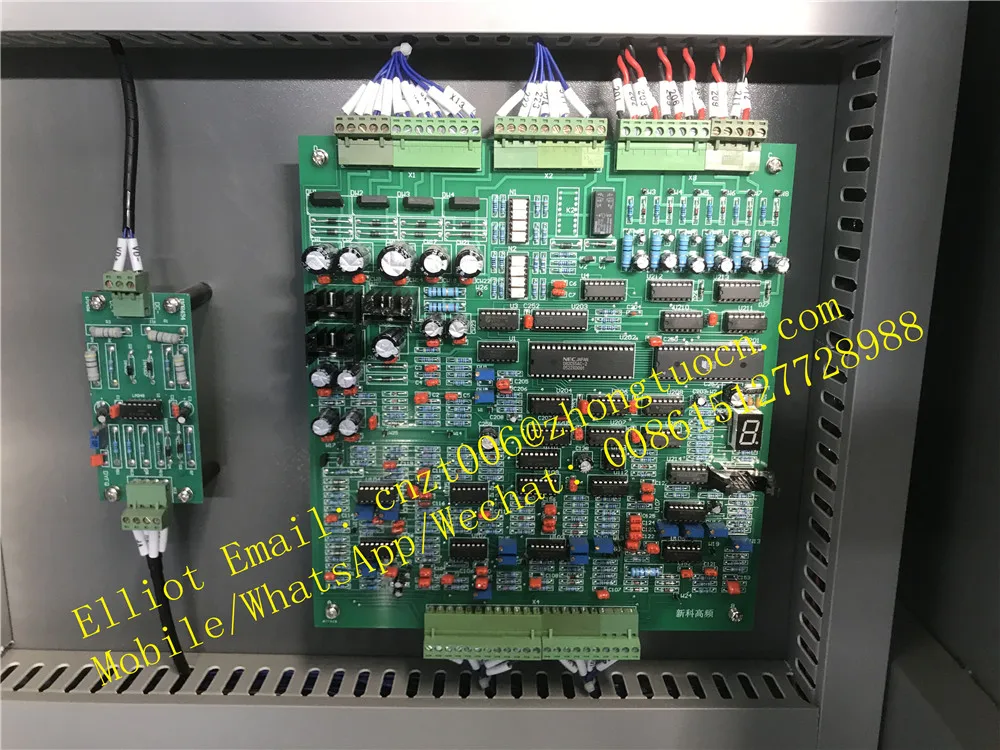

Cangzhou Zhongtuo High frequency steel pipe machine steel pipe making machine pipe welding machine works through PLC control system to carry out the producing line plan automatically and individually. It works on design and producing on roll forming machinery since 1996, so we can guarantee the quality and quanlity.

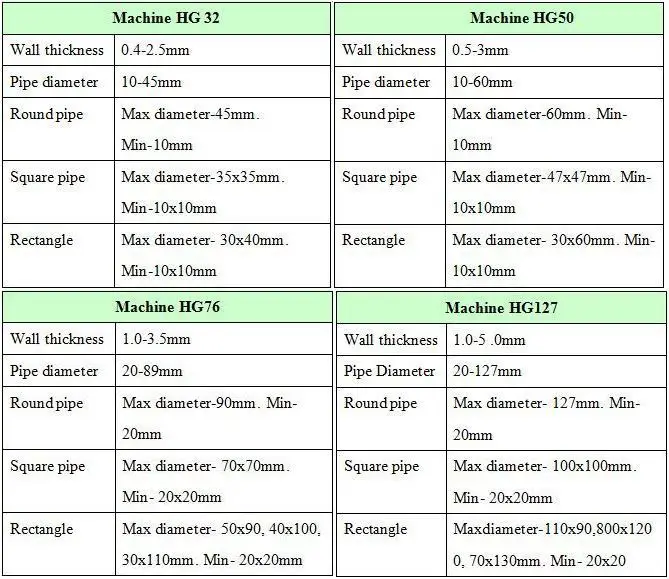

Machine types of High frequency steel pipe machine steel pipe making machine pipe welding machine :

Now we have 4 types machines for you to choose as below and all of them could make round pipes and square pipes.

Main specifications of High frequency steel pipe machine steel pipe making machine pipe welding machine:

This machine is made up by the following three elements: Main machine which contains rollers of Φ60mm, others Φ40mm and HP is 90KW DC-motor speed modification; Computer fixed length flying cutter is HP15KW; solid state high frequency inductio is 150KW, this part is more energy-saving.

Product Description

Machine

Description

Quantity

Delivery time

Container

Type

Price USD

FOB

TIANJIN

High frequency steel pipe machine steel pipe making machine pipe welding machine

1 SET

65 working days

after receiving

deposit

One or Two 40 FT

Up to final design

USD38000---149000

The following types High frequency steel pipe machine steel pipe making machine pipe welding machine for your reference:

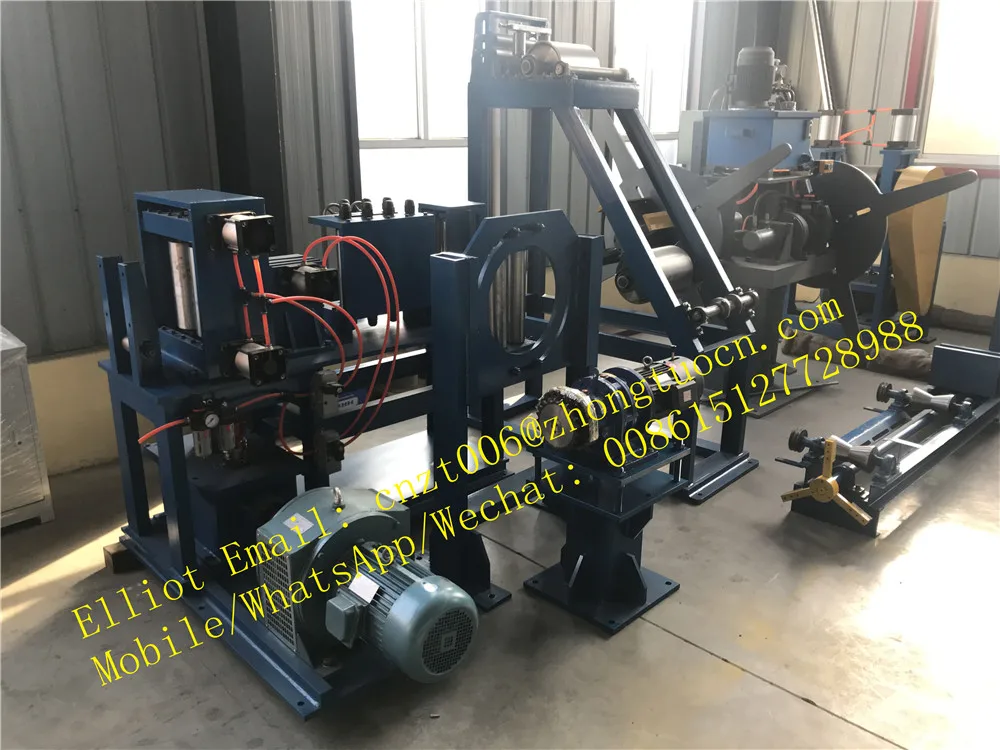

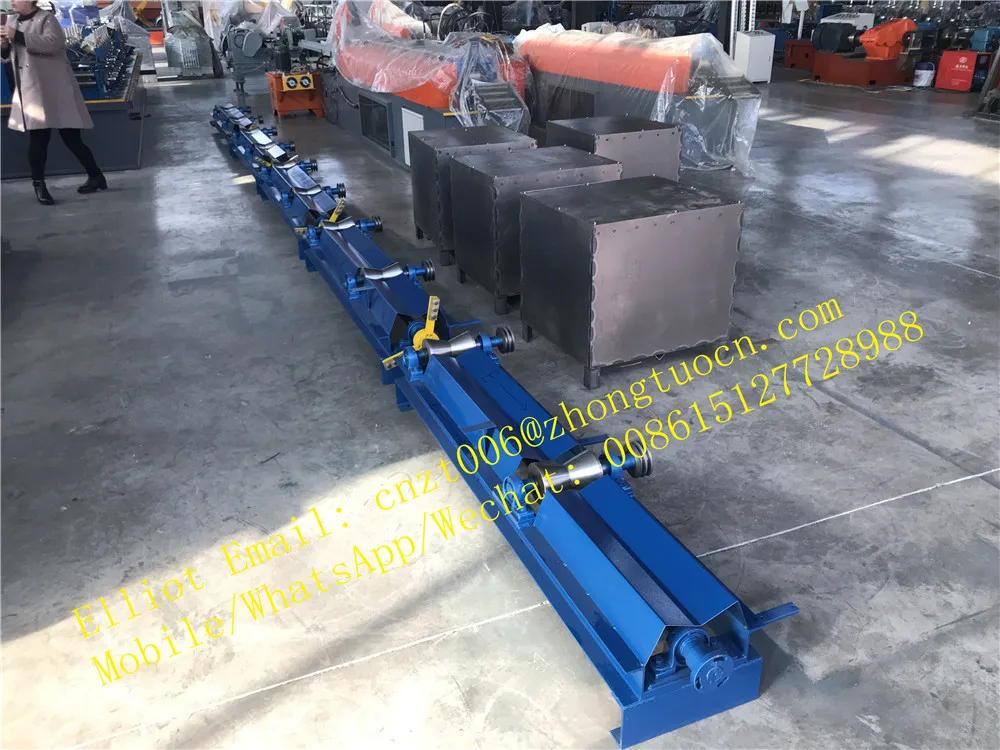

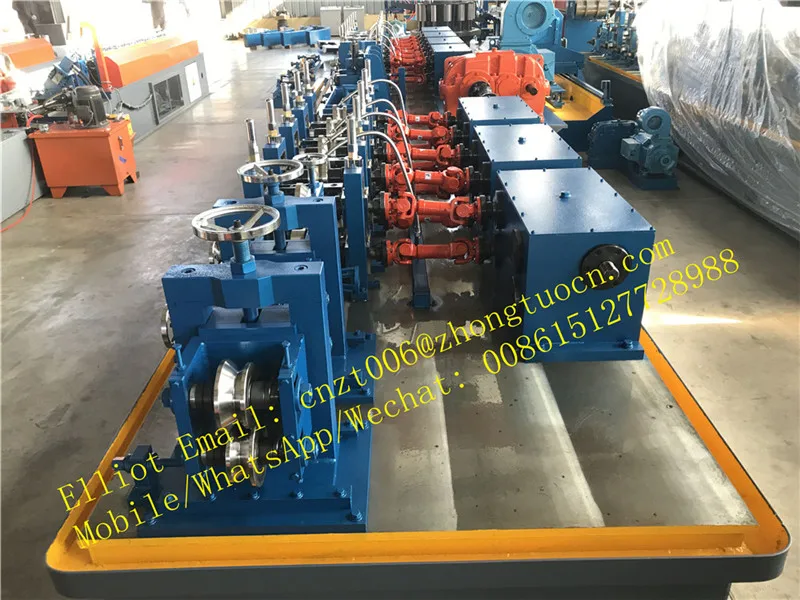

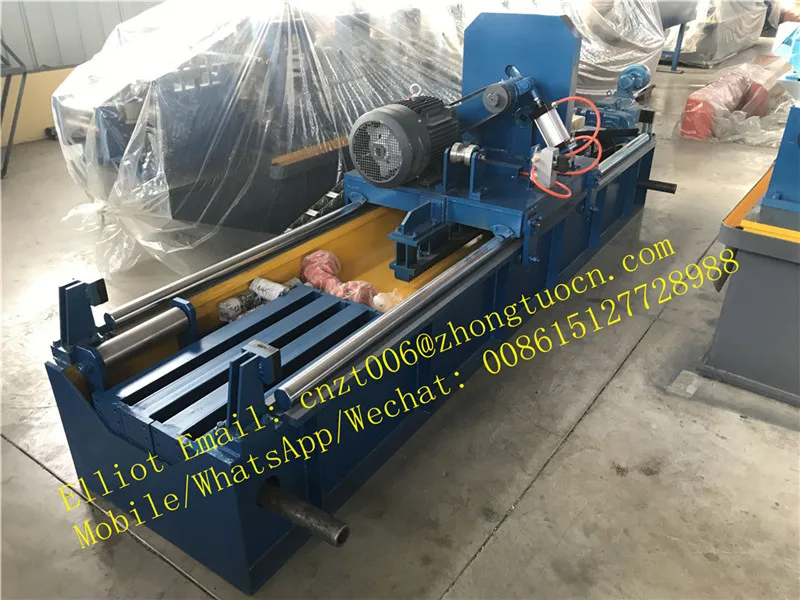

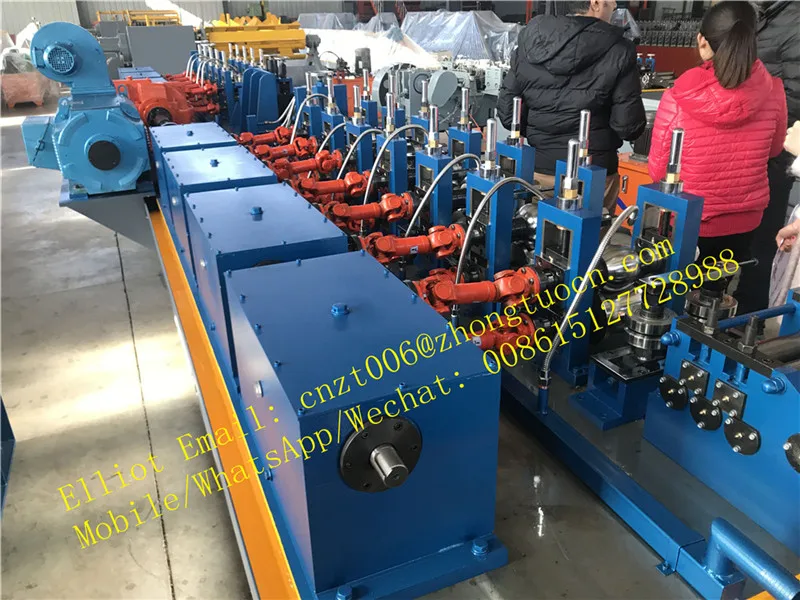

Here are some High frequency steel pipe machine steel pipe making machine pipe welding machine pictures for your reference:

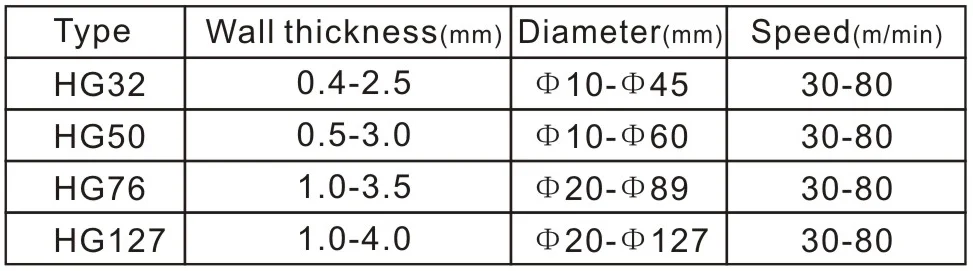

Basic High frequency steel pipe machine steel pipe making machine pipe welding machine parameters for your refereence:

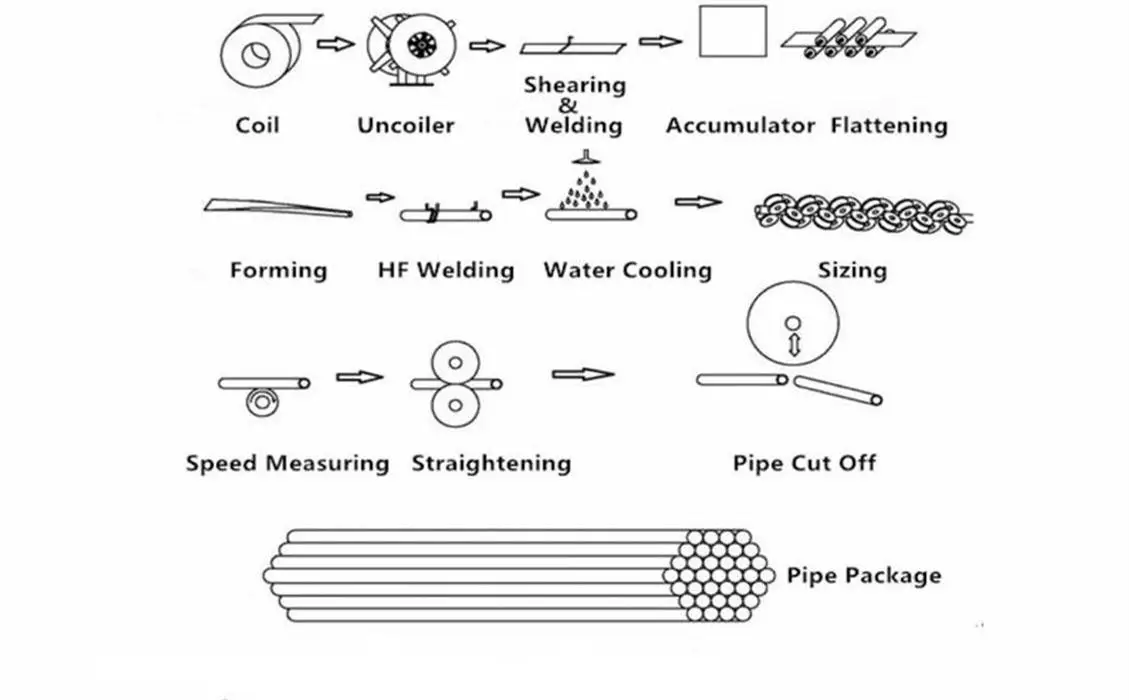

Main elements of the welded pipe machine

Name

Frame

Parameters

Loading car

Up coil by hydraulic power and

motored car by electric power

Outside diameter of coil:1000-1600mm

Max coil weight:6T

Car speed:6m/min

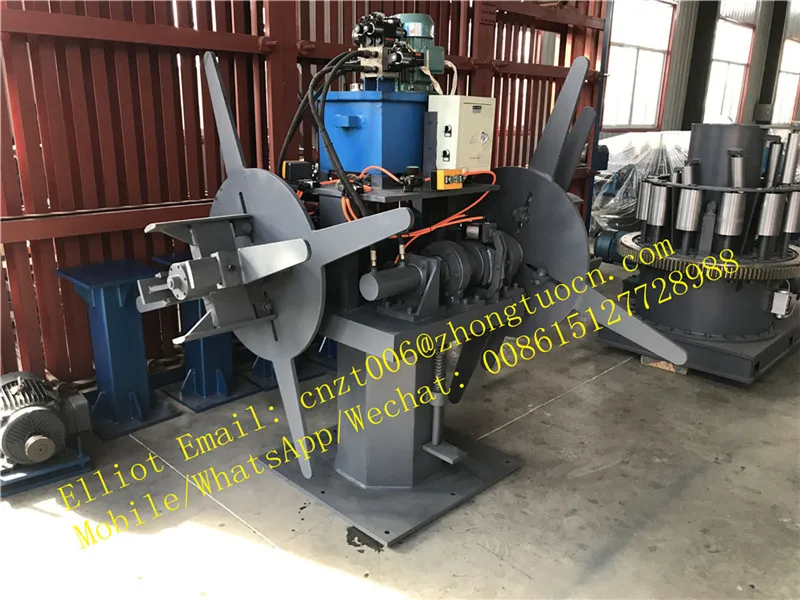

Decoiler

Conehead style with slider,

motored by hydraulic power to

open coil with

brake.

Coil outside diameter:1000—1600mm

Max coil weight:6T

Motor: 4KW

Oil tank: 110mm for 500mm one time

Unbender

unit

Open coil and put it to next

processor. It has four oil tanks for

leveling coil, open coil, up coil and

put it to feeder.

Supported coil width:160—480mm

Coil thickness: 2.0 -5.0mm

Motor:2.2KW

Two roll pass

coil feeder

Send coil to cut to length machine

for getting valid width of coil and

then welded coils together.

AC motor, gear box transmission and

power by hydraulic tank.

Supported coil width:160-480mm

Thickness of material:2.0-5.0mm

Feeding speed: 20m/min

Motor: AC 11KW

Cut to length

machine

Remove Irregular part of coil head

and end for welding with new coil.

Dragon Gate style upper cutting.

Supported coil width:160-480mm

Thickness of material:2.0-5.0mm

Oil tank power: 10mpa

Platform

for welding

Welded coil with next for nonstop

production.

Double diameter cylinder for tighten

coil then weld them together.

Supported coil width:160-480mm

Thickness of material:2.0-5.0mm

Four-roll coil feeder

This part is for making sure there is

enough coil in the accumulator,

deliver coil to the accumulator.

Roller diameter:180mm

Rolling width:580mm

Material:GCr15

Motor:YCT 30KW

Speed:100m/min

Cage

Accumulator

For coil stock and nonstop

production. There are four parts,

fixed frame, adjustable frame, coil

plate and roller for tightening coil.

You can adjust this accumulator according

to the coil width.

More about High frequency steel pipe machine steel pipe making machine pipe welding machine

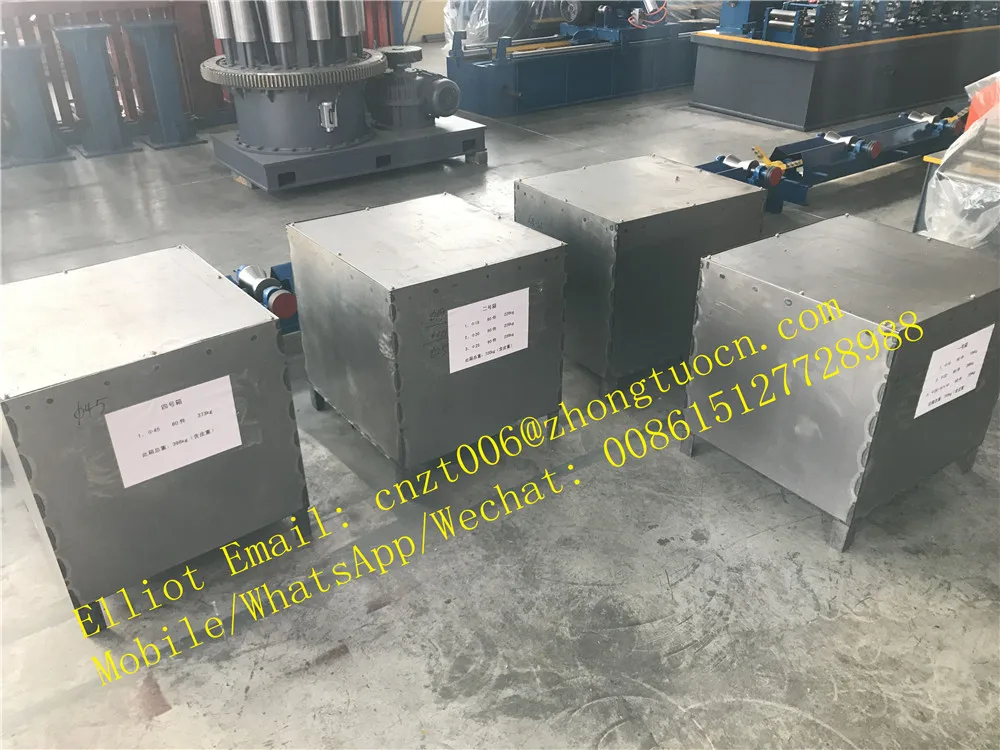

Packaging & Shipping

Rollers packaged in the iron box.

Our Services

1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and

also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other neces

sary things.

2. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.
