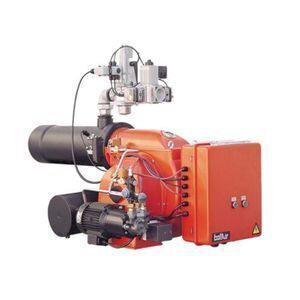

Dual Fuel Heavy Oil And Gas Burner, Boiler Spare Parts, Modulation Type

• Two-stage operation (high/low flame).
• Compatible with any type of combustion chamber, according to EN303 standard..
• High blowing efficiency, low electrical input, low noise.
• Air-gas mixing at blast-pipe.
• Maintenance facilitated by the fact that the mixing unit can be removed without having to remove the burner from the boiler.

  European Standard for The Emission of Pollutants From Oil and Gas Burners
  Class)	EN676:Natural Gas			EN276:Light Oil
  	NOx		CO	NOx	CO
  	Natural Gas	LPG
  I	≤170	≤230	≤100	≤250	≤110
  II	≤120	≤180		≤185	≤110
  III	≤80	≤140		≤120	≤60

2. Italy Riello boiler burner

• The RL series of burners cover a firing range from 154 to 2700KW, and it has been designed for use in low or medium temperature Steam boiler, Hot water boiler, Thermal oil boiler.
• Operation is "two-stage"; the burners are fitted with a microprocessor-based control panel, which suppliers indication of burner status and fault causes.
• Optimisation of sound emission is guaranteed by the special design of the air suction circuit and by incorporated sound proofing material. The elevated performance of the fans and combustion header guarantee flexibility of use and excellent working at all firing rates.
• The exclusive design ensure reduced dimensions, simple use and maintenance. A wide range of accessories guarantee elevated working flexibility.

  +

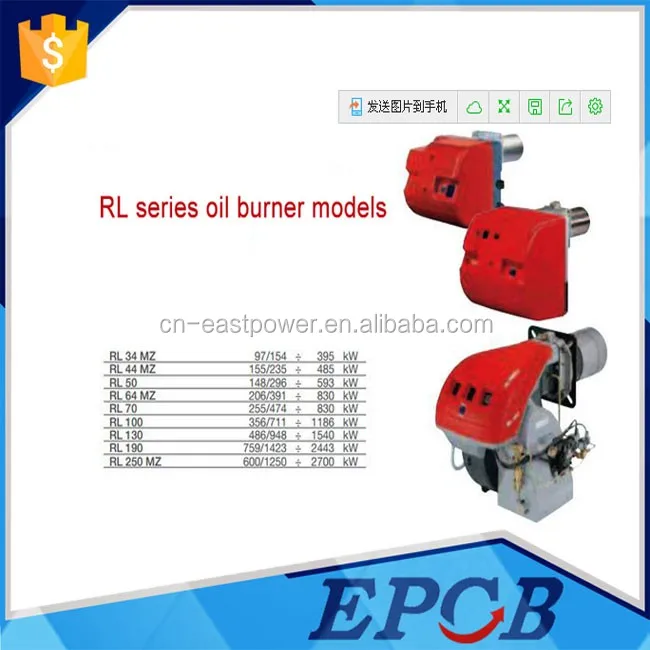

  RL 34MZ	97/154 ÷ 395 KW
  RL 44MZ	155/236 ÷ 485 KW
  RL 50MZ	148/296 ÷ 593 KW
  RL 64MZ	206/391 ÷ 830 KW
  RL 70MZ	255/474 ÷ 830 KW
  RL 100MZ	356/744 ÷ 1186 KW
  RL 130MZ	486/948 ÷ 1540 KW
  RL 190MZ	759/1423 ÷ 2443 KW
  RL 250MZ	600/1250 ÷ 2700 KW
