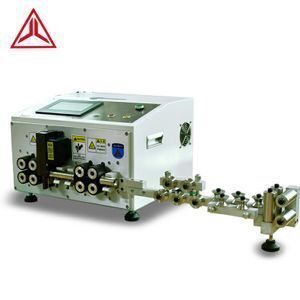

sheath wire flat cable peeling cutting and twisting machine fully automatic computer wire stripping machine

Supplier: Shenzhen Juli Brothers Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Wu xiao cui
Price: $520.00 /set
Min. Order: 1 set

Click here to contact

Product details

processing wire mumber:	single/double;	Brand Name:	JULI;
Name:	wire stripping machine;	Packaging Detail:	Export wooden box;
Place of Origin:	Guangdong China;	Model Number:	JL-800;
Model:	JL-800-4.5A;	Power:	AC220V 50/60HZ;
Single package size:	42X40X29 cm;	Usage:	Stripping;
Package Preview:	;	Selling Units:	Single item;
blade:	V-shaped knife or round-shaped knife;	Single gross weight:	39.0 KG;

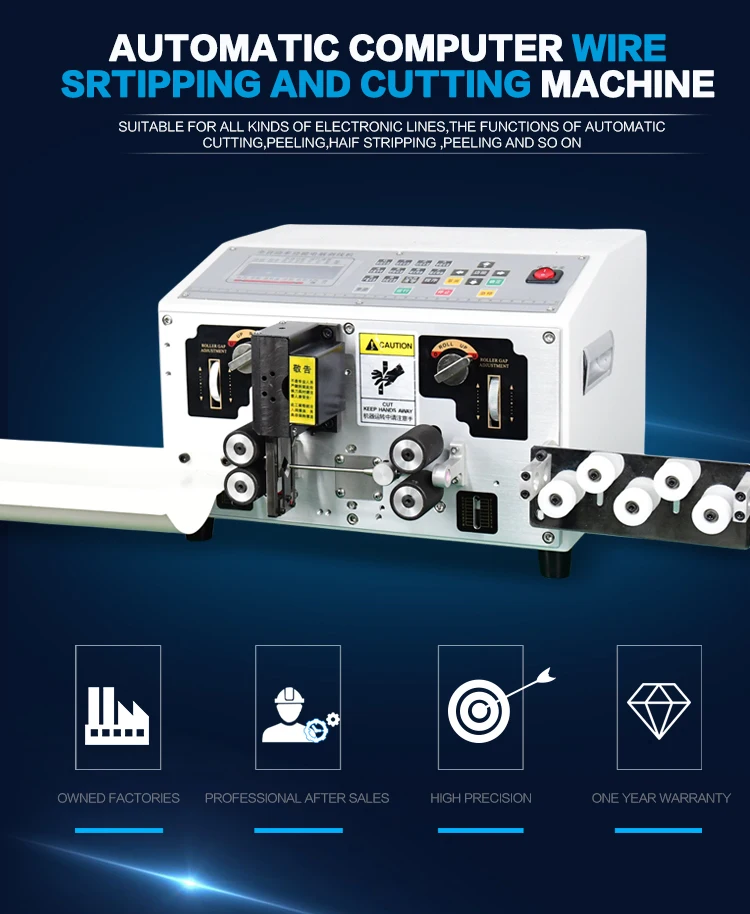

fully automatic computer wire stripping machine sheath wire flat cable peeling cutting and twisting machine

If you need to order, you can directly click the relevant model below to place an order

model	800-4.5 single wire	800-4.5 double wire	800-4.5F	800-4.5N	800-ZB	800-6	800-10	800-16	800-70	800-150
price (EXW)	520	550	800	800	1250	580	660	1000	2500	8000

Product Description

model	800-4.5A	800-4.5 B	800-N	800-F	800-6
power supply	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ
size	L420W400H285	L420W400H285	L420W750H285	L450W500H285	L420W400H285
operating power	350w	350w	350w	350w	350w
cutting length	8mm-9999mm	8mm-9999mm	8mm-9999mm	8mm-9999mm	8mm-9999mm
stripping length	front end 30mm tail end 80mm	front end 30mm tail end 80mm	front end 30mm tail end 30mm	front end 30mm tail end 30mm	front end 30mm tail end 80mm
twisting length			3-10mm
wire seperation length				60mm-80mm
applicable wire diameter	4.5mm² / 4mm	2mm² / 2.5mm-3mm	28#-14#	28#-14#	0.25mm²-6mm²
processing wire mumber	single	single/double	single/double	single	single
blade	V-shaped knife	V-shaped knife	V-shaped knife	flat knife	V-shaped knife or round-shaped knife

model	800-10	800-16	100-35	800-70	800-150
power supply	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ
size	L420W430H320	L490W460H320	L610W530H390	L610W530H390	L760W1020H1120
operating power	350w	350w	350w	350w	350w
cutting length	8mm-9999mm	8mm-9999mm	8mm-9999mm	8mm-9999mm	30mm-9999mm
stripping length	front end 30mm tail end 80mm	front end 30mm tail end 80mm	front end 150mm tail end 120mm	front end 150mm tail end 120mm	front end 300mm tail end 150mm
twisting length
wire seperation length
applicable wire diameter	0.25mm²-10mm²	0.75mm²-16mm²	0.75mm²-16mm²	6mm²-70mm²	6mm²-150mm²
processing wire mumber	single	single	single	single	single
blade	V-shaped knife or round-shaped knife	V-shaped knife or round-shaped knife	V-shaped knife or round-shaped knife	V-shaped knife or round-shaped knife	V-shaped knife or round-shaped knife

Picture details

FAQ

1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.

2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery

3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples

4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication

5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
