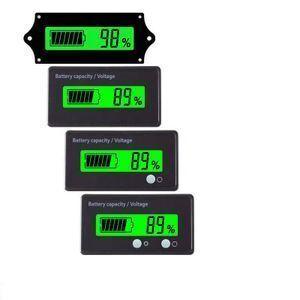

12V 24V 36V 48V Lithium lead acid battery Electric quantity indicator Percentage of remaining Battery c acity voltage

Product details
Lithium Battery:work 2-24s;Place of Origin:Guangdong China;
display:LCD display;Port:China;
net weight:20g;Input current:5-12mA;
Model Number:FS-6DS;Packaging Detail:Carton;
Size:61.3*33.3*13.5mm;Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;
Cable length:30cm;voltage:6-80V;
Brand Name:Original;Supply Ability:100000 Piece/Pieces per Week;
Acid Lead Battery:work 12V 24V 36V 48V 60V 72V;

Product Description

12V 24V 36V 48V Lithium lead acid battery Electric quantity indicator Percentage of remaining Battery c acity voltage

Specification:

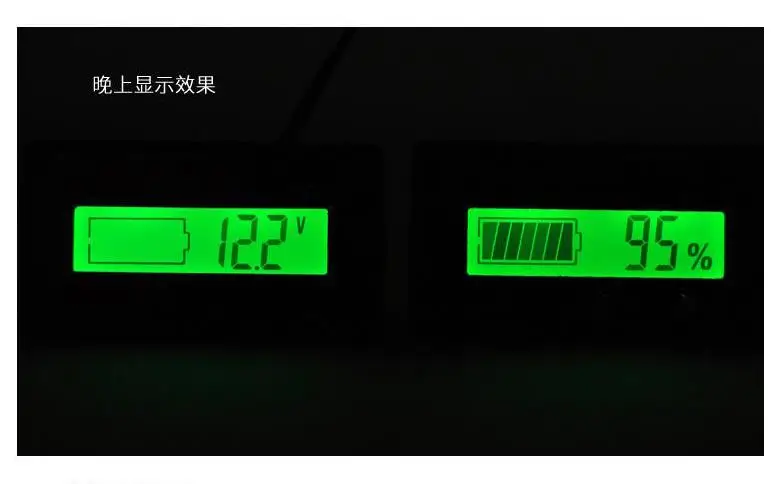

Display :power+voltage, close the key for cycle
Voltage Range:6-63v, products will display based on the voltage value. voltage fluctuations ,power meter will be follow as the voltage fluctuation (Comes with reverse polarity protection ,can be guarantee use effecively)

The product is suitable for lead-acid 12v.24v.36v.48v.(can be changes via key, specific please see setup instructions as below)
The product is suitable for 3.7v lithium battery 2s-16s (can be changes via key ,detail information please see as below )

Cable length: 30cm

Instructions:

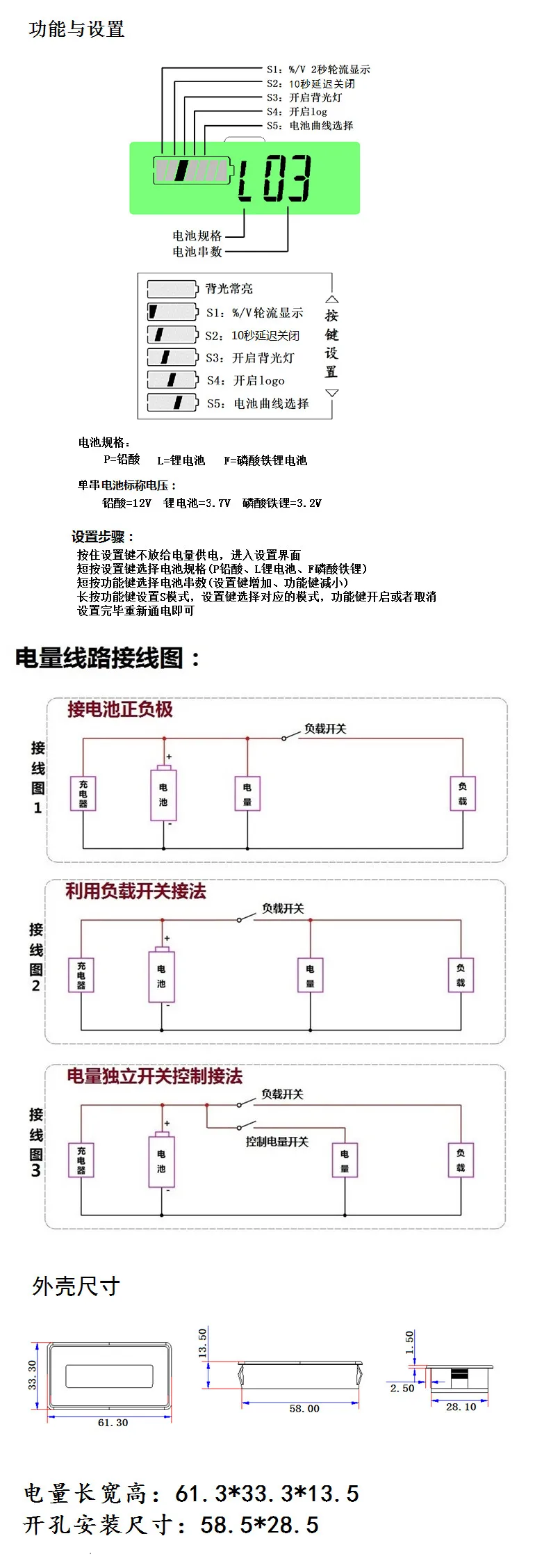

1 Press and hold switch on the product ,power on ,automatically select the interface (please follow as the code corresponds blow)
2.Select your battery type after corresponding ,for example 3 series lithium battery you need to enter the selection screen ,press the key point to L3 interface ,then off,re-energized,choose success,such as the need to set 12v lead-acid batterise,the key point press to p12v interface ,power ,re-energized, both choose success
3.instruments can be used if you select successful..meter shows the power interface ,t  switch, switch to voltage interface ,cli the switch ,turn off the meter ,cycle shown as the code corresponds



Product parameters:

Operating voltage: dc6-64v dc12-84v

Operating current: less than 5MA

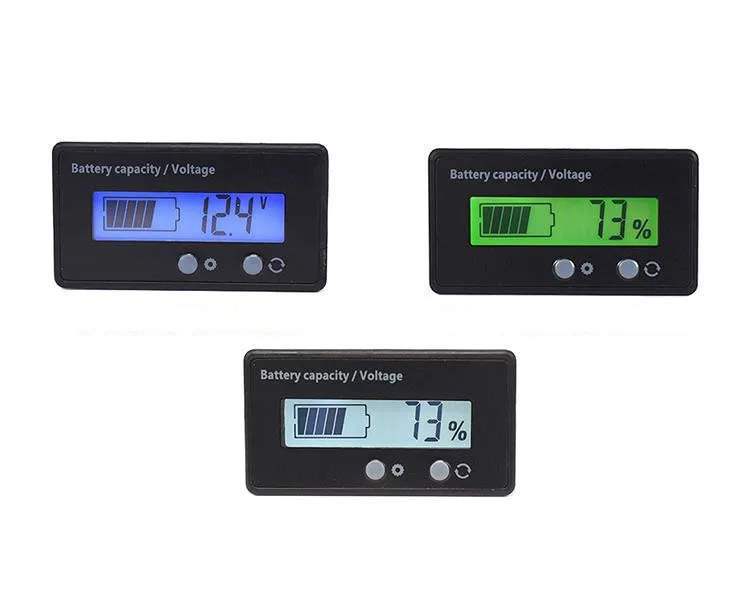

Display mode: LCD ba light (64v color optional)

Hole size: 58.5*28.5mm

Size: 61.3*33.3*13.5mm

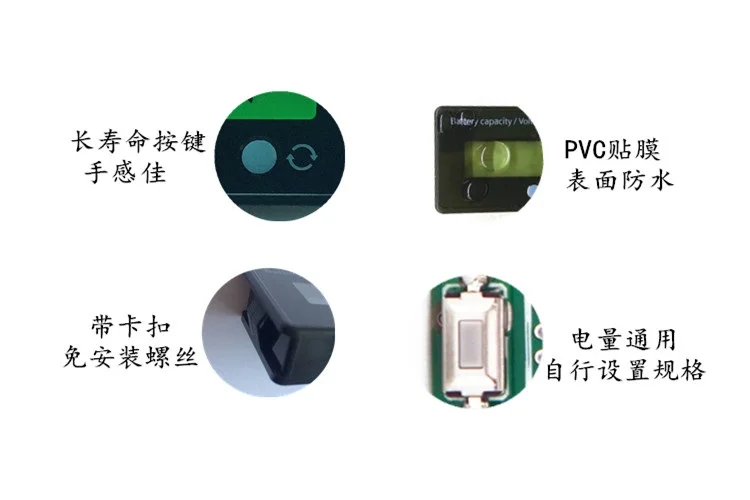

Installation method: open an installation hole, and there are sn les on both sides of the electric meter.

After opening the installation hole, press the electric meter directly into it without installing screws.

Code:Suitable for

L2: 2 string lithium
L3: 3 string lithium
L4: 4 string lithium
L5: 5 string lithium
L6: 6 string lithium
L7: 7 string lithium
L8: 8 string lithium
L9: 9 string lithium
L10: 10 string lithium
L11: 11 string lithium
L12: 12 string lithium
L13: 13 string lithium
L14: 14 string lithium
L15: 15 string lithium

p12v:12v lead-acid
p24v:24v lead-acid
p36v:36v lead-acid
p48v:48v lead-acid

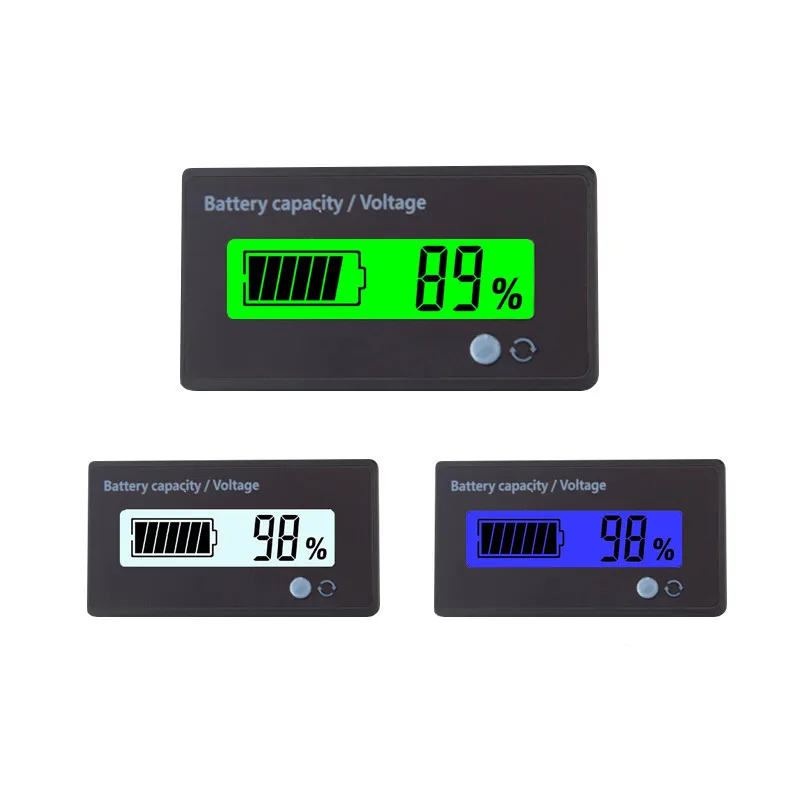

Product Shown
