Usage: | Industrial; | Pressure: | Low Pressure; |
Thermal efficiency: | 99%; | Package Preview: | ; |
Warranty: | 2 Years,More than 5 years; | Output: | Steam; |
Rated steam capacity: | 0.1ton-3ton; | Dimension(L*W*H): | Depends; |
Showroom Location: | Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan; | Supply Ability: | 2000 Set/Sets per Year; |
Certification: | ISO CE; | Style: | Horizontal; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Structure: | Fire Tube; | Brand Name: | Yuanda; |
Local Service Location: | Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Japan,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan; | Place of Origin: | Henan China; |
Type: | Natural Circulation; | Key Selling Points: | High-accuracy; |
Condition: | New; | Fuel: | Gas-fired; |
Marketing Type: | Ordinary Product; | Video outgoing-inspection: | Provided; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Core Components: | Boiler main body; |
Machinery Test Report: | Provided; | Packaging Detail: | 0.2 to 1t/h capacity boiler main part is in nude packing with protection film outside,and accessories put into normal 20ft or 40ft container. Above 2t/h capacity boiler main part should be put on flat rack, and accessories put into normal 20ft or 40ft container, We have long-term cooperation forwarder, can have the lowest shipping cost for your reference, or you can use your own forwarder.; |
Rated steam temperature: | 151C; | Weight: | 2-3ton; |
Warranty of core components: | 1 Year; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Port: | Shanghai/Qingdao/Tianjing/Ningbo/Guangzhou; | Application: | Textile plant, rice mill, garment factory,hospital,food & beverage; |
Power: | 70kw-1400kw; |

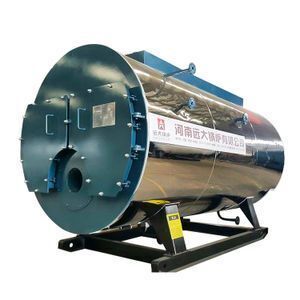

Yuanda WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology,equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize muitiple linkages.The lock protection function protects the equipment running safely.It normally suitable for 500kg to 20ton/h capacity,use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.
Core Technology
1.Nitrogen oxide emissions<30mg/m3
2.PLC control system
3.The 5th stage water level protection
4.Flame-out,power failure self-locking protection function
5.Automatic fault identification function
6.Data collection analysis function
7.Internet og Things remote monitoring
Boiler Model | WNS0.5 | WNS1 | WNS2 | WNS3 | WNS4 | WNS6 | WNS8 | WNS10 | WNS15 | WNS20 | |
Rated steam capacity(T/H) | 0.5 | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 15 | 20 | |
Rated steam pressure(Mpa) | 1.0/1.25/1.6/2.5 | ||||||||||
Rated steam temperature(℃) | 184/194/204/226 | ||||||||||
Feed water temperature(℃) | 20/104 | ||||||||||
Thermal efficiency(%) | >98 | ||||||||||
Nox emission(mg/m3) | 120/80/30 | ||||||||||
Exhaust gas temperature(℃) | <60 | ||||||||||
Fuel type | Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas | ||||||||||
Fuel consumption | Light diesel oil(kg/h) | 32.5 | 64.6 | 129.3 | 192.9 | 258.2 | 388.6 | 514.6 | 641.7 | 960.1 | 1276.2 |
Natural gas(Nm3/h) | 35.7 | 70.1 | 140.3 | 212.1 | 283.4 | 424.2 | 566.3 | 707.8 | 1061.7 | 1415.8 | |
Max transportation weight(t) | 3.5 | 5.5 | 8.0 | 10.7 | 11.6 | 17.5 | 22.5 | 26.8 | 35.2 | 45.5 |
1.60+ years boiler manufacturing experience,15 years export experience.
2.Class A boiler manufacturer,ISO 9001:2000 certificate.
3.Export to 80+ countries,100,000+ cases and 0 accidents.
4.5000t/h annual production capacity of industrial boilers.
5.Engineers abroad installing and commissing service for 50+ countries.
6.Nearly 200 employees and 15 advanced engineers(The Father of China Boiler professor Zhiguang Li is our technical consultant)
Q1: How can you get the best price quickly?
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient
for our communication.
Q2: Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report:By Henan Boiler Inspection Institute;
(6).Passed ISO:9001 and SGS certificate.
Q3: What about the installation and Commissioning?
After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your local place in 72 hours. The experts will responsible for guiding installation and commissioning.
But the buyer will be in charge of :
(1) The round air-tickets costs from Zhengzhou city to your project site.
(2) Board and lodging of seller's workers for entire period at the end user's site.
(3) Service fee for guiding engineer:100$/day/person.
Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
