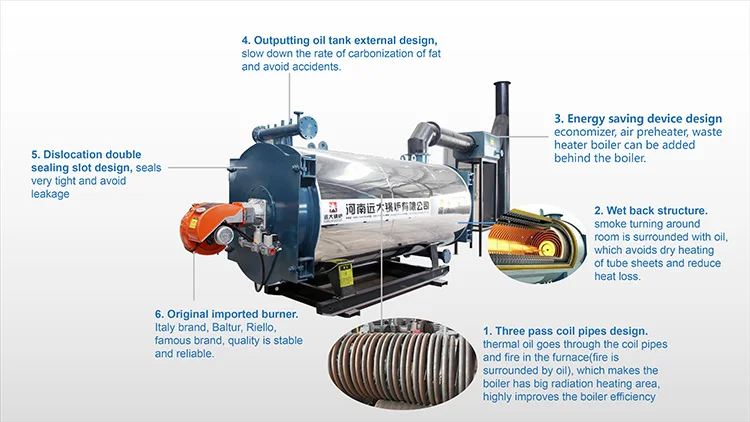

1).Three pass coil pipes design, thermal oil goes through the coil pipes and fire in the furnace(fire is surrounded by oil), which makes the boiler has big radiation heating area, highly improves the boiler efficiency and preventing deformation of boiler shell in high temperature heating.

2).Unique heating surface of the back of boiler--smoke turning around room is wet back design(smoke turning around room is surrounded with oil), which avoids dry heating of tube sheets and reduce heat loss.

3).Unique coil integration process, no gaps between coils, then Smoke will not be chaotic and short-circulate. Smoke flows long and smooth, makes the boilers heating enough and efficiency high.

4). Energy saving device design(air preheater, waste heater boiler or economizer is designed behind the boiler), which makes the exhaust temperature low and improves 10% of boiler efficiency.

5).Double-layer aluminum silicate insulation, makes the temperature of shell surface not more than 40℃,which is energy saving and efficient.

6).Dislocation double sealing slot design,secondary leakage prevention, which seals very tight and avoid leakage.

7).Fast-setting and high-strength refractory building materials, strong solidification, long life cycle, and not easy to shake off.

8).Integrated wiring device(Junction box and wire groove), so that wire-controlled connection is more convenient, maintenance is more simple and more beautiful after installation.

9).Outputting oil tank external design,slow down the rate of carbonization of fat and avoid accidents.

10).Roundness treatment for edges and corners of packing panels, which can prevent incidental injury accident in maintenance.

11).Double-door design and the smoke is removable, which are convenient for maintenance.

12).Professional and beautiful industrial stainless steel packaging design.

13).Independent research and development PLC control board, matching ability is strong.10-inch touch screen,easy, safe and reliable operation; Burner can automatically ignite, flameout, switch small fire and big fire;Exceed 20% configuration for burner, ensures enough output, reduce equipment fatigue and extend equipment life;  high and low pressure protection;  leakage protection.

14).High quality raw material supply---China famous big steel plant provide the raw material.

15).60 years boiler factory, mature technical and production team , which ensures the quality mature and stable.

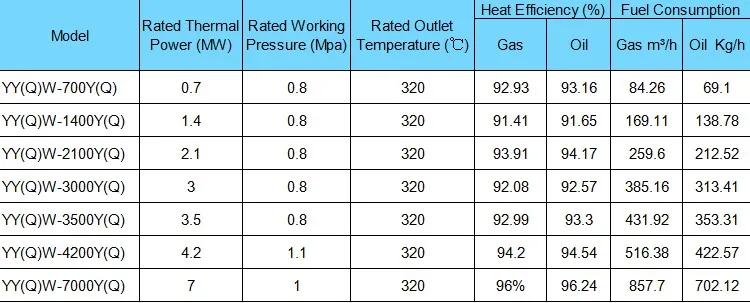

IV. Technical datasheet

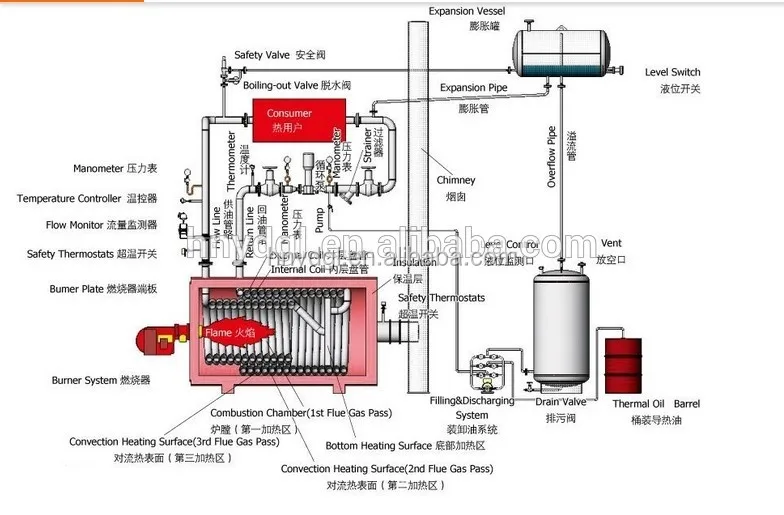

V.Installation drawing

Q: How can you get the best price quickly?

A: We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q: Why should you believe our quality?

A: more than 60 years experience, founded since 1956; Chinese-government appointed Boiler Manufacturer.

With ISO9001certificates.
Quality control system: Include 8 subsystems, design, techonics, welding, inspection, non-destructive testing, heat treatment, materials physics and chemistry inspection, device management Each process will be strict supervised. 5 process quality point, Raw material inspection, product specimen, NDT, hydrostatic test, Heat treatment. The products must be inspected by third party before delivery.

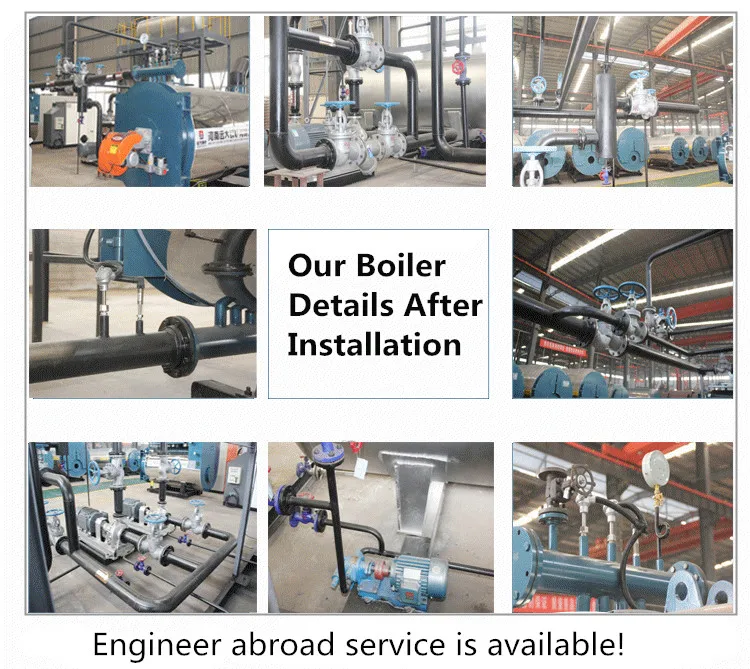

Q: What about the installation?

A: After you receive the boiler, we will guide you to make some preparation for installation; If necessary, our expert will fly to your local place in 72 hours. The experts will responsible for guiding installation,training, trial operation.

Q:What is the using life of your boiler?

A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.,
