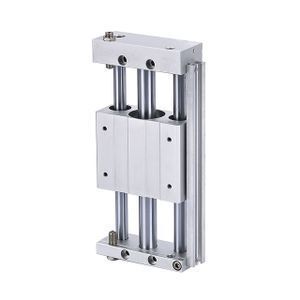

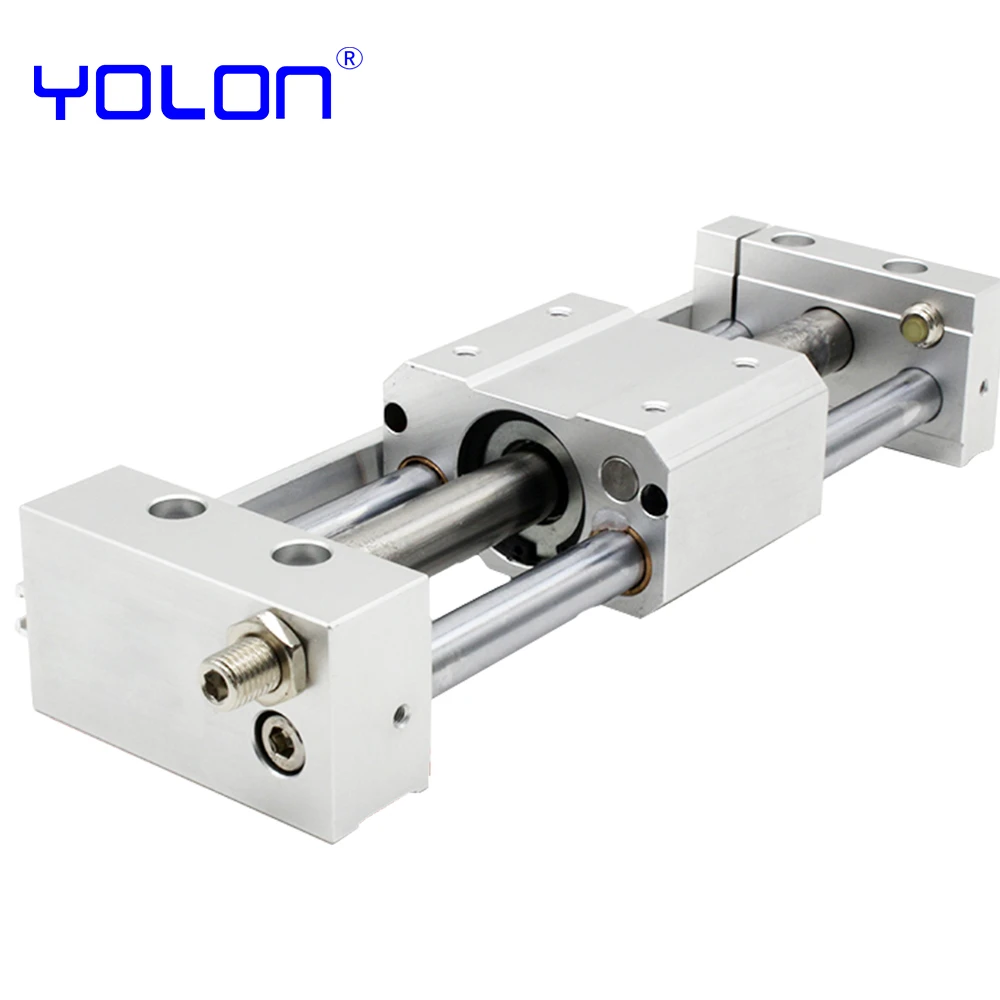

RMTL CY1L40X100 CY1L40X200 CY1L40X300 CY1L40X400 CY1L40X500 Magnetically Coupled Rodless Pneumatic Cylinder Type SMC

Product details
Single gross weight:25.0 KG;Material:carton;
Type:Cylinder;Single package size:100X6X5 cm;
Maximum operating pressure:0.7 MPa;Magnetic holding force (N):53.9,137, 231, 363 ,588, 922;
Temperature:(-20~70);Cushion:Rubber bumper/Shock absorber;
Product name:CY1L 40mm Rodless Mangetic Cylinder;Applicable Industries:Building Material Shops,Manufacturing Plant,Home Use,Retail,Construction works ,Energy & Mining,Advertising Company;
Fluid:Ari;Lubrication:Non-lube;
Packaging Detail:One item one carton for CY1L 40mm Rodless Mangetic Cylinder;Minimum operating pressure:0.18 MPa;
Brand Name:Yolon;Place of Origin:Shanghai China;
Selling Units:Single item;Ambient and fluid temperature:-10 to 60°C (No freezing);
Piston speed:50 to 400 mm/s;
Product Description

We have been engaged in pneumatic hydraulics for 20 years. The scale of the factory is large, the delivery is fast, and the quality is always our aim.



Bore size(mm)6101520253240
WorkingfluidCompressedair
Proof pressure1.05MPa
Working pressure0.18~0.7MPa
Working temperature~10~60 degree
Piston speed50~500mm/s
CushionRubber bumper at both end
Lubricationno need lubrication
Mounting methodDirect mount type

Packaging & Shipping

1: Usually we ship your order by sea or by air,Delivery time is 3 to 14 days,Most products are in stock according to the standard
2: Our products are guaranteed for 1 year and can be replaced free of charge within one year.

3:Regular products we support one-click orders,Non-standard products need to be customized to contact customer service,A satisfactory response will be given to you within 3 hours.



Our Services

1. Accept OEM, delivery in general from 14 days to 20 days, the number of fittings is less than 30,000 pieces a month, other valves are below 10,000 pieces, large mechanical image pumps, hydraulic systems, hydraulic cylinders, in 10 pieces ,If the goods are urgent, please advise.

2. Recommended combination, timely contact and timely feedback

3. We have cooperated with many freight forwarding agencies, give me your shipping cost budget, I will provide you with satisfactory channels.

4. We also represent a number of brand companies, Festo, AirTAC, SMC, etc. Welcome to purchase and will give you unimaginable low prices



CE Safety/Quality

Company Information



FAQ

Q: What is your main market?

A: Our main market is north America, especially USA.



Q: Are you products standard?

A: Our model is standard, if you have specific demand, pls tell us.



Q: Do you have interest to do our own design items?

A: Absolutely! We have big interest.



Q: How to make the order?

A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
