High speed pulley wire drawing machine for making nail

Product details
Frequency:50Hz or customized;Port:Shanghai/Ningbo;
Voltage:380V/220V;Cooling of block:Water-cooling + outer ring air cooling;
Inlet Diameter:1.5-10mm;Speed control:Inverter control;
Logical control:PLC;Outlet Diameter:0.8-5.5mm;
Way of control:Total digital;Video outgoing-inspection:Provided;
Machinery Test Report:Not Available;Place of Origin:Zhejiang China;
After Warranty Service:Video technical support,Online support,Field maintenance and repair service;After-sales Service Provided:Engineers available to service machinery overseas,Online support,Video technical support;
Core Components:Gearbox,PLC,Capstan;Condition:New;
Transmission ways:Gear box;Warranty of core components:1 Year;
Applicable Industries:Manufacturing Plant,Retail,Construction works ,Energy & Mining;Showroom Location:None;
Brand Name:Suntech;Warranty:1 Year;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,L/C UPAS;Wire drawing machine with pulley:For steel wire;
Weight:700-3000KG;Suitable Material:Low, medium high carbon wire, iron wire;
Certification:CE/CB/CQC/ISO9001;Key Selling Points:High Productivity;
Local Service Location:None;Dimension(L*W*H):Customized;
Way of drawing:Pulley-type;Packaging Detail:1.Outer Package:Standard Wooden Cases. 2.Inner Package:Strenth Films & Styrofoam.;
Power:4-45KW;Supply Ability:10 Set/Sets per Month High speed pulley wire drawing machine for making nail;
Marketing Type:New Product 2020;
Products Description


I. Composing of production line

Pay-off → Pulley type wire drawing machine → Horizontal take-up



Specifications

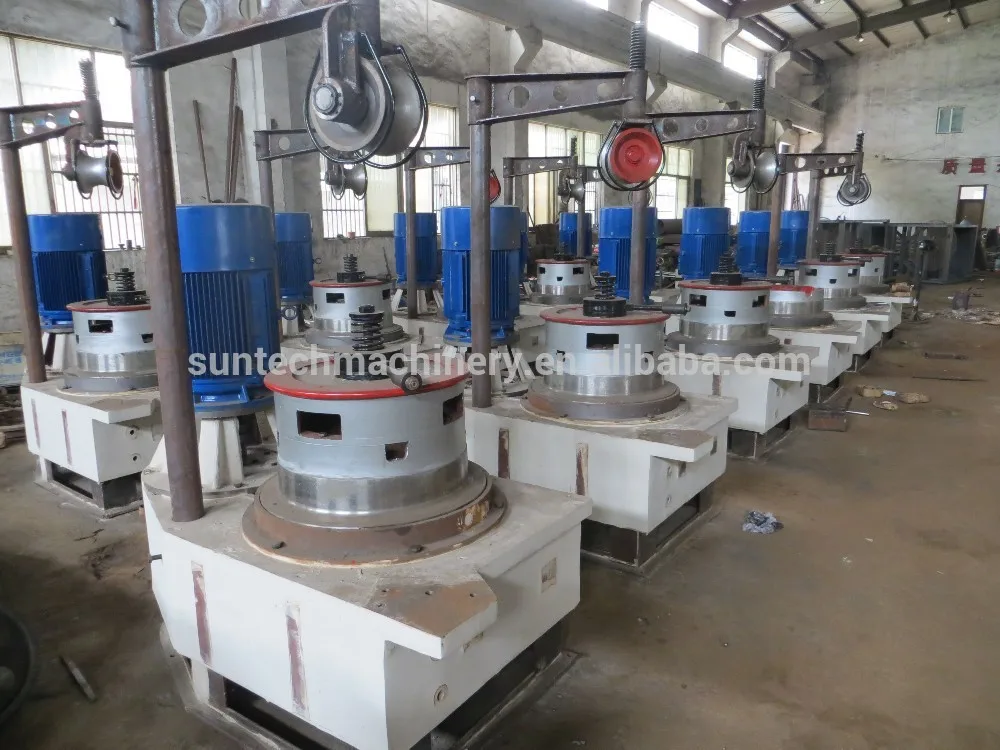

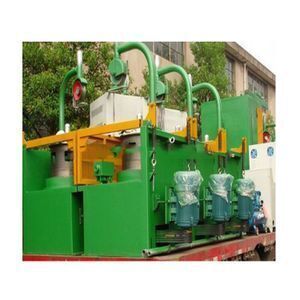

1. LW Series High speed pulley wire drawing machine for making nail
2. Drawing Metal Wire
3. Frequency Motor
4. High Speed
5. Easy Operating



II.  Main technical parameters



No.

Name

Unit

Line 1

Line 2

1

Name of machine



LW-4/560

LW-9/560

2

Way of drawing



Pulley-type

Pulley-type

3

Number of block



4

9

4

Block diameter

mm

4 * φ 560

9 * φ 560

5

Way of timing



AC frequency conversion timing

AC frequency conversion timing

6

Motor power

KW

4*30

9*18.5

7

Diameter of inlet wire

mm

φ6.5(φ6.5)

φ4.0

8

Diameter of outlet wire

mm

φ4.0

φ1.6

9

Designed drawing speed

m/min

≤ 110

≤ 210

10

Way of control



Total digital

Total digital

11

Material of inlet wire



High & Medium & Low carbon steel wire

High & Medium & Low carbon steel wire

12

Way of pay-off



Rotating wheel  pay-off

Rotating wheel  pay-off

13

Motor power of pay-off

KW

11

11

14

Way of take-up



Φ630 horizontal spooler

Φ630 horizontal spooler

15

Operation direction



From left to right

From left to right

16

Power source



380V, 50HZ

380V, 50HZ



III . Instruction of wire drawing machine

1. Drive System

The way of transmission for wire drawing machine is by: Variable frequency motor + Narrow v-belt + Decelerator with hardness gear surface + Narrow v-belt to drive the block.

2. Block

Block is accurately founded by cast steel, re-tempering treatment after the rough processing, the work surface of block is welded by wear-resisting piano wire then sprayed with carbide tungsten, then finish machined by a grinding machine. The block working surface rigidity is over HRC60. The inside surface of block is sprayed with Aluminum.

Block inside adopts narrow gap type water cooling while block outside adopt concentrate air cooling. All blocks are fixed with leaning rollers.

3. Die box

All are normal die boxes(die dimension should be offered by client). Die box is cooled directly by water.

Tuning roller is driven by cylinder. Die box can be adjusted up to down, front to back, left to right agility and can be fixed. The screw in top and nut for die box are both made of tin bronze. Hard alloy made direction guiding die is fixed at die box inlet.

4. Gearbox

The chief bearings for gearbox with hard gear surface adopt products from Japanese NSK. All gearboxes are filled with VG220 compound gear oil before leaving factory.

5. Safety cover

On the top of each block there is a safety cover, which needs to close before the equipment start up. If the cover is open, the equipment can only run in slow speed. The safety cover has covered the total front of operation side and have daylight lamp inside for illuming use. Safety cover is controlled by spring.

6. Lubricating

Electric driven grease pump is fixed, which can automatically fill oil into the chief shaft bearing of block.

7. Take-up

The coiler take-up adopts frequency conversion motor drive, to achieve no-parking taking up. There are two rows of slide rail on the bottom of bearing frame, to easy to replace the frame. (The size of bearing frame is provided by the user).
