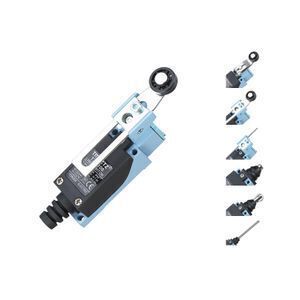

TuV&RoHS popular TZ-8108 AZ-8108 Limit Switch 380VAC/15A ME Series Waterproof with Plastic/Stainless steel roller
-
Supplier: Yueqing Yongde Electric Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr BILL LIN -
Price: $2.20 / >=50 pieces -
Min. Order: 50 pieces
Product details
| Operating Temperature: | -5℃ to +65℃; | Model Number: | TZ-8108; |
| Max. Current: | 10A; | Payment Terms: | L/C,T/T; |
| Supply Ability: | 500000 Piece/Pieces per Month; | Max. Voltage: | 380V; |
| Roller: | Stainless steel or nylon; | Port: | NINGBO; |
| Packaging Detail: | 100PCS/CTN, 23KGS/CTN; | Brand Name: | TMAZTZ; |
| Protection Level: | IP65; | Place of Origin: | Zhejiang China; |
Product Overviews

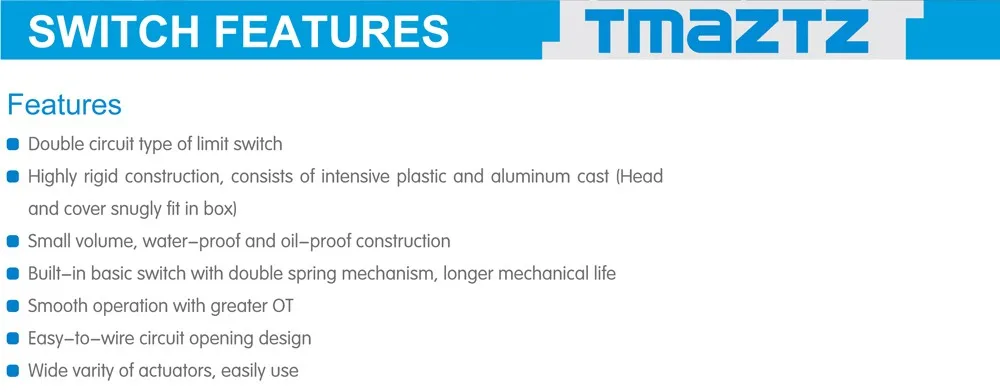

SWITCH FEATURES

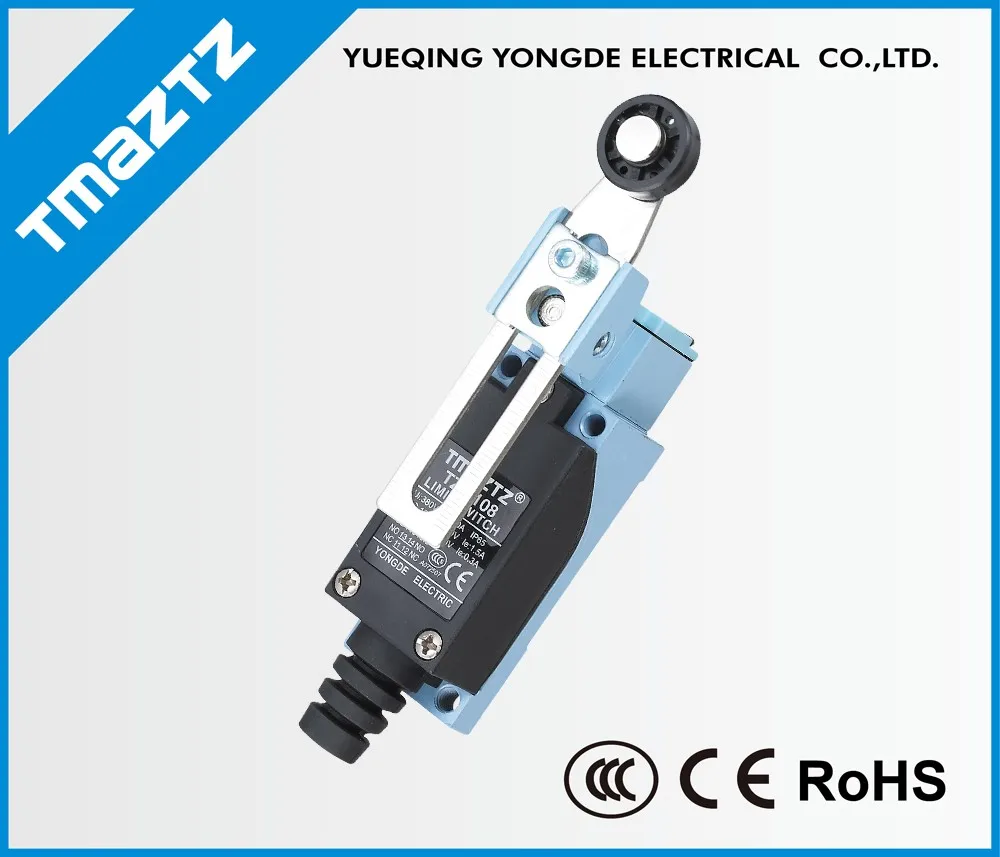

PRODUCT SHOW
DRAWING AND SPECIFIC
| Model No. | TZ-8108 |
| Name | Limit switch |
| Operation speed | 0.5mm-50cm/sec |
| Operating frequency | Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
| Contact resistance | 25mΩ max.(initial value) |
| Insulation resistance | 100mΩ min.(at 500VDC) |
|
Dielectric strength |
1000VAC,50/60HZ for 1 minute between terminals of the same polarity |
|
1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts |
|
| 1500VAC,50/60 HZ for 1 minute between each terminal and ground | |
| Vibration | 10-55HZ,1.5mm double amplitude |
|
Shock |
Mechanical durable:1000m/Sec2;Malfunction:300m/Sec2(about 30G'S) |
| Life |
Mechanical: 10,000,000 operations above;Electrical: 500,000 operations above |
| Weight |
About 130-190g |
| Humidity | <95% RH |
| Degree of protection | IP65 |
