Vacuum Road Sweeper, High Quality Road Sweepers for Street, Mounted Sweeper Truck

Product details
Packaging Detail:Custom Packing Available;Dimension(L*W*H):2920x1220x2200;
Payment Terms:L/C,T/T;Brand Name:KADEME;
Supply Ability:30 Piece/Pieces per Month;Place of Origin:Istanbul Turkey;
Warranty:1 Year;Certification:CE/ISO9001;
Name:Multi-function Sweeper;After-sales Service Provided:Engineers available to service machinery overseas;
Weight:9940 Kg;Item:Products Floor Cleaning Machine;
Application:Street Cleaning;Key word:Mechanical Broom Sweeper;
COLOR:Customer Requirements;After-sales Service Provided:Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Product name:Road Sweeping Machine;Type:Industrial Brush;
Model:KDM 6.5 m3 Road Sweeper;Condition:New;
Port:Mersin;Function:Sweeping Road;
Product Description



Attention: Kademe manufactures superstructure or municipal equipment. Price doesn't include the chassis, tow truck or tractor. Price may vary by options

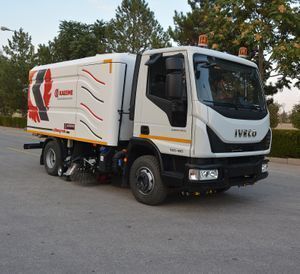

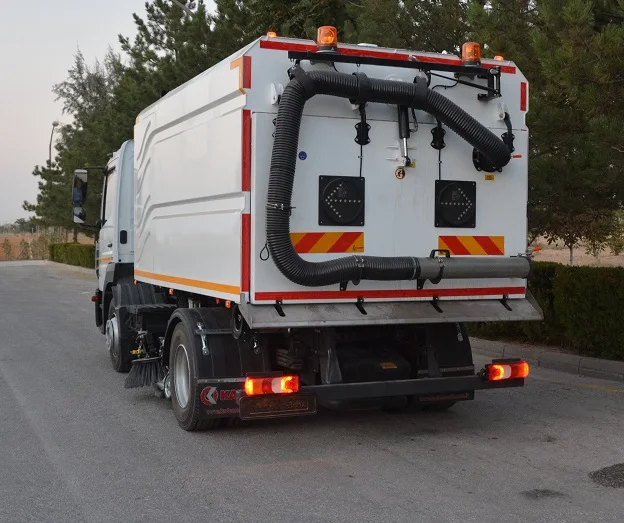

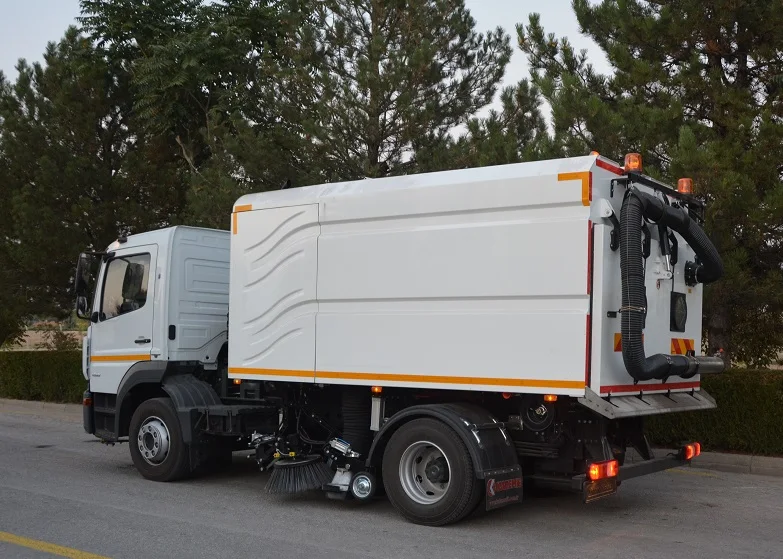

Cleaning Machine : VACUUM  Street SWEEPER

General features of KDM series Vacuum  road sweeper machines with the transmission;

- Different size of vacuum type road sweepers from 4 cubic meters to 10 cubic meters can install to suitable carrier vehicles.

- Standard 115 Hp Auxiliary Engine generate enough power for vacuuming. 115 Hp Engine can generate necessary power with low operation rpm with the low noise level and fuel saving.

- A stainless steel water tank with a 10% slope below the garbage pit is a great advantage to throw away garbage.



- we can manufacture different options according to the customer's request.



- Fiber doors on both sides give easy access to the auxiliary engine in case of maintenance or break down.

- Easy to understand and user-friendly control panel give an advantage to the operator to control the whole system.

- Standard high-pressure water pump provides more efficient irrigation. It uses less water with optimum water consumption level.



Here is an example of the specifications of the 7 m3 Road Sweeper:





CAPACITY INFORMATION

Hopper volume

7 m³

Payload volume

6.5 m³

Payload capacity

5 tons (chassis dependent)

Water tank

1.800 lt. Stainless Steel (AISI304) Integrated with hopper

Hydraulic reservoir

60 lt.







+

AUXILIARY ENGINE INFORMATION

Brand - Model

Tumosan 4DT-41T-115C

Cubic Capacity

4,1 lt.

Number of cylinders

4

Type

Liquid cooled diesel

Power

115 hp / 86 kW @ 2.300 rpm

Torque

405 Nm @ 1.500 rpm

Emission

EPA Tier 3 and EU Stage 3A

Operational RPM

Ideal 1.500 - 1.600 rpm

Cold Start Capacity

 - 15 C°







+

SWEEPING EQUIPMENT

Side brush

Ø 450 mm - 200 rpm Hydraulic motor driven

Middle brush

Ø 400 mm - 160 rpm Hydraulic motor driven

Nozzle diameter

Ø 250 mm

Nozzle wheel diameter

Ø 250 mm

Nozzle width

750 mm

Sweeping width

2.450 mm

Dual suction sweeping width

3.500 mm







+

GENERAL INFORMATION

Chassis requirement

15 - 20 tons

Wheelbase

3.500 - 3.800 mm (4x2)

Dump height

1.050 mm Standard and chassis dependent

Dump angle

50° ± 5°

Door opening angle

90° ± 5°

Filter mesh area

1,1 m²

Dust spray pump output

20 lt / 100 bar (piston pump)

Hydraulic pump displacement

16,8 cc / rev

Sweeping speed

0 - 16 km / h

Hopper construction

Welded plain steel (stainless steel optional)

Dumping

Hydraulic to rear







+

CONTROL PANEL

Raised hopper warning

Auxiliary engine hour control

Low level water indicator

Engine tachograph meter

Control monitoring system







+

OPTIONS

Wander house with boom and trunking excess 5 meters long

High pressure washing system (30 lt / 200 bar)

Variable and adjustable side brush speed

Variable side brush positioning system

Simultaneous dual suction

+

FAN



Type

Heavy duty, dynamically balanced impeller with multivane corrosion resistance blades




Design

Whisper wheel fan system



Operation speed

In between variable 2.800 - 3.500 rpm



Drive

Fluid coupling or dry clutch gearbox



Gearbox ratio

1,8 : 1



Construction

Stainless Steel AISI304



Housing liner

Optional











Our Services



The Service Department has adopted the principle of focusing on customer satisfaction.

Our After Sales and Service Department aims to continuously increase the quality of manufacturing and deliver products to the end user without any hassle by providing information and feedback flow to our R&D and Manufacturing departments.



Company Information



KADEME Municipal Vehicles started to manufacture in the machine manufacturing sector in 2011.

It is one of the leading integrated waste management company in the region which is a subsidiary of Albayrak Holding. Our success is driven by our people and their commitment to getting results the right way-by operating responsibility, executing with excellence and applying innovative technologies.

We manufacture different size and type of Vacuum Type Road Sweepers, Compact Vacuum Type Road Sweepers, Electric Sweeper, Towed Elevator Type Road Sweeper, Container & Bin Washing Machine and Hydraulic Garbage Compactors.

With the high performance of our equipment and high quality, we are the market Leader and popular company with an excellent track record for the best customer satisfaction. We manage manufacturing, marketing and after-sales service activities successfully in keeping with international norms. We believe in achieving the quality production and perfection that meets all expectations of customers at a very competent price Kademe, who strives for reaching excellence in the products offered, continues its activities in the safe and environmentally responsible manner with all the customers, supplier and partners.

Kademe companies headquarter located in Istanbul and production line is in Konya industrial zone within 20.000m² closed and 1.000.000m² open premises.
