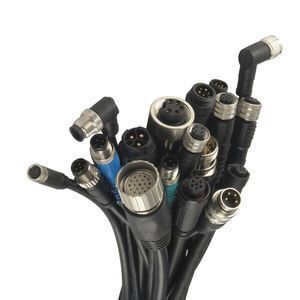

Custom 3 4 5 8 12 Pin A B C D Coding Ip67 Ip68 Waterproof Male Female Circular M12 Connector Sensor Cable

Product details

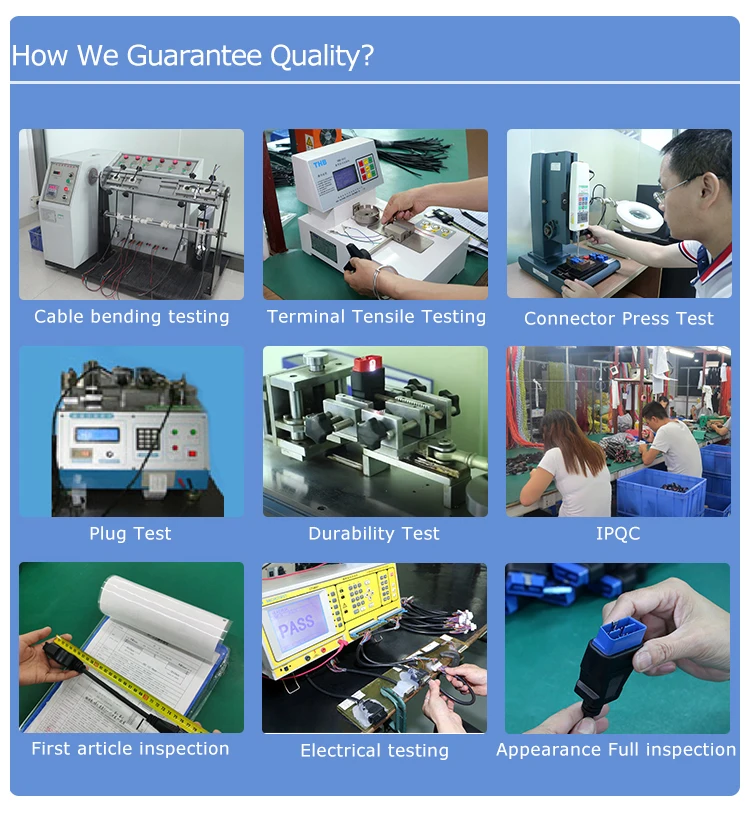

Inspection:100% full inspection before packing;Packaging Detail:PE bags and cartons, 1000pcs per carton or as the specification of products.;
Type:ADAPTER;Operating Temperature:-25℃~+85℃;
Contact resistance:<10mΩ;Port:Fob shenzhen;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Application:sensor, actuator, Industrial automation, camera and etc,Automotive;
Certificate:RoHS/Reach/IP67/ISO9001;Gender:Female and Male;
Durability:> 500mating cycles;OEM & ODM:Offer;
Brand Name:Yeahui;PCB:welding, SMT, soldering;
Supply Ability:40000 Piece/Pieces per Week circular connector;Model Number:YHM023;
Rated voltage:30-250V;Place of Origin:Guangdong China;
Pins:4p,5P,12p,3P,8P;Rated current(40℃):2-4A;

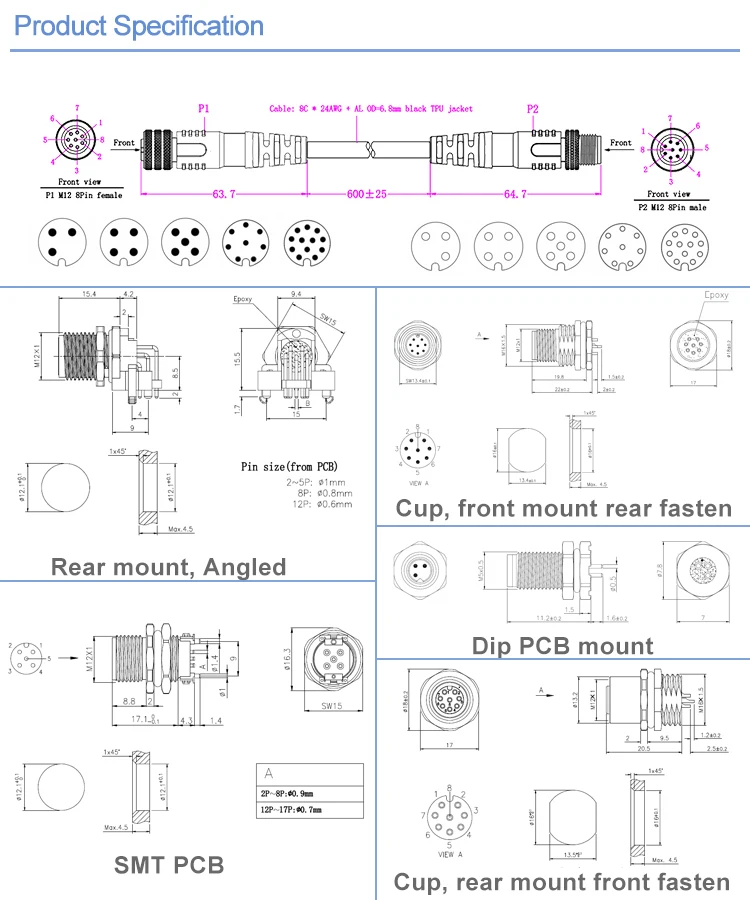

 Item name: M12 Female to M12 5pin Male M12/single end, double end cable

PCB connector

+
Connector type: M5, M8, M12, M16, M23, 7/8

Cable Exit Angle : Straight, angled, splitter, enclosure,

single end, double ends or customized.

Number of pins: 3pin-17pins cable length: 0.3, 0.6, 1m, 2m, 5m or customized
Coding connector: A, B, C, D, X PIN out/ pin assignment: customized
Housing: PA Overmolding/Cable jacket: PVC, PUR
Terminal material: Brass with gold plated Conductor: TINNED Copper
Nut: Brass, Nickel plating

Wire gauge: 0.14/0.25/0.34/0.5mm²/

(26/24/22/20AWG)

O-ring: Silicon rubber Cable Bending testing life: 2k-10k cycles
Shielding: shielded/unshielded Cable type: multi-conductor, hook up wire

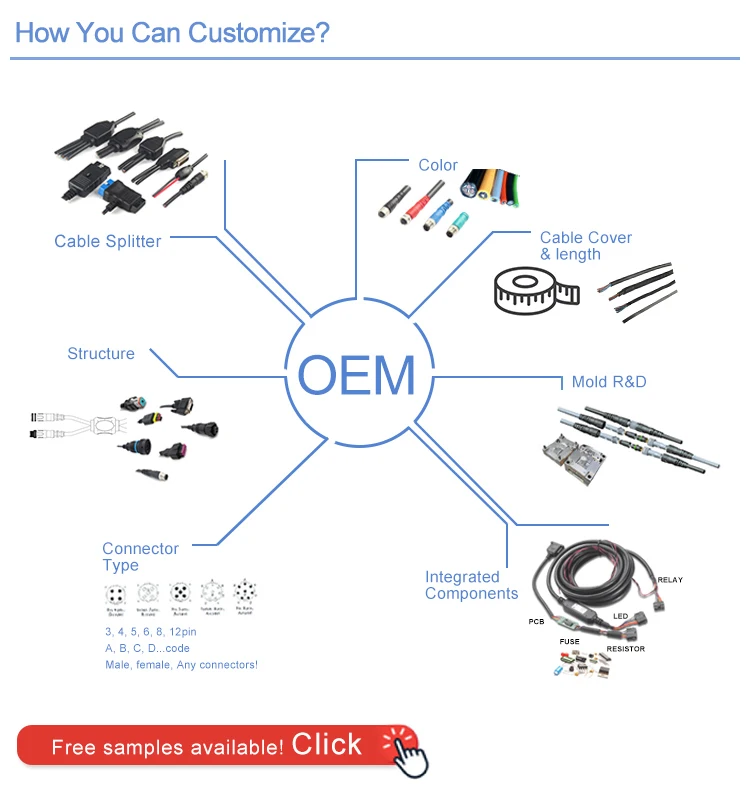

PCB: Welding, SMT, Soldering  Service: Free samples & Drawing
