Candle Wax Melting Machine, Paraffin Wax Melting Tank Device

Supplier: Dongguan Yide Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms kathy Lee
Price: $700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	100 Set/Sets per Month;	Weight:	150kg;
Dimension(LWH):	12004501000cm;	Production Capacity:	Hour;
Port:	Guangzhou or shenzhen;	Warranty:	1 Year;
Certification:	ISO;	Brand Name:	Yide;
After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	Guangdong China (Mainland);
Packaging Detail:	By Carton Case;	Condition:	New;
Payment Terms:	T/T;

Product Description

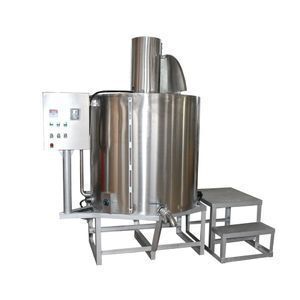

Item	500L Water Jacket Wax Melting Machine
Material	SS304
Voltage	380V/50Hz three phase 240V/60Hz three phase(Canada,USA) 220V/50Hz single phase
Power	18KW
Temperature	0-120Celcuis Adjustable 0-150Celcuis can be customized for high melting poin wax
Heating bar	3pcs, 6KW each
Dimension	Tank: 168140229cm Step: 10065510cm

Stainless Steel Hot Wax Melting Tank

1.Double layer with water heating or oil to keep warm;

2.With electrical control box;

3.With mixer to stir the material

4.Heating by oil or hot water.
Specification:
1.Made of SUS304 stainless steel;
2.Heated by hot water in jacket;
4.Temperature is auto controlled 0-200 degree;
5.Volume: 50L 100L 200L 300L 500L(Also can be customize made) ;
6.Can be used to melt wax,food etc.

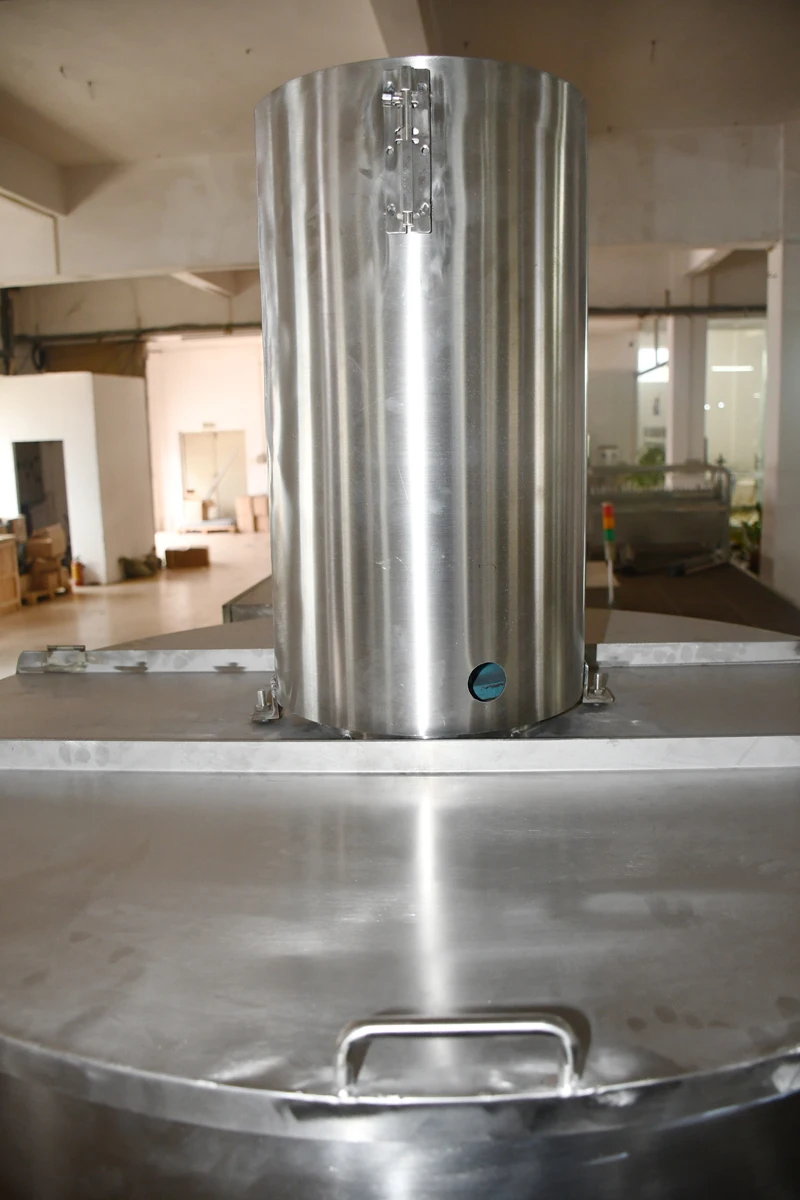

7.The top cover is half removable, which make it easy to load the product;

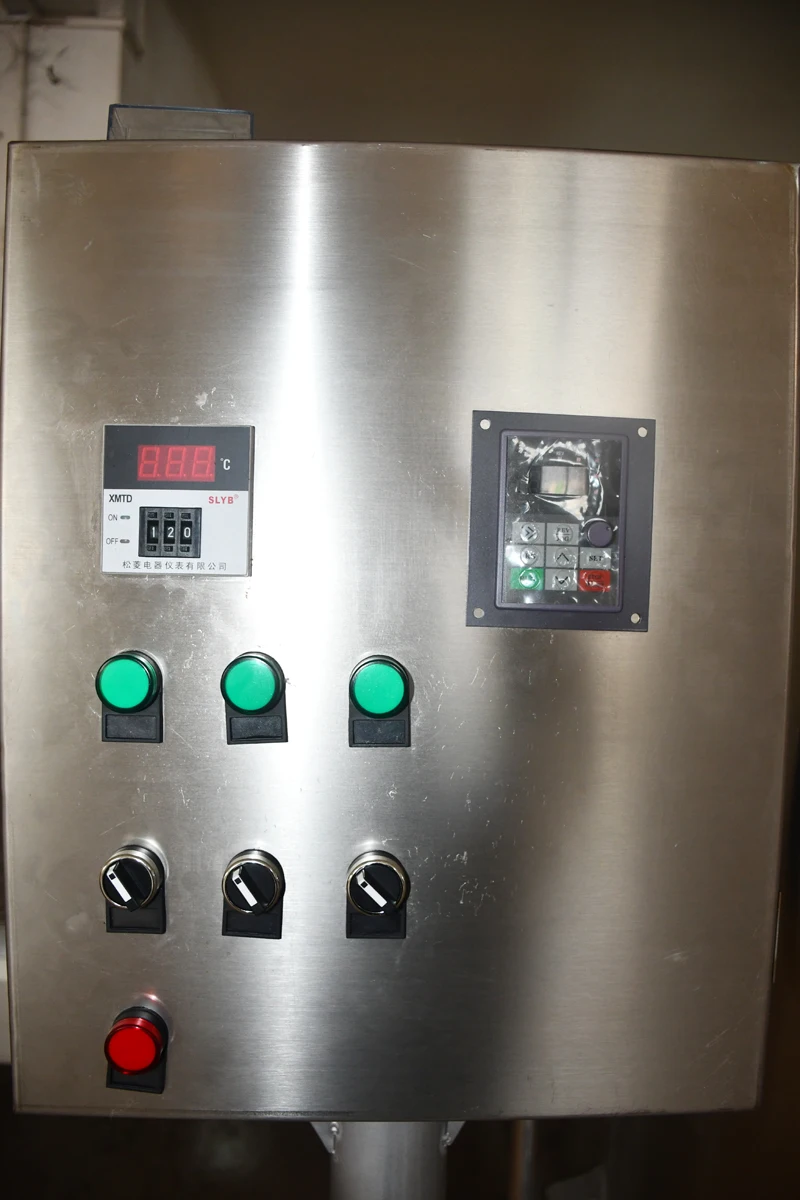

8.With electrical control box to control the temperature and keep it at a certain degree.
9.The body structure height and ladder height can be customize made.
10.Material: SUS304 stainless steel or SUS316L stainless steel,this is up to the requirements the customer.

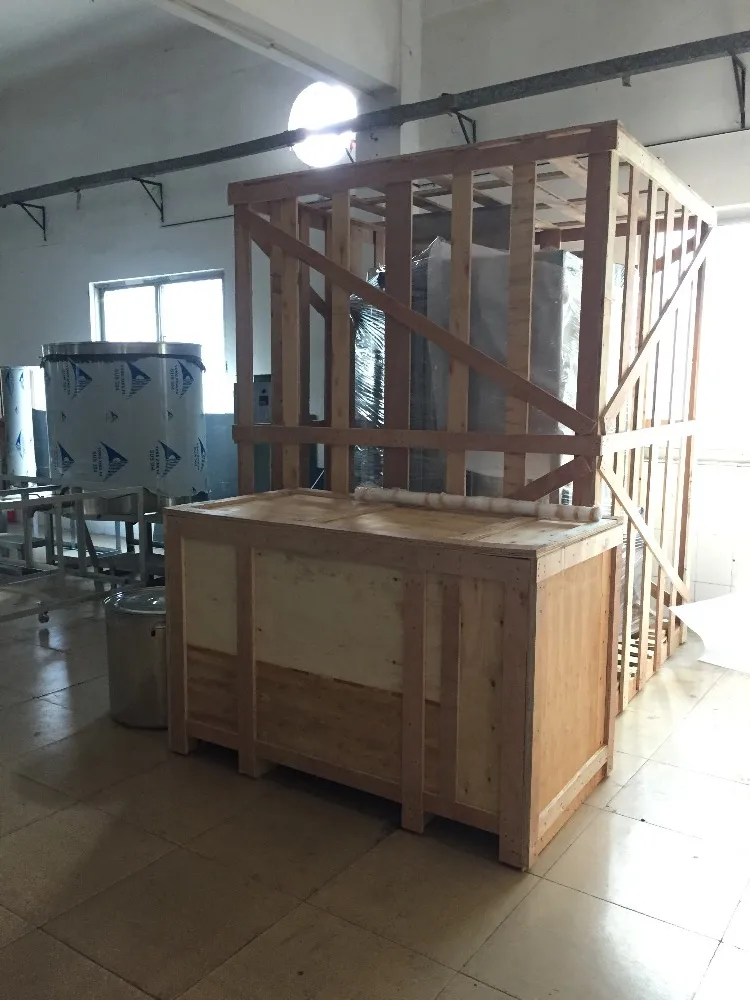

11.Packed by polywood case without fumigation.

Detailed Images

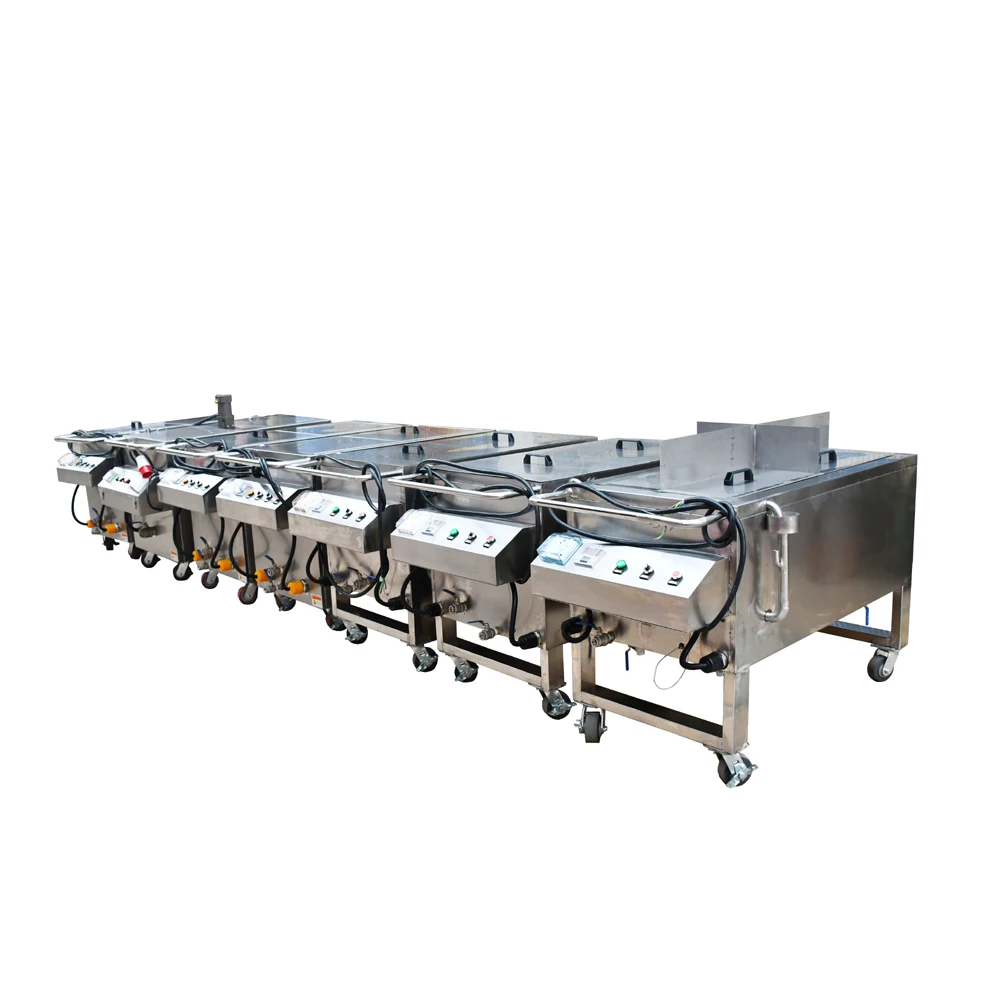

Customize Size

Size can be customized according to your space, melting point of wax, productivity and can devide into cells for different color.

50L, 100L, 150L, 200L, 300L, 500L, 1000L and 2000L have been customized for customers

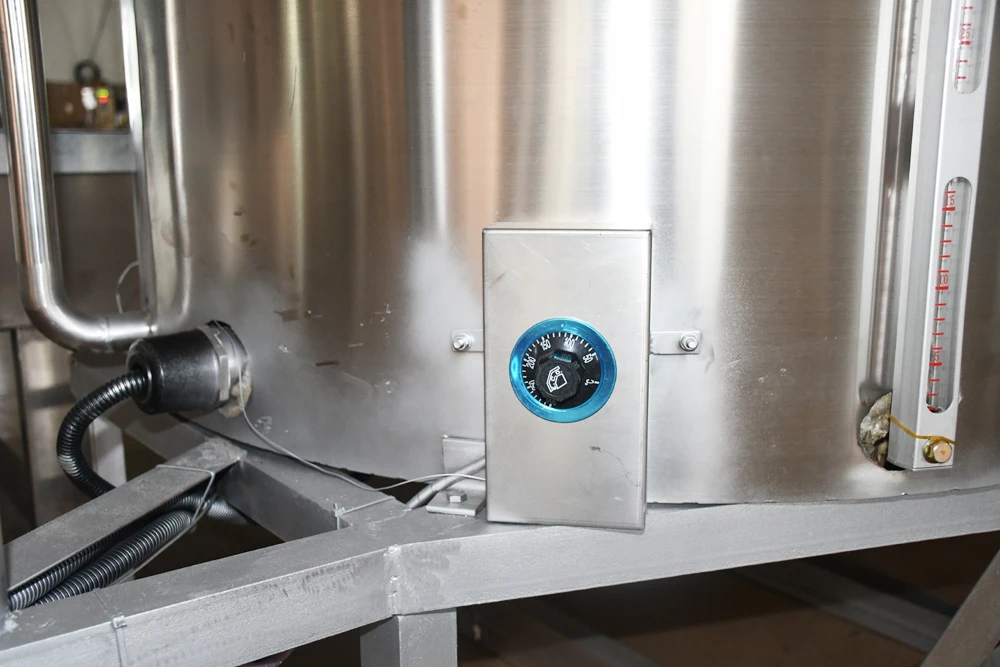

Double protection

Safety is the most important thing, this machine adopts double protection, there is two temperature control system, when the associated temperature control system, it will stop heating when the temperature reaches preset of it.
