Hot Paraffin/Soy/Bee Scented Candle Wax Filling Machine for Melting Wax Pouring Fragrance into Jar/Mold Soap Coconut Making Pump

Product details
Single gross weight:100.000 KG;Production Capacity:6L/m;
Selling Units:Single item;Brand Name:YD;
Condition:New;Single package size:110X80X110 cm;
Dimension(L*W*H):113*73*108cm;Showroom Location:None;
Warranty:1 Year;After-sales Service Provided:Video technical support;
Applicable Industries:Manufacturing Plant;Max. pump flow rate:6L/min;
Core Components:PLC,Pump;Place of Origin:Guangdong, China;
Pump type:stainless steel;Machinery Test Report:Provided;
Local Service Location:None;Marketing Type:New Product 2020;
Package Preview:;Video outgoing-inspection:Provided;
Warranty of core components:1 Year;Electric:220V/110V available;

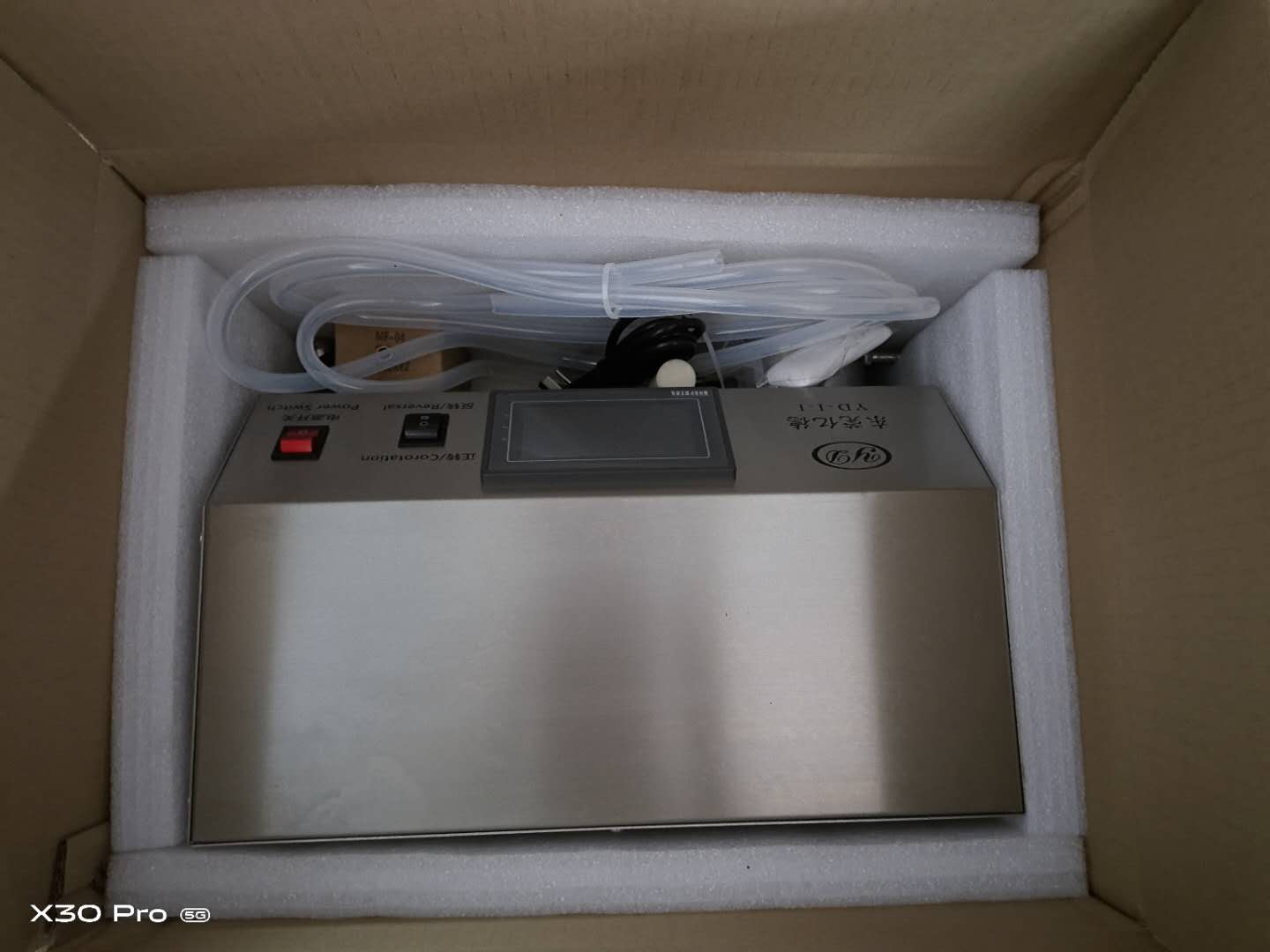

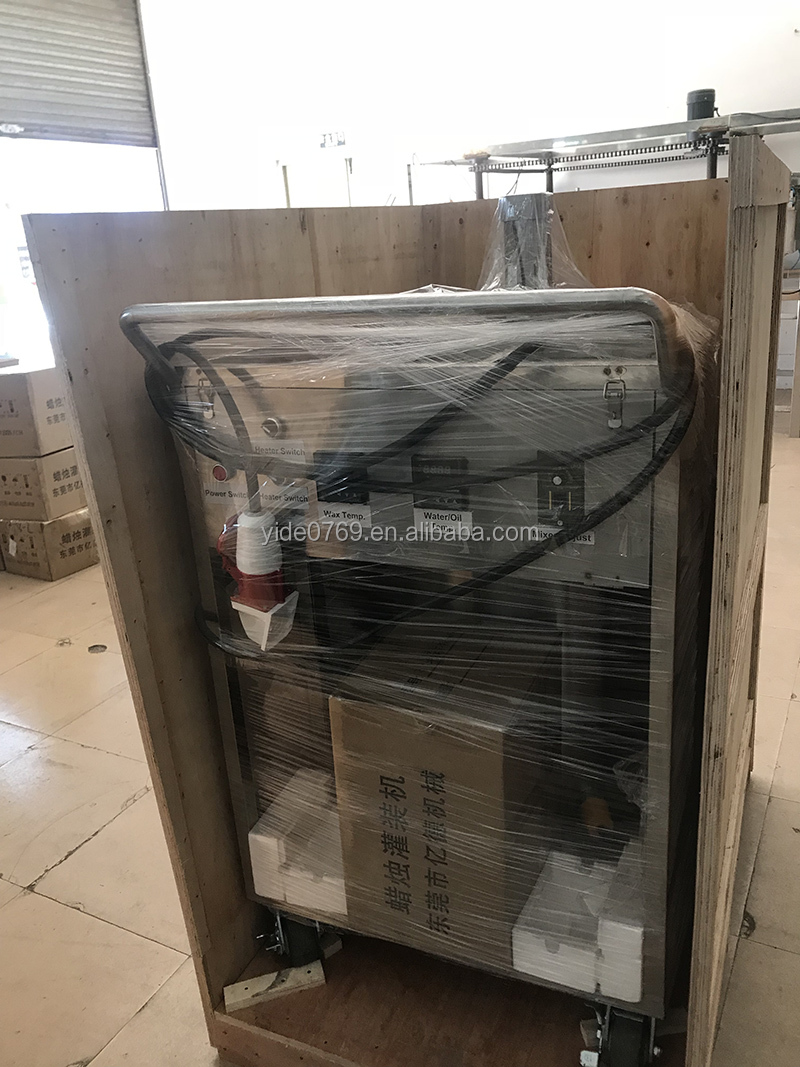

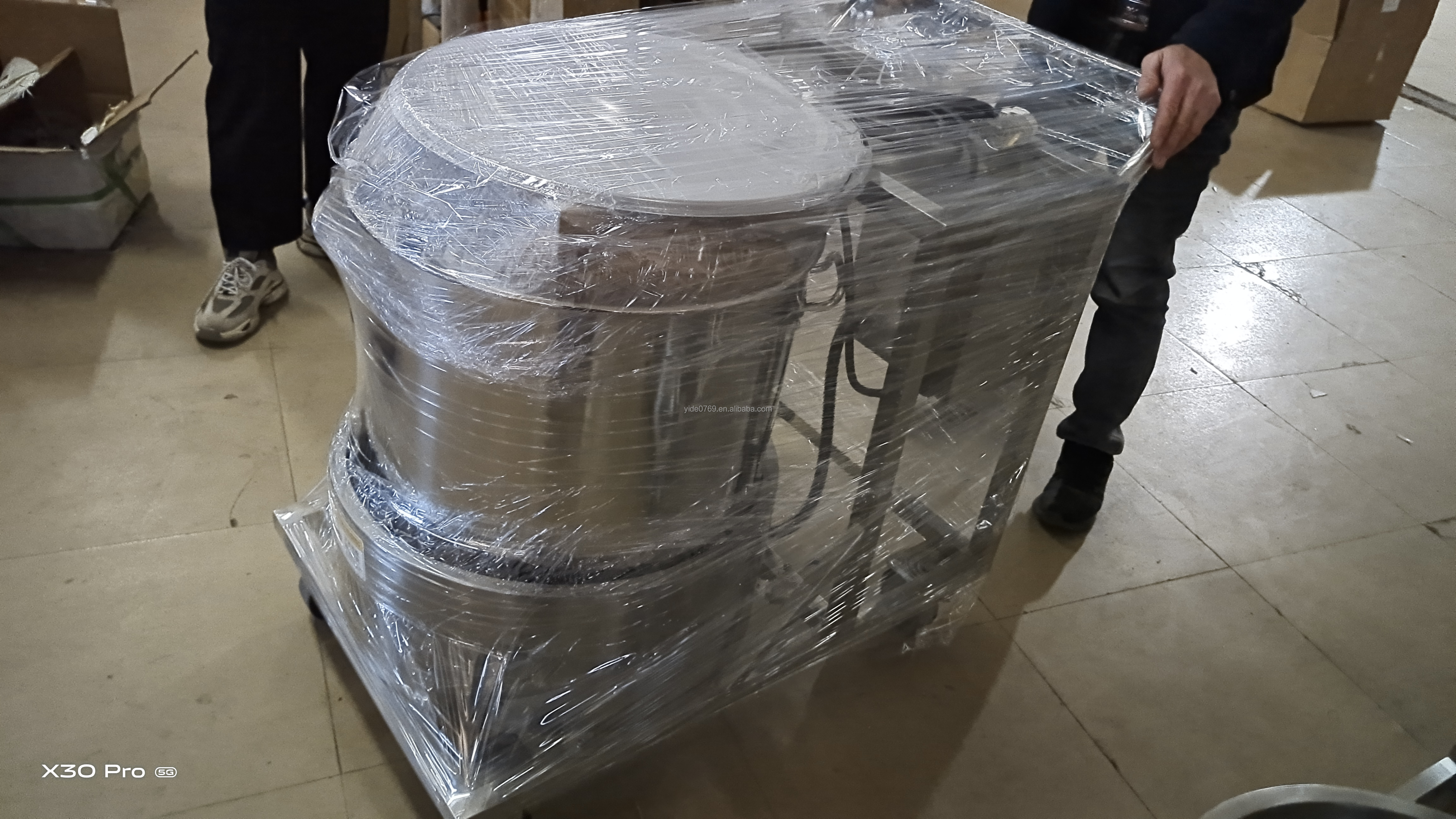

Packaging Detail:wooden case Please contact us for detail freight checking;Power:150W;
After Warranty Service:Online support;Weight:120;
Product Description
Name

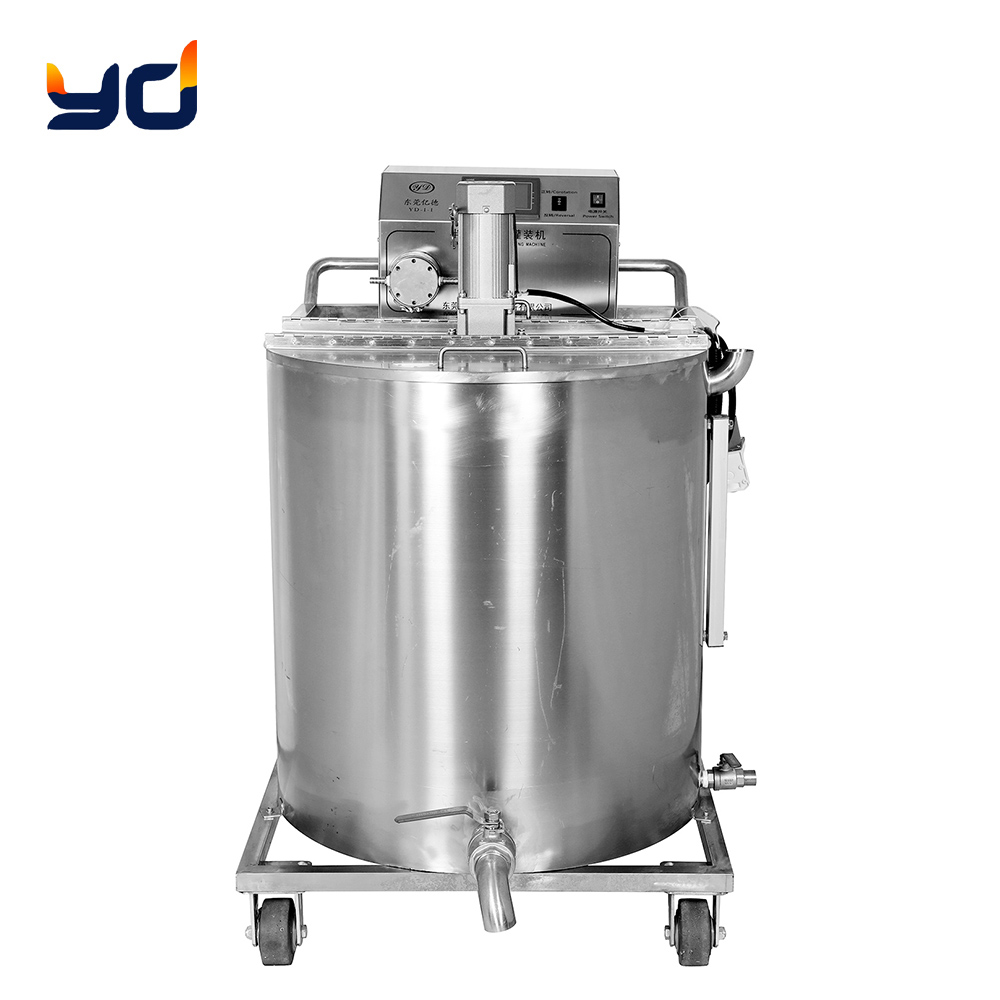

Stainless Steel Pump Hot Wax Scented Candle Filling Machine
Power
3300W
Voltage
220V/110V single phase
Customize
Yes

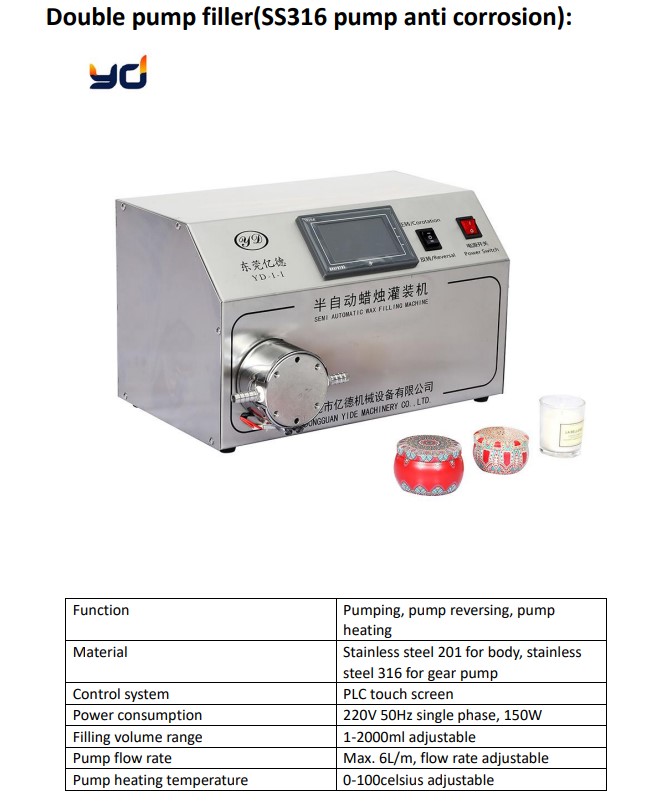

Wax Filling Machine


*This is hot material filling machine, especially for wax

suitable for beewax ,soy wax,parrafin wax,jelly wax, hair removal wax, furniture wax etc.

The pump has function of heating which can prevent from blocking of the pump

* Filling for aluminium cup,glass cup,plastic cup, bottles all ok

* Filling volume can be adjustable from 1ml-5000ml. It is PLC controlled, filling by setting up the filling volume and intervals.

What it can help with our candle making:
1. clean, no need extra cup cleaning
2. accurate, equal volume for each cup, help brand building
3. no blocking, with pump heating and reversing, no headaches with wax blocking anymore
4. save labor cost, with machine productivity can be double while half labor cost


Advantages:

1. Adjustable filling flow rate and volume, it can be used for any size of jar

2. Nozzle with filter to ensure clean wax and no spray anymore, save a lot of time on cleaning jars

3. wireless controller to start and stop at any time so that you can stop the machine when an accident occurs. It saves wax and fragrance cost for you

4. An electric balance scale can be added for you, so that you know exactly how many wax and fragrance to add.

5. Temperature indicator can show both jacket temperature and wax temperature so you can fill at your ideal filling temperature

Detailed Images

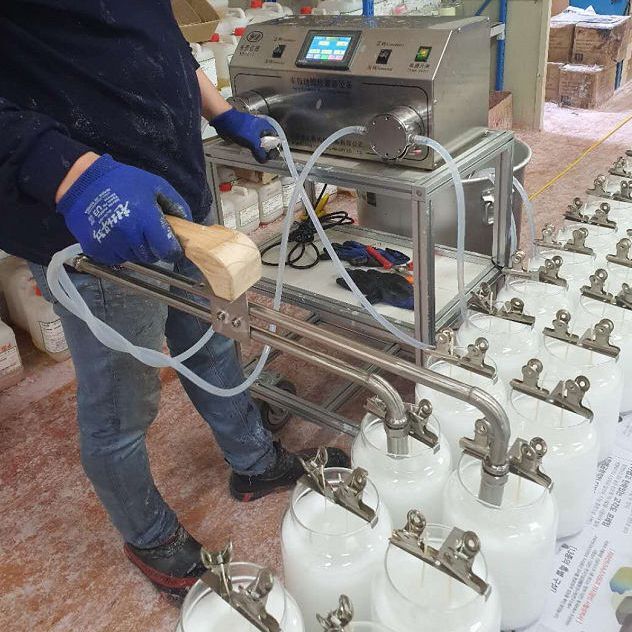

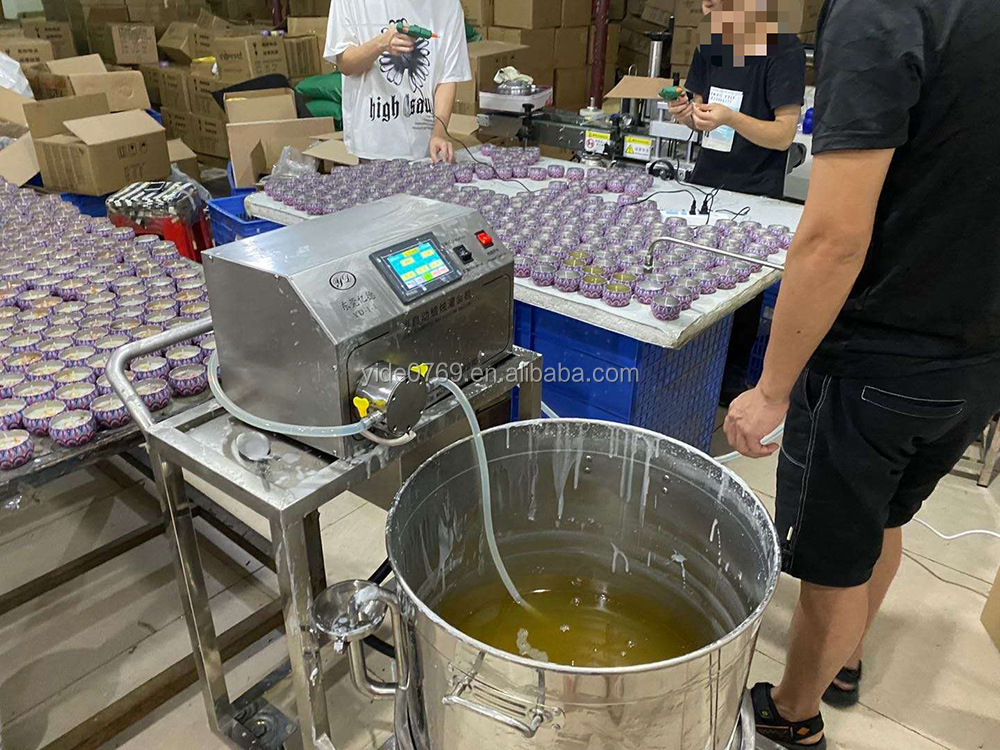

Automatical Filling

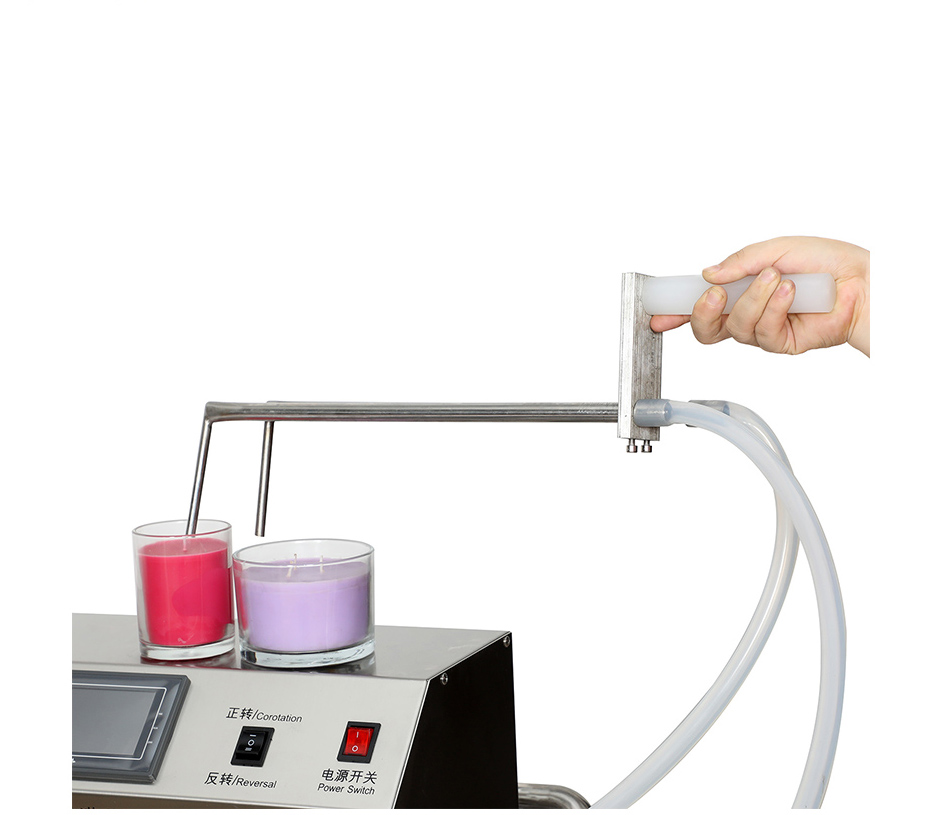

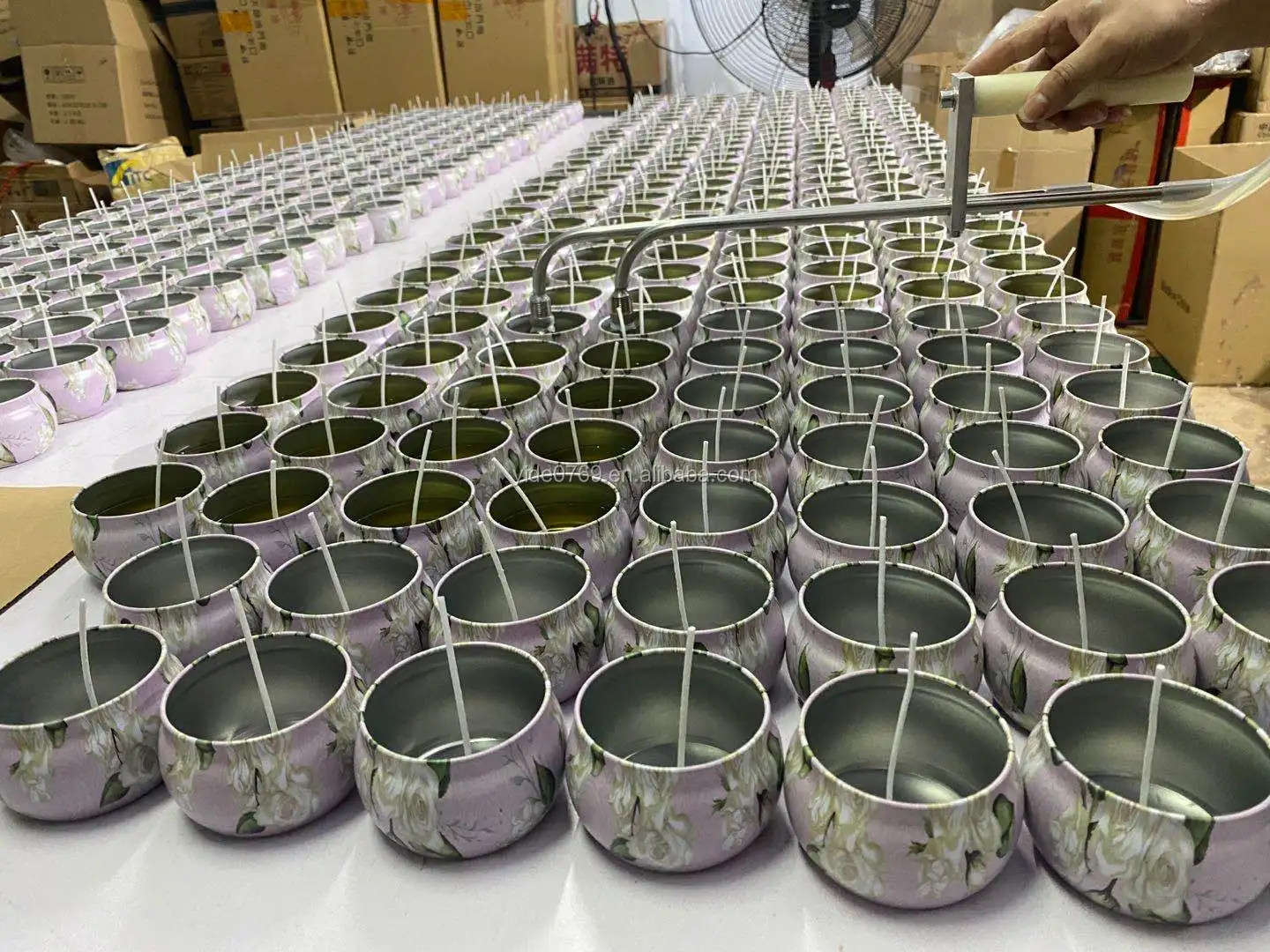

1. After setting up the filling volume and intervals on the touch screen you can handle the filling nozzle to fill one by one, very easy to operate, no extra work is needed.


2. At same time, the pump has the function of heating and reversing which can keep the pump and tubing empty after working and no bother of stock for the next time working.


3. The pump has been upgraded to stainless steel type which means this machine can help you filling even if your scents are very corrosive.

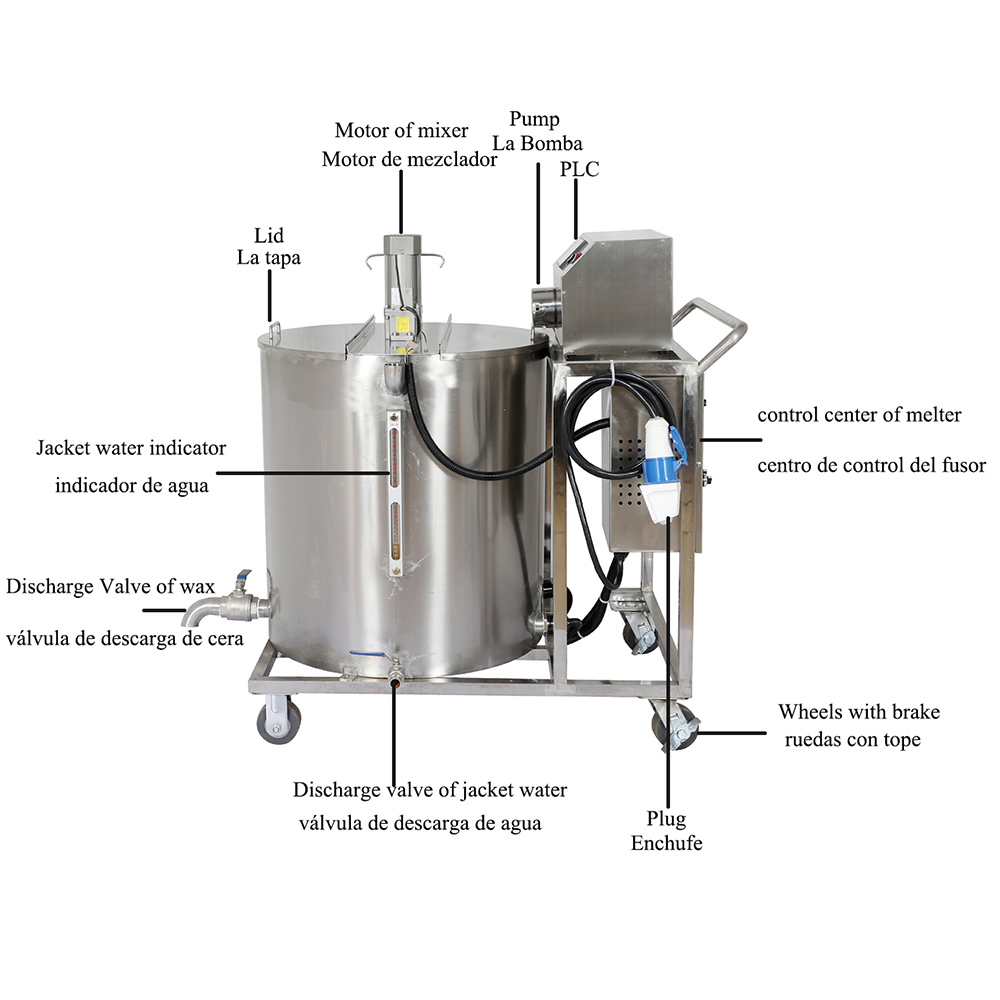

Indicator of jacket liquid
Discharge spout to empty
Taper bottom for totally empty and clean
Temperature control center
SUS 316 pump, can be used for corrosive fragrance as well
PLC touch screen with English description, very easy to operate
Our team are specialized in CANDLE MAKING MACHINES, any requirement or feedback are welcome!
Related Products

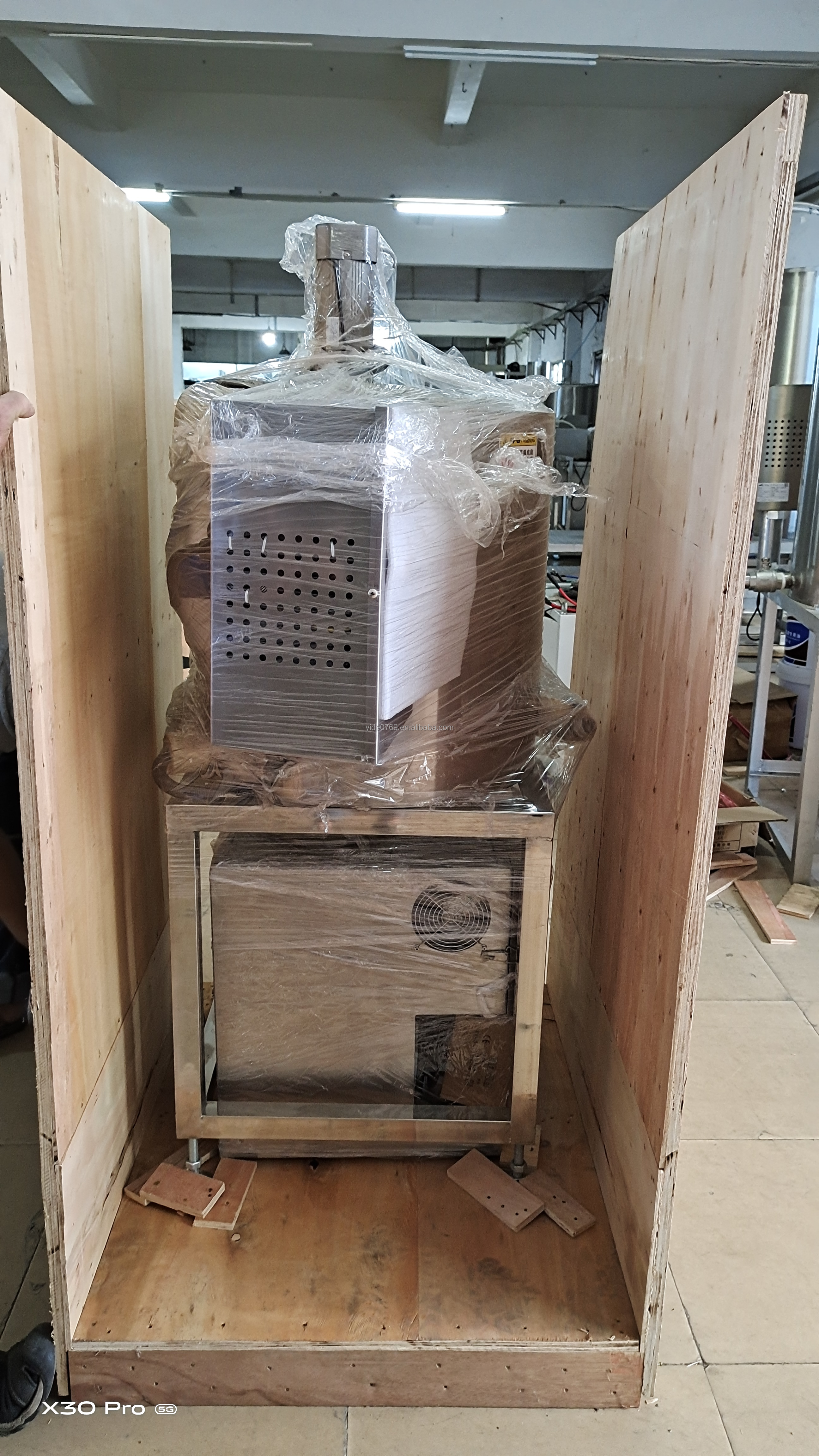

Packing & Delivery

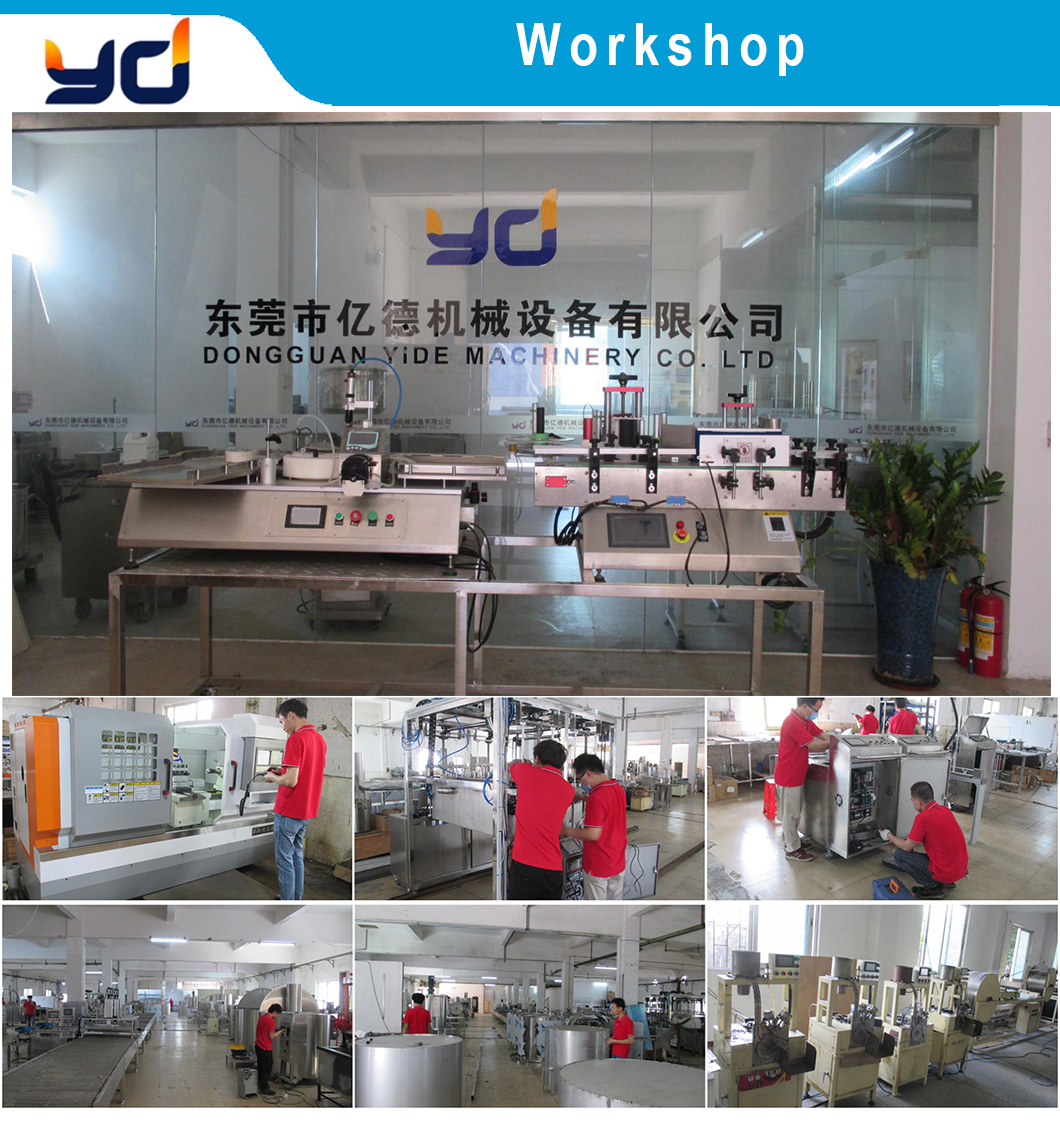

Our Company
