Key word: | 1200A 1000A clamp meter; | Single package size: | 26X12X5.5 cm; |
Brand Name: | ZOTEK/ZOYI; | Display Count: | 6000 Counts; |
Display: | LCD Display; | Measuring Inductance Range: | -; |
Certificate: | CE FCC; | Weight: | 323g; |
Packaging Detail: | carton box 50-100pcs/carton; | Color: | Yellow/ blue; |
Measuring Capacitance Range: | 10mF; | Place of Origin: | Guangdong China; |
Selling Units: | Single item; | Package Preview: | ; |
Dimensions: | 240*90*45mm; | Measuring Voltage Range: | DC 1000V; |
Single gross weight: | 0.35 KG; | Display Type: | Digital Only; |
Name: | digital clamp meter; | Batteries: | 9V 6F22; |
Operating Temperature: | 0~40 ℃; | Measuring Current Range: | 1200A; |
Data hold: | Data Hold; | Product name: | Zotek VC903 Auto Manual Ranging Digital Clamp Meter; |
Model Number: | VC903; | Measuring Resistance Range: | 60MΩ; |

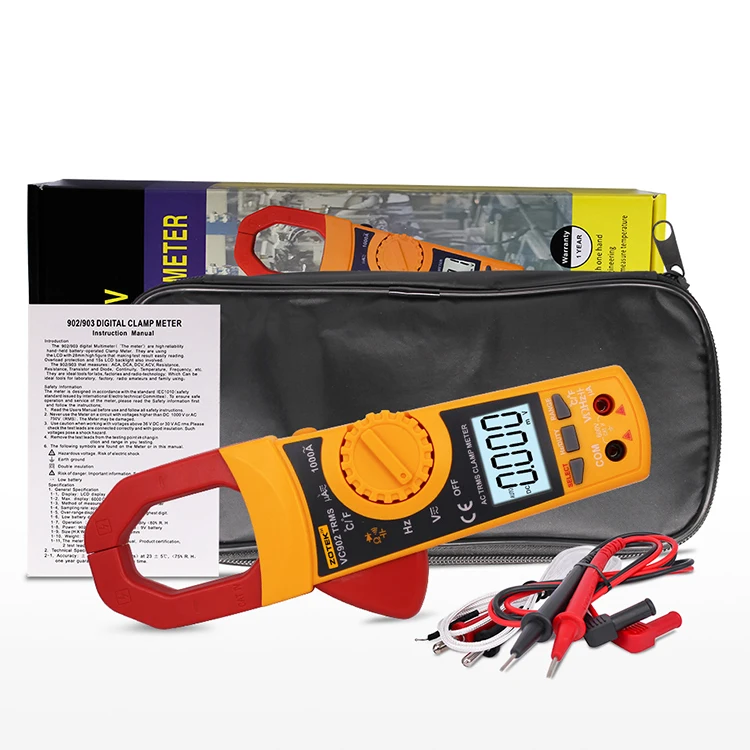

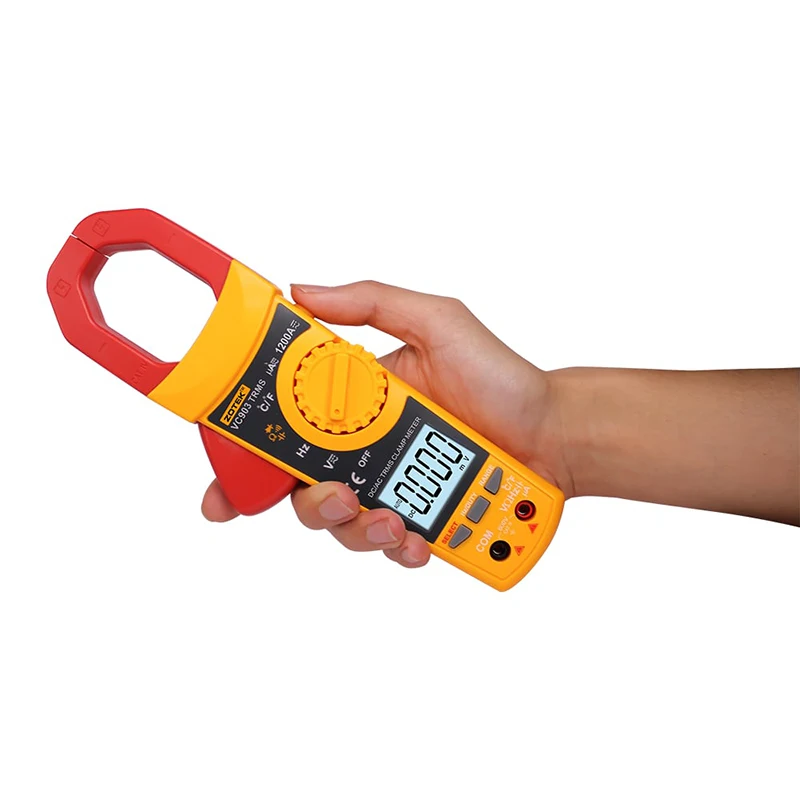

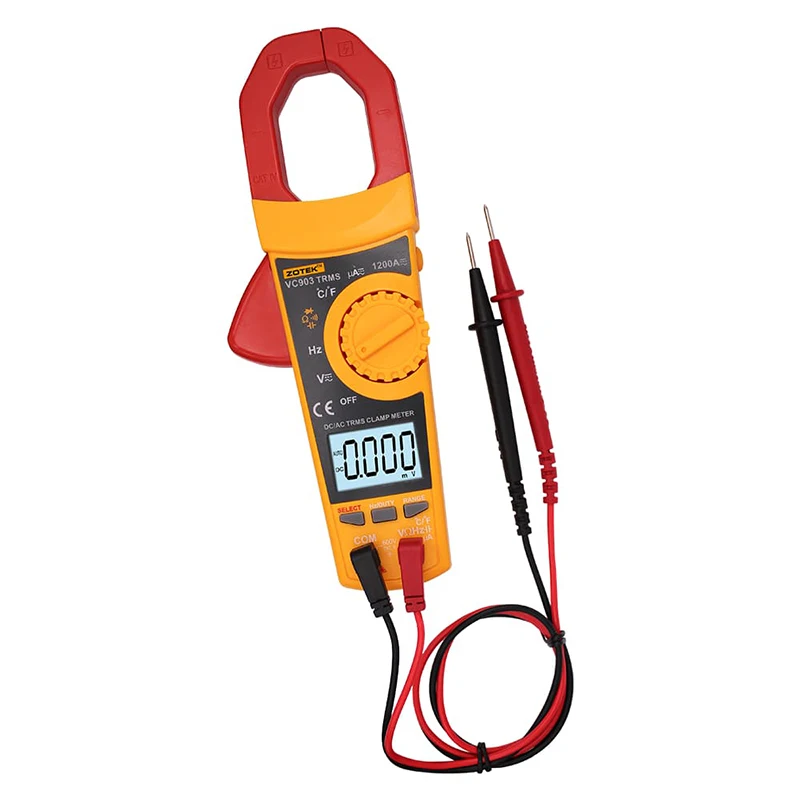

Zotek VC903 Auto Manual Ranging Electric Tester 1200A AC DC Digital Clamp Meter
This VC clamp meter is 6000 counts digital clamp multimeter, measure max range 1200A AC DC current, 1000V voltage DC.
Features: Auto and Manual Ranging; True RMS; Data Hold; Backlight; Low battery alert; Auto shutdown, use 9V 6F22 battery.
Details Specifications Model: VC903
Function | Range | Resolution | Accuracy |
DC Voltage | 600.0mV | 0.1mV | ±(0.5%+3) |
6.000V | 0.001V | ||
60.00V | 0.01V | ||
600.0V | 0.1V | ||
1000V | 1V | ||
AC Voltage | 600.0mV | 0.1mV | ±(1.0%+3) |
6.000V | 0.001V | ||
60.00V | 0.01V | ||
600.0V | 0.1V | ||
750V | 1V | ||
DC Current (μA/A) | 600.0μA | 0.1μA | ±(1.2%+3) |
6000μA | 1μA | ||
1200A | |||
AC Current (μA/A) | 600.0μA | 0.1μA | ±(1.5%+3) |
6000μA | 1μA | ||
1200A | |||
AC Current (A) | 600.0A | 0.1A | ±(2.0%+30) |
1200A | 1A |
Function | Range | Resolution | Accuracy | |||
Resistance | 600.0Ω | 0.1Ω | ±(0.5%+3) | |||
6.000kΩ | 0.001kΩ | |||||
60.00kΩ | 0.01kΩ | |||||
600.0kΩ | 0.1kΩ | |||||
6.000MΩ | 0.001MΩ | |||||
60.00MΩ | 0.01MΩ | ±(1.5%+3) | ||||
Capacitance | 9.999nF | 0.001nF | ±(5.0%+20) | |||
99.99nF | 0.01nF | ±(2.0%+5) | ||||
999.9nF | 0.1nF | |||||
9.999μF | 0.001μF | |||||
99.99μF | 0.01μF | |||||
999.9μF | 0.1μF | |||||
9.999mF | 0.001mF | ±(5.0%+5) | ||||
Frequency | 99.99Hz | 0.01Hz | ±(0.1%+2) | |||
999.9Hz | 0.1Hz | |||||
9.999kHz | 0.001kHz | |||||
99.99kHz | 0.01kHz | |||||
999.9kHz | 0.1kHz | |||||
9.999MHz | 0.001MHz | |||||
Duty Cycle | 1%~99% | 0.1% | ±(0.1%+2) | |||
Diode | √ | |||||
Continuity | √ | |||||
Temperature | (-20~1000)℃ | 1℃ | ±(2.5%+5) | 1000℃ |
| |
(-4~1832)℉ | 1℉ | 1832℉ |

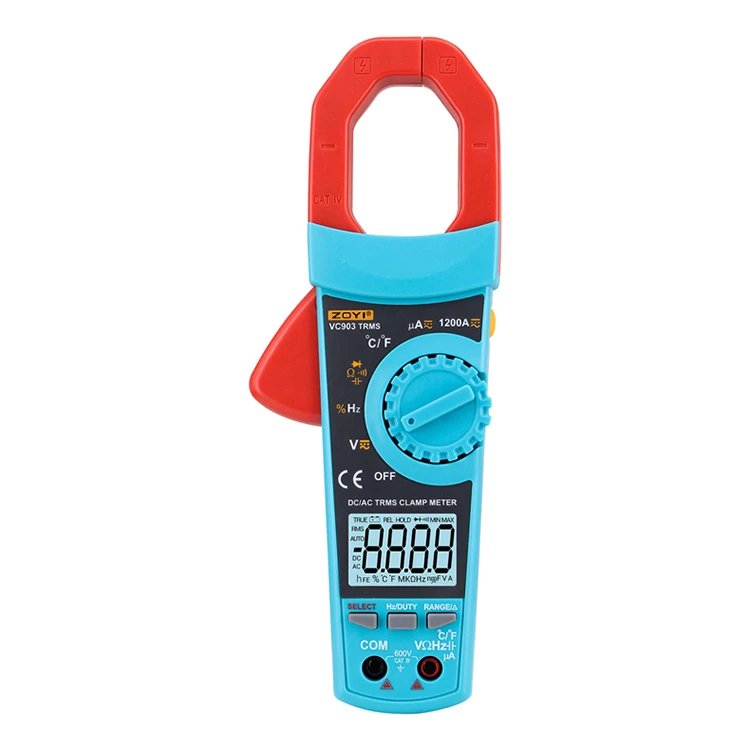

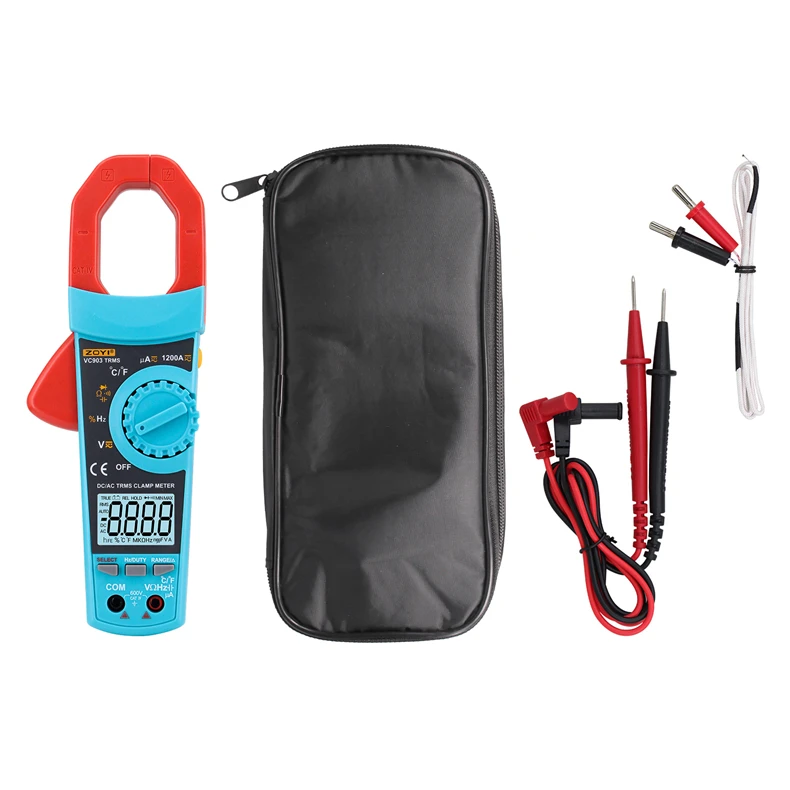

Two colors for your choice. YELLOW and BLUE
VC903 Auto Manual Ranging Digital Clamp Meter

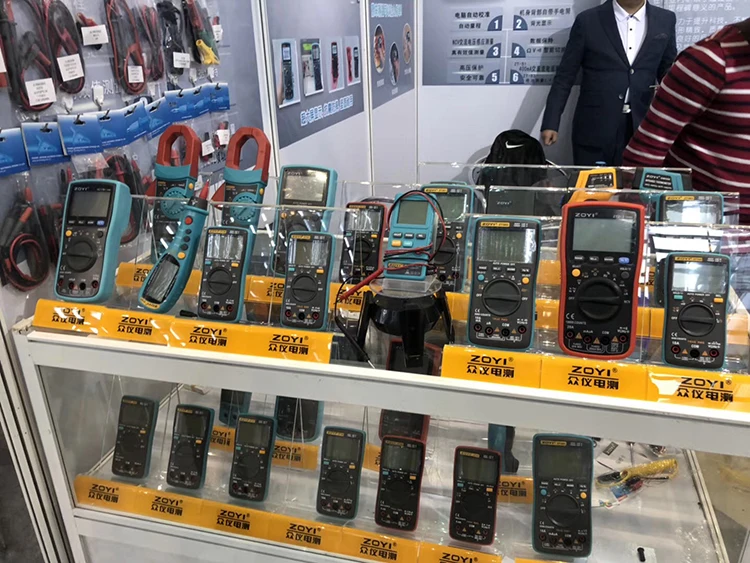

Nanning Bokun Instrument Equipment Co., Ltd is located in Kede Hardware & Electromechanical Mall, of the Green City Nanning. Bokun has focused on various instrumentation equipment (e.g. digital multimeter, clamp meter, laser rangefinder, Frequency converter etc.) for more than 12 years.
Our equipment and service are widely recognized and trusted by users through out China. To better meet with the continuously changing economic and social needs, here we’d like to expand global market. Sooner or later, our products will not only serve users in China, but also customers all over the world.
Welcome you, to join us grow your business !
1. Why choose us ?
Our foreign trade team is a young, passionate, professional one, but our company has rich experience in multimeter, laser distance measure equipment. We respect every customers with good service.
2. Do you offer samples?
Yes, We can provide free samples for you to check. Kindly you need to pay for the shipping cost. It will be sent in 2-6 days.
3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Below 200pcs, with stocks, it takes 3-5 days.
4. Do you accept customized design?
Yes,we have a professional team with rich experience in manufacturing, we can manufacture the products per your requirements. We accept OEM base on considerable quantities.
5. What's the payment method?
T/T , Online Assurance Order payment, Western Union, Bank account transfer, etc. for your convenience. As for large amount: 50% in advance is needed, and 50% before shipment.
Any question on the price, delivery, please just chat with us.
You will get our prompt reply :)
