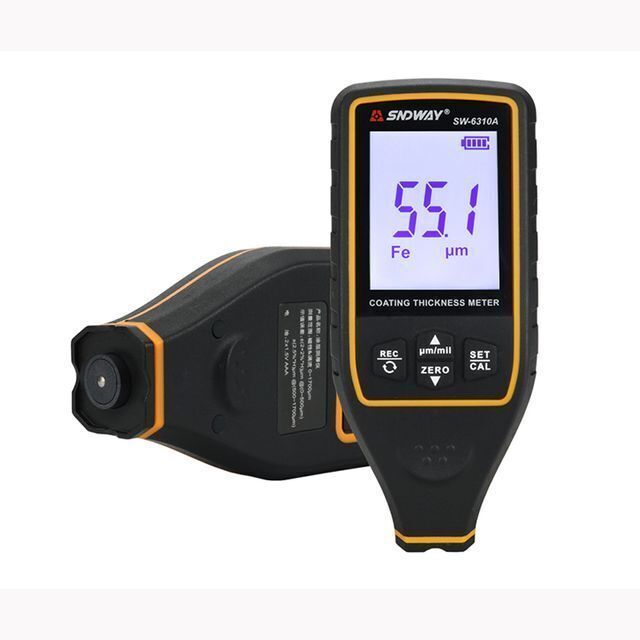

SNDWAY SW-6310A Auto power off Coating Meter Digital Thickness Gauge

Supplier: Nanning Bokun Instrument Equipment Co., Ltd.
Region: Guangxi, China
Contact: Mr Enyuan Li
Price: $69.00 / 1 - 4 pieces
$68.00 / 5 - 9 pieces
$66.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Package Preview:	;	Fuction:	Digital Car Paint Thickness Tester;
Product Name:	SNDWAY SW-6310A Auto power off Coating Meter Digital Thickness Gauge;	Type:	Thickness Gauge;
Application:	Thickness Gauge;	Selling Units:	Single item;
Single gross weight:	0.55 KG;	Measuring Range:	0~1700;
Keyword 1:	paint coating thickness gauge;	Brand Name:	SNDWAY;
Single package size:	24X18X6 cm;	Place of Origin:	Guangdong China;
Resolution:	0.1 μm / 1μm;	Certificate:	CE FCC;
Model Number:	SW-6310A;	Keyword:	Paint Thickness Meter;

SNDWAY SW-6310A Auto power off Coating Meter Digital Thickness Gauge

Product Description

SW-6310A Features:

1. 2.0 inches large segment screen

2. Rotatable display screen for different views of user during measuring of process.

3. Easy to use, directly attach to the coating and on screen shows the property and thickness.

4. Provide Zero and Multi-spots calibration, calibrating reliably and rapidly.

5. Saving the measured datum up to 30 sets, power-off will not obliterate datum.

6. Warning function of upper/lower limits

7. Press for power-on, and auto power-off with no operation.

8. Indication of low power

Specifications

Any question on the thickness meter specs , please contact us.

Model NO.	SW-6310A
Measuring range	Magnetic and non magnetic material 0~1700µm
Resolution	0.1μm @ (0~99.9μm); 1μm @ (100~1700μm)
Indication error	±(2+2%H)μm @ (0~500μm) ±(2.5%H)μm @ (500~1700μm)
Min measuring area	Magnetic and non magnetic material 25×25mm
Min curvature	Convexity 5mm; concave 30mm
Min substrate thickness	Magnetic material 0.2mm; Non magnetic material 0.05mm
Screen	2.0 inches large segment screen
Memory	0 units
Units	mil/µm 1mil=25.4µm;1µm=0.03937mil
Battery	2×1.5V AAA
Basic measurement	Single /Continuous measurement
Memory/Delete record	yes
The screen rotation	yes
Calibration	Zero-spot calibration; Calibration-film calibration
Limiting value measurement	yes
Dimension	120x52x26mm

Car Paint Film Coating Thickness Meter

Detailed Images

Package contents:

1xCoating Thickness Gauge
1x tool box
1x sling
1x Chinese+English manual
1x outer color-box package
1x iron substrate
1x aluminium substrate
5x calibration film
1x small PP box(for storing the substrates and the calibration films)

Packing & Delivery

All your ordered thickness gauges will be tested before packing and delivering.
