LS220B Linshang Bluetooth car detector car paint thickness gauge coating thickness gauge

Supplier: Shenzhen Graigar Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Leo Lee
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Origin:	Guangdong, China	Packaging Details:	carton
Warranty:	/	type:	Coating Thickness Gauge
brand:	forest	Supply capacity:	580 pieces per month
model:	LS220B	payment terms:	L/C, Western Union, T/T, MoneyGram
port:	Shenzhen	Customization support:	OBM

Product Description

LS220B Linshang Bluetooth car detector car paint thickness gauge coating thickness gauge

introduce:

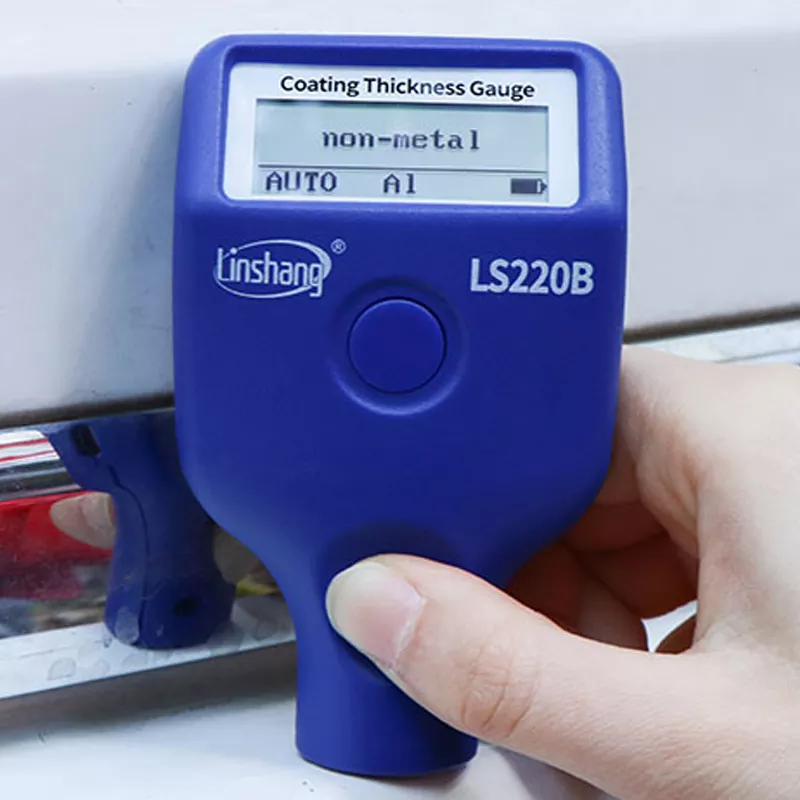

LS220B Automobile Paint Film Meter is a special instrument for testing the thickness of the coating on the surface of automobile substrates. LS220B car paint meter has Bluetooth data transmission function. When testing the paint surface thickness of different parts of the used car, the testing data can be saved on the mobile APP, and the testing report can be exported. The report can scientifically and objectively analyze the overall situation of the coating thickness of used cars.

Specification:

scope	value
probe tip	ruby fixed
Measuring principle	Fe: Hall Effect / NFe: Eddy Current
Probe type	Built-in integrated probe
Measuring range	0.0-2000μm
solve	0.1μm: (0μm - 99.9μm) 1μm: (100μm - 999μm) 0.01mm: (1.00mm - 2.00mm)
accuracy	≤±(3% reading+2μm)
unit	micron/mil
Measurement interval	0.5 seconds
Minimum measuring area	25mm
minimum curvature	Convex: 5mm / Concave: 25mm
Minimum substrate thickness	Iron: 0.2mm / NFe: 0.05mm
language	Chinese, English, Russian, Turkish
exhibit	128×48 dot matrix LCD display
power supply	2 x 1.5V AAA alkaline batteries
range of working temperature	-20℃-50℃
storage temperature range	-20℃-60℃
Standard sizes	1016228mm
Weight (with battery)	79 grams
data transmission	Bluetooth

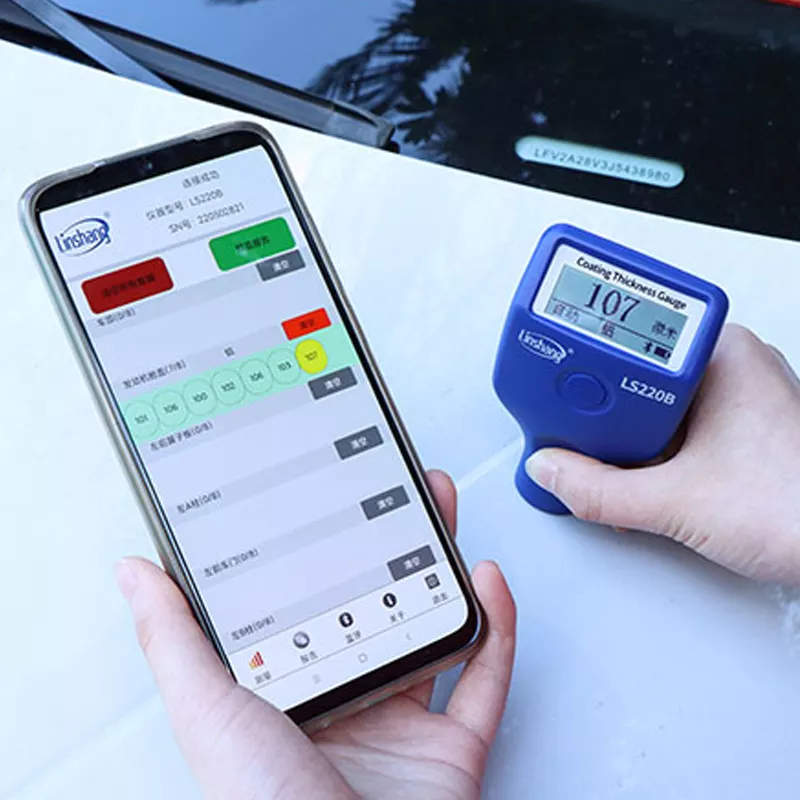

LS220B car paint meter has Bluetooth data transmission function. After successfully connecting with the mobile APP, you can record real-time data and view test reports, save pictures, and share reports through the APP. (Note: APP only supports Android operating system 6.0 and above).

If the car shell has been repaired with metal putty, the LS220B car paint surface measuring instrument can dig it out in automatic measurement mode accompanied by two buzzers.

LS220B car paint tester can quickly find iron galvanized body and anti-corrosion body, which can help sellers sell more cars.

The car paint meter can intelligently identify various measurement substrates such as iron, aluminum, and plastic. After recognition, the substrate will be automatically switched.

LS220B Automobile Paint Detector can be set to three measurement modes of "Fe", "Al" and "Fe/Al". Only in the automatic mode, the instrument can detect metal putty and iron galvanized body.

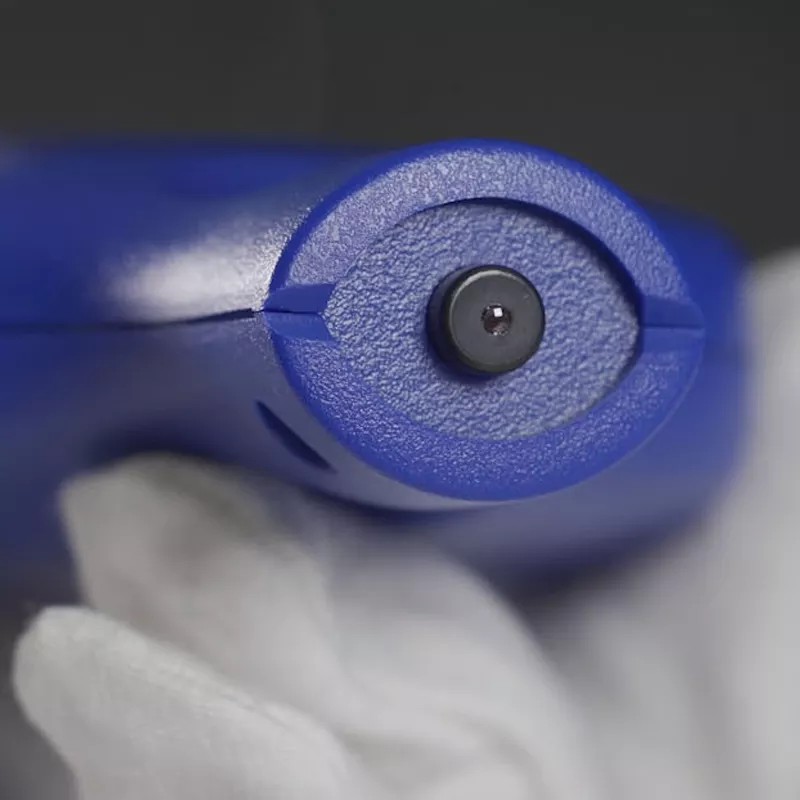

Using a high-sensitivity ruby probe to avoid errors caused by wear.

Small size, one-button operation, no calibration required. The car paint meter can be used directly after starting up.

packing list:

No.	describe	quantity	unit
1	LS220B coating thickness gauge	1	put
2	Fe zero adjustment board	1	pieces
3	NFe zero adjustment board	1	pieces
4	Standard film	1	pieces
5	user manual	1	pieces
6	drawstring bag	1	pieces
7	Certificate/Warranty Card	1	pieces
