Packaging Detail: | carton; | Brand Name: | Uni-Trend; |
Waveform Length: | 8-14um; | Place of Origin: | Guangdong China; |
Delivery Detail: | within 3-5 days after getting your payment; | Thermal Imager: | Yes; |
Supply Ability: | 5 Piece/Pieces per Day; | Model Number: | UTi160; |
Basic Function: | Technical Parameters; | Spacial Resolution: | 2.2mrad; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Port: | Shenzhen; |
Temperature Sensitivity: | 0.08°C , 30°C; |

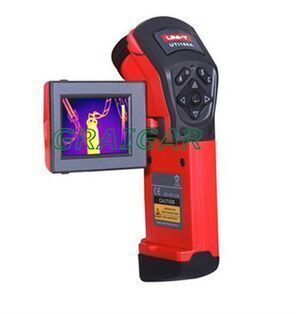

New Handheld IR Infrared Thermal Imager Imaging Camera ew Handheld IR Infrared Thermal Imager Imaging Camera Uni-t UTi160A
Thermal Infrared Imager UTI160A
1.Superior image quality
2.High performance thermal imager
3.Resolution ratio 160 * 120
Features:
- Handheld
- Flip-up LCD
- Surface Measurement Function
- Non-Contact measurement
- Work Constantly in inspect stage
- Auto Alarm
- Thermograph Storagable
Application:
1. Industrial - Inspect Conductor Joint/Cable Clamp Electrical Joint
- Fan Motor, Transfomer Magnetic Shielding
- Gernator Iron Loss Test, Cable Overloaded test
- Analyze Cable Load Distribution
2. Chemical Industry - Inspect Liquid Level
- Test Boiler Refractory Lining
3. Automobile - Inpect Oil Pines, Brake Pad, Airconditional outlet, Car window
4. Building Inspect - Corroded Wall Bushling, Thermal Leakage
- Thermal Leakage of Building's Outer Wall
SPECIFICATIONS | UTI160A |
Imaging Performance | |
Thermal field of view | 20° x15° 6.4° x4.8° 12° x8° |
Spatial resolution | 2.20 mRad |
Minium Focus Distance | 0.1m |
Thermal Sensitivity (NETD) | 0.08° C@ 30 ° C |
Detector Data Acquisition | 60Hz |
Focus | Manual |
Detector type | UFPA, 160X120 |
Spectral band | 8~14 um |
TemperatureMeasurement | |
Range 1 | -20° Cto 300° C |
Range 2 | -20° Cto 600 ° C |
Range 3 | -20 ° Cto 1500 ° C |
Accuracy | ± 2 ° C or 2% |
Temperature alarm | Max/min |
Correction | Emissivity (0.1 to 1.0, 0.01 increments), ambient temp., distance, relative humidity |
Image Presentation | |
Digital Display | 2.5" LCD |
LCD backlight | CCFL |
Video output | NTSC 60Hz / PAL 50 Hz composite video |
Pallettes | 6 |
Image and Data Storage | |
Storage Medium | MinIRSDcard/2GB |
File format | 14 bit measurement data included, SAT format |
Interfaces and Software | MinIReport |
Power, Battery Life | |
Batterytype | Rechargable Lithium Battery |
Batteryoperating time | 2.5 Hours continous |
Batterycharging | 1 bay intelligent charger powered via AC outlet |
Power saving | Automatic shut down and sleep mode |
Environmental and mechanical design | |
Operating temparature | Negative 15 to 50 C |
Storage temparature | Negative 40 to 70 C |
Rrelative humidity | 10% to 95%, non-condensing |
Water and dust resistant | IP54 |
Shock | Operational: 25G |
Vibration | Operational: 2G |
Weight (battery included) | 500g |
Size | 172mmx80mm x 162mm |
Tripod mounting | 1/4" _20 |
