aspect: | 140x45x75mm | Sales unit: | Single product |
Single piece packaging size: | 30X25X10cm | exhibit: | 4-digit backlit LCD display |
Repeatability: | ±0.5GU | product name: | gloss meter |
accuracy: | ±1.0GU | Glossiness unit: | Gu |
Place of origin: | Guangdong, China | Customization support: | OEM, ODM, OBM |
scope: | 0.1~200 gloss units | Packaging details: | Standard export packaging carton |
weight: | 310g (including battery) | Warranty: | 1 year |
Gross weight of single piece: | 1.500kg | brand: | Armanda |
solve: | 0.1 | model: | GM-200 |
power supply: | 3.7V lithium-ion rechargeable battery |

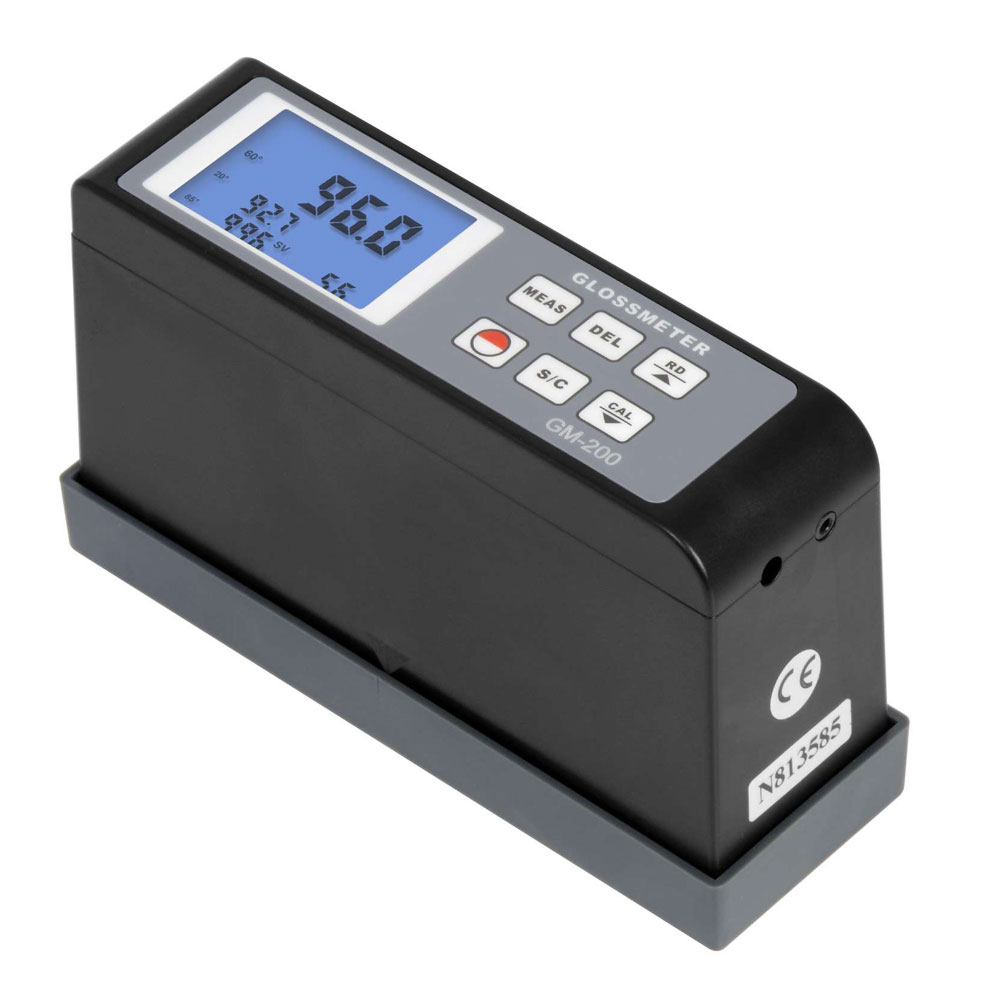

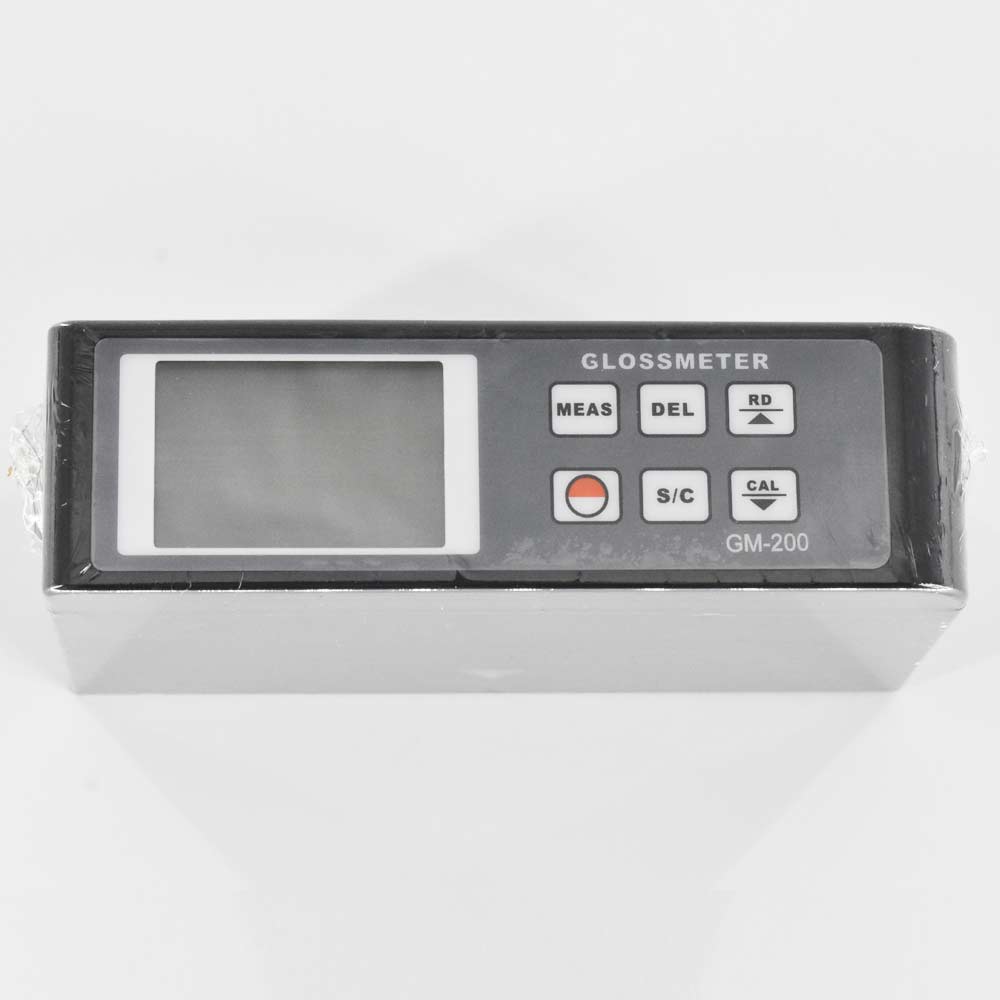

Portable gloss meter GM-200 20/60/85 degree multi-angle gloss meter stone tile paint ink
tester
Widely used in floor maintenance, surface cleaning quality control, stone and tile gloss measurement, inspection of prints, paint and ink quality control, polished metal surfaces, measurement
feature
* Comply with international standards ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters comply with JJG696-2002.
* Accurate measurement and good repeatability.
* Small size, easy to carry.
* Automatic calibration.
* Intelligent design, fast measurement.
* Can store 56 sets of measurement values.
* Can display 20°, 60° and 85° gloss values at the same time.
* Built-in lithium-ion rechargeable battery.
* Backlight display, suitable for low light environments.
* Connect to PC using USB data output.
* Provide Bluetooth data output option.
Material and angle selection recommendations
* 20°: High-gloss paint, printing ink, plastic, paper and other materials.
* 60°: medium gloss paint, printing ink, plastic, ceramic, marble and other materials.
* 85°: Low gloss paint, camouflage paint material.
Specification
exhibit
|
4-digit backlit LCD display
|
Measure angle
|
20°/60°/85°
|
scope
|
0.1~200 gloss units
|
glossiness unit
|
Gu
|
accuracy
|
±1.0GU
|
solve
|
0.1
|
Repeatability
|
±0.5GU
|
Measure area
|
7x14mm(oval)
|
Data memory
|
56 groups
|
Operating conditions
|
Temperature: 0~40℃ Humidity: <85%RH
|
power supply
|
3.7V lithium-ion rechargeable battery
|
aspect
|
140x45x75mm
|
weight
|
310g (including battery)
|
Standard accessories
|
Host
|

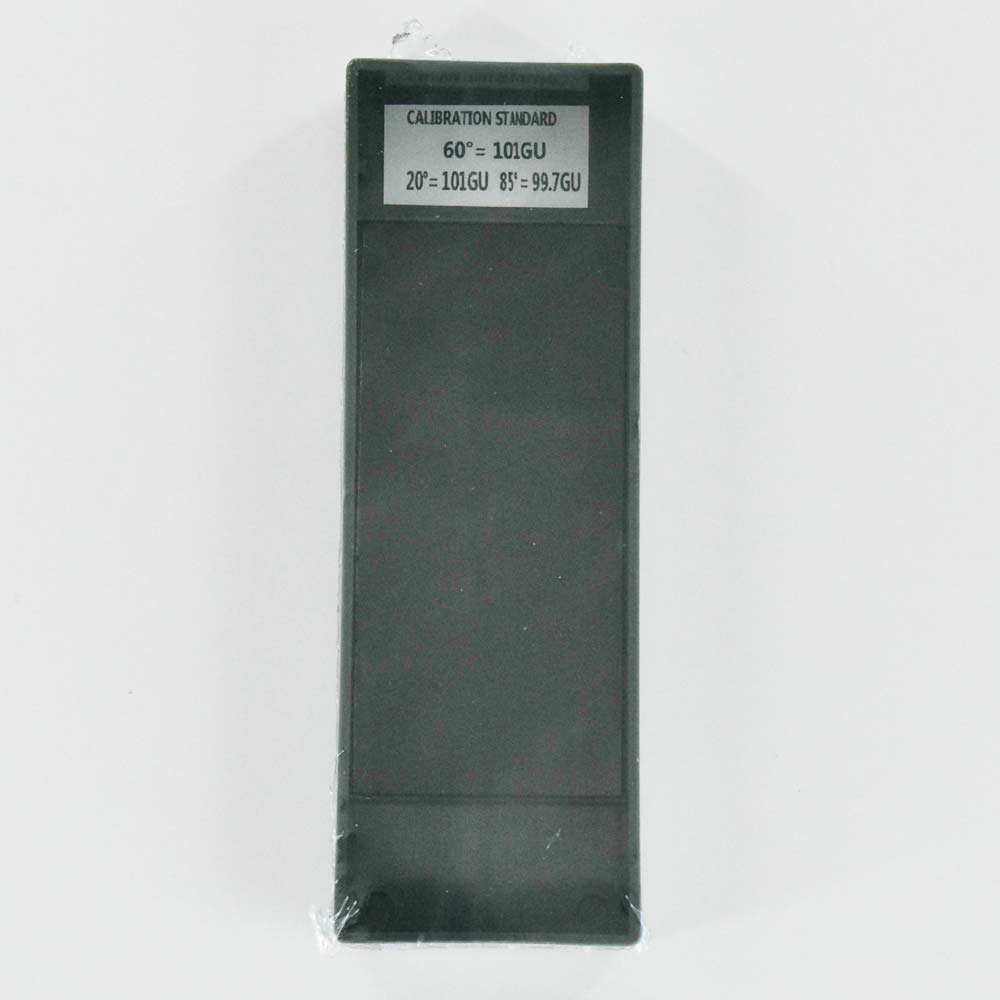

Stand with calibration standard
|
|
AC adapter
|
|
Optical cleaning cloth
|
|

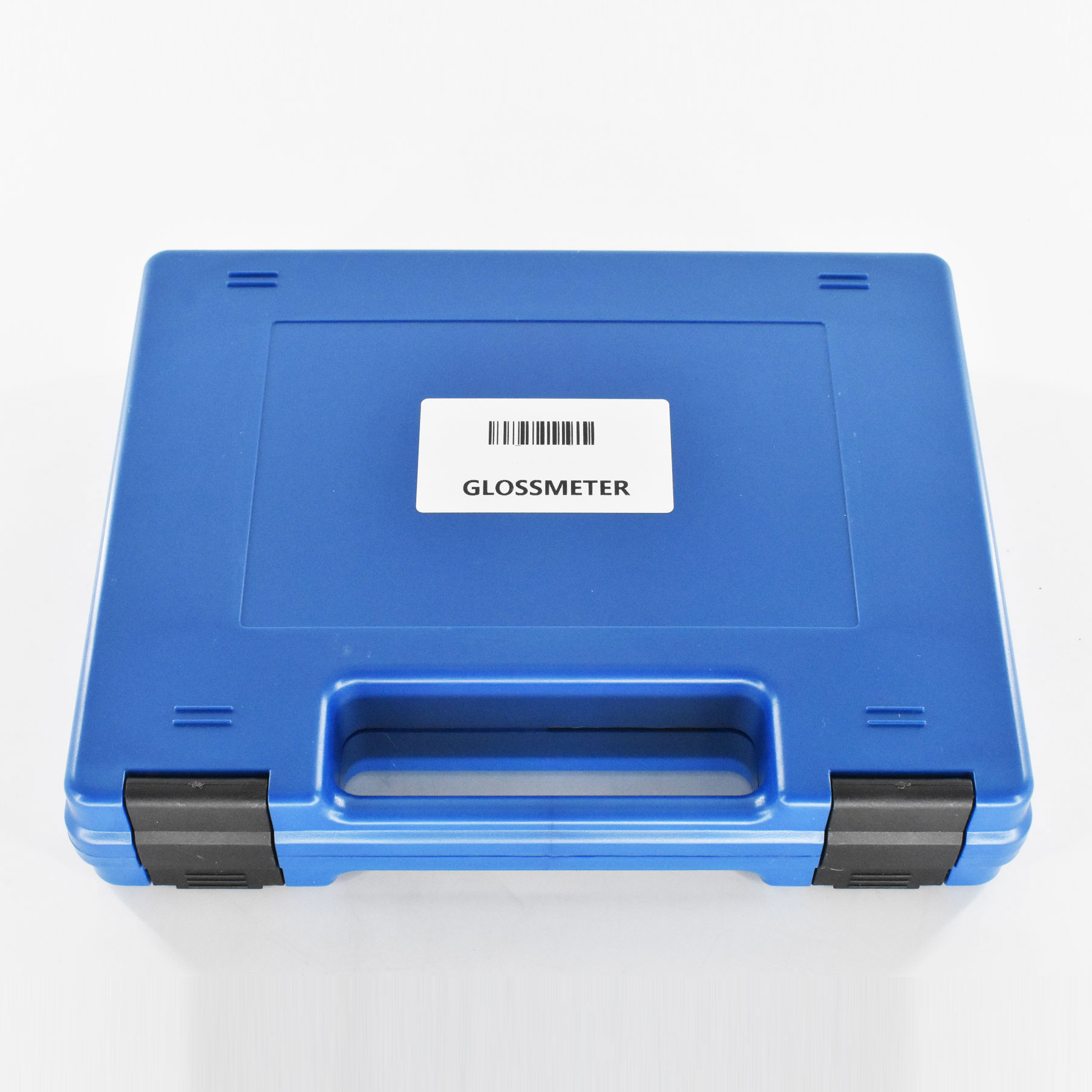

suitcase
|
|
Operation Manual
|
