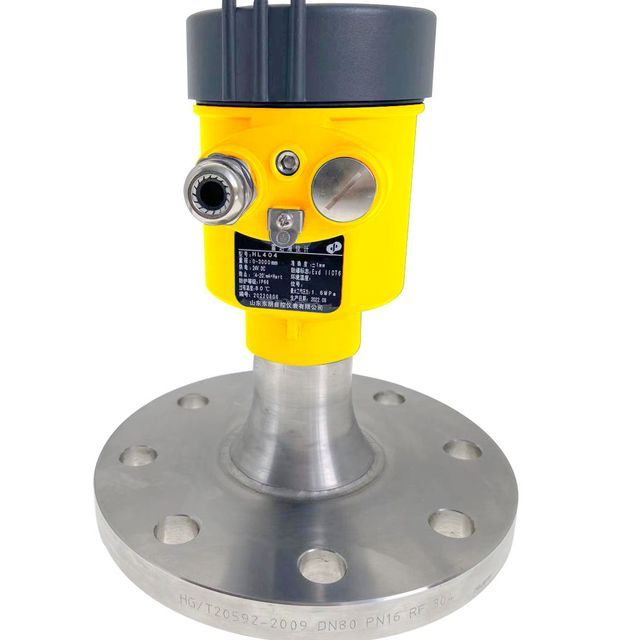

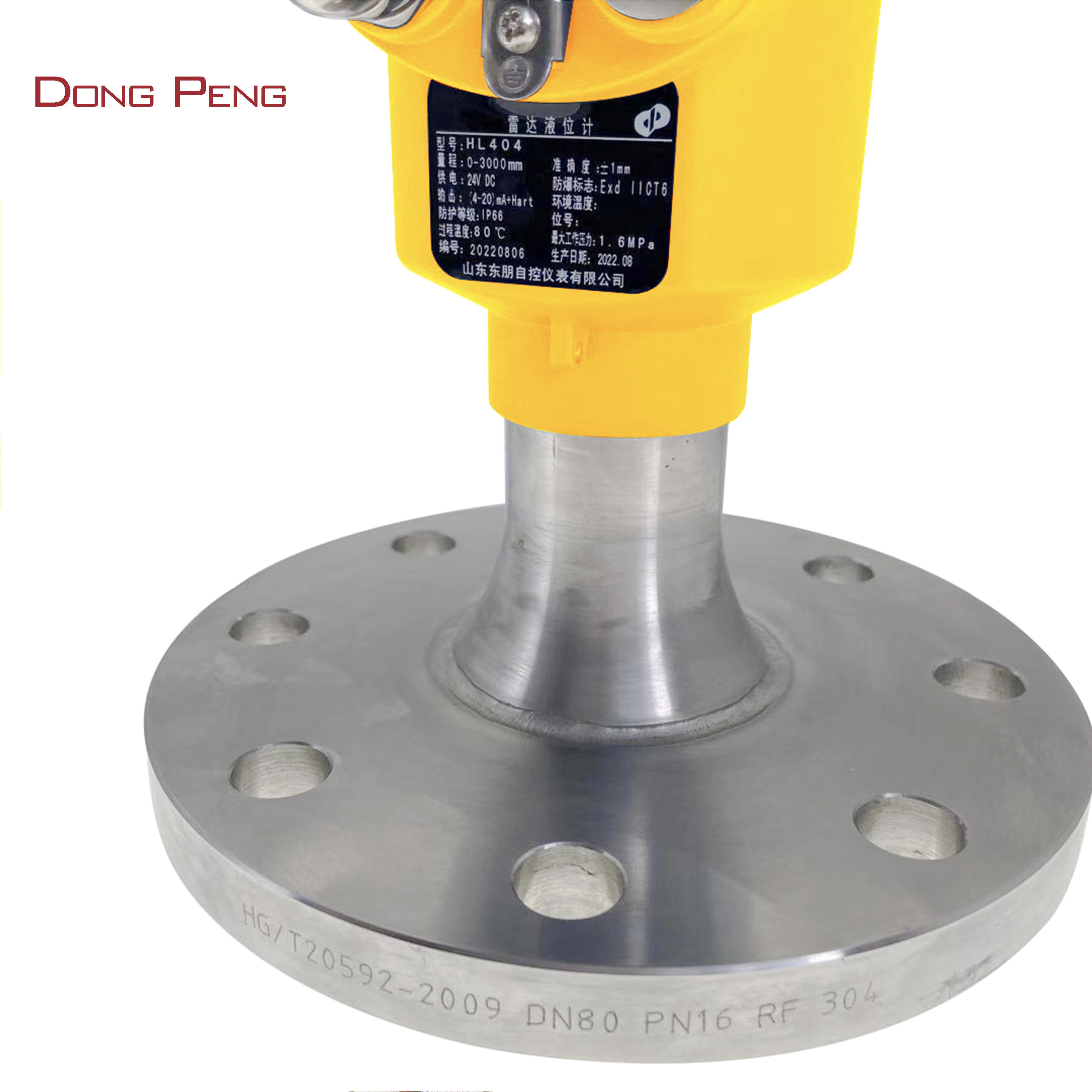

High Quality Durable Radar Level Sensor Cement Silo Sensor Transmitter Level Measurement Tool

Product details
Explosion-proof:ExiaIICT6 (optional)model:HL404TJ
project:valueCustomization support:OEM production
Frequency Range:76-81GHzMeasuring range:50 meters
Package preview:payment terms:Western Union, T/T
Process connection:Thread, flange (optional)Process pressure:-0.1-2Mpa
measurement accuracy:+1mmWarranty:1 year
brand:Dong PengProtection class:Protection class 67
Origin:Shandong ChinaMedium temperature:-40-200℃
typical application:Various corrosive liquids, solid powders
Product Description
Product overview
Radar level measuring instrument, the maximum measuring distance can reach 80 meters. The antenna has been further optimized and a new fast microprocessor can be used to analyze the signal at a higher rate, enabling the meter to be used in complex measurement conditions such as active gold and solid chambers.
Measuring principle
Radar-grade antennas emit narrow microwave pulses that are sent down through the antenna. After the microwave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit, which is automatically converted to an object-level signal (due to the extremely fast propagation speed of microwaves, the time for electromagnetic waves to reach the target and reflect back to the receiver is almost instantaneous).
Features of Radar Level Meter1. Small antenna size, easy installation, non-contact radar, no wear, no pollution. 2. Hardly affected by corrosion and foam, and hardly affected by changes in water vapor, temperature and pressure in the atmosphere. 3. The dusty environment has little effect on the work of the high-frequency level meter. 4. Shorter wavelength, better reflection on inclined solid surface. 5. The beam angle is small, the energy is concentrated, and the echo capability is enhanced, which is beneficial to avoid interfering objects. 6. The measurement blind area is smaller, and it can also achieve good results for small tanks. 7. High signal-to-noise ratio enables better performance even under fluctuating conditions. 8. With high frequency, it is the best choice for measuring solid and low dielectric constant media.
Specification
project
value
typical application
Various corrosive liquids, solid powders
Measuring range
50 meters
Frequency Range
76-81GHz
measurement accuracy
+1mm
Medium temperature
-40-200℃
process pressure
-0.1-2Mpa

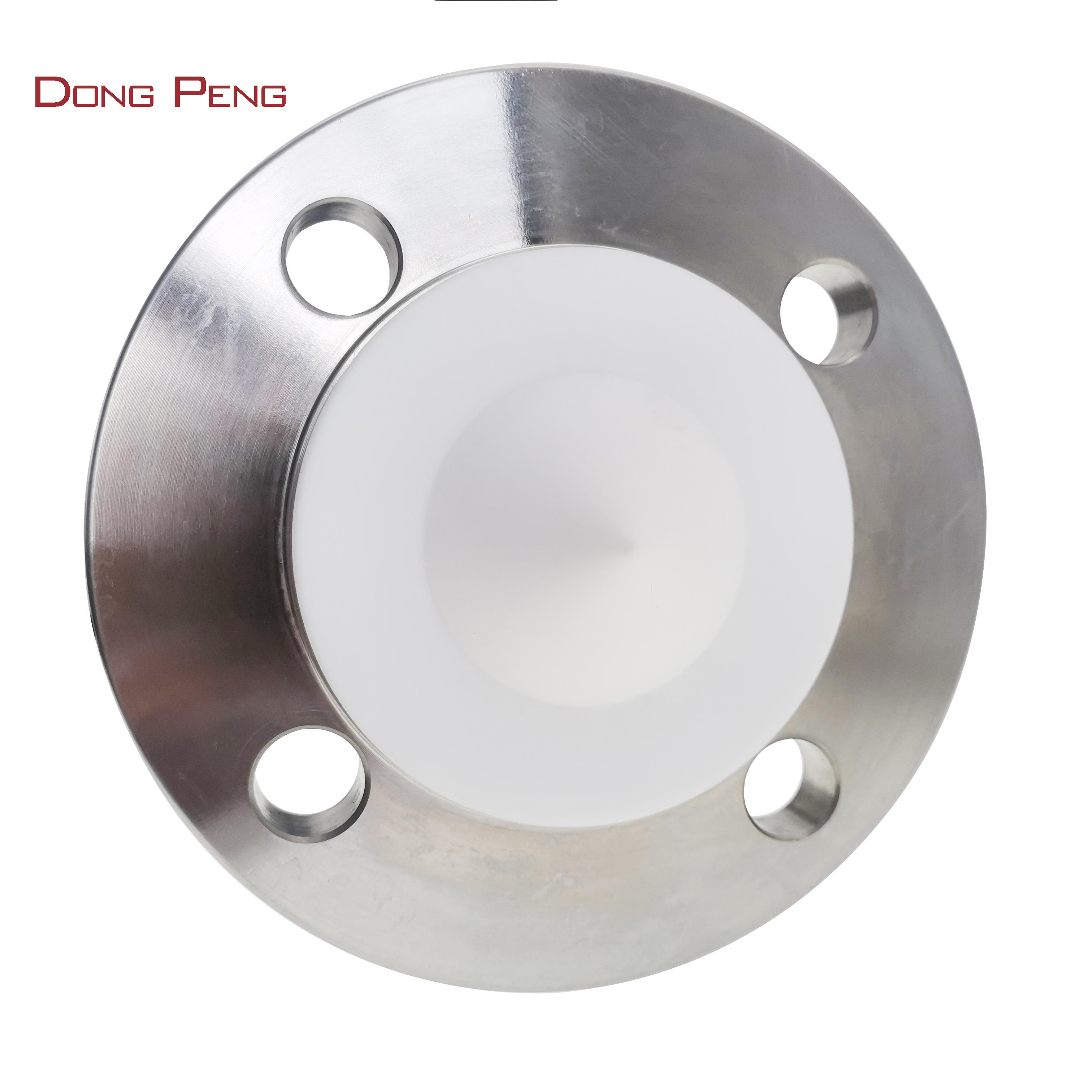

process connection
Thread, flange (optional)
degree of protection
Protection class 67
Explosion-proof
ExiaIICT6 (optional)
Electrical Interface
4-20mA/HART (two wires/four wires); RS485/communication...
