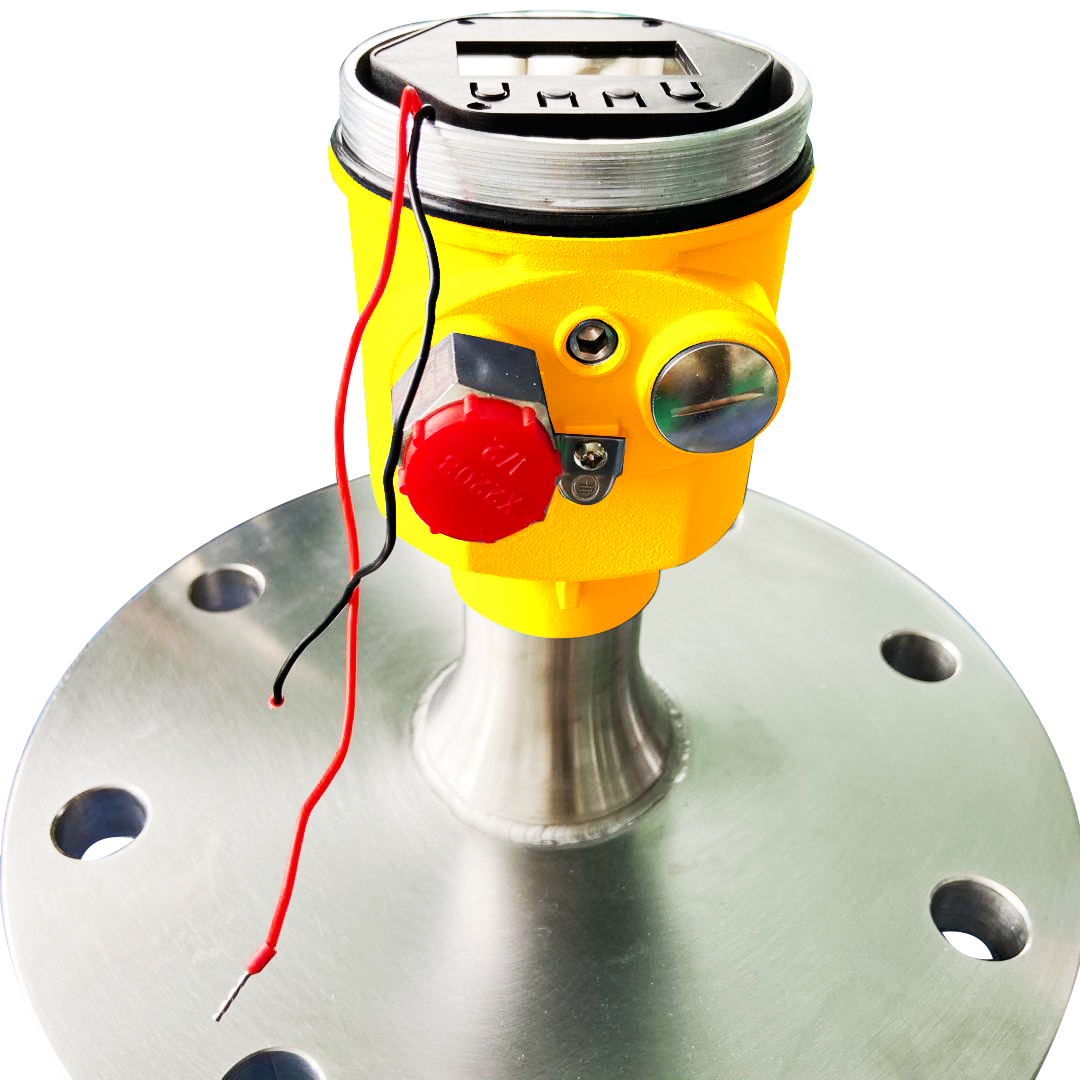

26GHz radar level meter solid corn level sensor nitric acid cylinder ultrasonic level meter

Supplier: Shandong Dongpeng Automatic Control Instrument Co., Ltd.
Region: Shandong, China
Contact: Ms Cathy Chen
Price: $236.00 / 5 - 9 pieces
$206.00 / >=10 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Frequency range:	26GHz	Process Pressure:	-0.1-0.3Mpa
Medium temperature:	-40 to 130°C	Customization support:	OEM
Measuring range:	10 mins	project:	value
Explosion proof:	4-20mA/HART (two-wire/four-wire) S485/Modbus...	Brand Name:	Dong Peng
Measuring accuracy:	±5 mm	Protection level:	IP67
Process connection:	Thread, flange (optional)	Warranty:	1 year
Typical applications:	Various corrosive liquids	Payment Terms:	Western Union, T/T
Material:	Stainless steel	model:	HL40406F
Origin:	Shandong Province, China	size:	custom made

Product Description

Product Overview

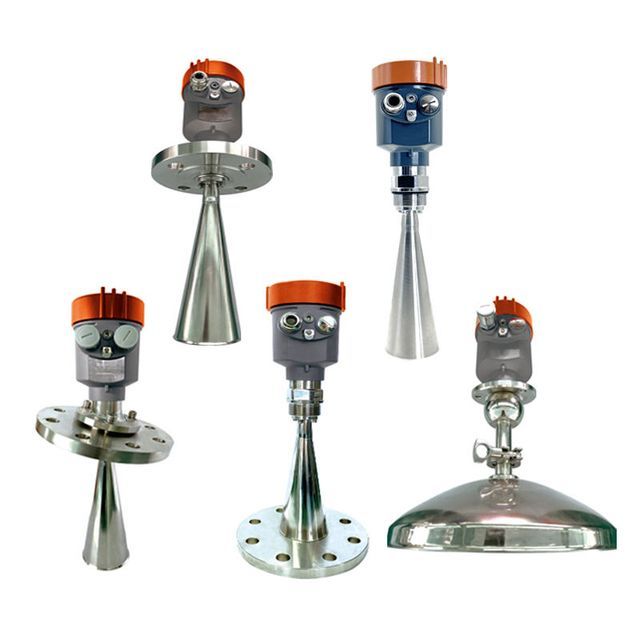

Radar level measuring instrument, the maximum measurement distance can reach 80 meters. The antenna has been further optimized and a new fast microprocessor is used to analyze the signal at a higher rate, so that the instrument can be applied to complex measurement conditions such as active gold and solid silos.

Radar level meter features

1. The antenna is small in size, easy to install, non-contact radar, no wear and no pollution. 2. It is almost unaffected by corrosion and foam, and almost unaffected by water vapor, temperature and pressure changes in the atmosphere. 3. Severe dust environment has little effect on the work of high-frequency level meters. 4. The wavelength is shorter and reflects better on inclined solid surfaces.

Measuring range	40m; 50m

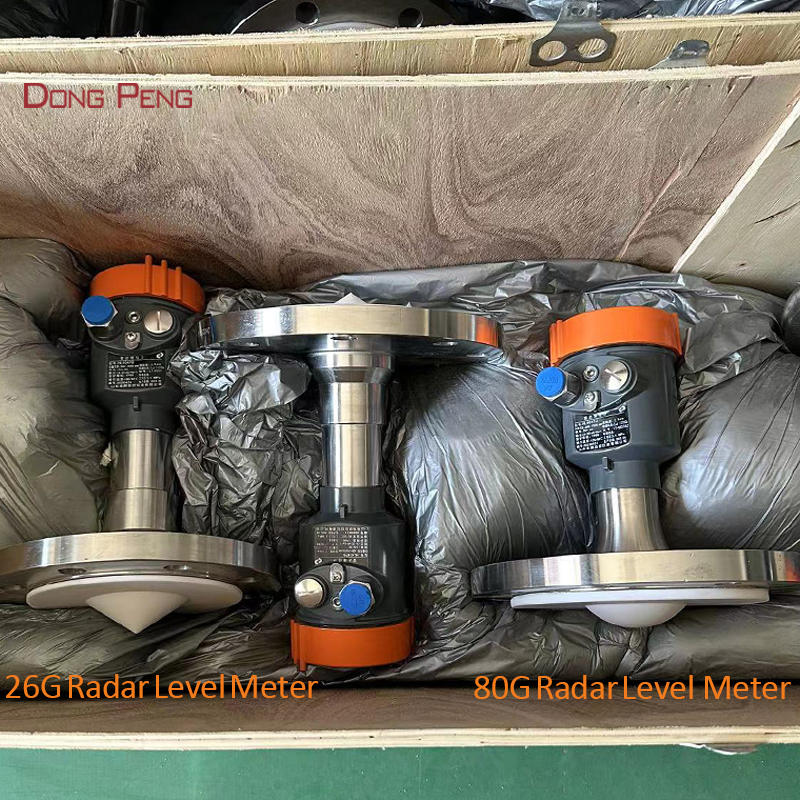

Frequency range	26GHz, 80GHz
Measuring range	±5 mm; ±1 mm
Process pressure	-0.1~2.0MPa
Medium temperature	-40~260℃; -40~200℃
Process connection	Flange (optional); Flange bracket (optional)
Protection Level	IP67
application	Easy to crystallize and condense. Corrosive liquid. Powder

Specification

project	value
Typical Applications	Various corrosive liquids
Measuring range	10 mins
Frequency range	26GHz
Measurement accuracy	±5 mm
Medium temperature	-40 to 130°C
Process pressure	-0.1-0.3Mpa
Process connection	Thread, flange (optional)
Protection Level	IP67
Explosion-proof	ExiaIICT6 (optional)

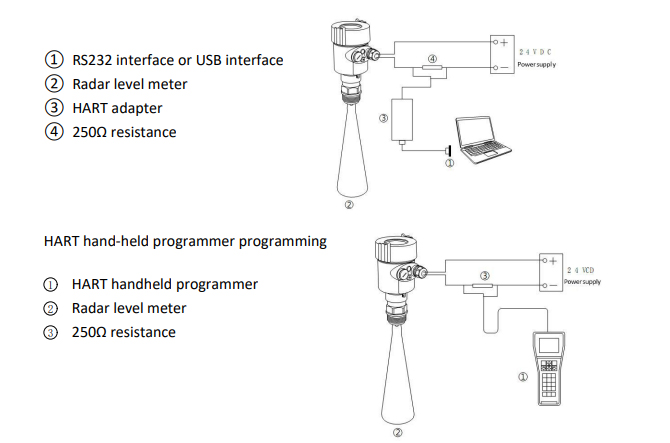

Electrical interface	4-20mA/HART (two-wire/four-wire) S485/Modbus...

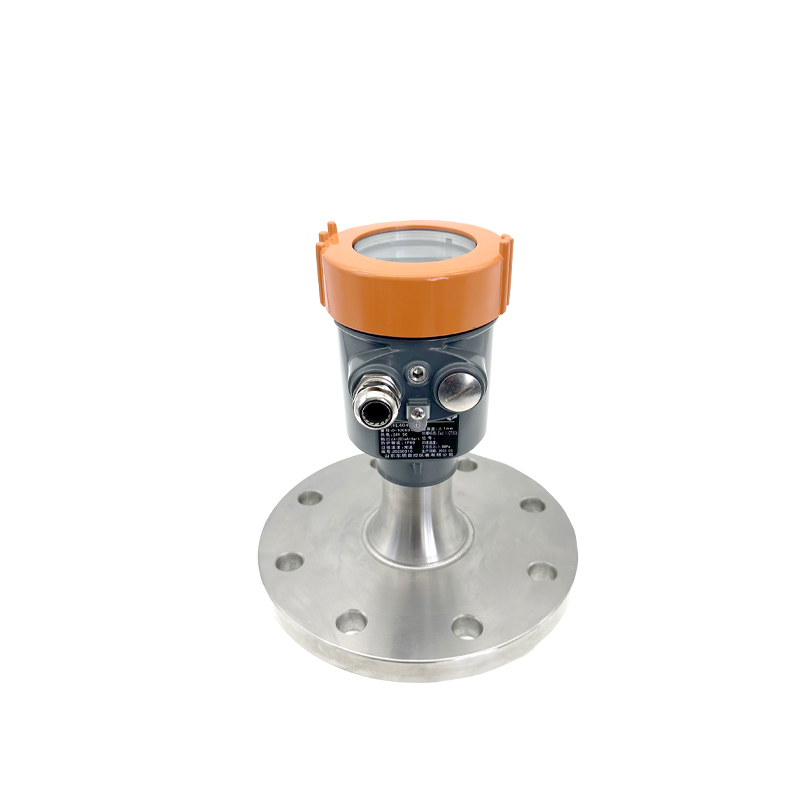

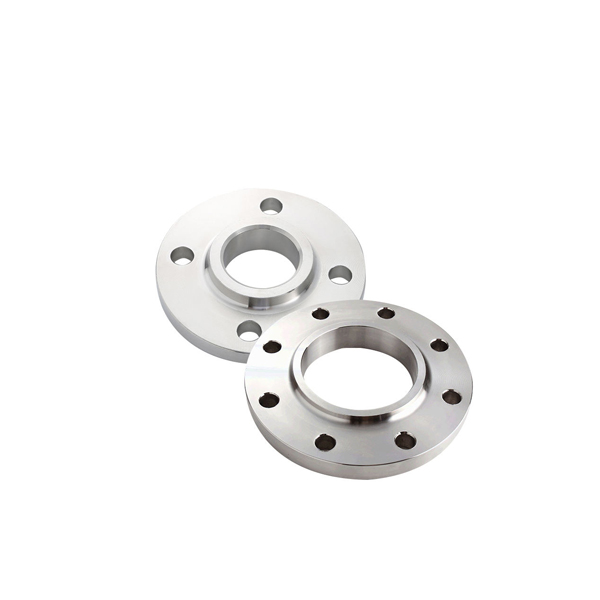

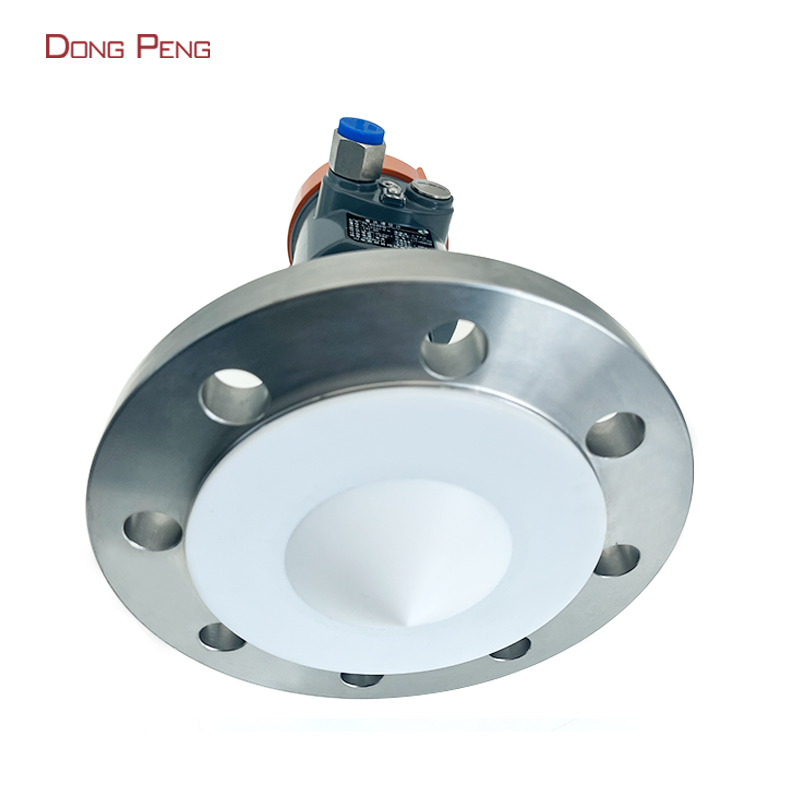

Flange connection

advantage:

High quality waterproof connector

· Strong sealing · Small beam angle

·Energy concentration·No interference·High precision

3° antenna beam angle

advantage:

·The interference in the environment has less impact on the instrument. Installation is more convenient

Material

advantage: Made of 304.316 aluminum alloy and stainless steel, it has good processing performance and corrosion resistance, long service life, and is suitable for a variety of working conditions.
