Measuring voltage range: | 600V | Display type: | numbers only |
place of origin; place of origin: | Japan | Measuring resistance range: | 600-6000 |
Gross weight per piece: | 0.600 kg | weight: | 220G |
Measuring current range: | 600-1000A | model: | 2007R |
Measuring inductance range: | / | Measuring capacitance range: | / |
Sales unit: | single product | brand: | Kyoritsu |
aspect: | 204*81*36 | Operating temperature: | 0~50 |
Single package size: | 17X10X6 cm |

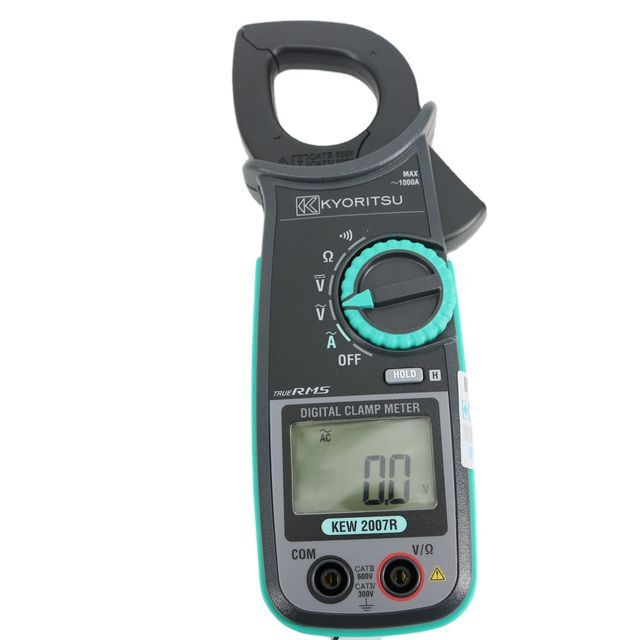

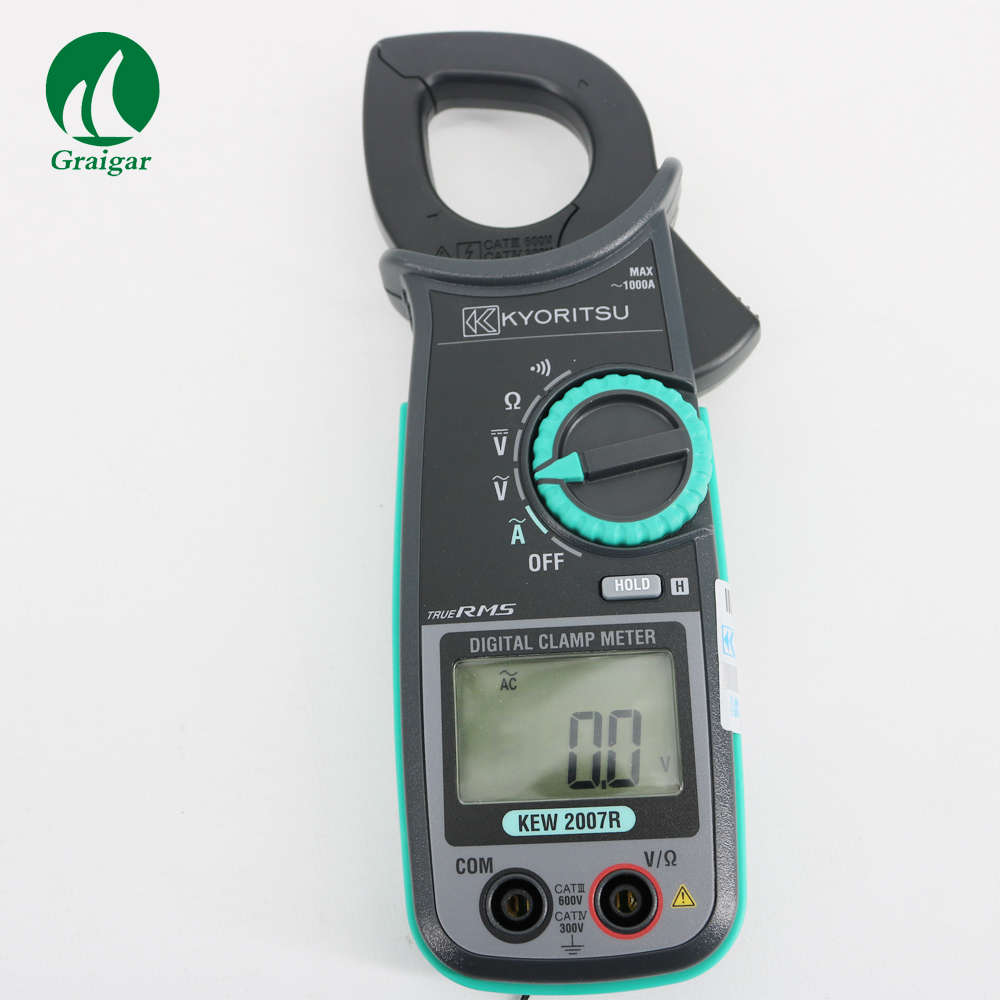

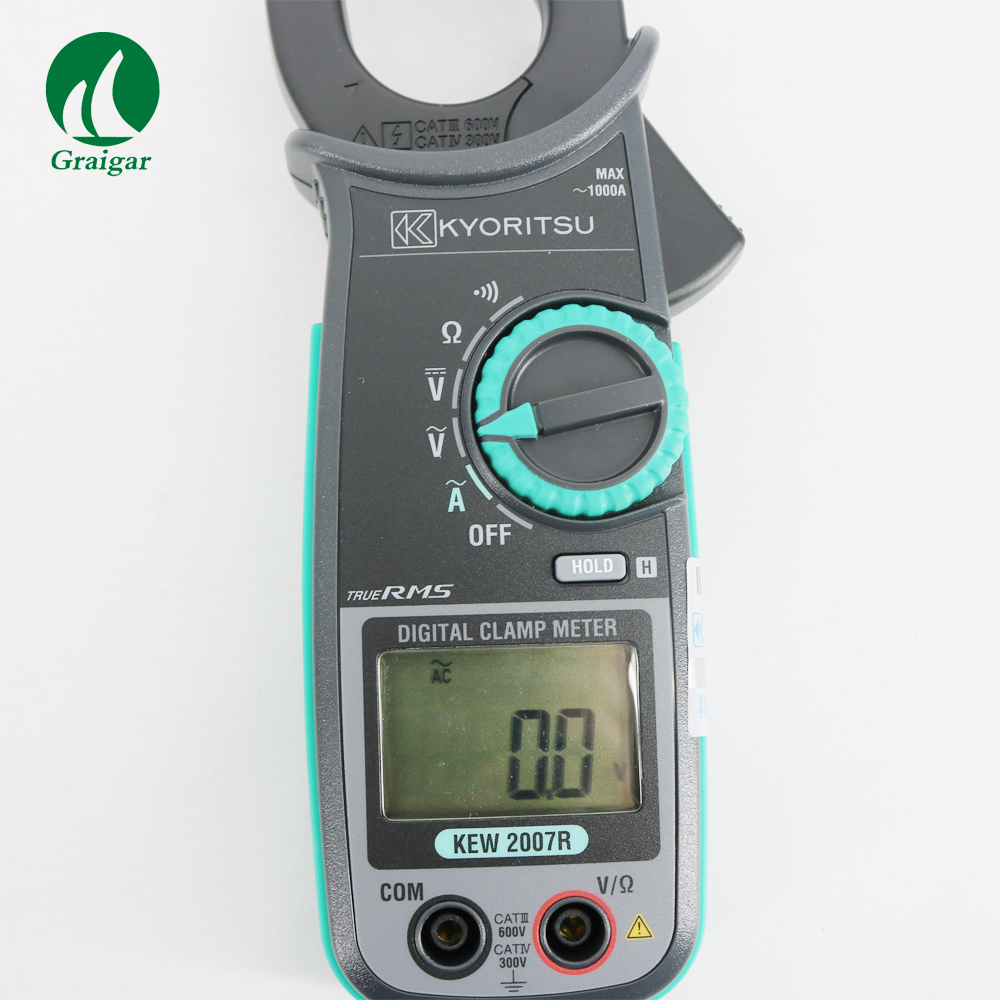

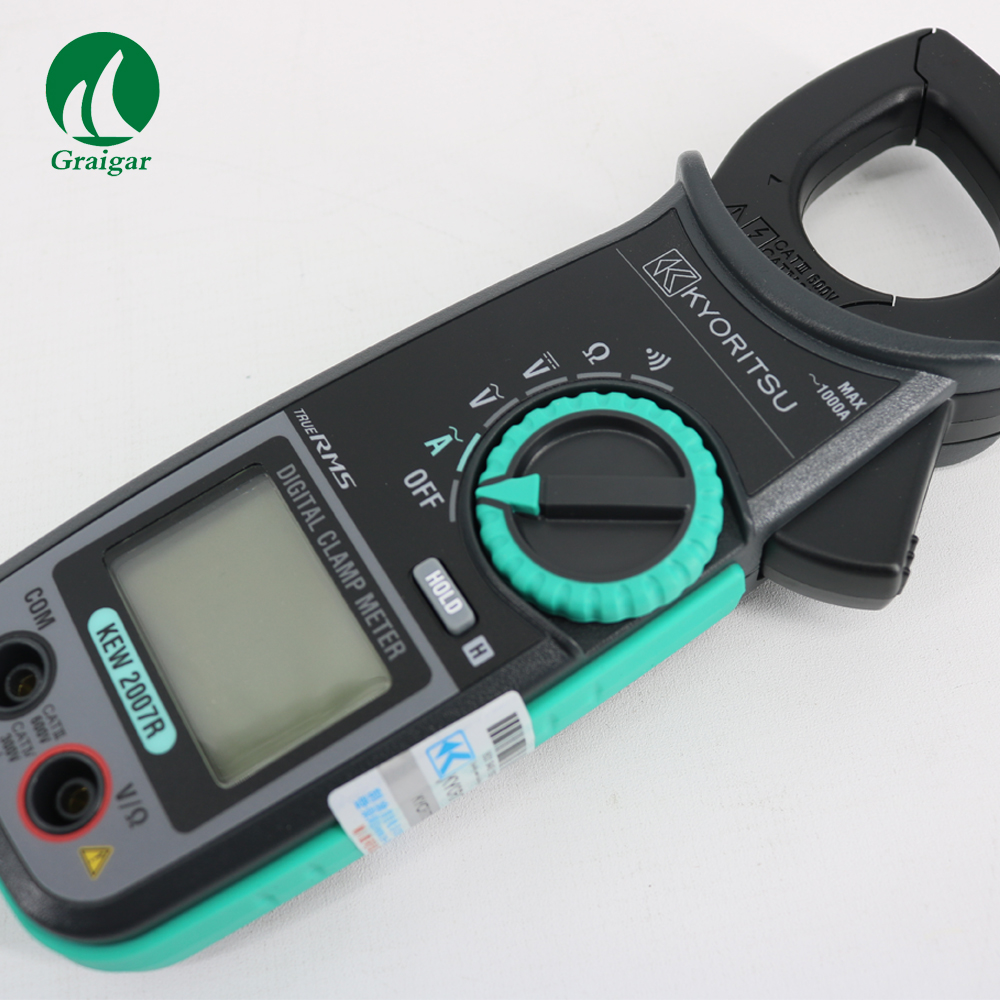

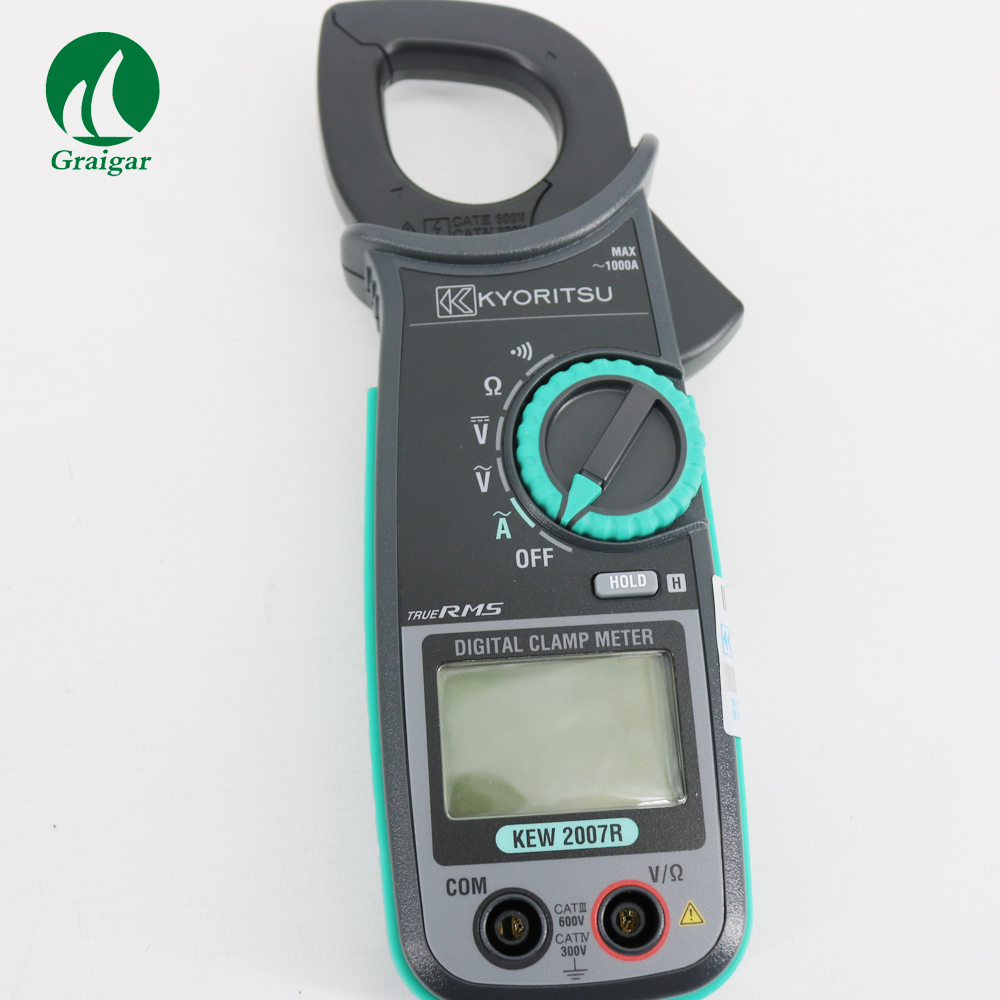

KYORITSU 2007R Digital AC Clamp Meter

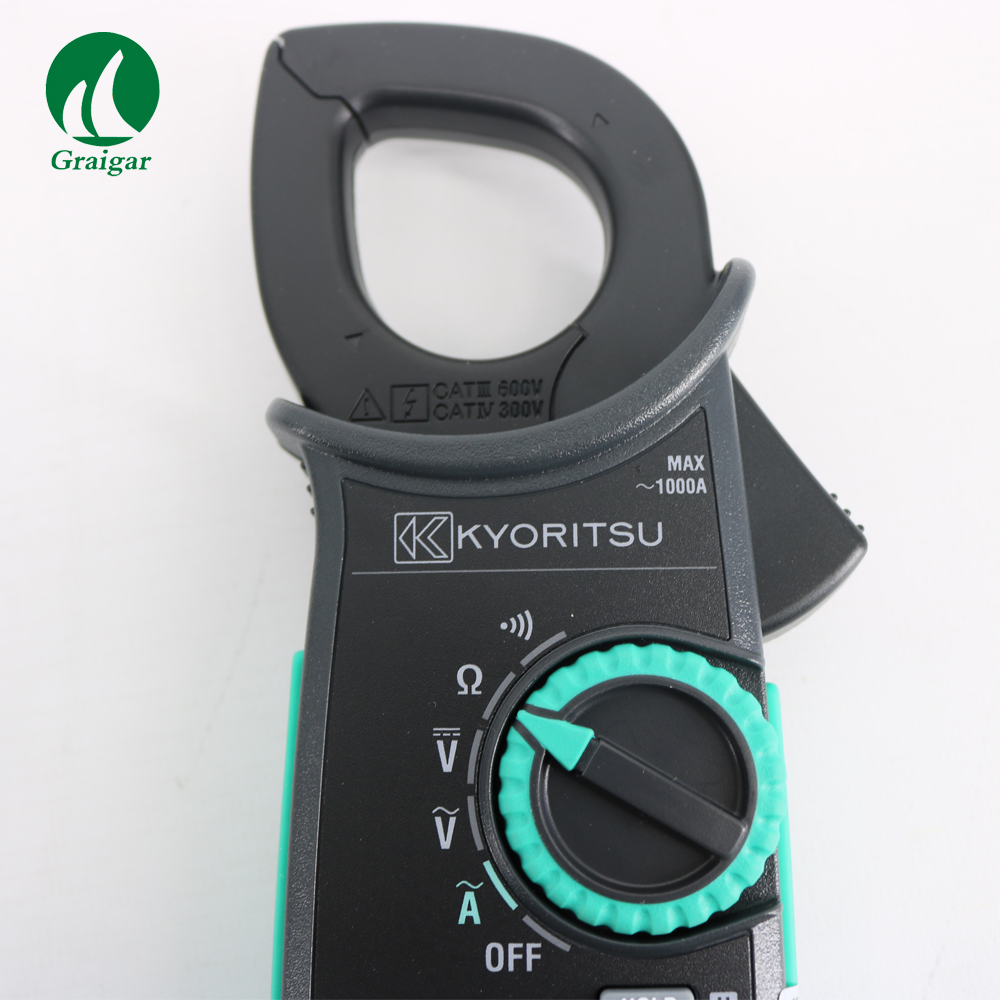

full safety jaw
• Ergonomic overmolded body provides easy one-handed operation
• Large easy-to-read display with 0.1A resolution
• Accurate readings with true rms
600/1000A Autoranging
• Long battery life
• safety standard
IEC 61010-1 CAT IV 300V / CAT III 600V
alternating current | 600.0/1000A (auto range) ±1.5%rdg±4dgt [45 - 65Hz] ±2.0%rdg±4dgt [40 - 400Hz] |
---|---|
AC voltage | 600.0V ±1.2%rdg±3dgt [45 - 65Hz] ±1.5%rdg±4dgt [40 - 400Hz] |
DC voltage | 600.0V ±1.2%rdg±3dgt |

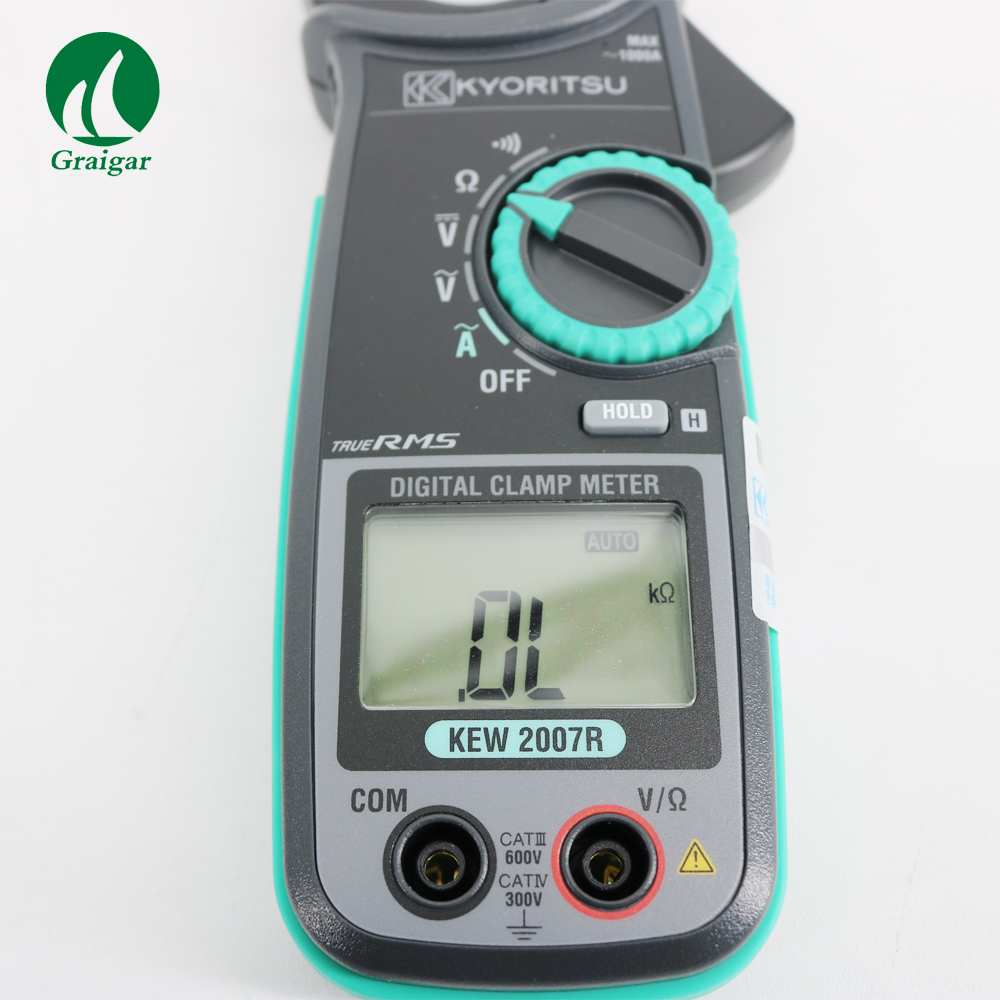

Ω | 600.0Ω/6.000kΩ (auto range) ±1.3%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6.000kΩ) |
Continuity buzzer | 600Ω (below 90Ω buzzer sounds) |
Conductor size | Maximum φ33mm |
Applicable Standards | IEC 61010-1 CAT IV 300V, CAT III 600V Pollution Degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2 (EMC), IEC 60529 IP40, EN 50581 (RoHS) |

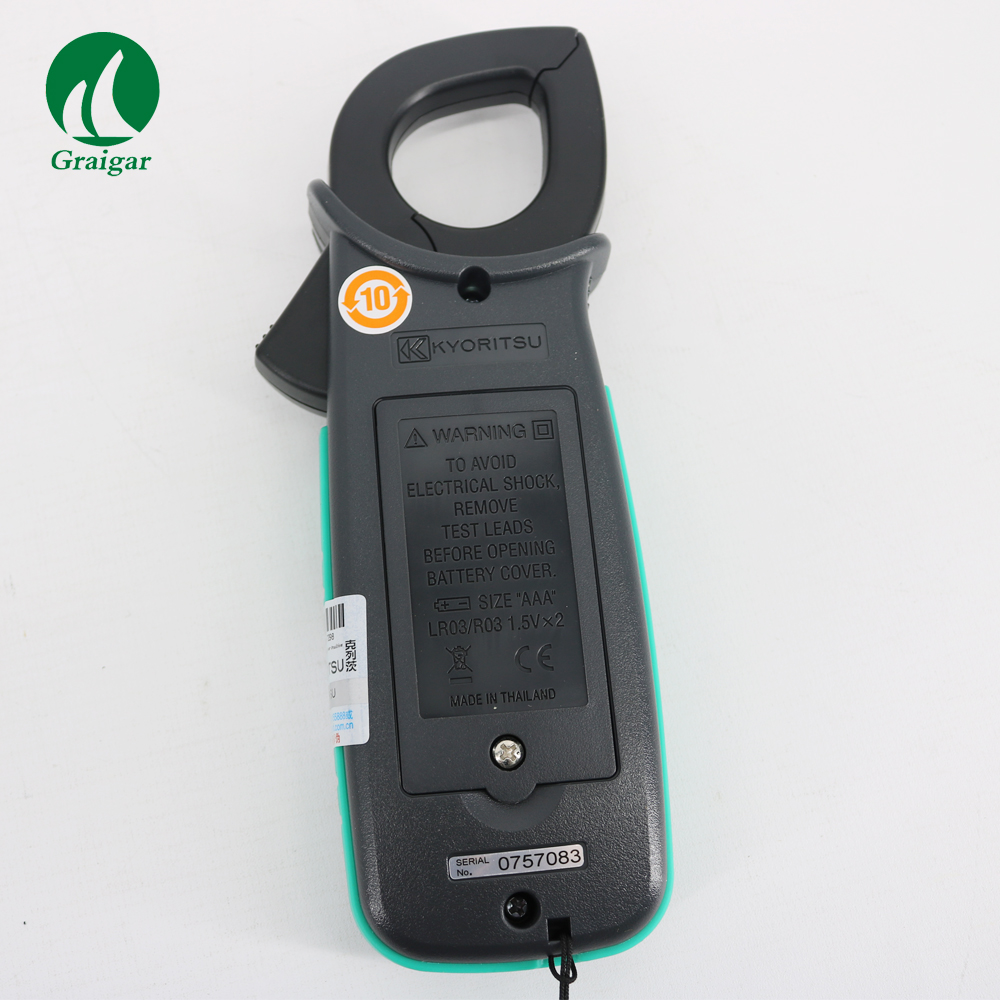

energy source | R03/LR03 (AAA) (1.5V) × 2 |
Continuous measurement time | About 170 hours (when using R03) (Automatic power saving: about 10 minutes) |
aspect | 204(L) × 81(W) × 36(D)mm |
weight | Approx. 220 g (including battery) |

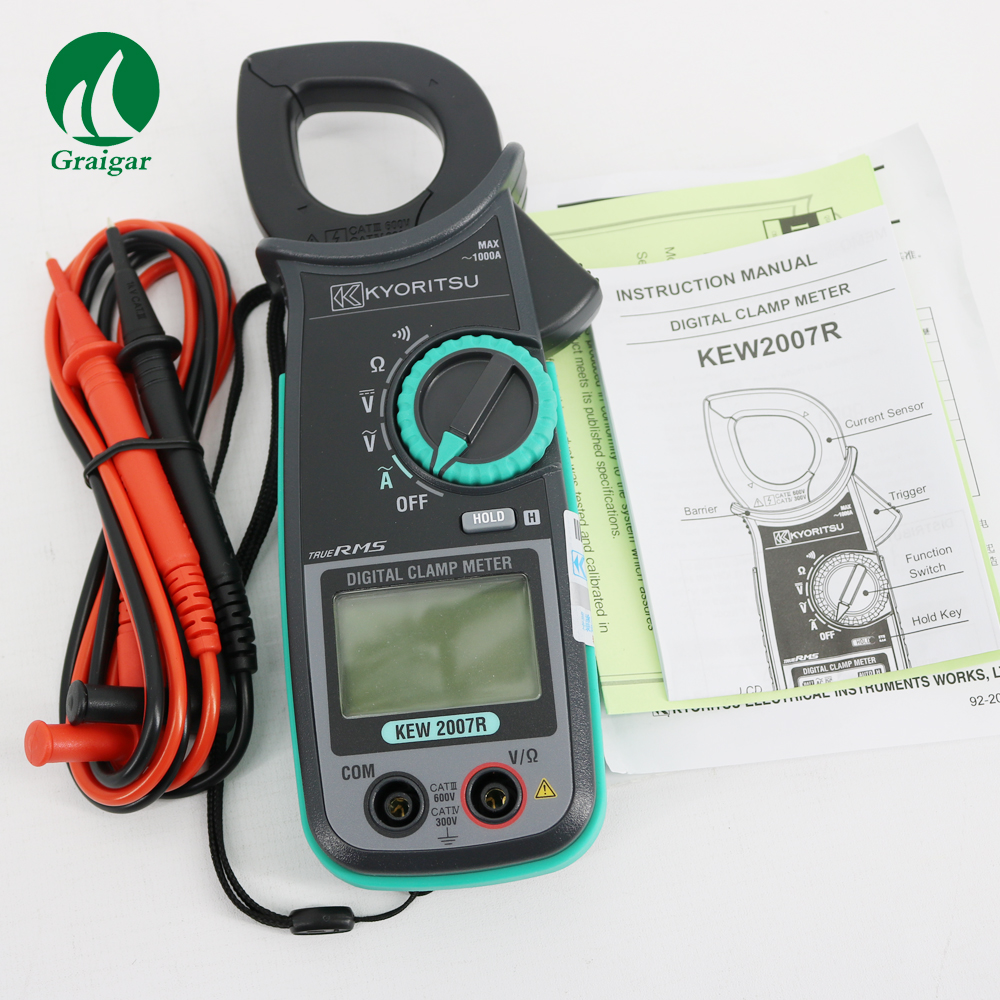

Included accessories |

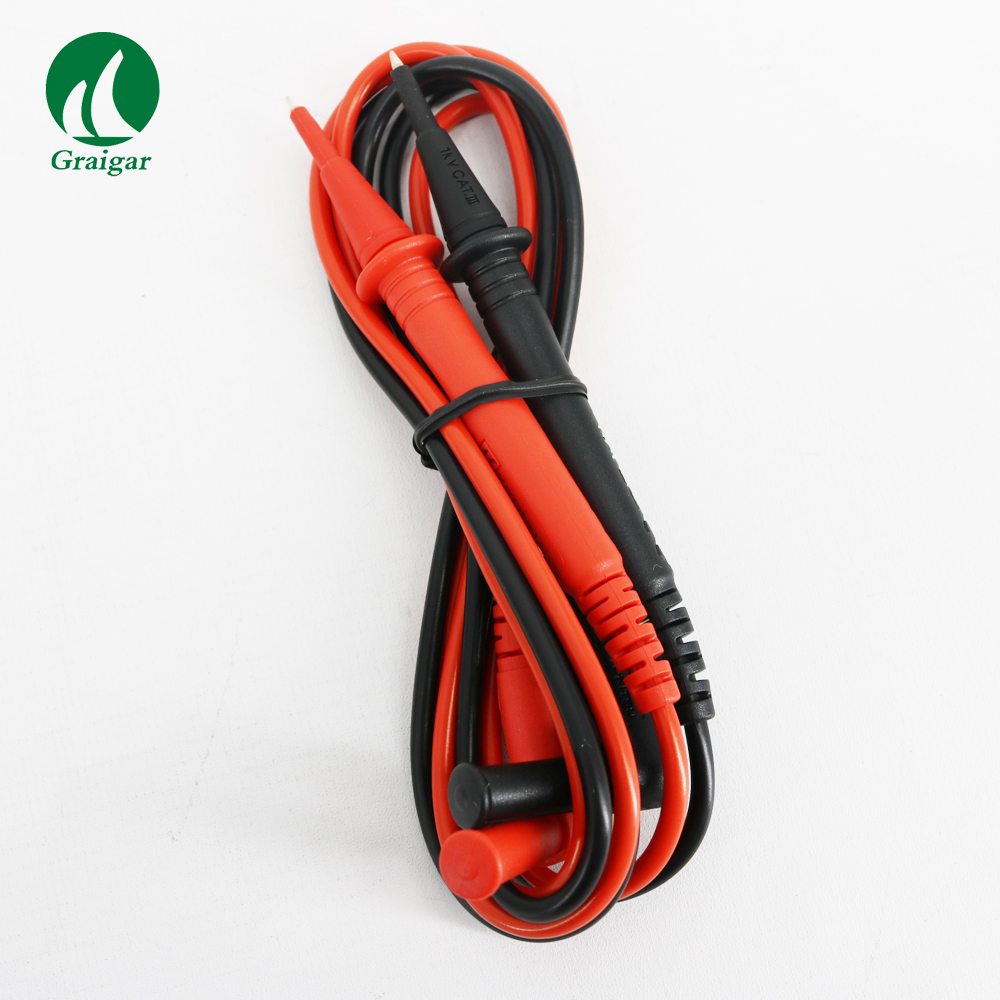

7066A (Test lead) our service:
|
