Ultrasonic Metal Plastic Ceramic Glass Thickness Gauge MT160 4.5 Digit LCD EL Backlight Thickness Gauge

Product details
Storage:20 groups (100 files/group)Supply capacity:5 tablets per day
Packaging Details:cartonmodel:MT160
Measuring range:0.75mm-300mm (steel)payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
port:ChinaOrigin:Anhui, China
Shipping Details:3 daysSpeed ​​of sound:1000~9999m/s
brand:Vitussolve:0.1/0.01mm

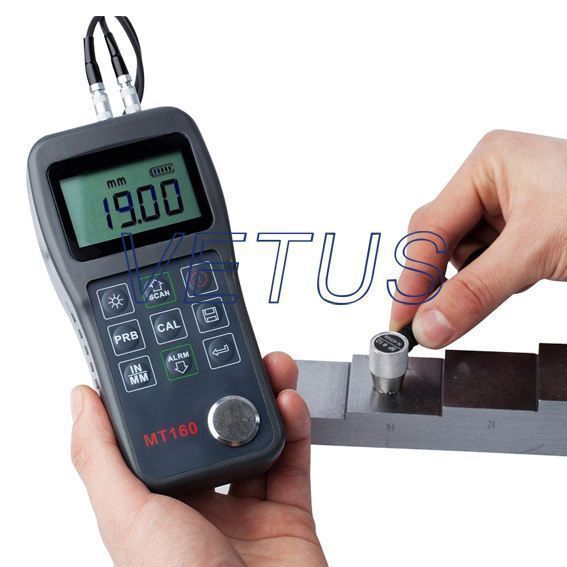

Wholesale MT160 Ultrasonic Thickness Gauge Thickness Gauge



Product Description:

1. Capable of measuring a variety of materials, including metals, plastics, ceramics, composite materials, epoxy resins, glass and other materials with good ultrasonic conductivity.

2. Sensor models are available for special applications, including for coarse-grained materials and high-temperature applications.

3. Two-point calibration function.

4. Two working modes: single point mode and scanning mode.

5. The coupling status indicator light shows the coupling status.

6. Optional software to process memory data on PC.

7. A thermal micro-printer is optional, and the measurement data can be printed through the RS232 interface.

Configuration:



No

thing

quantity

notes

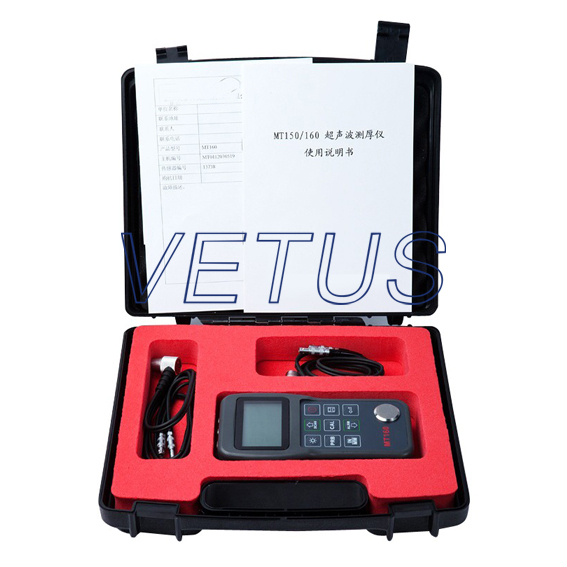

Standard configuration

1

main body

1



2

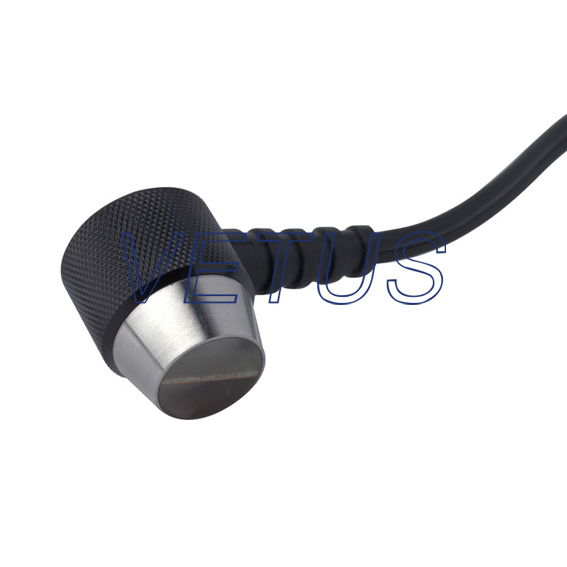

sensor

1

Model: N05/90°

3

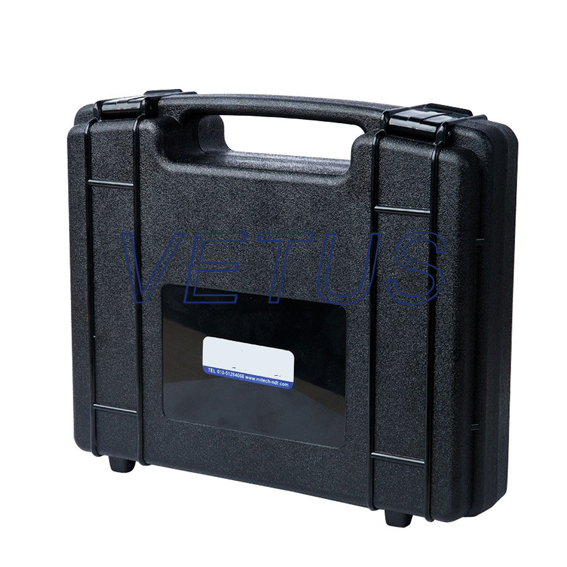

instrument case

1



4

Operation Manual

1







Elective

configuration

5

Transducer: N02



Appendix A

6

Transducer: N07



7

Transducer: HT5



8

mini thermal printer

1



9

printed cable

1

10

DataPro software

1

11

Communication Cable

1

Specification:

1. Display: 4.5-digit LCD with EL backlight.

2. Measuring range: 0.75~300mm (steel).

3. Sound velocity range: 1000~9999 m/s.

4. MT160: 0.1/0.01mm

5. Accuracy: ±(0.5% thickness+0.04)mm, depends on material and condition

6. Units: metric/imperial units are optional.

7. Four measurement readings per second for single point measurement, ten per second for scan mode.

8.Memory can store up to 20 files (up to 99 values ​​per file).

9. Power supply: two "AA" size 1.5 volt alkaline batteries. 100 hours typical operating time (EL backlight off).

10. Communication method: RS232 serial port.

11. Dimensions: 150×74×32 mm. Weight: 245 grams
