A4 A3 plastic PVC smart ID card die cutter

Click here to contact

Product details

Place of Origin:	Beijing China (Mainland);	Cutting layout:	2x5, 3x8, 4x8, 5x5;
Max. Cutting Depth:	0.76mm;	Voltage:	220V/380V;
Rated Power:	2kW;	Used for:	making plastic PVC ID card;
Certification:	CE Certificate;	Cutting material:	plastic sheets: PVC, ABS, Teslin, Paper;
Brand Name:	YC;	Power(W):	2kW;
After-sales Service Provided:	Engineers available to service machinery overseas;	Saw Blade Diameter:	0.76mm;
Product name:	A4 A3 plastic PVC smart ID card die cutter;	Delivery Detail:	10 days;
Packaging Detail:	Standard export package. Inner: aluminum foil bag with vacuum. Outer: plywood box.;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Application:	plastic PVC sheet;	Function:	cutting plastic PVC sheet;
Model Number:	YCK-2AM/2AE/2A/3A/4A/5A;	Port:	Tianjin;
Type:	Hydraulic Cutting Machine;	Supply Ability:	20 Set/Sets per Month;
Condition:	New;	No-Load Rotational Speed:	8m/s;
Dimensions:	1.4x0.75x1.6m;	Sheet size:	A4, A3, A3+;

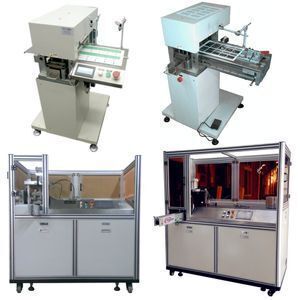

YCK-2AM/2AE/2A/3A/4A/5A

Used for cutting printed laminated plastic PVC sheets, to produce standard CR80 plastic PVC smart ID card.
Card cutting machines have different models for different plastic PVC size and layout. Such as A4 2x5; A3 3x7; A3+ 3x8; 4x8; 5x5.

YCK-2AM

Electric drive; A4 2x5;

Manually feeding, manually cutting.

Video: https://youtu.be/rd6JREYKfaE

YCK-2AE

Electric drive; A4 2x5;

Sensor read mark, auto feeding and cutting.

Video: https://youtu.be/bAV8tOB64F8

YCK-2A

Hydraulic drive; A4 2x5; High speed;

Sensor read mark, auto feeding and cutting.

Video: https://youtu.be/YsnIvnuMVV8

YCK-3A/4A/5A

Hydraulic drive; 3x8, 4x8, 5x5; High speed;

Sensor read mark, auto feeding and cutting.

Video: https://youtu.be/E-WXCuDLgEg

Features

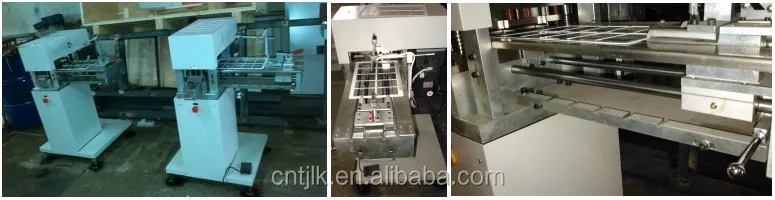

YCK-2AM

YCK-2AM is specially designed for small card factory.
Punch layout is A4 2x5.
It is featured in manual feeding, mechanical locating and accurate moving distance.
The punch mould is motivated with powerful motor.
The punch mould applies imported Japanese mould steel.
It is easy and simple in operation.

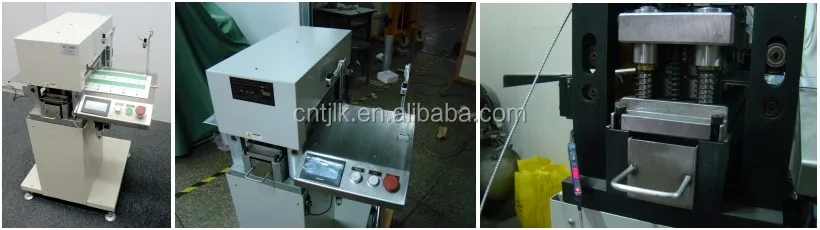

YCK-2AE

YCK-2AE is specially designed for small card factory.
Punch layout is A4 2x5.
It applies PLC and GT01 Mini industrial touch screen made by Japanese PANASONIC and automatic feeder.
The KEYENCE optical fiber sensor is applied to locate the punching mark with accurate moving distance.
The punching head is driven with powerful motor.
The mould applies imported Japanese mould steel.
It is easy and simple in operation.

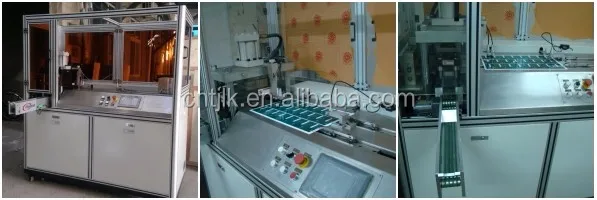

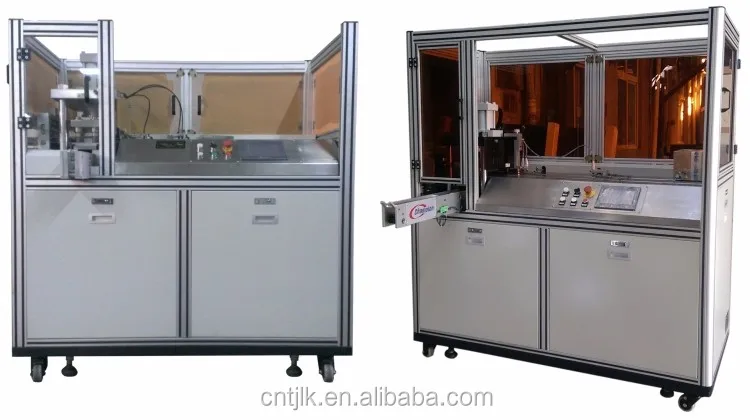

YCK-2A/3A/4A/5A

Controlled through PLC by Japanese Omron, it adopts LC industry touch screen of WeinView MT6056i by Taiwan.
The material feed system adopts servo motor by Japanese YASKAWA, high-precise ball screw and plane guide imported from Japan in order to ensure smooth moving and accurate moving distance.
High sensitive KEYENCE sensor to read position marks to ensure accurate and reliable location.
The hydraulic pump from Taiwan is featuring low noise and large flow. The quality hydraulic valves from Taiwan and the American seals have long service life.
The punching mould driven by hydraulic cylinder can work smoothly and reliably with low noise.
The punch mould is made with imported Japanese mould steel.
Its software function is strong; different cards can be set into different step distances.
Punching precision can be ensured even in the situation of material distortion or mechanical abrasion.
Punching speed is 30% higher than other brand product.
YCK-3A is apply to 3x7/8/9/10 sheet layout;
YCK-4A is apply to 4x7/8/9/10 sheet layout;
YCK-5A apply to 5x5 sheet layout.

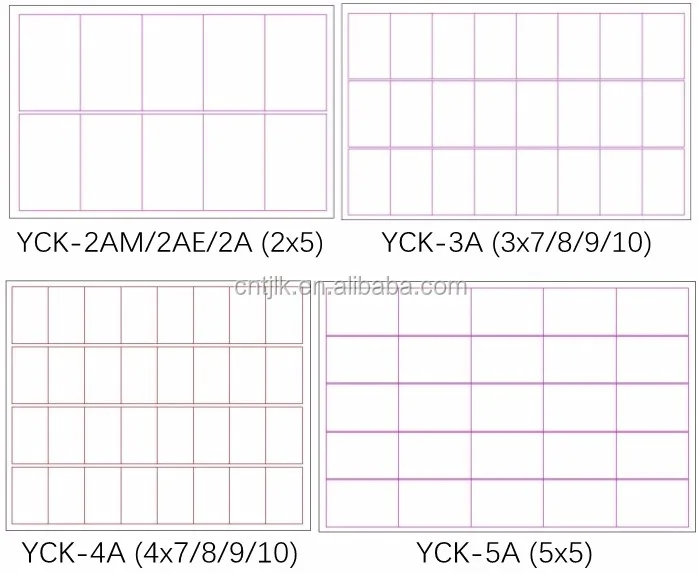

Cutting Layout / Format

Parameters

	YCK-2AM	YCK-2AE	YCK-2A	YCK-3A	YCK-4A	YCK-5A
Materials Applicable	Thickness 0.3-1.0mm plastic or paper sheet (PVC, ABS, TESLIN, PETG, etc.)
Punch Layout	A4 2x5	A4 2x5	A4 2x5	3x7/8/9/10...	4x7/8/9/10...	5x5
Punch Head Number	2	2	2	3	4	5
Air Supply	--	--	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Air Consumption	--	2 L/min	50L/min	50L/min	50L/min	50L/min
Power Supply	AC220V	AC220V	AC380V	AC380V	AC380V	AC380V
Power	750W	850W	2KW	4.5KW	4.5KW	4.5KW
Productivity (cards/hr.)	3000	3500	6000-8000	10000-12000	14000-18000	14000-16000
Punching Mode	Electric	Electric	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Oil Tank Volume	--	--	95L	120L	120L	120L
Feeding Mode	Manual	Automatic	Automatic	Automatic	Automatic	Automatic
Dimension (m)	0.97x0.6x1.1	0.75x0.65x1.1	1.4x0.75x1.6	1.65x0.85x1.8	1.65x0.95x1.8	1.65x0.95x1.8
Packing Size (m)	1.0x0.7x1.25	0.8x0.75x1.25	1.9x0.85x1.7	1.75x0.95x2.0	1.75x1.05x2.0	1.75x1.05x2.0
Weight	150kg	150kg	600kg	730kg	750kg	730kg
Packing Weight	190kg	190kg	730kg	850kg	880kg	850kg
