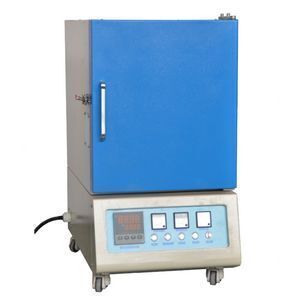

Lab Max. 1200C - 1800C Muffle Box Furnace With 30-stage Program Temperature Control System

Lab Max. 1200C - 1800C  Muffle Box Furnace With 30-stage Program Temperature Control System

Introduction

This box furnace uses high-quality electric resistance wire as heating element, double-layer shell structure and 30-stage program temperature control system. The furnace is made of alumina polycrystalline fiber material, and the double-layer furnace shell is equipped with air-cooling system, which can be quickly upgraded. Cooling, and has the functions of over-temperature, break-off, over-current protection, etc. The furnace has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, energy saving, etc. It is a high-temperature sintering and metal annealing of universities, research institutes, industrial and mining enterprises. The ideal product for quality testing.

Software control system (optional): The furnace is equipped with communication interface and software. It can directly control the parameters of the furnace through the computer, and can observe the temperature display of the furnace and the operation of the instrument from the computer. The actual temperature rise curve of the furnace It will be drawn in real time, and the temperature data at each moment can be saved and recalled at any time.

1. Furnace material: It adopts alumina fiber furnace material, which does not drop powder, has good heat preservation performance, high reflectivity, balanced temperature field, and strong resistance to heat expansion and contraction.

2, heating elements: All use high-quality resistance wire, silk surface load is low, long service life.

3, using Yudian program temperature control instrument

1) 30-stage program temperature control can only be adjusted by PID.

2) With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3) With 485 communication interface (standard when purchasing software)

4) It has the function of power-off protection, that is, when the furnace is powered on after the power is cut off, the program does not rise from the starting temperature, but rises from the temperature when the power is turned off.

5) The meter has the function of temperature self-tuning.

Specifications

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
