Single package size: | 12.5X3X7 cm; | Showroom Location: | None; |
Marketing Type: | Ordinary Product; | Single gross weight: | 0.214 KG; |
Machinery Test Report: | Provided; | Thread: | G; |
Coil: | DIN & Leading Wire; | Place of Origin: | NINGBO; |
Video outgoing-inspection: | Provided; | Type: | Valves; |
Brand Name: | RFS; | Standard or Nonstandard: | Standard; |
Working Pressure: | 0.15 - 0.8 Mpa; | After Warranty Service: | Spare parts; |
Local Service Location: | None; | Voltage: | 220VAC,110VAC ,12VDC ,24VDC etc; |
Product name: | diverter valve for pneumatic conveying; | Warranty: | 1 Year; |
Package: | One pc packed in one box; | Selling Units: | Single item; |
Condition: | New; | Packaging Detail: | 1 pc packed in 1 box ,Serval pcs packed in one inner box; |
Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Pneumatic; |

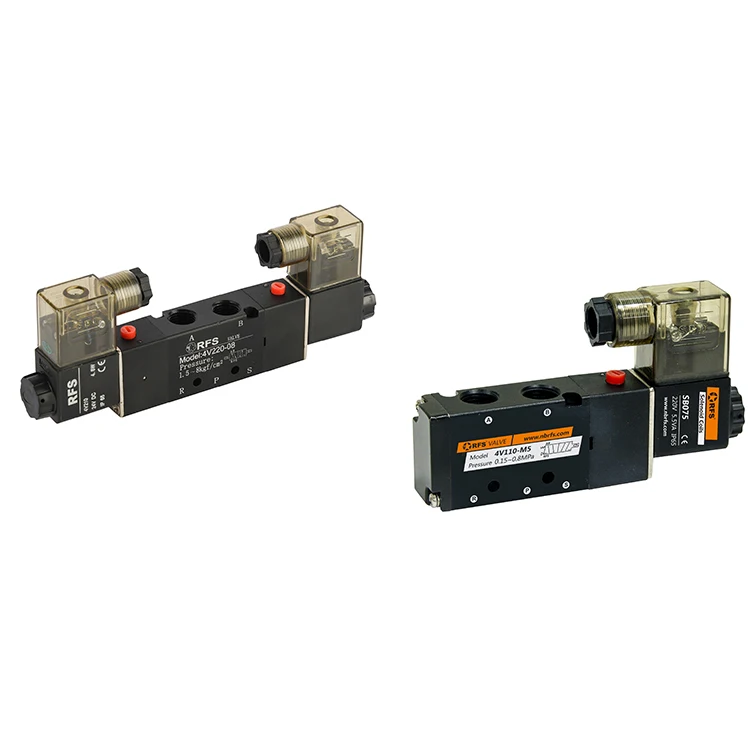

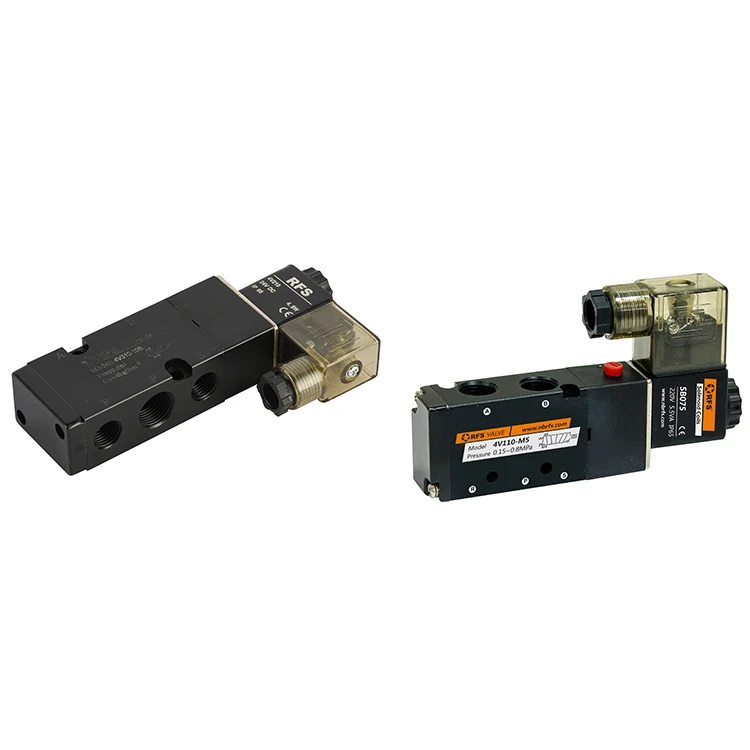

diverter valve for pneumatic conveying
Model | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 |
4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |
Type | 5/2 | 5/3 | 5/2 | 5/3 | ||||||
Model | 3V110-M5 | 3V120-M5 | 3A110-M5 | 3A120-M5 | 3V110-06 | 3V120-06 | 3A110-06 | 3A120-06 | ||
Type | 3/2 | 3/2 | ||||||||
Connection Port |
Inlet = Outlet = Exhaust = M5 * 0.8 | Inlet = Outlet = Exhaust = G1/8 | ||||||||
Media | Clean Air | |||||||||
Working Type | Pilot | |||||||||
Ambient Temp. | -5 ~ 50℃ | |||||||||
Frequency | 5cycles / s | |||||||||
Response Time | 0.05s |
