Operation: | Direct acting; | Product name: | magnetic solenoid valve; |
Place of Origin: | Guangdong China; | Application: | General; |
Structure: | Diaphragm; | Media temperature: | Below 150℃; |
Single gross weight: | 1.0 KG; | Voltage: | 12V 24V 220V; |
Working pressure: | Water,air:0-10bar,oil:0-7bar; | Packaging Detail: | Carton / wooden box; |
Package Preview: | ; | Single package size: | 15X15X15 cm; |
Connection: | Thread; | Port Size: | DN06-50; |
Selling Units: | Single item; | Media: | Gas,water,oil; |

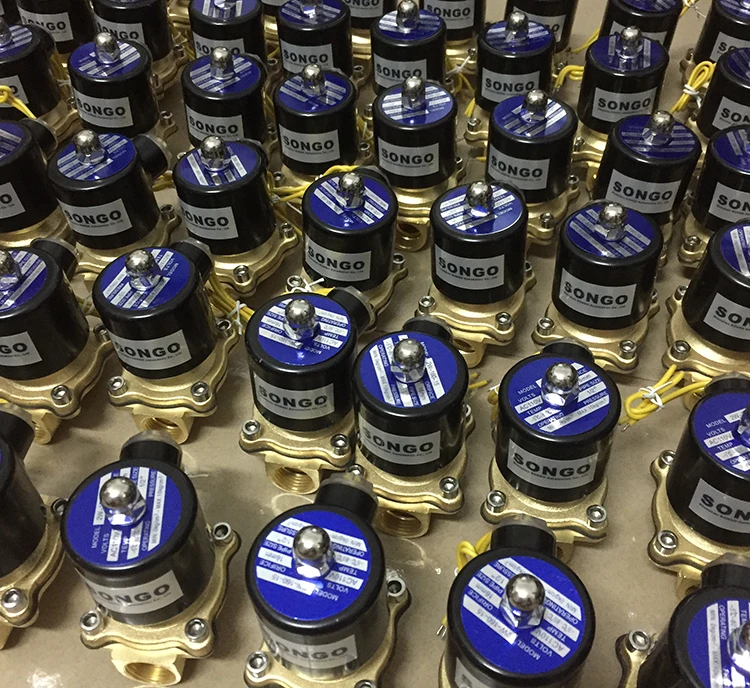

Body material: | Brass/copper; | Brand Name: | SONGO; |
Model Number: | 2W NC brass; | Power: | Solenoid; |
Maximum working pressure: | 1.0Mpa; | Temperature of Media: | Medium Temperature; |
Material of seal: | NBR/EPDM/Fluorous Rubber; | Type: | Normally closed,SOLENOID VALVES; |

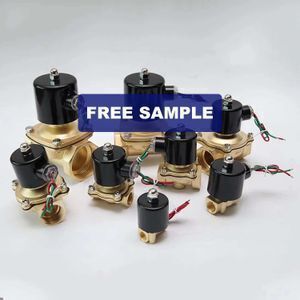

FREE SAMPLE Normally close electric brass 12v 24v solenoid water valves types for water control two way magnetic solenoid valve
2W | —— | 160 | —— | 15 | —— | H | —— | AC220V |
| | | | | | | | | | ||||
2/2 way direct-acting solenoid valve | Orifice size | Port size | Blank:NBR H:High temperature |
Standard voltage |
Model no. | A | B | C | |
2W-025-06 | 39 | 42 | 74 | |
2W-025-08 | 39 | 42 | 74 | |
2W-040-08 | 39 | 42 | 74 | |
2W-040-10 | 51 | 52 | 85 | |
2W-160-10 | 62 | 52 | 85 | |
2W-160-15(S) | 51 | 55 | 102 | |
2W-160-15 | 62 | 55 | 102 | |
2W-200-20 | 67 | 55 | 113 | |
2W-250-25 | 86 | 73 | 117 | |
2W-320-32 | 90 | 77 | 130 | |
2W-400-40 | 106 | 87 | 164 | |
2W-500-50 | 123 | 93 | 176 |
Model No. | 2W-025-06 | 2W-025-08 | 2W-040-10 | 2W-160-10 | 2W-160-15 | 2W-200-20 | 2W-250-25 | 2W-320-32 | 2W-400-40 | 2W-500-50 |
Pipe Size | 1/8" | 1/4" | 3/8" | 3/8" | 1/2'' | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" |
Orifice Size | 2.5mm | 2.5mm | 4mm | 16mm | 16mm | 20mm | 25mm | 32mm | 40mm | 50mm |
CV value | 0.23 | 0.23 | 0.6 | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
Fluid | Air water oid,the neutral gas liquid | |||||||||
Service Voltage | AC24V , AC110V , AC220V , AC380V , DC12V , DC24V ,allow+/-10% | |||||||||
Operating | Direct acting | Type | Normally closed | |||||||
Body material | Brass/copper | Viscosity | Below 20CST | |||||||
Working pressure | Water,air:0-10bar,oil:0-7bar | |||||||||
Material of seal | Standard:below 80℃ fluid temperature use NBR,below120℃ use EPDM.Fluororubber resistance to weak acid and weak base or below 150℃ |
