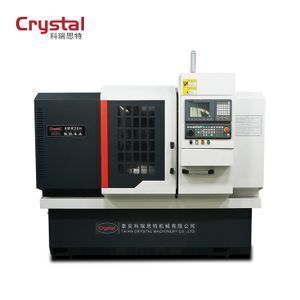

CNC Alloy Rim Polishing Wheel Repair Machine Lathe AWR28H

Supplier: Taian Crystal Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Alvin Chen
Price: $13500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	standard wooden package;	Payment Terms:	L/C,T/T;
Place of Origin:	Shandong China;	Power Supply:	Three phase 380V/50HZ;
Brand Name:	Crystal;	Function:	Repair Wheel;
Package Preview:	;	Color:	Customized;
Precision:	High precision;	Brand:	Taian Crystal;
Processing type:	Alloy Wheel;	Warranty:	One year,1;
Name:	Alloy Wheel CNC Lathe AWR28H;	Power:	7.5kw;
Voltage:	380V/50HZ;

CNC Alloy Rim Polishing Wheel Repair Machine Lathe AWR28H

CNC alloy wheel lathe machines are designed for repair and refurbish alloy wheel , Be applied to the full face and lip of the wheel. The machine is very easy to operate ,operator don’t need to learn complicated programme and do higher efficiency ,spectacular finishes.

Wheel Repair Lathe Advantages

1. Cuts wheel up to 28’’.

2. With CE, SGS, ISO, BV certificates.

3. Automatic ruby probe system.

4. Easy Operation.

5. Self-developed optimization software.

6. Free Training video and manual instructions.

7. 7x24 hours technology support.

8. 2 USB interface.

9. High efficiency and economic.

10. Two-year warranty.

11. Free factory hand-to-hand training.

12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.

AWR28H specification:

ITEMS	AWR28H
Max. swig over bed (mm) (inch)	Φ770 (30’)
Max. Size of alloy wheel (mm) (inch)	Φ720 (28’)
Adjustable stroke of carrier in X direction (mm)	100
Cross slide travel (mm)	390
Width of the rail (mm)	300
Length of the rail (mm)	1300
Size of the three-jaw chuck (inch)	12’
Range of spindle speed (rpm)	50~2000
Spindle speed control	Automatic
Spindle bore (mm)	Φ82
Taper of spindle bore	1:20(Φ90)
Max. size of tool post	25×25mm
Stations of tool carrier	4 position
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8m/min, (X) cross 6m/min
Motor power	7.5KW
Machine base (cast iron base)	Whole
Machine size (L×W×H) (mm³)	2140 ×1600×1860
Net weight	2600kgs

Standard configuration

Diamond Cutter 1 set	3-Jaws Chuck(With Special Soft Jaws)
high precision prob system 1 set	SYNTEC CNC Controller
Manual Quick Change Toolpost,Four-station	Work Lighting System
Automatic Lubrication System	Cooling System
Full Enclose(Security Guard Door)	Tools&Tool Box
Self developed professional wheel repair software	Training Video CD
