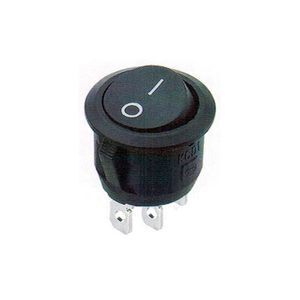

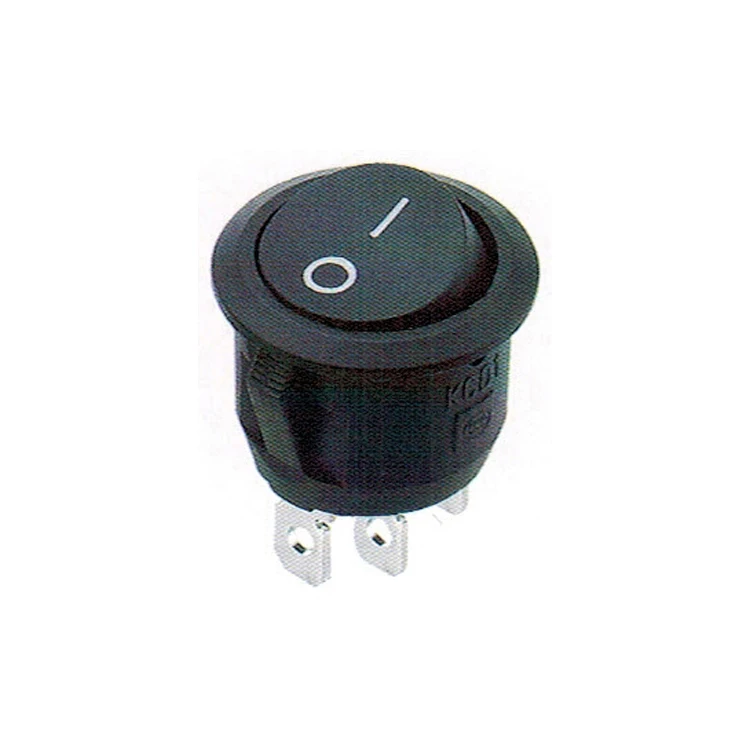

KCD1-105 SPST Round Snap Black ON-OFF 2 Pin Rocker Switch For Car Auto Boat Household Appliances

Product details
Function:Self-locking;Product Name:2 Pin Rocker Switch;
IP Rating:IP40;Product type:Rocker switch;
Mechanical Life:10000 Cycles;Model Number:KCD1-101-5;
Fit for:Car/automobile/motorcycle/marine System;Brand Name:ABILKEEN;
Max. Current:20A;Housing color:Black;
Max. Voltage:250VAC;Selling Units:Single item;
Operation Type:SPST;Terminal type:2 Pins Terminals;
Single gross weight:0.02 KG;Single package size:5X5X5 cm;
Lamp color & voltage:Non-illuminated;Place of Origin:Zhejiang China;
Electrical Life:10000 Cycles;Packaging Detail:KCD1-105 SPST Round Snap Black ON-OFF 2 Pin Rocker Switch For Car Auto Boat Household Appliances 1: Neutral packing : plastic bag for goods+ inner box +carton 2: Upon customers' request, but the price is different with neutral packing;

KCD1-105 SPST Round Snap Black ON-OFF 2 Pin Rocker Switch For Car Auto Boat Household Appliances

[Round Rocker Switch Model]  KCD1-105,Contact Type: SPST, ON-OFF; Pins Number: 2(Copper Contact);Rating: AC 250V 6A 125V 10A(for resistive load only)

[ Easy Installation Auto ] Easy to implement into all kinds of electronics projects, just drill a hold the right size and it slides straight in.This inexpensive rocker switches are always good to have around.

[High Operating Life ] Made of high quality poly-amide eP(Nylon PA66) material, this sturdy mini boat rocker switch is born for anti-corrosion,anti-acid and high resistant with silver terminals.10000 times of ON/OFF operating life span.

[Supporting High Voltage SPST ] This replacement rocker switch supports AC 125-250V high voltage with 6-10A decent current ,can be used to switch wall voltage. With 1000mΩ contact resistance and 1000mΩ insulation resistance, saving you from having to buy a whole new unit.

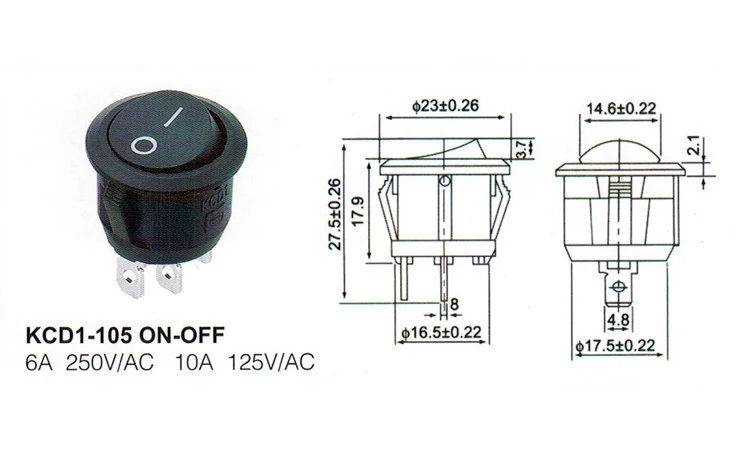

[ Size]Total Size(Each One): Diameter: 23mm; Cut-Size: 20mm;



Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.
Type: 2Pins SPST ON/OFF
Voltage&Current : 10A/125V, 6A/250V

Widely used for various kinds of electrical products, instrument, car, boat, household appliances such as lights, water dispenser, treadmill, coffee pot, speaker, electric car, motorcycle, TV, massage machine etc.Great buy and multifunctional toggle switch.





Product Description

Product Name

Rocker Switch

Model

KCD1-105

Housing Color

Black

Operation Type

ON-OFF

Terminal Qty

2Pins

Illuminated or not

No

Lamp Voltage

/

Lamp Color

/

What You Get

1X Rocker switch

Black,2Pins
