15A 250V 20A 125V AC ON/OFF 2 Position TEN1021 SPST Heavy Duty Push Button Toggle Switches

Supplier: Yueqing Aibeiken Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Felix Gao
Price: $0.60 / 20 - 199 pieces
$0.50 / >=200 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Packaging Preview:		Operating temperature:	-25°C to +85°C
maximum. current:	20A	Packaging Details:	15A 250V 20A 125V AC ON/OFF 2-position TEN1021 SPST Heavy Duty Rocker Toggle Switch 1: Neutral Packing: Cargo Plastic Bag+Inner Box+Carton 2: According to customer requirements, but the price is different from the neutral packing
Single package size:	5X5X5 cm	Material:	Metal plastic
Shell Color:	black Brown	Product Category:	Toggle Switches
Is it smart:	Do not	Switch Type:	SPST
Gross weight per piece:	0.035 kg	Number of Contact Terminals:	2 screw terminals
brand:	Birken	Mounting holes:	M12
Sales unit:	single product	Location:	2 locations
maximum. Voltage:	250VAC	product name:	Toggle Switches
Mechanical life:	50000 cycles	terminal:	Solder terminal
model:	KN3(C)-101AA	Certification:	ce
place of origin; place of origin:	Zhejiang, China

Product Details

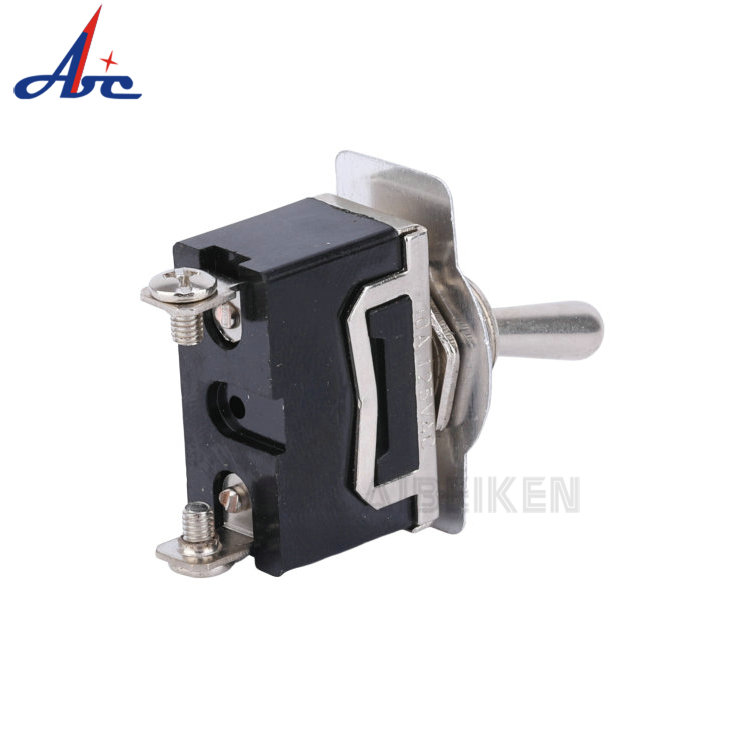

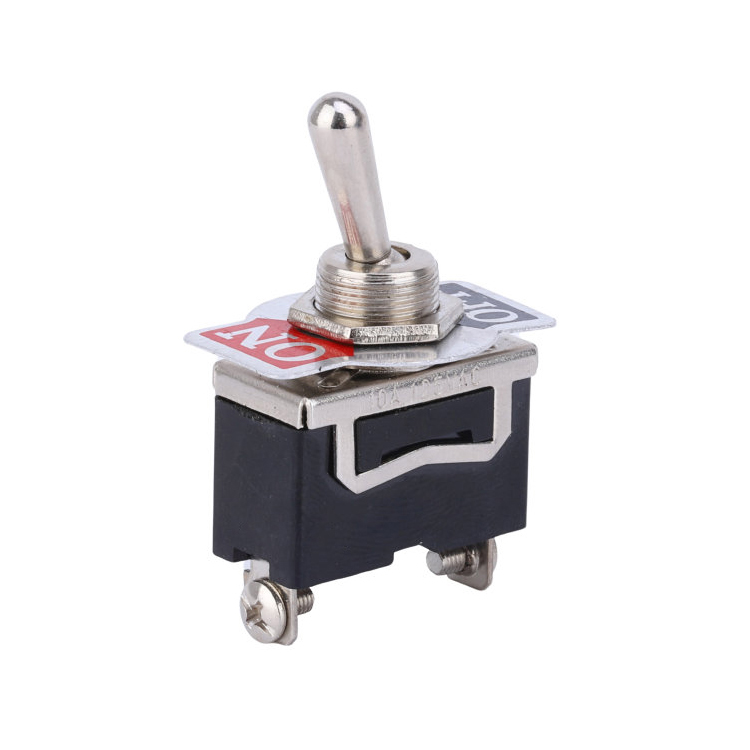

15A 250V 20A 125V AC ON/OFF 2 Position TEN1021 SPST Heavy Duty Rocker Toggle Switch

· Connector type: SPST, 2 screw terminal ON/OFF. Power supply: 15A 250VAC/20A 125VAC

· Material: plastic and metal. Sturdy connection switch with waterproof rubber cap for easier operation. Nice looking and sturdy construction. Look chic and high-end on your device

· Easy installation: the diameter of the installation hole: O12mm. Each terminal has a machine screw for quick connection and also easy to solder

Package includes: 20 toggle switches

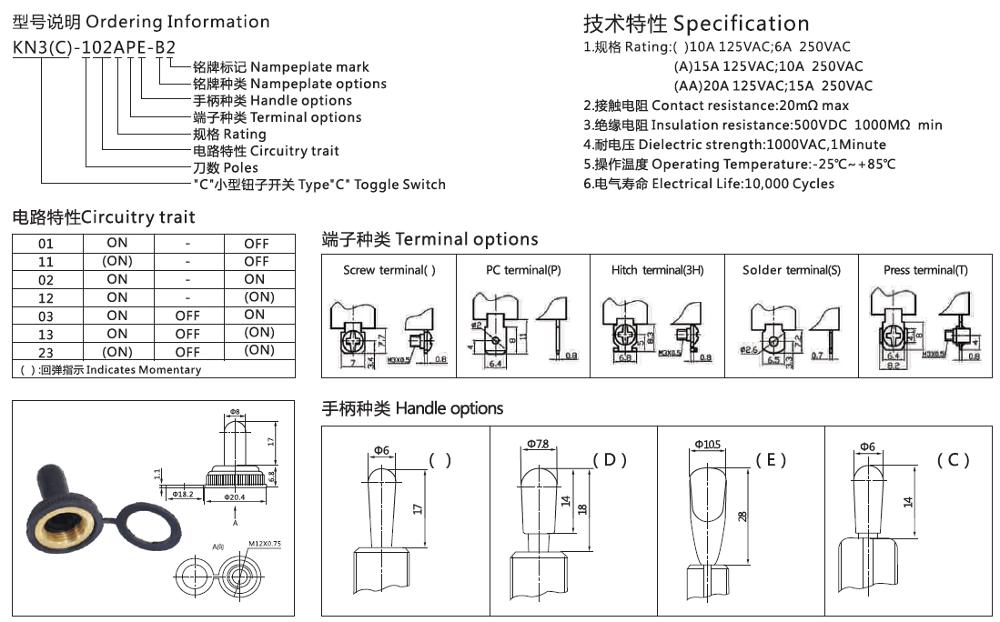

Specification:

Switch Type: On/Off 2Pins

Power supply: 15A 250VAC / 20A 125VAC.

Materials (exterior): Metal and plastic.

Mechanical life: more than 50.000 cycles.

Ambient temperature: - 25 degrees to 80 degrees.

product name	Toggle Switches
project	KN3(C)-101A
Mounting holes	M12
Operation type	Latch/self-lock
score	20A 125VAC; 15A 250VAC
Dielectric strength	1000 volts rms (min)
Mechanical life	Over 50.000 cycles
Electrical life	Over 10,000 cycles
Operating temperature	-25°C ~+80°C
Custom colored housings or connectors	Acceptable and fast shipping
Accessories Hardware	Metal washers, lock-tooth washers and mounting nuts.
Number / Box	20

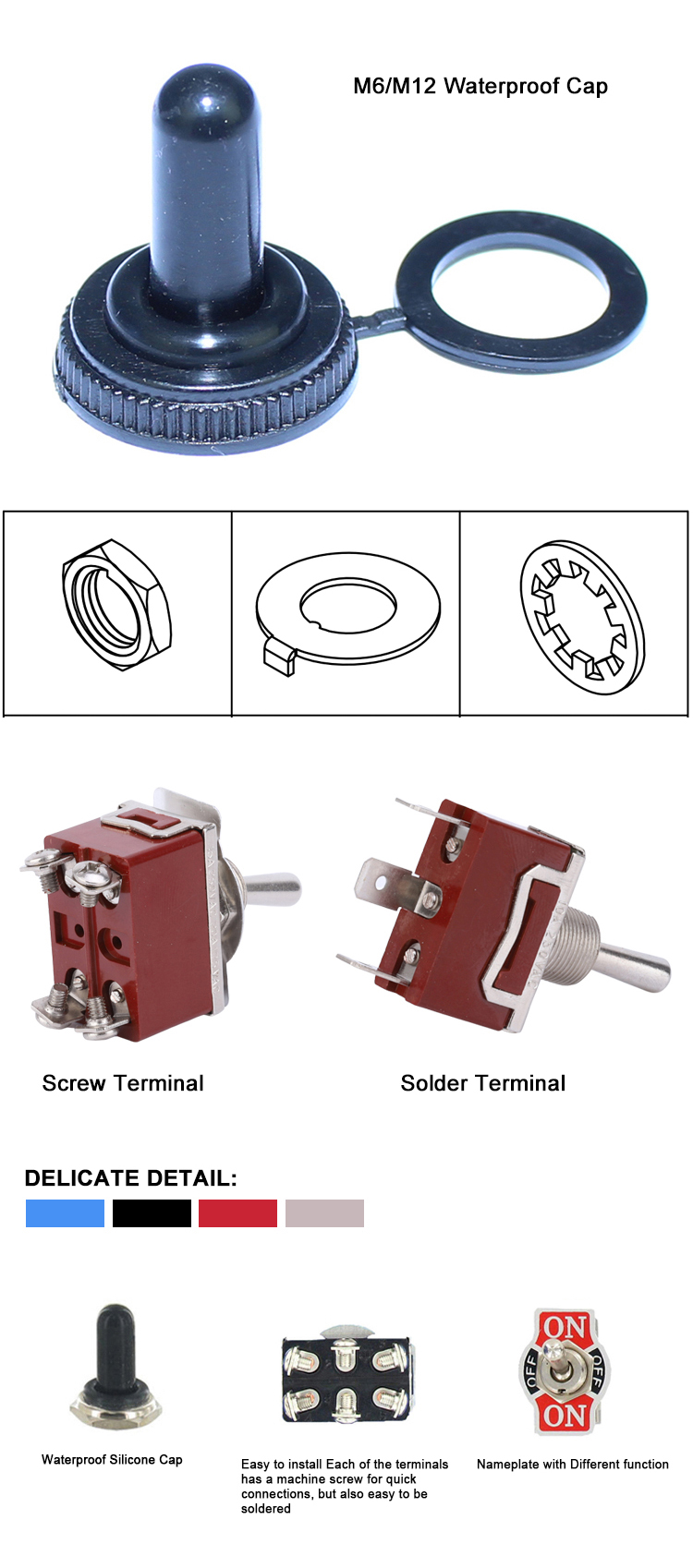

waterproof cap	Click here for waterproof cap and select item number:WPC-06
what do you get	20 toggle switches 2 screw terminals, ON OFF, 2 positions

Q1. What are your packaging conditions?
A: Usually, we pack the goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your branded box after receiving your authorization.

Q2. What are your payment terms?
A: T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos of the product and packaging.

Q3. What are your delivery terms?
Answer: EXW, FOB, CFR, CIF, DDU.

Q4. How is your delivery time?
A: Generally, it takes 3 to 10 days after receiving your prepayment. The exact delivery time depends on the item and quantity you ordered.

Q5. Can you produce according to samples?
A: Yes, we can produce according to your samples or technical drawings. We can manufacture moulds and fixtures.

Q6. What is your sample policy?
A: If we have stock, we can provide samples, but customers have to pay the sample fee and courier fee.

Question 7. Do you test all your goods before delivery?
A: Yes, we do 100% testing before delivery

Q8: How do you keep our business in good long-term relationship?
Answer: 1. We maintain good quality and competitive prices to ensure our customers benefit;
2. We respect every customer and regard them as friends, no matter where they come from, we sincerely do business with them and make friends.

If you have any other questions, please send us an inquiry and we will get back to you as soon as possible.
