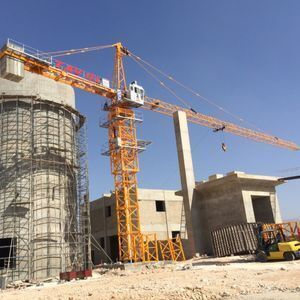

QTZ63 5ton 50m CE Hammer Head Tower Crane Manufacturer

Supplier: Shandong Tavol Group Co.,Ltd
Region: Shandong, China
Contact: Ms Nancy Guo
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Trolley motor:	1.5/2.2KW;	Crane:	Hammer Head Tower Crane;
After-sales Service Provided:	Engineers available to service machinery overseas;	Delivery Detail:	30 days after advance payment;
Max. Lifting Load:	5ton;	Color:	Yellow or client's requirements;
Max. Lifting Height:	120m;	Packaging Detail:	Tower Crane naked package and wooden package for transportation.40HC container;
Rated Lifting Moment:	630KN.m;	Lifting motor:	15/15/4 KW;
Rated Loading Capacity:	1.3 ton;	Supply Ability:	1000 Set/Sets per Year Tower Crane;
Mast size:	1.6mx1.6mx2.5m;	Warranty:	12 Months;
Model Number:	QTZ63(5013);	Span:	50m;
Main eletric:	Schneider;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Feature:	Tower Crane;	Place of Origin:	Shandong China (Mainland);
Application:	Building Construction;	Certification:	CE ISO BV SGS;
Condition:	New;	Slewing motor:	3.7KW;
Brand Name:	Tavol;	Power supply:	380V/50Hz/3P;
Type:	Stationery;	Free standing height:	30m;
Port:	Qingdao;

Product Description

[ QTZ63(5013) ]

5ton Construction Building Tower Crane

1.It has ultra long arm and large coverage area.

2.The standard segment section is wide. Rigidity is good. Complete machine is stable and swings slightly when craning.

3.The standard segment principal branch is big.

4.The electrical system uses domestic high quality or importing parts. Its performance is stable and reliable.

5.The standard segment, drawbar, top-bottom turntable and other major components is welded by CO2 which penetrates deeply and deforms smally.

6.The slewing mechanism adopts winding motor which starts smoothly and reliably and places conveniently and efficiently.

7.Hoisting mechanism with good performance in speeding, lifting and declining smoothly.

QTZ63 (5013) 5ton Construction Building Tower Crane

SERIES	QTZ63
STANDARD MODEL	5013
MAX.LIFT LOAD	5t
TIP LOAD	1.3 t
FREE STANDING HEIGHT	40m
MAX.ANCHORAGE HEIGHT	140m
JIBL ENGTH	50m
MAST SIZE	1.61.62.5m
LIFT MECHANISM	Lifting Speed	(a=2) 80/40/10 m/min (a=4) 38/19/5 m/min
	Lift motor	18/18/5 kW
	Wire rope diameter	12.5 mm
TROLLEY MECHANISM	Trolley speed	48/24 m/min
	Trolley speed	1.5/2.2 kW
SLEWING MECHANISM	Slewing Speed	0.65 r/min
	Slew Motor	3.7KWx2units
JACKING MECHANISM	Jack Climbing Speed	0.4 m/min
	Jack Climbing motor	4 kW
POWER	380V/50Hz/3P
Luxury Operate Cabin, Schneider Electric Parts

Tavol Cranes Group is the professional construction equipment and lift platform manufacturer in China .

We Design, Manufacture, Installation, Repair, Maintenance,

Trade and Export all kinds Tower Crane, Construction Building hoist, Lift platform, relevant spare parts and so on.

TAVOL brand crane has been exported to many countries like Bangladesh, Vietnam, Kenya, Australia, Ethiopia, Thailand, Singapore, Malaysia, Philippines, Iceland, Brazil and Kazakhstan and so on.

Quality is our culture. We are sure we will be your best choice.

Experience. 20 years of experience in manufacturing construction machinery, assured good quality.

Services. Professional service team can give powerful support for our products.

Innovation. Technical and management innovation guarantee our quality to be in top position in our industry.

Marketing. Our products have been exported to more than 30 countries, enjoying a good reputation.

Below Payment Methods We Can Accept for Tower Crane:

1. T/T

2. LC

3. Trade Assurance

1. Minimum Order Quantity?

MOQ is One set.

2. What kind of terms of payment?

T/T, L/C, Trade Assurance etc are available.

3. How long does it usually take to deliver the product?

The production period is 30days to 60days.We'll make the shipment to you soon. Accurate delivery time depends on the specific quantity.

4. Quotation request:

If you are interested in our products, please provide the following parameters:

1) Jib span/jib length (m)

2) Max load capacity (ton)

3) Tip load capacity (ton)

4) Lifting height (m)

5) Local power supply (kV, Hz)

6) Other special equipments

We will provide best price once confirmed the above.

Our Services

Pre-sale Service
1. We can customize products according to client's demand. Various types of tower crane for your choice.
2. Good Quality & Factory Price & Quick Response & Reliable Service, are what we are trying best to offer you
3. All of our products are produced by our professional workmen and we have high efficiency sales team, you can totally trust us.
4. We have more than 20 years experience in designing and manufacturing, we cherish every order from our honored clients.

After your selection
1. We will count cheapest shipping cost and make invoice to you at once.
2. Test each machine before delivery to ensure their quality, then send out to you after your payment.

After-sale Service
1. Our engineers are available to guide the operators abroad.
2. We are very glad that customer give us some suggestion for price and products.
3. If you have any question, please contact us freely by E-mail or Telephone
