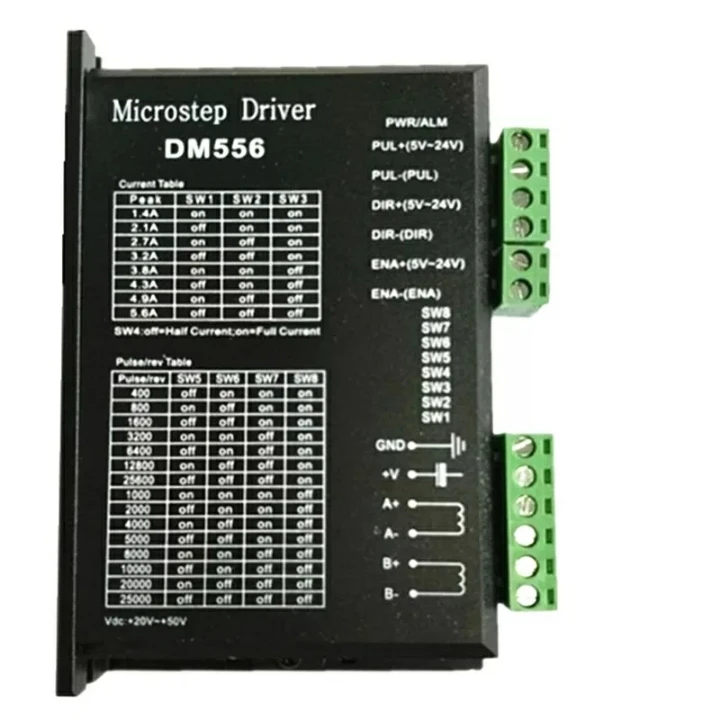

DM542 DM556 replaces TB6600 DSP digital stepper motor driver

Supplier: Shenzhen Alisi Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Allen Chen
Price: $5.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

More details:	please contact us;	Payment Terms:	T/T,Western Union,MoneyGram,Paypal;
Packaging Detail:	carton;	Port:	ShenZhen;
Supply Ability:	1000000 Piece/Pieces per Week;	Place of Origin:	Guangdong China;
Brand Name:	Original brand;	Model Number:	Standard;

Product Description

DM542 DM556 replaces TB6600 DSP digital stepper motor driver

The input power:24 to 50V dc power supply, capacity: not less than 200VA, typical value: DC36V
Output current :1.0a to 4.2a, 84 adjustable, resolution 0.5a
drive mode: dual constant current PWM drive output
Insulation resistance:At room temperature and pressure >500MQ
Insulation strength :at room temperature and pressure 500V/ min weight about: 260 grams

Cooling way:Natural cooling
Use of occasions :to avoid dust, oil mist and corrosive gas temperature: 0℃ to + 500 ℃
Environmental humidity:<80%RH, no condensation, no frostvibration:The maximum is 5.7m/s.

Input signal interface function

The signal interface

PLS+ and PLS- are positive and negative side of the control pulse signal; DIR+ and DIR- are positive and negative ends of direction signals;

ENA+ and ENA- are the positive and negative ends of the enabling signal. 24V requires a series of 2K

resistorsMotor interface

A+ and A- are connected to the positive and negative ends of the a-phase winding of the stepping motor; B+ and B- are connected to the positive and negative ends of the B phase winding of the stepping motor. whenA.B when the two-phase windings are switched, the direction of the motor can be reversed.

The power interface

Dc power supply is adopted, the working voltage range is suggested to be 20-50vdc, and the power supply is more than 100W. According to the actual use, it is appropriate to input DC40V or less

Indicator light

The drive has red and green lights. The green light is the power indicator, and the green light is always on when the driver is powered on. redThe lamp is a fault indicator. When there is an overvoltage or overcurrent fault, the fault light will always be on. When the fault is cleared, the red light goes out.In the event of a driver failure, the failure can be removed only by reenergizing and reenabling the drive.
