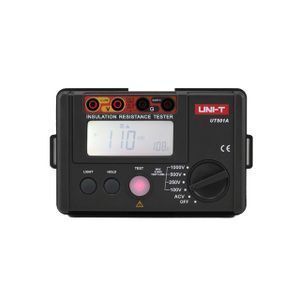

sale promotion ut501a with CE certificate resistance meter digital insulation tester megger

Click here to contact

Product details

Measuring Range:	100MΩ~5.5GΩ;	Place of Origin:	Guangdong China;
Accuracy Class:	±(3%+5);	Selling Units:	Single item;
Operating Temperature:	-40--1000 degree;	Display Type:	Analogue and Digital;
Weight:	500 g;	Testing Voltage:	0-1000V;
Dimensions:	150mm * 100mm * 71mm;	Brand Name:	UNI-T;
Single gross weight:	2.0 KG;	Model Number:	insulation resistance meter megger;
Single package size:	20X15X10 cm;

Product spec:

Model			insulation resistance meter megger
Insulation Resistance(Ω)	Test Voltage	100V/250V/500V/1000V	0%~10%
	100V	0.00MΩ~100MΩ	±(3%+5)
	250V	0.00MΩ~99.9MΩ	±(3%+5)
	250V	100MΩ~5.5GΩ	±(5%+5)
	500V	0.00MΩ~99.9MΩ	±(3%+5)
	500V	100MΩ~5.5GΩ	±(5%+5)
	1000V	0.00MΩ~99.9MΩ	±(3%+5)
	1000V	100MΩ~5.5GΩ	±(5%+5)
	Load Current	50V(R=50KΩ) 1mA	0%~10%
		100V(R=100KΩ) 1mA	0%~10%
		250V(R=250KΩ) 1mA	0%~10%
		500V(R=500KΩ) 1mA	0%~10%
		1000V(R=1MΩ) 1mA	0%~10%
	Short Circuit Current		<2mA
AC Voltage (V)	30V~750V		±(2%+3)
Display Count			2000
LCD Size	70.6mm x 34mm
Product Color	Red and Grey
Product Net Weight	500 g
Product Size	150mm x 100mm x 71mm
Standard Accessories	Batteries, Probe, Alligator Clip, Test Lead, Gallus
Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	20 PCs
Standard Carton Measurement	500mm × 380mm × 330mm (0.063 CBM Per Standard Carton)
Standard Carton Gross Weight	10.5 Kg
