800 channels GPS RTK receiver gps survey equipment Unistrong G970II Dual frequency land surveying gnss rtk receiver DGPS price

Supplier: Sunnav Technology Co., Ltd.
Region: Tianjin, China
Contact: Mr Andy Wang
Price: $1800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Single package size:	52X25X42 cm;	GLONASS:	G1, G2, P1, P2;
Selling Units:	Single item;	Place of Origin:	China;
Brand Name:	Unistrong;	RTK accuracy:	Horizontal: ± 8mm + 1ppm, Vertical: ± 15mm + 1ppm;
channel:	800/394/336/555 Channels;	Packaging Detail:	Standard case package;
Protocol:	GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH;	SBAS:	L1 CA, L5;
Single gross weight:	26.0 KG;	Package Preview:	;
Size:	156mm * H 76mm;	Static accuracy:	Horizontal: ± 2.5mm + 1ppm, Vertical: ± 5mm + 1ppm;
BDS:	B1, B2,.B3;	GALILEO:	E3BC, 35A, E5B;
GPS:	L1CA, L1P, L1C, L2P, L2C, L5;

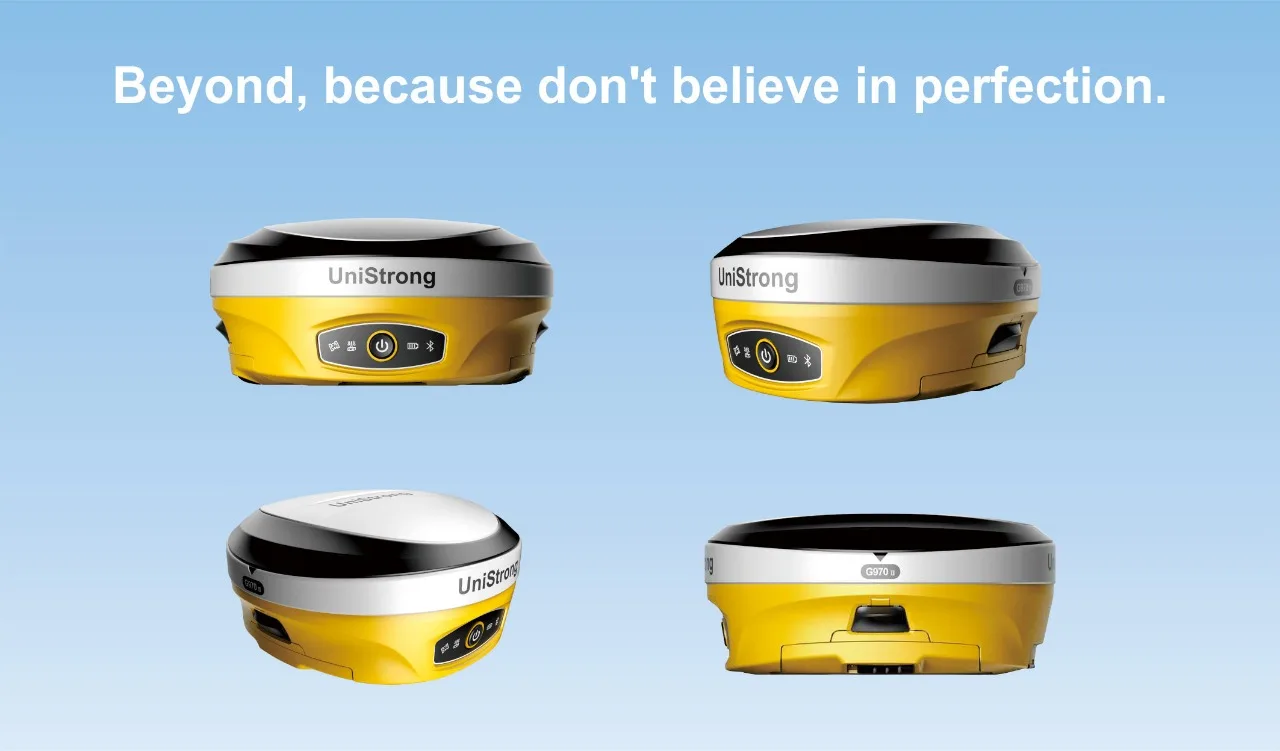

G970II GNSS RTK Receiver

(Stonex S900 series) acnovo GX900

Multi Frequency GNSS receiver

800 Channels Super GPS RTK

SunNav gps rtk dual frequey geophysical survey equipment Cheap gnss receiver

UniStrong G970II rtk gps

same with Foif A90 Stonex S900 chc x91 gps rtk

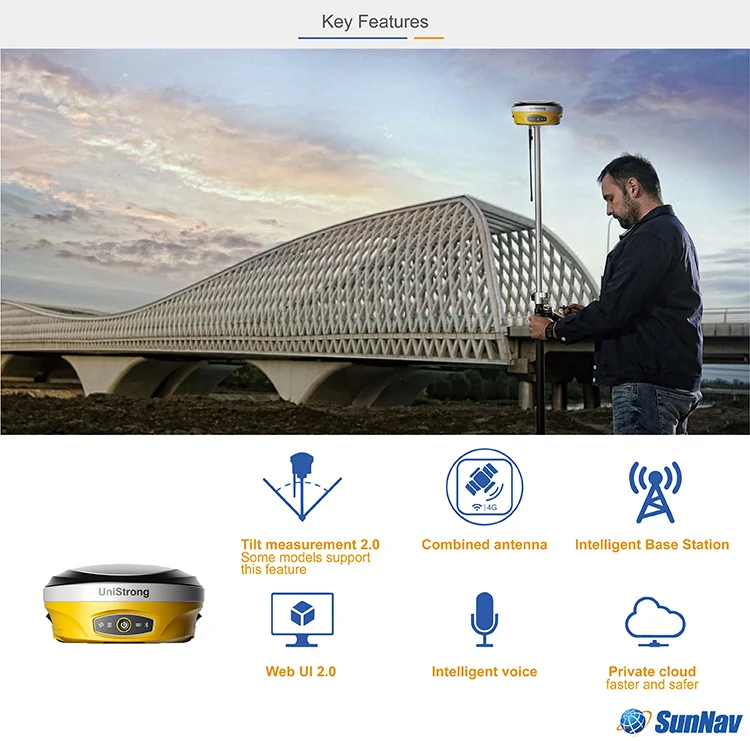

Key Features

Key Features

Multi-constellation satellite tracked
The world's fifth-generation GNSS baseband chip TIANQIN, integrating 394/555/336/800 super channels, supporting multi-satellite system full-band satellite signal reception.

Athena core GNSS engine

Running Athena core GNSS engine offering improved initialization times, robustness in difficult environments, performance over long baselines and under scintillation.

Atlas

The receiver can receive our new GNSS global corrections service delivered via L-band satellite and internet to abtain centimeter-level positioning accuracy.

aRTK technology

Using aRTK technology to maintain positioning accuracy at a certain time when loss of GNSS has occurred.

Combined antenna
Using a new combined antenna, GNSS, WiFi, Bluetooth and 4G are integrated into one, and the wireless signal is better.

Intelligent base station
After the base station is started, if a positional offset occurs, the mobile station is notified of the alarm.

Tilt measurement 3.0
New tilt measurement algorithm for increased productivity. G970II ZX support 60 degree IMU Tilt surveying.

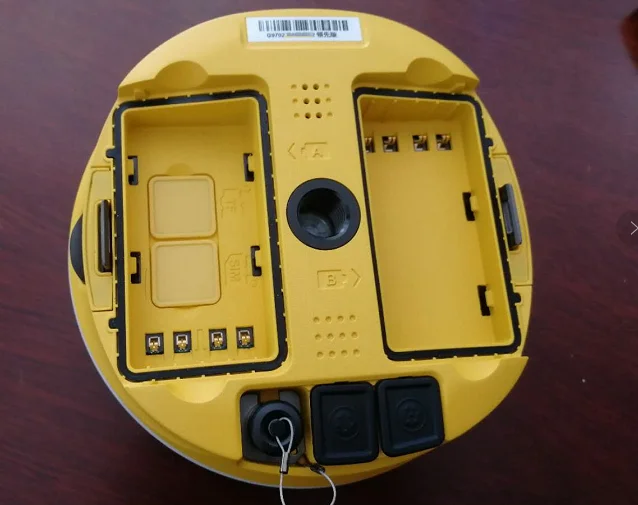

Dual batteries Design

support hot swap, charging and external charging configurations. It ensures that the receiver replaces the battery with constant power.

Bulit-in 4G network module
More stable network communication.

Main Features:

1) 394/555/336/800 channels(Hemisphere board/Newest trimble board BD990),

2) Tracking All constellations:

GPS: L1C/A, L1P, L1C, L2P, L2C, L5

GLONASS: G1, G2, P1, P2

BDS: B1, B2, B3

SBAS: LI C/A, L5

GALILEO: E1BC, E5A, E5B

L-BAND

3) Static: H: 2.5mm±1ppm, V: 5mm±1ppm

RTK: H: 8mm±1ppm, V:15mm±1ppm

4) Internal TX/RX UHF radio, the work range is 3-4KM.

5) 35W External radio: the work range is 20-30KM.

6) With Tilt survey function, Electronic Bubble (Option)

7) 4G network, WebUI, Wi-FI, iVoice intelligent, Bluetooth,

8) Strong software "Esurvey", SurvCE, Field Genius, Fast Survey are supported too.

9) Dual batteries design, support hot swap, charging and external charging configurations.

10) Protocol: GeoTalk, SATEL, PCC-GMSK, TrimTalk, TrimMark, SOUTH, hi target

11) Data format: RTCM, CMR+, CRM, ROX, RTCA and etc. Can work with all the famous brand (Trimble, Leica, Topcon) all over the world

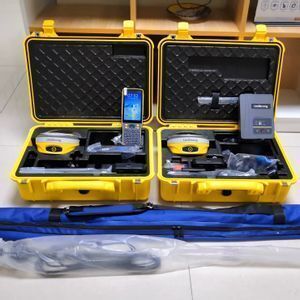

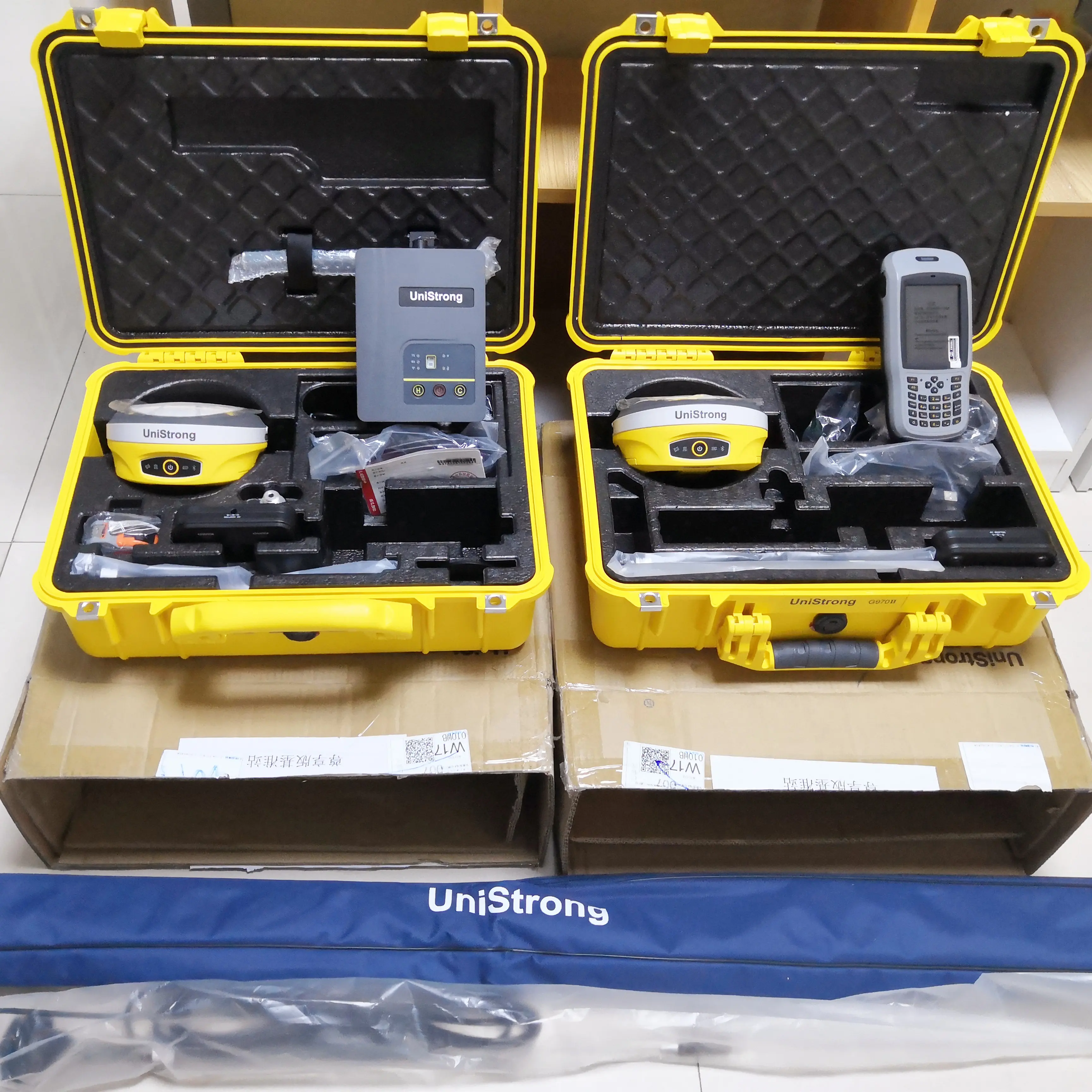

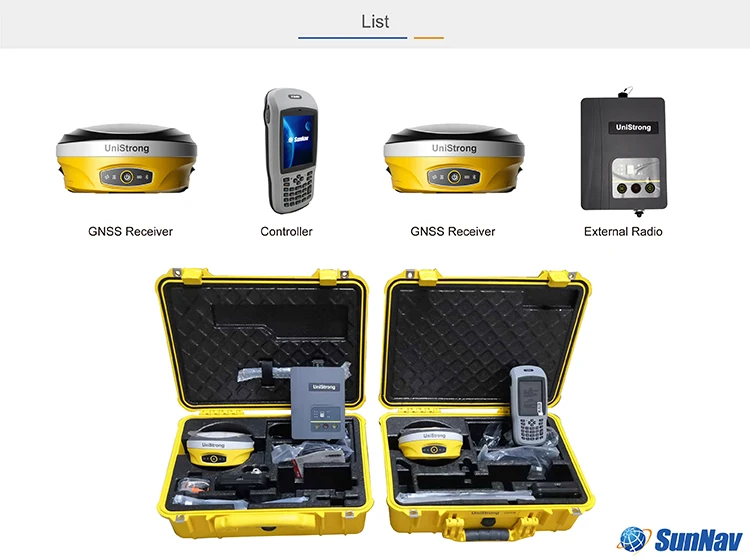

Parts

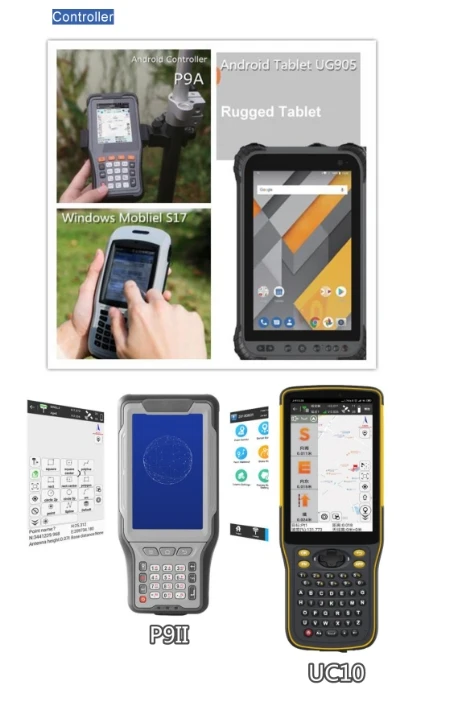

Software

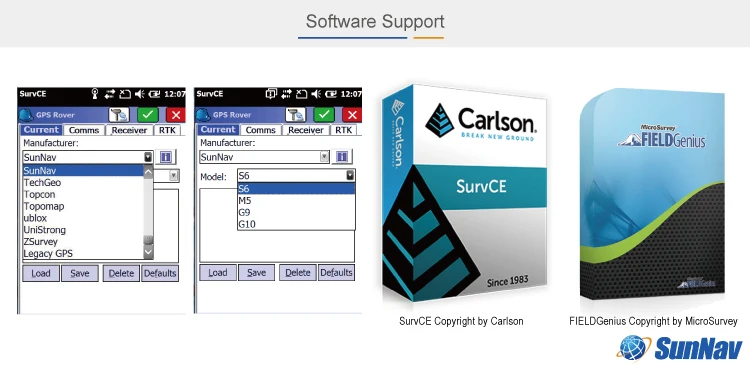

Carlson SurvCE/FieldGenius/Esurvey/SurPAD

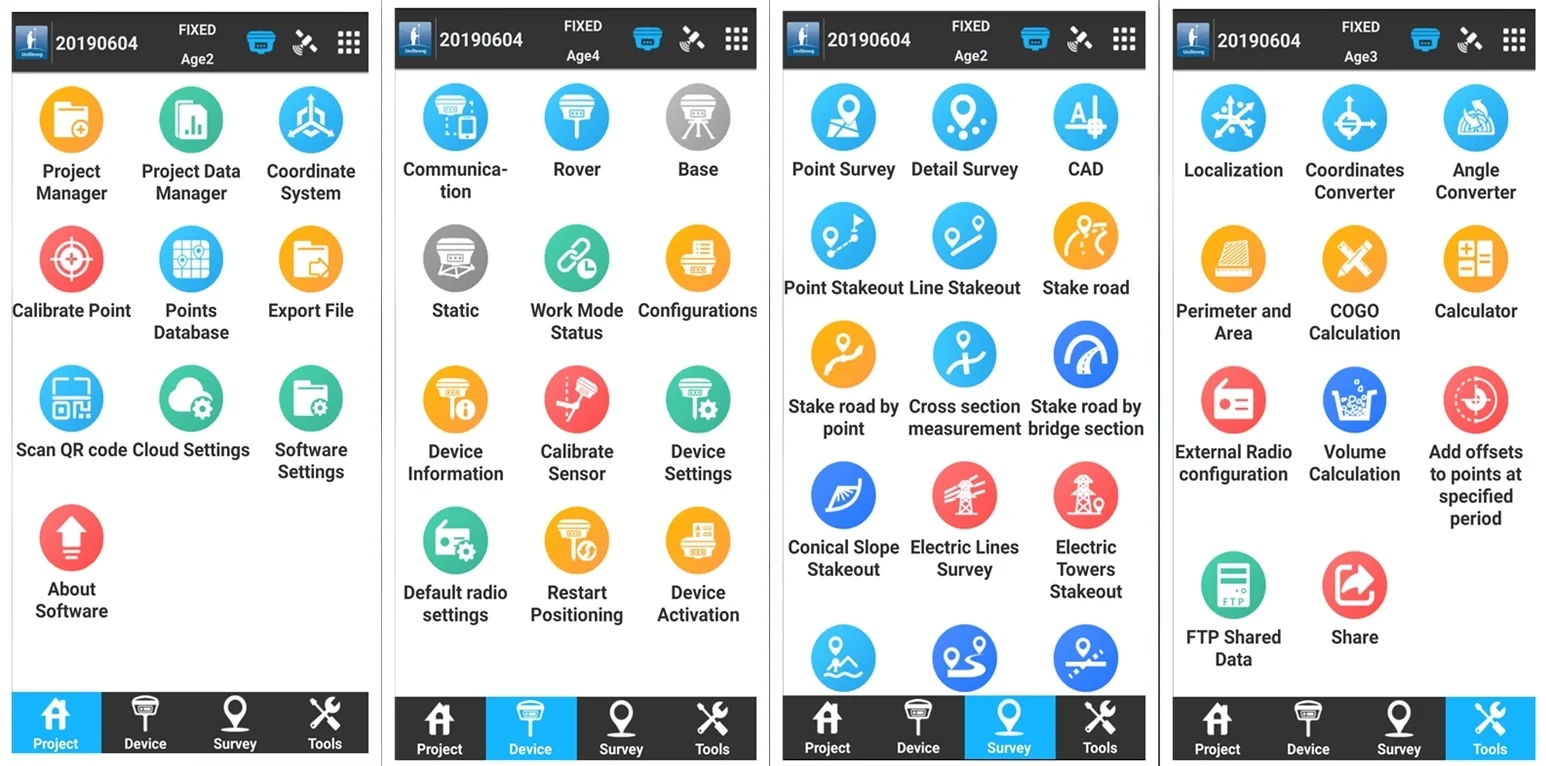

ESurvey Software Professional,intuitive and efficient
This ESurvey RTK data controller Field Software is designed & developped by the most professional software R&D engineers team, which brings you a professional, intuitive and efficient measurement of the new experience. The ESurvey software integrates construction survey, power survey, GIS data collecting in one unit. This software is compatible both with Windows Mobile and Android platform, it also supports the smart phone to be used as data controller.
1. Power Survey
Line selection, cross measurement, 4-D Data Format output.
2. Road survey
Road design, Middle Side Stake Layout, Cross section survey.
3. Base Map Loading
Support vector data loading such as DXF, SHP and GCP.
4. GIS collection
Support Attribute Data Collecting by Self-Defined data dictionary and export GIS exchange format.
5. Post Processing Software GGO
Support to convert the data format into RINEX, which is compatible with AutoCAD and other Drawing & Mapping Software.

Technical Specificat

Model		G970II-H	G970II-TX	G970II-NX	G970II-HX	G970II-ZX
GNSS	Channels	394	336	555	394	800
	Signals	BDS: B1, B2, B3
		GPS: L1CA, L1P. L1C, L2P, L2C, L5
		GLOASS: G1,G2, P1, P2
		GALILEO: E1BC, E5a. E5b
		QZSS: L1CA. L2C. L5, L1C
		SBAS: L1CA, L5;
		L-Band
Accuracy	Static	H: 2.5 mm±1ppm , V: 5 mm±1ppm
	RTK	H: 8 mm±1ppm, V:15 mm±1ppm
	DGNSS	<0.5m
	ATLAS	8cm	/	/	8cm	8cm
System	Initialization Time	8s
	Initialization Reliable	99.90%
	Operating System	Linux
	Merrory	8GB, support expanable MisroSD
	Wifi	802.11 b/g/n
	Bluetooth	V2.1+EDR/V4.1Dual,Class2
	E-Bubble	/	support	support	support	support
	Tilt Survey	/	support IMU Tilt Survey, no need calibration			IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate
Datalink	Audio	support TTS audio broadcast
	UHF	Tx/Rx Internal Radio, 1W/2W adjustable, radio support 410-470Mhz
	Protocol	support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target
	Network	4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)
Physical	Interface	1TNC Radio Antenna, 15Pin(Power & RS232),1*7Pin (USB 81 RS232)
	Button	1 Power Button
	Indication Light	4 Indication Lights
	Size	Φ156mm * H 76mm
	Weight	1.2kg
Power supply	Battery capacity	7.2V, 24.5Wh(standard two batteries)
	battery Life Timer	Static Survey: 15 hours, Rover RTK survey: 12h
	External power source	DC 9-18V, with overvoltage protection
Environment	Work Temporature	-35℃ ~ +65℃
	Storage Temporature	-55℃ ~ +80℃
	waterproof&dustproof	IP68
	Humidity	100% anti-condensation
