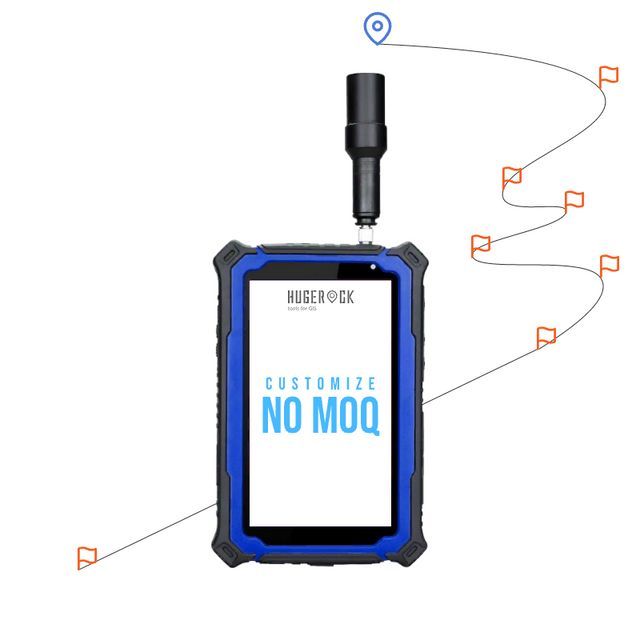

HUGEROCK G71M High Performance GNSS Surveying Instrument GPS Drone RTK Industrial Rugged Android Tablet 7 Inch

Supplier: Shenzhen Soten Technology Company Limited
Region: Guangdong, China
Contact: Mr mike luo
Price: $555.00 / 10 - 99 units
$525.00 / >=100 units
Min. Order: 10 units

Click here to contact

Product details

Origin:	Guangdong, China	port:	Shenzhen
Warranty:	2 years	Main camera:	13.0MP(AF) with flash
Customization support:	OEM、ODM	Memory:	8GB
Battery:	10000mAh	navigation:	GPS+Beidou+GLONASS+AGPS+SBAS (EPO 2.5m)
Internal memory:	128GB	OEM/ODM:	support
Secondary camera:	5.0MP	Supply capacity:	20000 pieces per month
brand:	boulder	Package preview:
Graphics processor:	ARM Mali-G72 MP3	payment terms:	L/C, Western Union, T/T

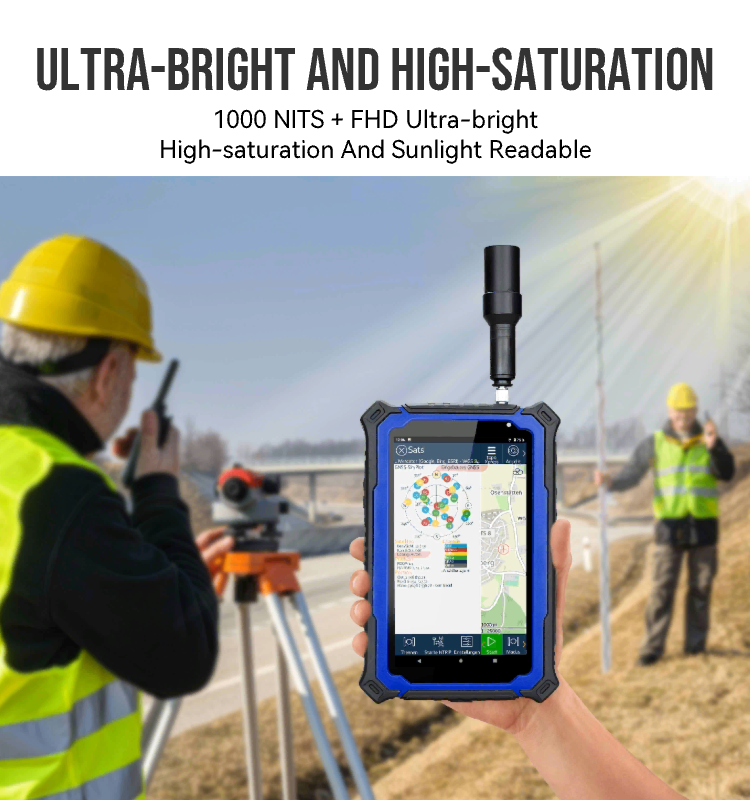

CPU:	ARM Cortex A73 octa-core (2.0GHz)	exhibit:	7 inch IPS/AFFS 1200*1920 full HD industrial grade 1000nit visible under sunlight

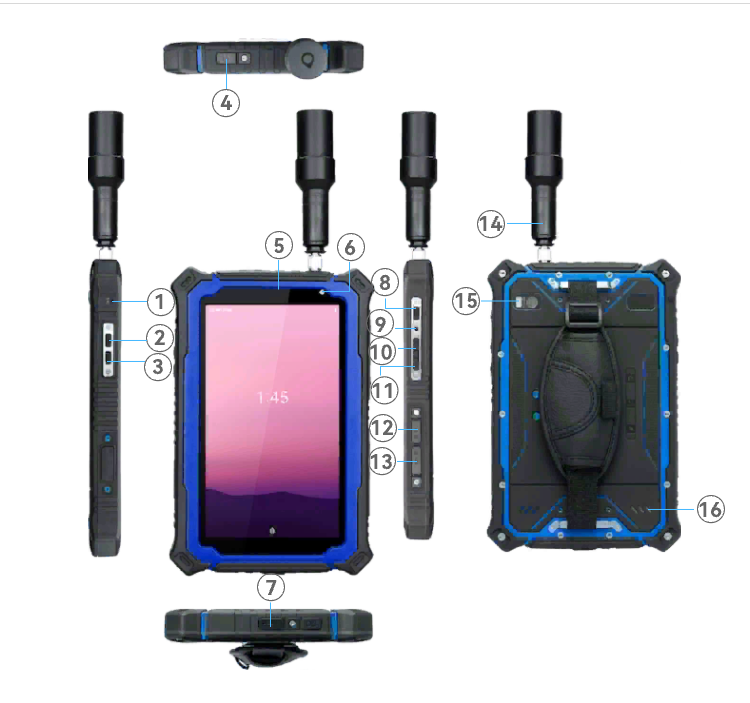

1. Microphone	2. Photo button	3. SOS button	4. Handset jack (sealing cover)
5. Light sensor	6. Secondary camera	7. Type-C (sealing cover)	8. Power button
9. Reset button	10. Turn up the volume	11. Lower the volume	12. TF card (sealing cover)
13. SIM card (sealing cover)	14. Antenna	15. Main camera	16. Speaker

hardware
CPU	ARM Cortex A73 octa-core (2.0GHz)
graphics processor	ARM Mali-G72 MP3
Memory	8GB
internal memory	128GB
external memory	Micro SD card (T-FLASH card), up to 256GB
main camera	13.0MP(AF) with flash
secondary camera	5.0MP
Battery	10000mAh
exhibit	7 inch IPS/AFFS 1200*1920 full HD industrial grade 1000nit visible under sunlight
touch panel	Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen

IO/Sensor/Navigation
SIM card	1.8/3.3V SIM card
TF card	Micro SD card (T-FLASH card); up to 256GB
earphone	3.5mm (CTIA)
charging interface	Type C*1
Data interface	USB Type-C(OTG)*1
direction sensor	support
Gravity sensor	support
direction sensor	support
Magnetic field sensor	support
motion sensor	support
rotation vector	support
light sensor	support
Accelerometer	support
charger	5.0V 2A-10W

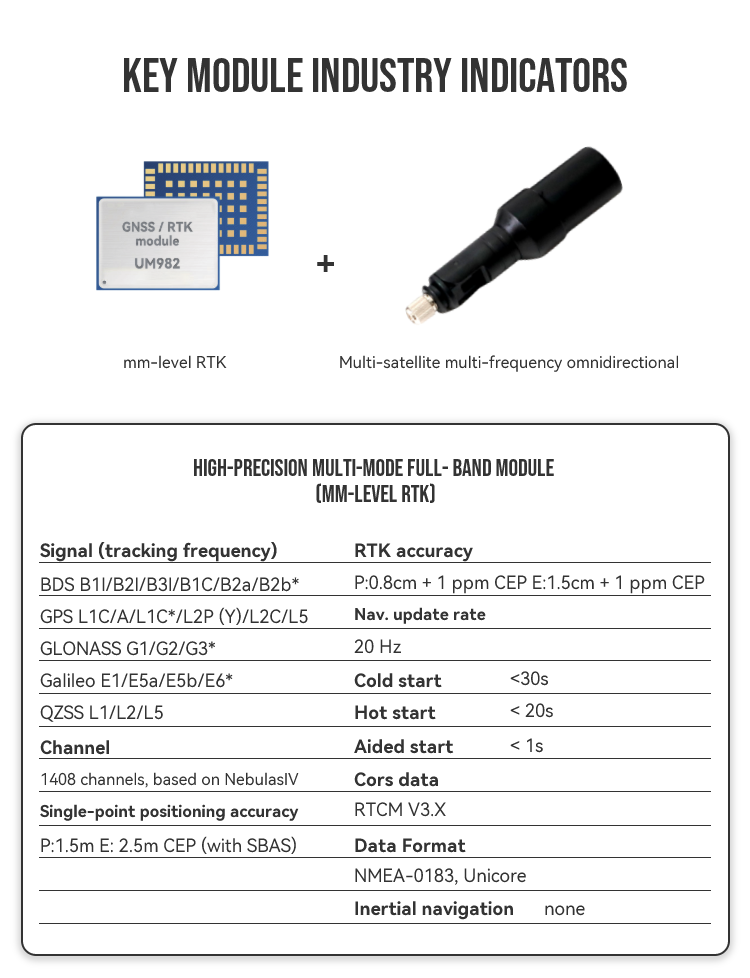

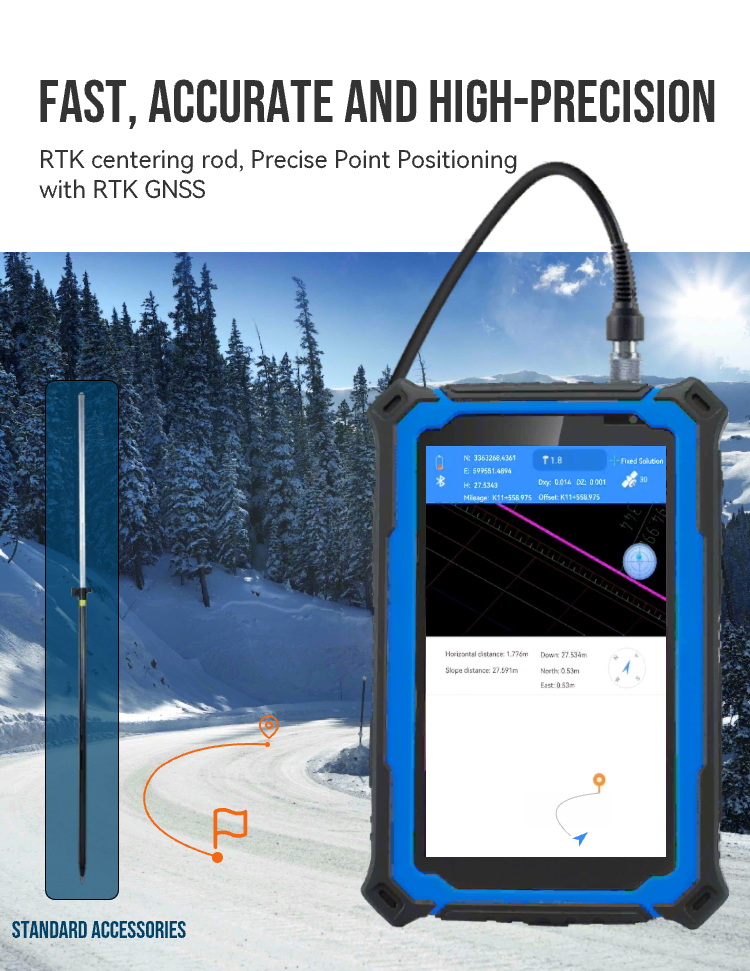

navigation	GPS+Beidou+GLONASS+AGPS+SBAS (EPO 2.5m)

appearance

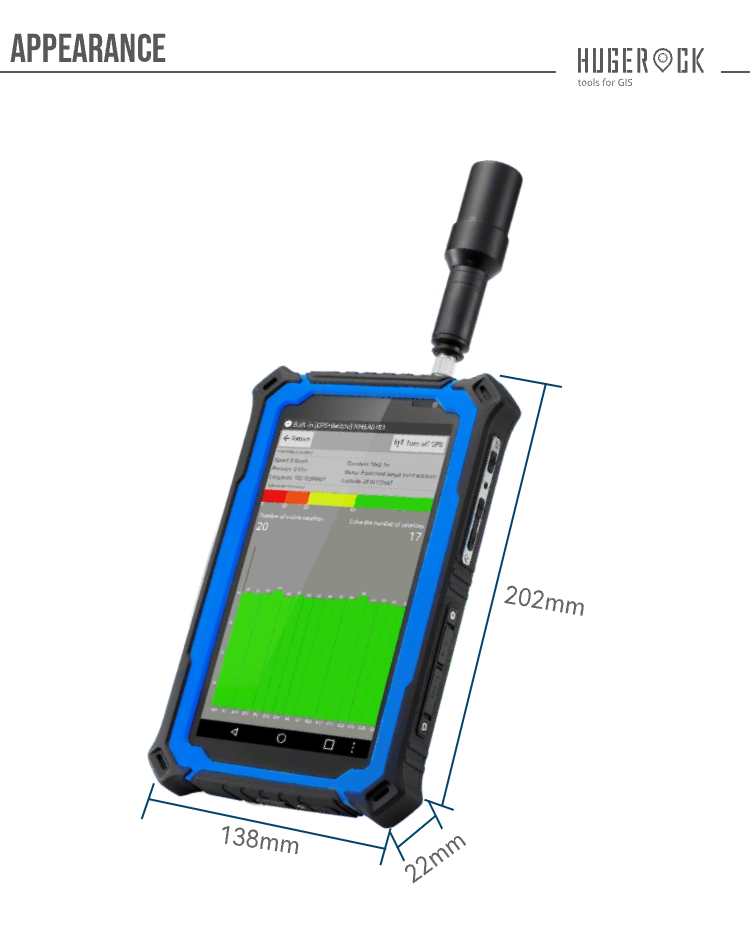

size	20213822mm (length×width×height)
weight	700 grams
color and material	Blue (PC+ABS)+Black (TPU)

Communication and Network
Telephone	GSM/WCDMA/CDMA 1X/VoLTE
2G	GSM/CDMA 1X/EDGE/GPRS/WAP
2G frequency band	GSM (B2/3/5/8)
3G	WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO
3G frequency band	WCDMA (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1
4G	FDD: Downlink 150Mbps, Uplink 50Mbps TDD: Downlink 150Mbps, 50Mbps
4G frequency band	TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28)
Wifi	Dual-band WIFI (2.4GHz/5Ghz) single-stream 802.11 a/b/g/n/ac
BT	5.0 Low Energy (LE)

Industrial and Reliability Design
shockproof	1-19Hz/1.0mm; 19-200Hz/1.0g
Anti-drop/IK	MIL-STD-810G/Method516.6/Procedure IV and touch screen IK05

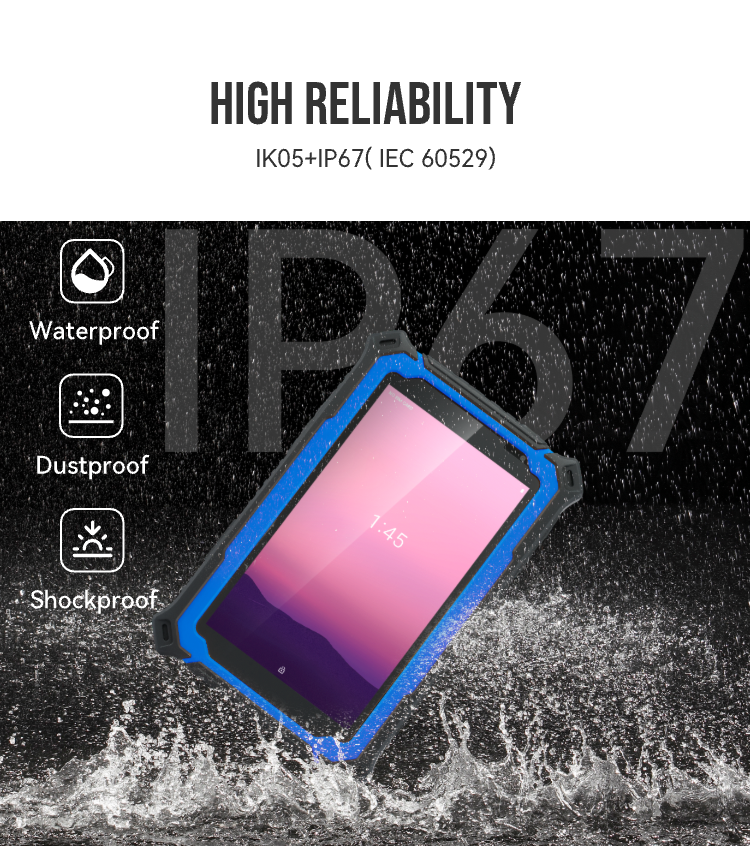

waterproof	Class 7 (IEC 60529)
dustproof	Class 6 (IEC 60529)
reliability	Mean time between failures > 5000 hours; Mean time to repair < 0.5 hours
Operating temperature	-20°C to 55°C
Storage temperature	-40°C to 70°C
Relative humidity	5%RH-95%
working altitude	Maximum: 4,500 m (15,000 ft)

Certification/OS/Software
certified	3C/FCC/CE/ROHS/IP67 (IEC 60529)
language	English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Traditional Chinese, ETC
operating system	Android 11

Packaging/Warranty Terms
Warranty	24 months
pack	USB cable/charger 5V 2A/instruction manual/screen protector/aircraft box/tool bag/SIM card ejector x 1

Q: Are you a manufacturer?

A: Yes, we are a manufacturer. We can provide OEM / ODM customized services according to various applications and needs of customers. All of our products are fully patented, ID/MD design, hardware and software, mold, assembly are all done by our own team.

Q: Can you provide me with SDK?

A: Yes, we provide free SDK if you order samples. In addition, we have support engineers to assist you with software development.

Q: What is the minimum order (MOQ)?

A: We accept one unit for standard product. We can even customize your logo if required. If OEM is required, our sales department will look at the detailed requirements and confirm the MOQ with you.

Q: Can we get free samples?

A: Sorry, generally we will not provide free samples. If customers confirm the specifications and prices, samples can be ordered for testing and evaluation first.

Q: Can I select multiple functions in one device?

Answer: Yes, you can choose multiple functions in one device, different functions depend on the product model, optional

Function: RFID (LF/HF/UHF)1 Fingerprint/Barcode Scanner.

Q: How to order and pay?

A: We accept T/T (Bank Transfer), Alibaba Online, Western Union 1 Trade Assurance

Q: What is your product warranty?

A: We provide a 24-month warranty after shipment.

Q: Can I extend the warranty period?

A: We offer an extended warranty of up to 36 months, and the price of the extended warranty increases by 10%.

Q: How long does delivery take?

A: The production lead time is about 3-10 days, depending on the requirements, the shipping time by DHL/UPS/FEDEX/TNT, and the delivery time is about 3-5 working days. For some remote places, the delivery time may be a little longer.

Q: How to repair the equipment if there is a problem?

A: We will provide technical support online to solve the problem; if it is a hardware problem, we can send the part or assembly and teach the customer to install it (if they have a technician) or also send it back to us for repair.

Q: Can you customize and pre-install our software?

A: We are a professional manufacturer of three-proof equipment with 11 years of experience
