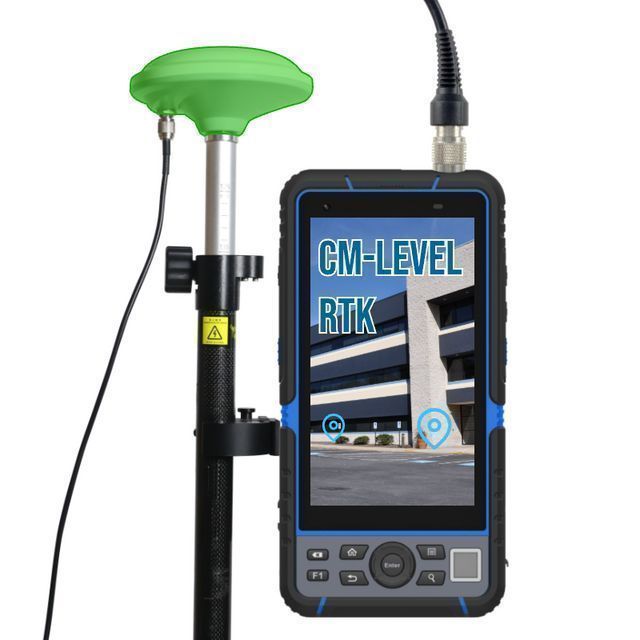

HUGEROCK G60S rugged pda gnss rtk antenna waterproof android ip67 smart 4g industrial security

Product details
payment terms:L/C, Western Union, T/TCustomization support:OEM production
Battery:7800mAhshockproof:1-19Hz/1.0mm; 19-200Hz/1.0g
waterproof:Category 7 (IEC 60529)brand:Stonehenge
place of origin; place of origin:Guangdong, ChinaAnti-drop/IK:MIL-STD-810G/Method516.6/Procedure IV and touch screen IK05
Supply capacity:20000 pieces per monthMemory:8G
Packaging Details:Product size: 195*98*22mm Box size: 260*270*140mm NW: 700g GW: 1040g Carton size: 340*320*255mm 10set/ctn Weight: 10.1kgInternal memory:128G
port:Shenzhenexhibit:5.5 inches IPS/AFFS 1080*1920 FHD industrial grade 500cd/m2 sunlight readable
CPU:ARM A73 2.0GHz octa-coregraphics card:ARM Mali-G72 MP3
Dustproof:Category 6 (IEC 60529)Warranty:2 years

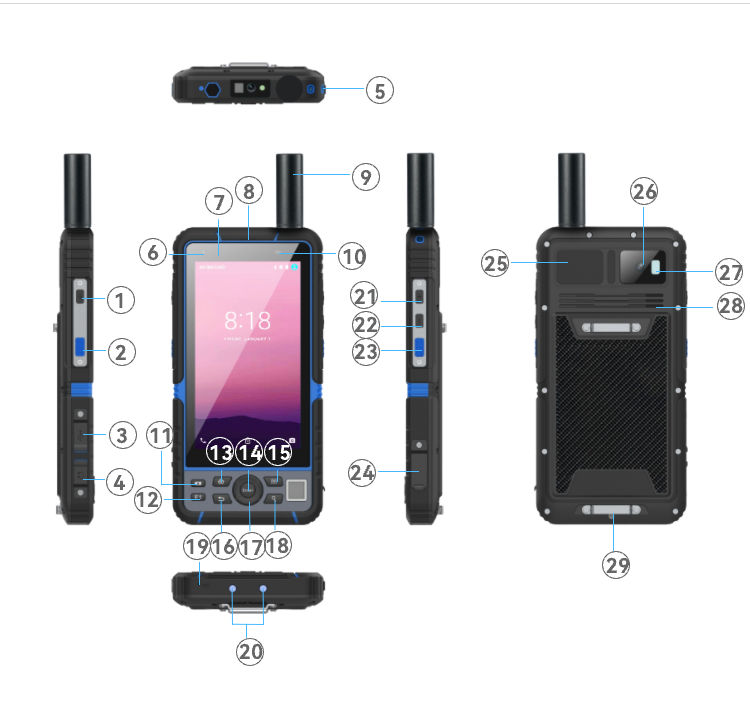

1. Power button
2. SOS button
3. Type-C (sealing cover)
4. Earphone (seal)
5. Hanging hole
6. Front camera
7. Charging lamp
8. Receiver
9. Antenna
10. Light sensor
11. Delete button
12. Custom button
13. Home button
14. Confirm button
15. Menu button
16. Back button
17. Arrow buttons
18. Search button
19. Microphone
20. 2pin pogo pin
21. Volume up
22. Lower the volume
23. Scan Button (Definition)
24. SIM (sealing cover)
25. Nameplate
26. Main camera
27. Flash
28. Speaker
29. Fihand strap xing parts
hardware
CPU
ARM A73 2.0GHz octa-core
graphics card
ARM Mali-G72 MP3
Memory
8G
internal memory
128G
external memory
Micro SD card (T-FLASH card), up to 256GB
main camera
13.0MP(AF) with flash
secondary camera
5.0MP
Battery
7800mAh
exhibit
5.5 inches IPS/AFFS 1080*1920 FHD industrial grade 500cd/m2 sunlight readable
touch panel
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen
IO/Sensor/Navigation
SIM card
Nano SIM card*2
TF card
Micro SD card (T-FLASH card); up to 256GB
earphone
3.5mm (CTIA)
charging port
Type-C+2pin pogo pin
Data interface
Type-C 24pin, support OTG
RS232 (optional)
RS232X1
Gravity sensor
support
motion sensor
support
direction sensor
support
magnetic field
support
Gyro sensor
support
rotation vector
support
light sensor
support
Accelerometer
support
charger
5.0V 2A-10W
navigation
GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)
appearance
size
195*98*22mm (length×width×height)
weight
460 grams
Color and Material
Blue (PC+ABS)+Black (TPU)
Communication and Network
Telephone
GSM/WCDMA/CDMA 1X/VoLTE
2G
GSM/CDMA 1X/Edge/GPRS/WAP
2G frequency band
GSM (B2/3/5/8)
3G
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO
3G frequency band
WCDMA (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1
4G
FDD: Downlink 150Mbps, Uplink 50Mbps TDD: Downlink 150Mbps, Uplink 50Mbps
4G frequency band
TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28)
wireless online
Dual-band WIFI (2.4GHz/5Ghz) single-stream 802.11 a/b/g/n/ac
BT
4.2 Low Energy (LE)
Industrial and Reliability Design
shockproof
1-19Hz/1.0mm; 19-200Hz/1.0g
Anti-drop/IK
MIL-STD-810G/Method516.6/Procedure IV and touch screen IK05
waterproof
Category 7 (IEC 60529)
dustproof
Category 6 (IEC 60529)
reliability
MTBF>5000h; MTTR<0.5h
Operating temperature
-20°C to 55°C
Storage temperature
-40°C to 70°C
Relative humidity
5% to 95%
working altitude
Maximum: 4,500 m (15,000 ft)
Certification/OS/Software
certified
3C/FCC/CE/ROHS/IP67 (IEC 60529)
language
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Traditional Chinese, ETC
operating system
Android 10.0
Packaging/Warranty/OEM
Warranty
24 months
OEM/Design and Manufacturing
support
pack
USB data cable/charger 5V 2A/manual/screen protector/packing box (logo can be customized)/aircraft box/tool ​​kit (optional)/OTG x 1/SIM card ejector x 1
Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We can provide OEM / ODM customized services according to various applications and needs of customers. All of our products are fully patented, ID/MD design, hardware and software, mold, assembly are all done by our own team.

Q: Can you provide SDK for me?
A: Yes, we provide free SDK if you order samples. In addition, we have support engineers to assist you with software development.

Q: What is the minimum order quantity (MOQ)?
A: We accept one unit for standard products. We can even customize with your logo if required. If OEM is required, our sales department will look at the detailed requirements and confirm the MOQ with you.

Q: Can we get free samples?
A: Sorry, generally we will not provide free samples. If customers confirm the specifications and prices, they can order samples for testing and evaluation first.

Q: Can I choose multiple functions in one device?
A: Yes, you can choose multiple functions in one device, different functions depend on the product model, optional functions: RFID (LF/HF/UHF)1 fingerprint/barcode scanner.

Q: How to order and pay?
A: We accept T/T (Bank Transfer), Alibaba Online, Western Union 1 Trade Assurance

Q: What is your product warranty?
A: We provide 24 months warranty after shipment.

Q: Can I extend the warranty period?
A: We offer extended warranties up to 36 months with a 10% price increase for extended warranties.

Q: How long does delivery take?
A: The production lead time is about 3-10 days, depending on the requirements, the shipping time by DHL/UPS/FEDEX/TNT, and the delivery time is about 3-5 working days. For some remote places, the delivery time may be a little longer.

Q: How to repair the equipment if there is a problem?
A: We will provide technical support online to solve the problem; if it is a hardware problem, we can send parts or components and teach customers to install them, or send them back to us for repair if they have technicians.

Q: Can you customize and pre-install our software?
A: We are professional sturdy equipment manufacturer with 11 years experience
