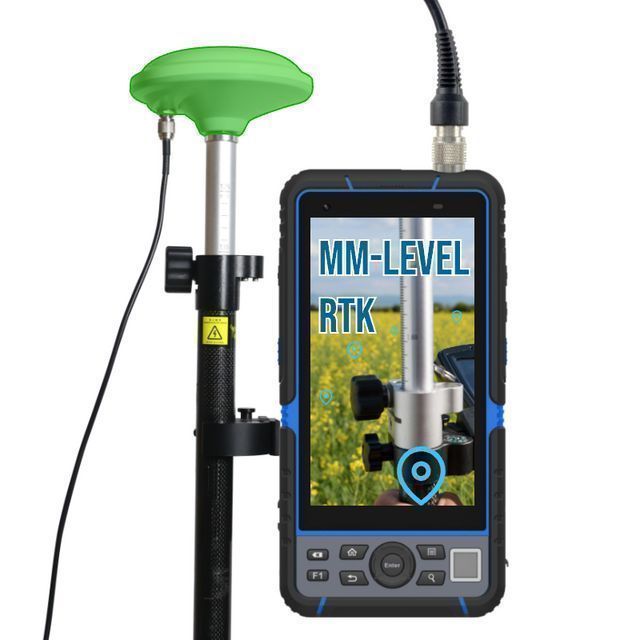

HUGEROCK G60L pda rugged rtk gnss receiver surveying grade multi-mode dual-frequency quad-arm helix antenna

Click here to contact
Product details
Graphics card:ARM Mali-G72 MP3Drop/IK:MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
Secondary camera:5.0MPplace of origin; place of origin:Guangdong, China
Warranty:2 yearspayment terms:L/C,Western Union,T/T
Custom Support:OEM, ODMMain camera:13.0MP(AF) with flash
exhibit:5.5 inch IPS/AFFS 1080*1920 FHD industrial grade 500cd/m2 sunlight readableMemory:8G
Packaging Preview:Battery:7800mAh
ROM:128GBPackaging Details:Product size: 195*98*22mm Box size: 240*132*75mm Quantity per carton: 450g Net weight: 700g Gross weight: 1040g Carton size: 390*270*370mm 10set/ctn
shockproof:1-19Hz/1.0mm; 19-200Hz/1.0gSupply capacity:20,000 units per month
brand:boulderCPU:ARM A73 2.0GHz Octa Core
port:Shengzhen
1. Power button
2. SOS button
3. Type-C (sealing cover)
4. Headphones (sealing cover)
5. Hanging hole
6. Front camera
7. Charging light
8. Receiver
9. Antenna
10. Light sensor
11. Delete button
12. Custom buttons
13. Home button
14. Confirm button
15. Menu button
16. Back button
17. Arrow buttons
18. Search button
19. Microphone
20. 2pin pogo pin
21. Raise the volume
22. Lower the volume
23. Scan button (definition)
24. SIM (sealing cover)
25. Nameplate
26. Main camera
27. Flashlight
28. Speakers
29. Fihand strap xing parts
hardware
CPU
ARM A73 2.0GHz Octa Core
graphics processor
ARM Mali-G72 MP3
Memory
8G
internal memory
128G
external memory
Micro SD card (T-FLASH card), up to 256GB
main camera
13.0MP(AF) with flash
Sub camera
5.0MP
Battery
7800mAh
exhibit
5.5 inch IPS/AFFS 1080*1920 FHD industrial grade 500cd/m2 sunlight readable
touch panel
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen
IO/sensors/navigation
SIM card
Nano card*2
TF card
Micro SD card (T-FLASH card); up to 256GB
earphone
3.5mm (CTIA)
charging interface
Type-C+2pin pogo pin
Data interface
Type-C 24pin, support OTG
RS232 (optional)
RS232X1
Gravity sensor
support
motion sensor
support
Orientation sensor
support
magnetic field
support
Gyro sensor
support
rotation vector
support
light sensor
support
Accelerometer
support
charger
5.0V 2A-10W
navigation
GPS+Beidou+GLONASS+AGPS+SBAS (EPO 2.5m)
appearance
size
195*98*22mm (L×W×H)
weight
460 grams
color and material
Blue(PC+ABS)+Black(TPU)
Communication and Network
Telephone
GSM/WCDMA/CDMA 1X/VoLTE
2G
GSM/CDMA 1X/EDGE/GPRS/WAP
2G band
GSM (B2/3/5/8)
3G
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO
3G band
WCDMA (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1
4G
FDD: Downstream 150Mbps, Upstream 50Mbps TDD: Downstream 150Mbps, Upstream 50Mbps
4G band
TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28)
Wifi
Dual-band WIFI (2.4GHz/5Ghz) single-stream 802.11 a/b/g/n/ac
BT
4.2 Low Energy (LE)
Industrial and Reliable Design
shockproof
1-19Hz/1.0mm; 19-200Hz/1.0g
Drop/IK
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
waterproof
Class 7 (IEC 60529)
dustproof
Class 6 (IEC 60529)
reliability
MTBF>5000h; MTTR<0.5h
Operating temperature
-20°C to 55°C
Storage temperature
-40°C to 70°C
Relative humidity
5% to 95%
working altitude
Maximum: 4,500 m (15,000 ft)
Certification / Operating System / Software
Certification
3C/FCC/CE/ROHS/IP67 (IEC 60529)
language
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Traditional Chinese, ETC
operating system
Android 10.0
Packaging/Warranty/OEM
Warranty
24 months
OEM/ODM
support
pack
USB cable/charger 5V 2A/introduction manual/screen protector/packaging box (logo can be customized)/airplane case/tool ​​bag (optional)/OTG x 1/SIM card ejector x 1
Q: Are you a manufacturer?
A: Yes, we are the manufacturer. We can provide OEM/ODM customized services according to various applications and needs of customers. All our products are fully patented, ID/MD design, hardware and software, mold, assembly are all done by our own team.

Q: Will you provide me with an SDK?
A: Yes, we provide free SDK if you order samples. In addition, we have support engineers to assist you with software development.

Q: What is the Minimum Order Quantity (MOQ)?
A: We accept one unit of standard product. We can even customize your logo if desired. If OEM is required, the detailed requirements will be checked and the MOQ will be confirmed to you from our sales department.

Q: Can we get free samples?
A: Sorry, we do not provide free samples in general. After the customer confirms the specification and price, the sample can be ordered first for testing and evaluation.

Q: Can I choose multiple functions in one device?
A: Yes, you can choose multiple functions in one device, different functions according to the product model, optional functions: RFID (LF/HF/UHF) 1 Fingerprint/Barcode Scanner.

Q: How to order and pay?
A: We accept T/T (Bank Transfer), Alibaba Online, Western Union 1 Trade Assurance

Q: What is your product warranty?
A: We provide 24 months warranty after shipment.

Q: Can I extend the warranty period?
A: We offer an extended warranty of up to 36 months with a 10% extension of the warranty period.

Q: How long will the delivery take?
A: The production lead time is about 3-10 days, depending on the requirements, the shipping time for DHL/UPS/FEDEX/TNT, the delivery time is about 3-5 working days. For some remote locations, the delivery time may be longer.

Q: How to repair the equipment if there is a problem?
A: We will provide technical support online to solve the problem; if it is a hardware problem, we can send the parts or components to the customer, if they have a technician, we can teach the customer to install, or they can also send it back to us for repair.

Q: Can you customize and pre-install our software?
A: We are a professional manufacturer of rugged equipment with 11 years of experience
