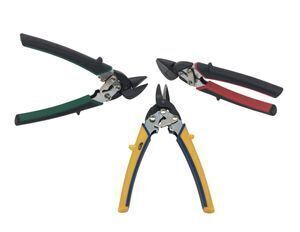

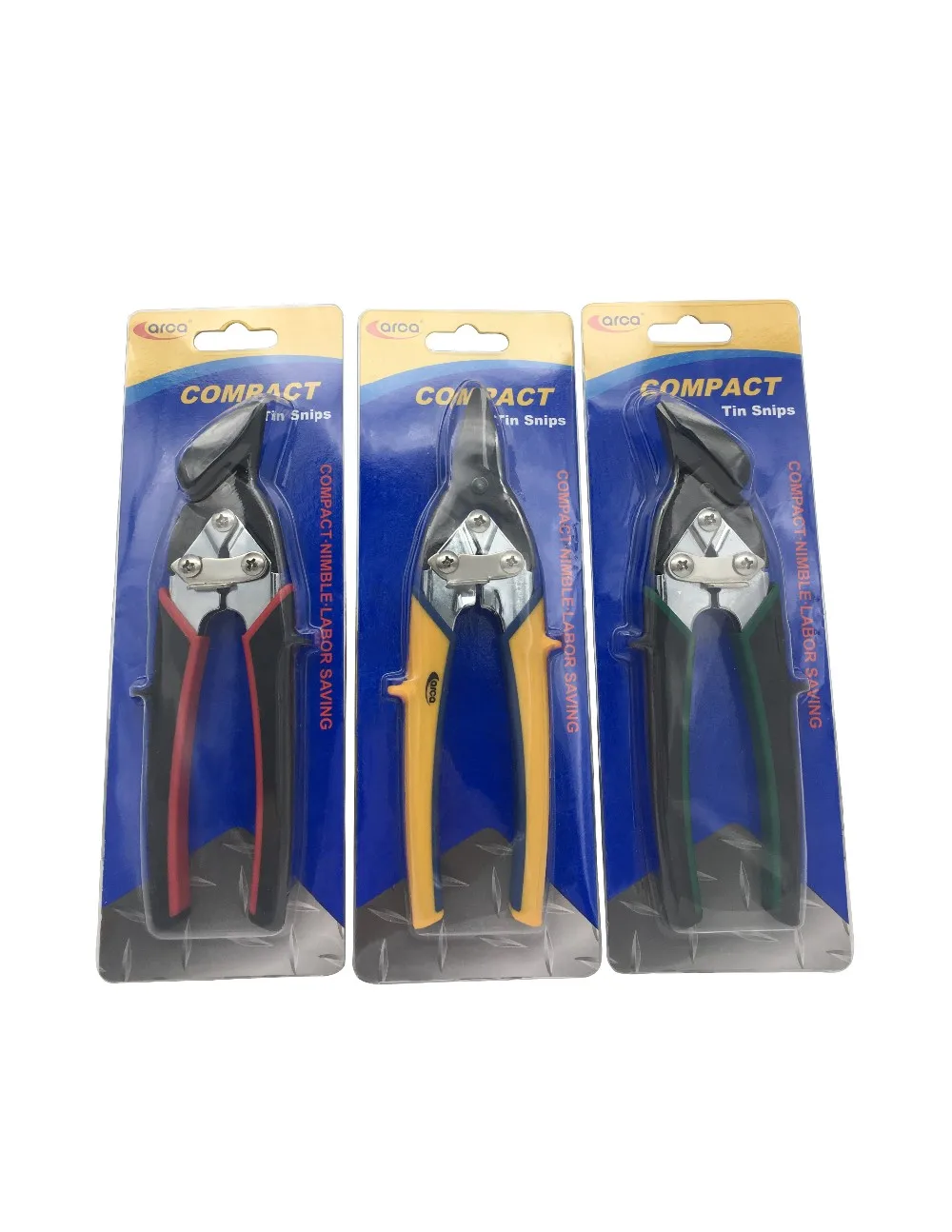

2019 arca Taiwan Mini Aviation Tin Snip

Product details
Port:TAICHUNG, TAIWAN;Supply Ability:2000 Piece/Pieces per Day;
Application:For Cutting Sheet Metal,cold-rolled steel;Snip Type:Aviation Snip;
Payment Terms:T/T;Packaging Detail:PC/SLIDING BLISTER CARDED;
LOADING & TENSILE

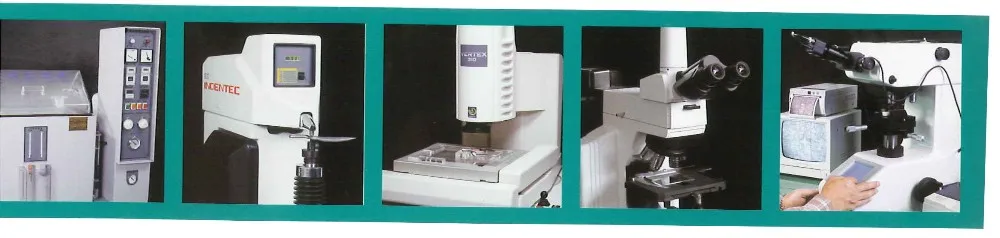

Professional Computer Load & Tensile Tester

We performs full-length cut tests to measure the maximum handle pressure in accordance with ANSI/ASME B107.16 and DIN standards. Also tests tensile strength of center pivot fastener. Reading can be printed & retrieved on graphical charts.


SNIP QUALITY TESTING STANDARD

Each pair of snips has passed our qualification testing procedures, assuring a quality product. Once the test of full cycle is done, the snips can still cut Cloth or paper sharply.


Test Procedures:

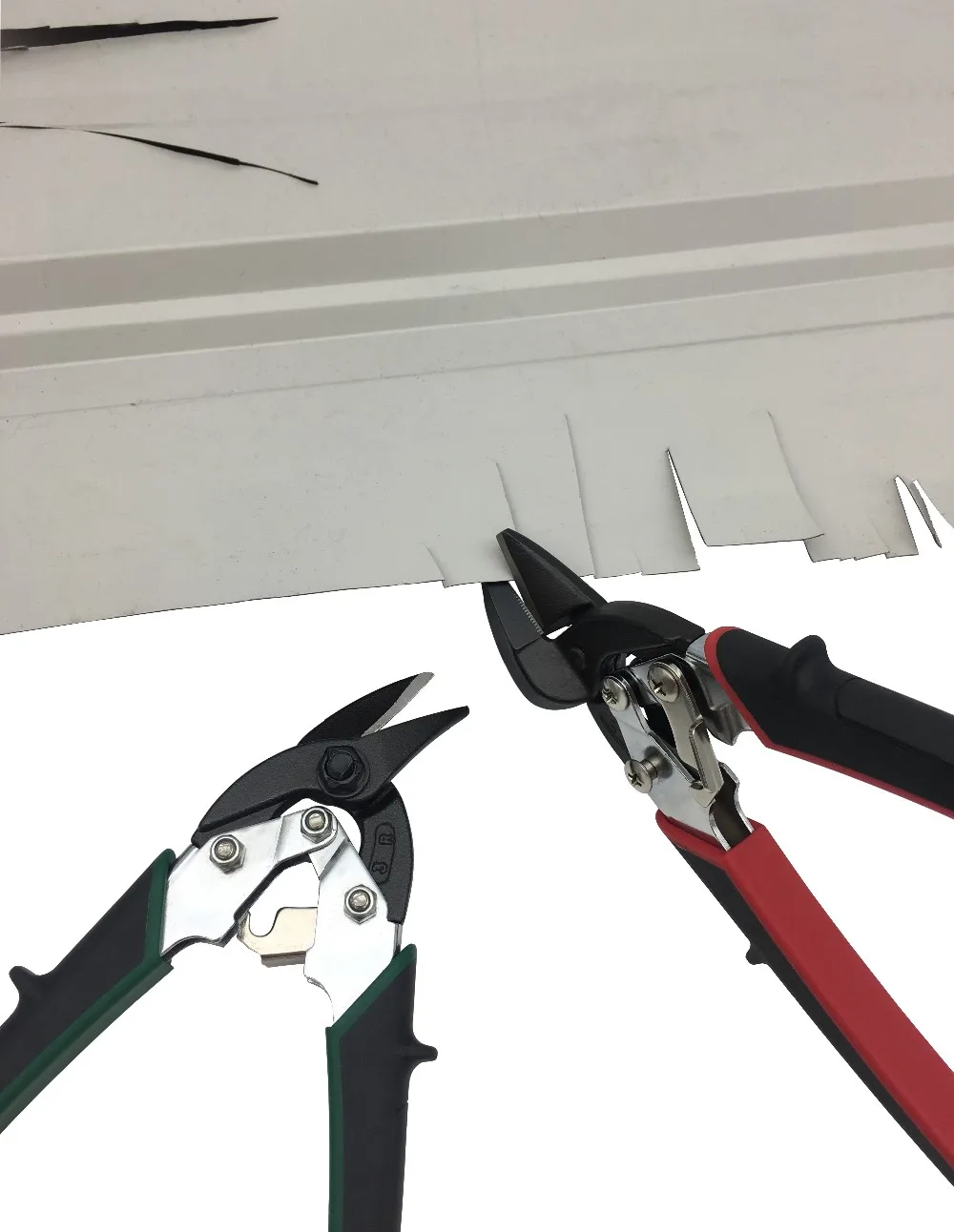

1.Paper Cutting Test-one cut
2.Cloth Cutting Test-one cut

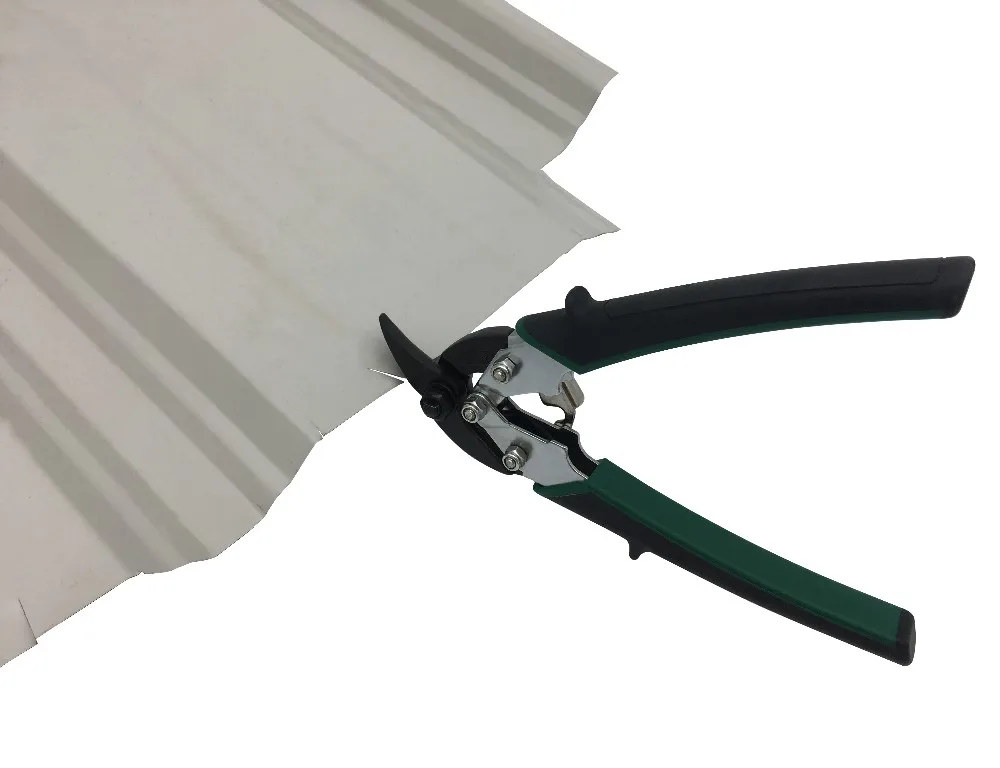

3.Metal Cutting Test-five cut
4.Cloth Cutting Test-one cut
5.Paper Cutting Test-one cut

Detailed Images
Item No.
Cut Instruction
Cutting Length
Overall Length
Cooper
(Soft)
Cold-rolled
steel (Mid)
Hard Steel
HRC30(Hard)
Stainless Steel 304
06100-14101.10
Left Cut
15mm
185mm
1.5mm
1.20mm
0.80mm
0.70mm
06100-14201.10
Right Cut
15mm
185mm
1.5mm
1.20mm
0.80mm
0.70mm
06100-14301.10
Straight Cut
39mm
190mm
1.5mm
1.20mm
0.80mm
0.70mm
