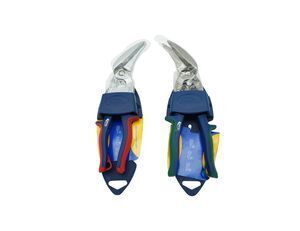

2019 arca Taiwan Long Style Offset tin Snips scissors

Product details
Snip Type:Offset Snip;Application:For Cutting Sheet Metal,cold-rolled steel;

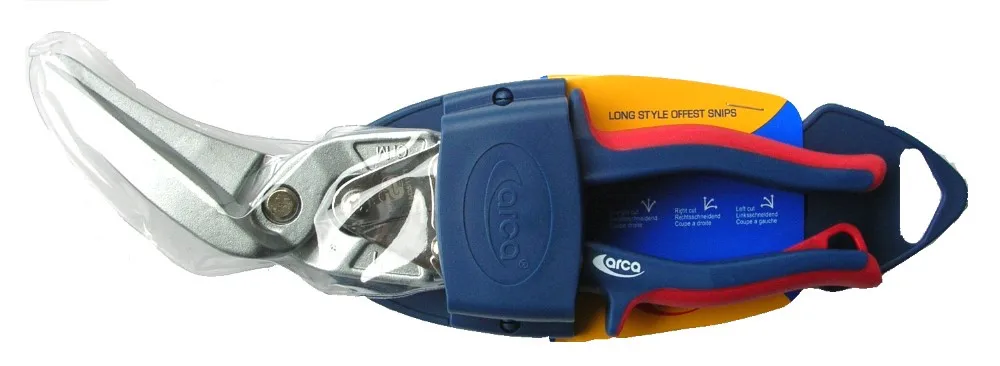

Packaging Detail:PC/HOLSTER,6PCS/INNER BOX, 36PCS/CARTON;Port:TAICHUNG, TAIWAN;
Supply Ability:2000 Piece/Pieces per Day;Payment Terms:T/T;
Product Description

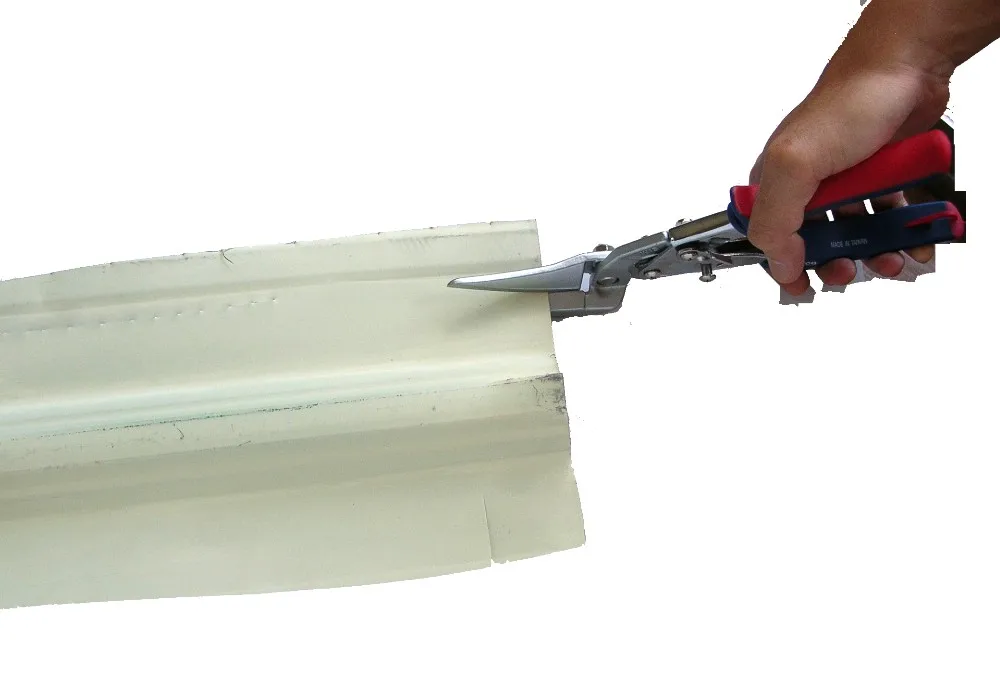

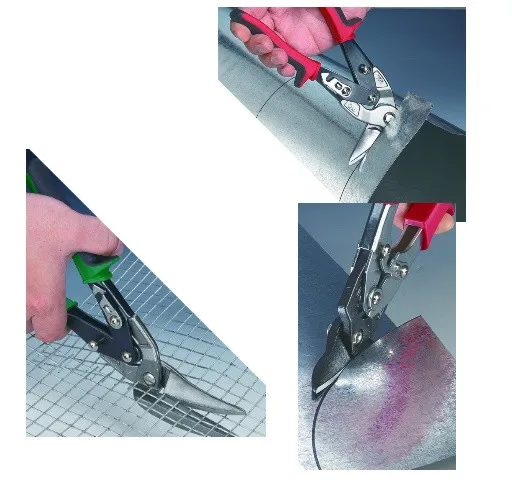

Specially for corrugated metal sheet

-Longer blades cut faster and help cut material away from hands.


-Drop forged Chrome Molybdenum Alloy steel
-Induction hardened cutting edges 60-62 HRC
-Cuts up to 20 gauge cold rolled steel sheet or 24 gauge stainless steel sheet
-Bi-Color TPR handle grips

Item No.
Cutting Length
Overall Length
Cut-instruction
Copper
(Soft)
Cold-Rolled steel (Mid)
Hard Steel HRC30(Hard)
Stainless steel 304
06110-48101.30
48mm
270mm
Left Cut
1.10mm
0.94mm
0.70mm
0.53mm
06110-48201.30
48mm
270mm
Right Cut
1.10mm
0.94mm
0.70mm
0.53mm

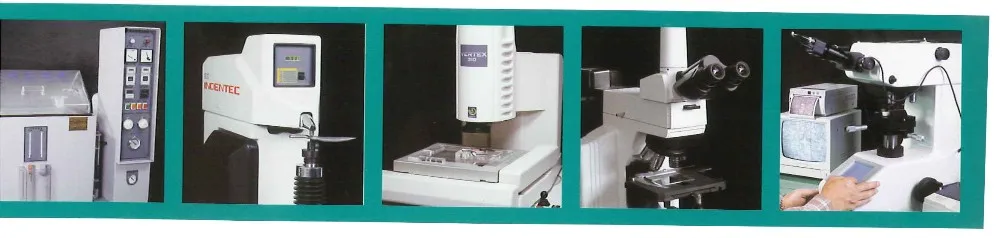

Loading&Tensile test

Professional Computer Load & Tensile Tester

We performs full-length cut tests to measure the maximum handle pressure in accordance with ANSI/ASME B107.16 and DIN standards. Also tests tensile strength of center pivot fastener. Reading can be printed & retrieved on graphical charts.


SNIP QUALITY TESTING STANDARD

Each pair of snips has passed our qualification testing procedures, assuring a quality product. Once the test of full cycle is done, the snips can still cut Cloth or paper sharply.

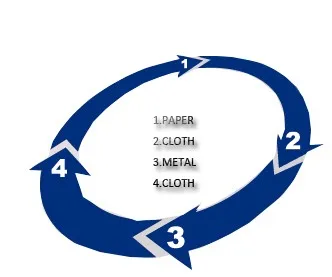

Test Procedures:
1.Paper Cutting Test-one cut
2.Cloth Cutting Test-one cut
3.Metal Cutting Test-five cut
4.Cloth Cutting Test-one cut
5.Paper Cutting Test-one cut

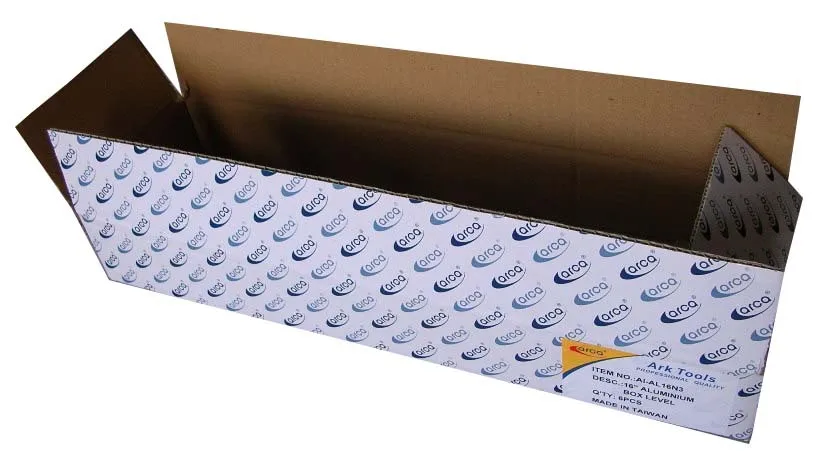

Packing & Delivery
