solar air heater for house

Supplier: Oscar Science & Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr alan dong
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certificate:	CE CCC ISO9001;	Type:	Flat Panel,Flat-Plate;
Payment Terms:	T/T,Western Union;	Product name:	solar air heater;
Pipe Material:	aluminum;	Brand Name:	Oscar;
Port:	ningbo/Shanghai;	Warranty:	10years;
Packaging Detail:	pallets.Imported stardard master carton,foam+extra strong carton;	Model Number:	OS;
Place of Origin:	Zhejiang China;	Main material:	polycarbonate;
Installation:	Wall Mounted;	Supply Ability:	10000 Piece/Pieces per Month;
Application:	Air Conditioning System;	Delivery Detail:	15days sample 2days;

solar air collector /solar panel

solar air heater

Solar air conditioning system

Product Description

Product Benefits

Environment-friendly, healthy without chemical elements

Control the temperature and moisture of the room

Guaranteed after-sale service

15 years warranty for pv panel

2 years warranty for solar air collector

Where to install?

in holiday cabins

in residential and commercial buildings

in the cottages and summer residences

incaravans

in cellar

in conservatories

in storage areas

in football and other sports cabins

in areas without electrification

When to work?

The system works when there is sunshine, because it is driven by photovoltaic panel. It doesn't work during night. So it acts as supplement of the home energy, but it is green, and no cost for energy.

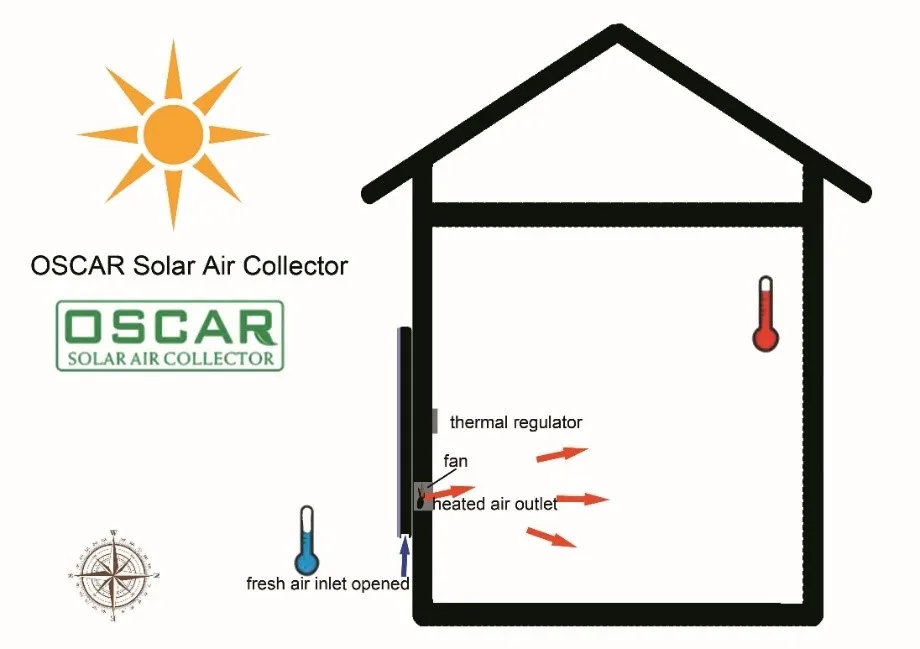

Work principle

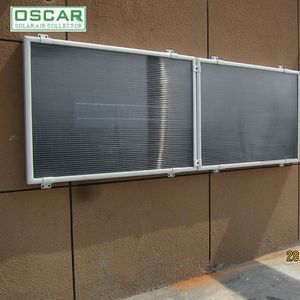

We recommend placing the product on a vertical surface providing the best angle between the panel and sun. OSCAR solar air collector operates by taking in air at the bottom of photovoltaic panels, and through a special construction inside the panel, the air is heated by the sun several times. The heated or fresh air is blew into the house by a fan, driven by electricity generated from sunlight by photovoltaic panel. The air collector is all thermostatically controlled so that the fan turns off when a certain temperature is reached.

Performance indicators

Room temperature can be increased by 20-- 40 ° C (depending on the type of panel).

Fan output: up to 120 m 3 / h

Maximum power up to 1,000 W/h

A great alternative to traditional recovery

Extra hardened frame structure

Adjustable air inlet at the bottom----Air intake regulation

Return on investment two years, guaranteed life of 15 years!

Parameters:

Model	OS10P	OS20P	OS30P	OS40P	OS50P	OS60P
Panel dimensions(cm)	55X53x6.3	53X72x6.3	102X73x6.3	214X73x6.3	214X103x6.3	154X108x6.3
Weight(kg)	4.8	5.8	9.8	17.8	25	18
Max airflow(m3/h)	25	30	60	110	160	110
PV performance(W)	9	9	14	19	19	19
Max performance(w/h)	240	280	550	1100	1600	1150
Space coverage(m2)	15	20	35	70	100	70
Temperature rise(°C)	20	25	28	30	35	32
