shale shaker solid control

Product details
Screen Area(㎡):2.63;EX Standard:ExdIIBt4/IECEX/A-TEX;
Dimension(L*W*H):2717x1998x1428 (mm);Feeding Type:Weir Feeder;
After-sales Service Provided:Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;Application:Oilfield HDD CMB Construction;
Production Capacity:95%;Vibration Amplitude(mm):4.14~5.96;
Voltage:380 - 460 (v);Brand Name:GN Solids Control;
Warranty:1;Packaging Detail:As required , general package;
Certification:API ISO CE;Port:Xingang;
Weight:1675KG;Features:OEM;
Model Number:GNZS703F-HB;Condition:New;
Supply Ability:30 Set/Sets per Month;Screen Size:LxW(mm):700x1250;
Adjustable G Force:≤7.5G;Name:shale shaker solid control;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Deck Angle Range:-1~+5°(Electric & Mechanical);
Shale Shaker:Linear Motion Shale Shaker;Place of Origin:Hebei China;
Product Features

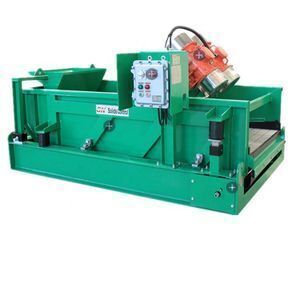

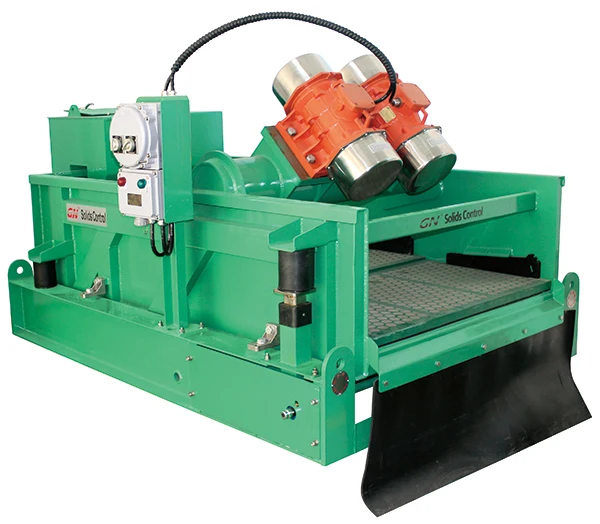

                                                            shale shaker solid control





Product Description

GNZS703 Series 3 panel shale shaker can be used as a primary shale shaker and drying shaker for desander and desilter cones.The linear motion design with Adjustable high G force make GNZS703 very popular for any types of drilling including: oil gas drilling, CBM drilling, HDD, water well, geothermal well drilling mud cleaning. The simple but heavy duty design makes GNZS703 shale shaker have reliable operation with less maintenance.





Drilling mud shale shaker manufacture







Hebei GN Solids Control Co., Ltd  With brand is a top manufacturer in China specialized in mud solids control equipment and systems design, manufacture, and sales.







Shale shaker is the first phase solids control equipment in drilling mud system, also the core equipment for the solids control system. GN provides tandem shale shaker and triple combination shale shaker, we also provide the third generation linear motion shale shaker and the fourth generation balanced elliptical motion shale shaker.







GN Drilling mud shale shaker strengths



  • First API certified solids control equipments manufacturer in China
  • GN Products have been exported to over 70 countries and regions
  • GN All Facilities total area are over 70,000sqaure meters
  • GN is one of the very few China companies who provide Vertical Cutting Dyer & Hi G Dryer.



 GN shale shaker Applications



(1)  OIL&GAS DRILLING----Solids Control System



(2)  HDD & CBM Drilling ----Mud Recycling System



(3)  Mining & Industrial----Slurry Separation Plan







Complete Line Products



  • Ø  GN Main Equipment: Shale Shaker, Mud Cleaner ,Desander ,Desilter, Centrifuge, Cutting Dryer ,Agitator, Mixing Hopper, Flare Igniter, Various Tanks, Pumps, Degassers etc.
  • Ø  GN Manufacture all types of shale shaker screens in Asia largest wiremesh center city.



Company Information



workshop





Qualification certificate:

Exhibition Photos:





FAQ



1. Are you a manufacturer or a trading company?

We are manufacturer in China.And we are professional in solids control equipment manufacturing more than 11 years.



2. How long is the warranty of your products?

The warranty is 12 months after install at site or 14 months after machine leaving factory. Our machine service life is more than 10 years as USA quality.



3. What kind of service u can provide?

 We can give 24hrs online services and 1hurs fast feedback, please add our trade manger sky or whatsapp

Once u buys our machine, we can give square parts supply more than 20years.





For drilling machine, please contact us today, we will give u surprise.
