color: | upon request | weight: | 1400kg |
Video external inspection: | if | Showroom location: | Canada, United States, Brazil, Russia, Argentina, United Arab Emirates, Colombia, Nigeria |
Voltage: | As required | brand: | GN |
Sales unit: | single product | Mechanical test report: | if |
product name: | vibrating screen | Gross weight per piece: | 68.000 kg |
Vibrator: | Ollie | Single package size: | 2300X1900X2300 cm |
Shaker: | 4 | Health status: | new |
place of origin; place of origin: | Hebei china | Marketing Type: | normal product |
Core components: | Bearings, motors, pumps | Packaging Preview: | |
After-sales service provided: | Provide overseas service center | Core Components Warranty: | 1 year |
Applicable industries: | Construction Engineering, Energy and Mining | Warranty: | 1 year |
model: | GNZS-594F | Packaging Details: | container, nude or as needed |

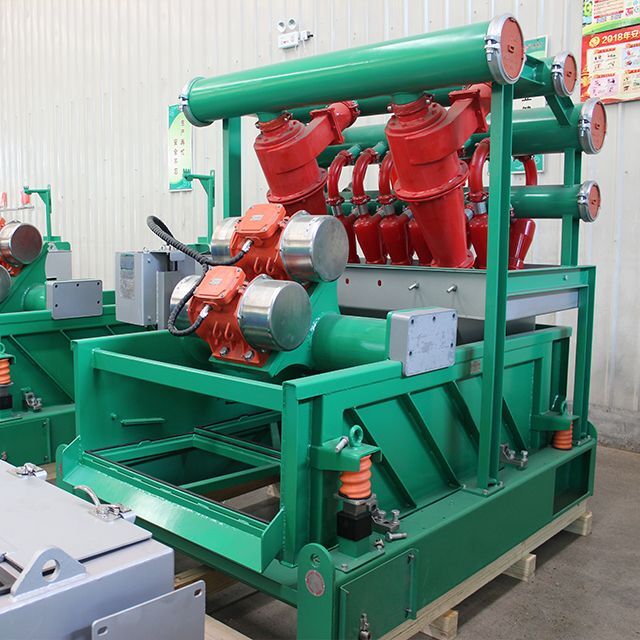

The mud cleaning machine is the second and third types of solid control equipment. It is composed of a sand removal cone, a mud removal cone and a bottom-mounted vibrating screen. It has a compact structure, small size and powerful functions. It is an ideal choice for the second and third types of solid control equipment.
The mud cleaning machine is a conventional model of our company. We can design and customize the cost-effective mud cleaning machine according to the special needs of customers. Our mud cleaners meet virtually all needs of oil and gas well drilling fluid handling systems.
GNZJ linear motion mud cleaning machine
Model |
GNZJ853 |
GNZJ703 |
GNZJ852 |
processing power |
120~360m3/h 528~1584GPM |
120~240m3/h 528~1056GPM |
60~180m3/h 264~792GPM |
Desilting Cone |
4"(10~20ea) |
4"(10~16ea) |
4"(4~10ea) |
sand removal cone |
Specify cone number and model number when ordering |
||
vibration mode |
Linear motion |
||
Matching pump |
45~75KW |
45~55KW |
30~45KW |
Matching shaker |
GNZS853 |
GNZS703 |
GNZS852 |
Vibration motor |
2X1.94Kw |
2X1.72Kw |
2X1.5Kw |
screen area |
3.2 square meters |
2.6 square meters |
2.1 square meters |
deck screen |
3 panels |
3 panels |
2 panels |
Comment |
Each 4" cone = 50-75GPM, 8" cone = 200~300GPM, 10" cone=400~500GPM, 12" cone=500~600GPM |
GNPJ BEM Mud Cleaner
Model |
GNPJ853 |
GNPJ703 |
GNPJ852 |
processing power |
120~360m3/h 528~1584GPM |
120~240m3/h 528~1056GPM |
60~180m3/h 264~792GPM |
Desilting Cone |
4"(10~20ea) |
4"(10~16ea) |
4"(4~10ea) |
sand removal cone |
Specify cone number and model number when ordering |
||
vibration mode |
Balanced elliptical exercise |
||
Matching pump |
45~75KW |
45~55KW |
30~45KW |
Matching shaker |
GNZS853 |
GNZS703 |
GNZS852 |
Vibration motor |
2X1.94Kw |
2X1.72Kw |
2X1.5Kw |
screen area |
3.2 square meters |
2.6 square meters |
2.1 square meters |
deck screen |
3 panels |
3 panels |
2 panels |
Comment |
.Each 4" cone = 50-75GPM, 8" cone = 200~300GPM, 10" cone=400~500GPM, 12" cone=500~600GPM |
Drilling mud cleaner for solid phase control of drilling fluid:
A drilling mud cleaner, also known as a desander and desilter assembly, is a combination of a desander, a desilter, and an underflow screen. That is, the mud cleaner consists of a two-stage separation process that operates as a unit using a combination of hydrocyclones mounted on a shaker screen. Drill cuttings cleaners are designed to treat the entire circulation volume and are effective on both weighted and unweighted drilling fluid systems, effectively removing and drying solids while retaining expensive fluids. Hydrocyclones (desander and desilter) perform the primary separation and the underflow is directed to the shaker screen. Proper use of drilling mud cleaners can reduce drilling fluid and disposal costs.
In oilfield solids control, drilling mud cleaners are very effective for oil and gas wells. Slurry cleaner is one of the important equipment of solid-liquid separation system.
We are an API and ISO certified manufacturer of mud cleaners and other solids control equipment. Please contact us if you need anything.
