4-14 Inch HDPE Polyethylene Pipe maquina termofusion hdpe plastic welders welding machine prices

Supplier: Qingdao Polyfusion Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms. Jen Jen
Price: $2950.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Shanghai;	Weight (KG):	450;
Warranty:	1 Year;	Current:	AC;
Total weight:	260KG;	Showroom Location:	Canada,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Uzbekistan,Malaysia,none;
Payment Terms:	T/T,Western Union;	Condition:	New;
Supply Ability:	25 Set/Sets per Month;	Voltage:	380V 50HZ;
Brand Name:	Polyfusion;	Certification:	CE ISO;
Total Power:	5.45KW;	Video outgoing-inspection:	Provided;
Dimensions:	5.8CBM;	OEM:	Accepet;
Packaging Detail:	Each 4-14 Inch HDPE Polyethylene Pipe maquina termofusion hdpe plastic welders welding machine prices by package Wooden Box;	Materials:	Aluminum;
ODM:	Accepet;	Power (kW):	8.38KW;
Usage:	Pipe Welding;	Application:	HDPE PE PVDF;
Volume:	1.1CBM;	COLOR:	Black+red;
Input Voltage:	380V;	Marketing Type:	New Product 2020;
Wooden Box:	2 Wooden Box;	Machinery Test Report:	Provided;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Warranty of core components:	1 Year;	Package Preview:	;
Key Selling Points:	Patented Product;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Welded Pipe;	Place of Origin:	Zhejiang China;
Local Service Location:	Egypt,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,South Korea,Chile,UAE,Algeria,Romania,Bangladesh,none;

4-14 Inch HDPE Polyethylene Pipe maquina termofusion hdpe plastic welders welding machine prices

Machine Description

Brief: Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.

Be made of Aluminum material.

Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.

Feature:1. Removable PTFE coated heating plate with separate temperature control system.

2. Electric Planning Tool with reversible double cutting edge blades.

3. Hydraulic Unit provides welding machine with compressing power.

4. Be made of Aluminum material.

5. Low starting pressure ensures reliable welding quality of small pipes.

6. Temperature Controller and Timer, easy to know the exact time and temperature.

Type	4-14 Inch
Materials	PE, PP, PVDF
Welding. range of diameter	4,5,6,8,10,12,14 inch
Environment Temperature	-5~45℃
Power Supply	~220 V±10%
Frequency	50 HZ
Total power	5.45kW
Including :Heating Plate	3.6kW
Trimmer	1.1kW
Hydraulic Unit	0.75 kW
aCrane (addition parts)	0.5 kW
Dielectric resistance	>1MΩ
Max. Pressure	0-6.3MPA
Hydraulic oil	40~50(kinematic viscosity)mm2/s, 40℃)
Undesired sound	<70 dB
Max. Temp. of Heating Plate	270℃
Difference in surface temperature of heating plate	≤±7℃
G·W (kg)	260kg

Transaction History

Construction photos

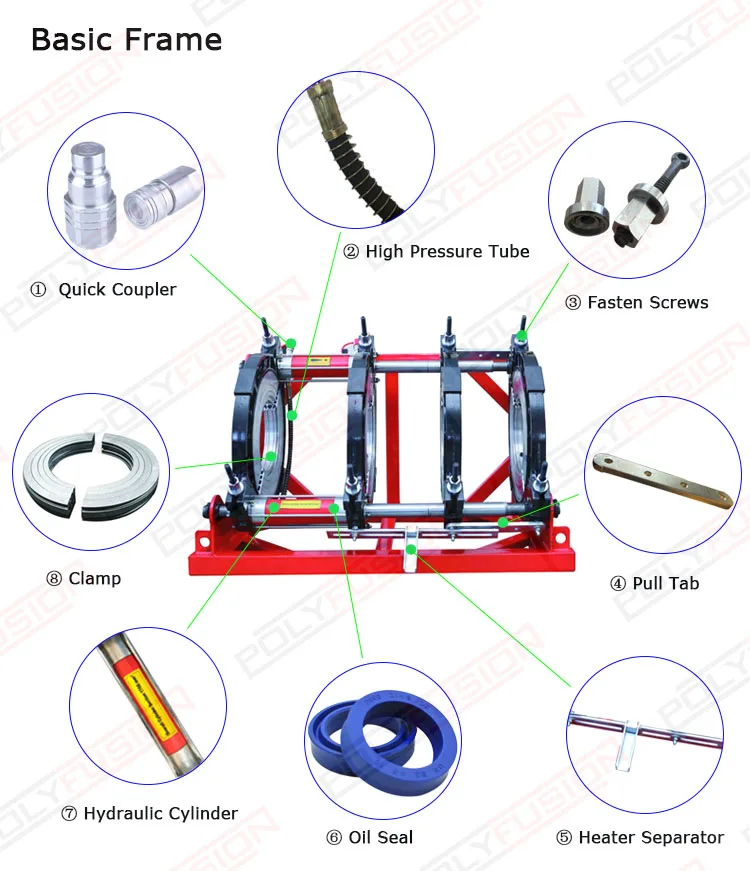

1. Quick Coupler: CE certification, using flat type, good sealing( Others use notched joints, easy to leak oil), insulating material, use safety;

2. High Pressure Tube: High-quality material, oil-resistant and high-temperature resistant, anti-aging, soft and flexible, weather resistant, not hard in winter, external sleeve has a telescopic spring to protect it;

3. Fasten Screws: Aluminum alloy, corrosion-resistant, belonging to consumables (give 2 for free);

4. Pull Tab: Thick, chrome-plated, no rust, improve stability;

5. Heater Separator: Fix heating plate when basic frame seperating the melted pipe and easy to lift the heating plate ,improve working efficiency;

6. Oil Seal: Durable, quality guaranteed, good sealing, fine polishing, smooth surface, no burrs, accurate size;

7. Hydraulic Cylinder: Aluminum alloy material, anti-oxidation, anti-corrosion, can withstand high pressure, with warning signs, use safety;

8. Clamp: 4 cm clamp, aluminum alloy material, anti-corrosion, long service life, stable fastening, precision grinding, positioning pipe is accurate, easy to operate, clamps can be disassembled to handle different specifications of pipe fittings

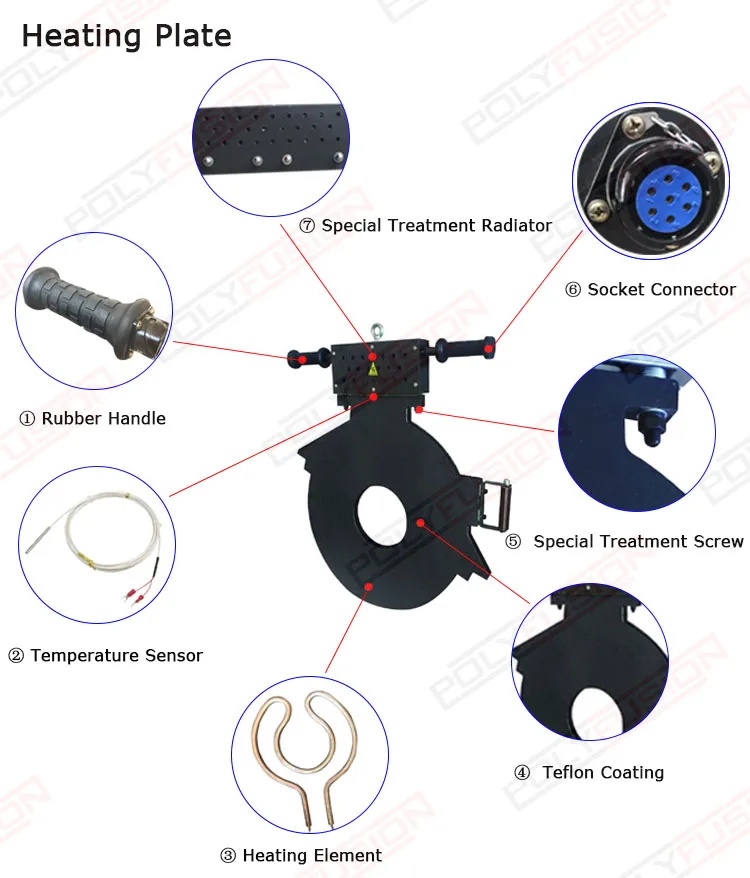

1. Rubber Handle: Made of high quality rubber material (others rubber handles are hard and easy to break);

2. Temperature Sensor: Wuxi Sole temperature sensor (others are thinner and more susceptible to damage);

3. Heating Element: Jiangsu Brand, long service life;

4. Teflon Coating: Imported Japan Daikin Brand (Teflon);

5. Special Treatment Screws: Anti-corrosion;

6. Socket Connector: Hualun brand. High-quality material, insulation and flame retardant, CE certification, can quickly connect the interface (others use the connector which internal plug is threaded, can not be quickly connected, and is easy to damage);

7. Special Treatment Radiator: After professional treatment, it has good heat dissipation, anti-corrosion and long service life;

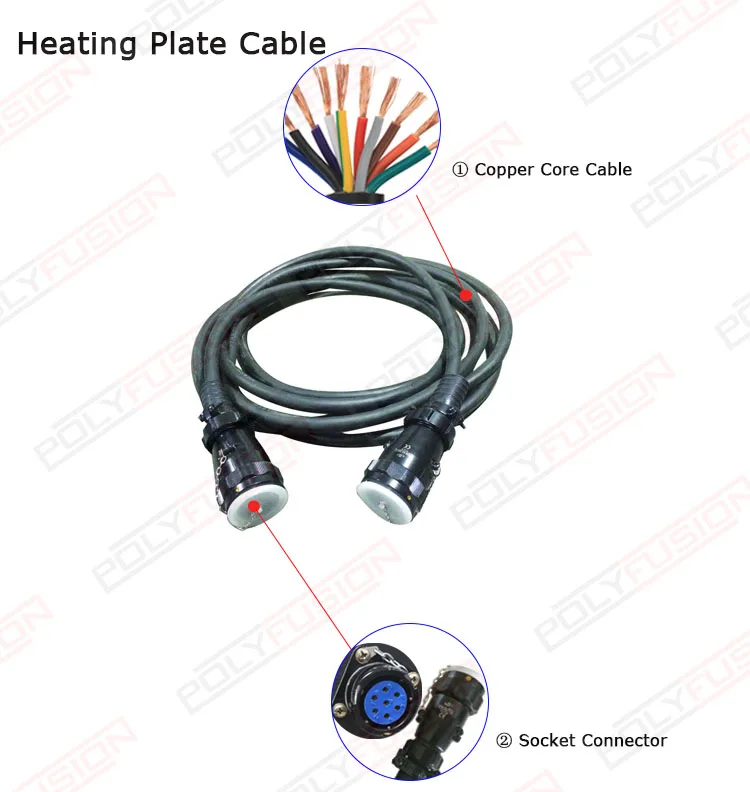

1. Copper Core Cable : High quality copper core cable, low resistivity, good ductility and long service life;

2. Socket Connector : Hualun brand. High-quality material, insulation and flame retardant ,CE certification , quick to connect the interface (others use the connector which internal plug is threaded , can not be quickly connected , and is easy to damage)

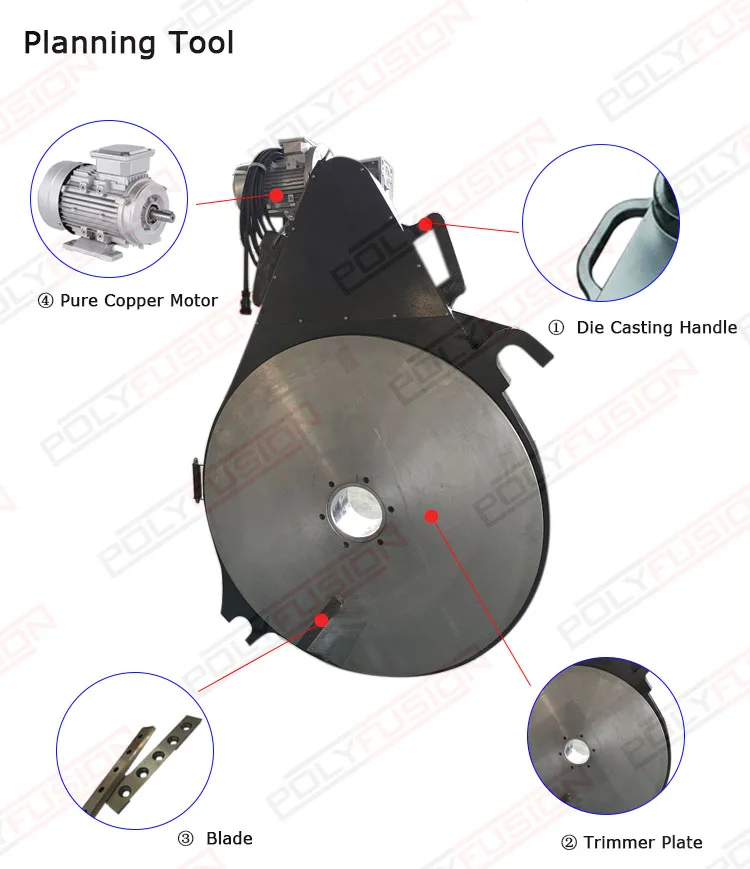

1. Die Casing Handle: Through the overall die casting, the handle is integrated with the basic frame and is more sturdy.

2. Trimmer Plate: The trimmer plate is made of aluminum, by die casting, the surface becomes smooth, durable and anti-corrosion.

3. Blade: Carbon steel, strong and durable, double-edged edge, sharp blade, flattened pipe, and give a pair of blades for free.

4. Pure Copper Motor:Pure copper material(others are made of aluminum, easy to be burnt ),the outer casing is made of aluminum, impact resistant.

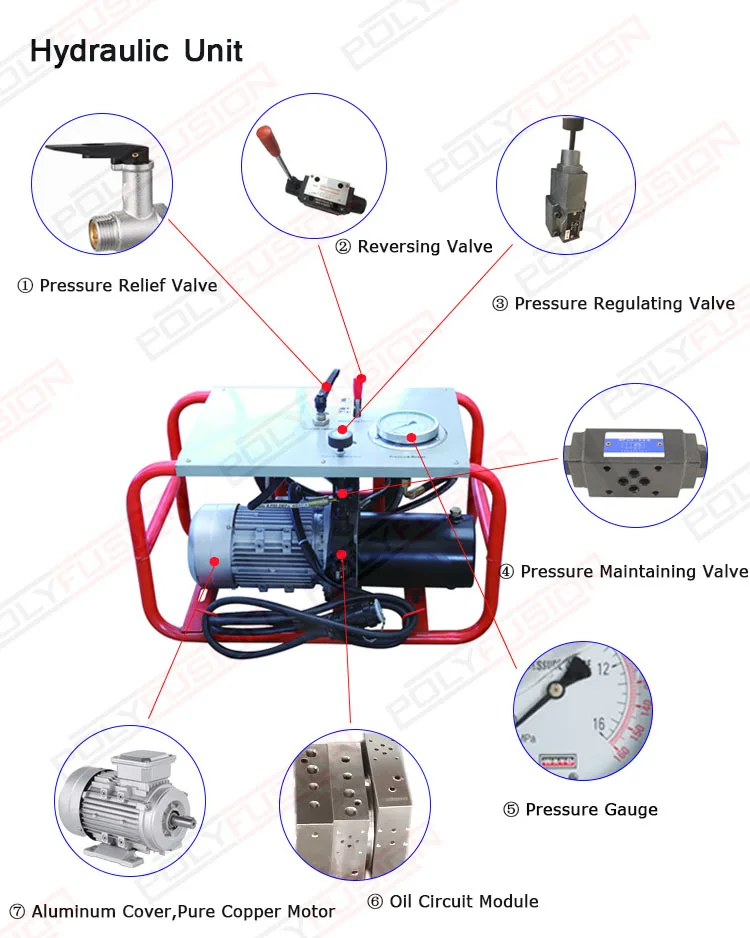

1. Pressure Relief Valve ,

2. Reversing Valve,

3. Pressure Regulating Valve,

4. Pressure Maintaining Valve: CE certified, with high stability and long service life;

5. Pressure Gauge: Sustainable pressure holding, sturdy and durable, good performance, pressure 0-16MPa, far exceeds the range of others (0-10MPa);

6. Oil Circuit Module: The material is aluminum, corrosion resistant, good circulation, light weight and long service life;

7. Aluminum Cover, Pure Copper Motor: Internal pure copper coil, energy-saving and durable, good stability, the shell is made of aluminum, impact resistant;

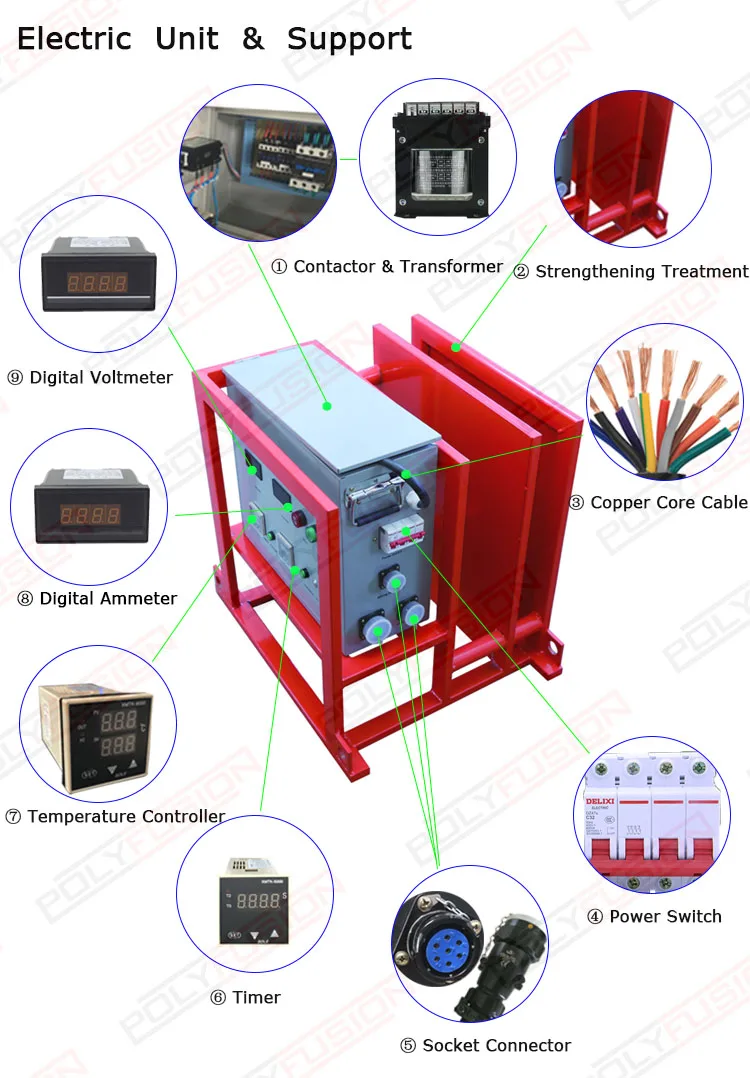

1. Contactor & Transformer: 3 sets contractors are specially connected, the single contactor doesn't affect working after failure; Install transformer in electric unit to protect the voltage from damage caused by wiring errors.

2. Strengthening Treatment: Support reinforced with metal.

3. Copper Core Cable: High quality copper core cable, low resistivity, good ductility and long service life;

4. Power Switch: Using the high quality switch of Delixi brand, the technology and performance are good, with EU Ceritification.

5. Socket Connector: Hualun brand. High-quality material, insulation and flame retardant, CE certification, quick to connect the interface (others use the connector which internal plug is threaded, can not be quickly connected, and is easy to damage)

6. Timer: Quality assurance,CE certification,(Sole)brand.

7. Temperature Controller: Quality assurance, CE certification,(Sole)brand.

8. Digital Ammeter: Quality assurance,CE certification,(Sole)brand.

9. Digital Voltmeter: High precision, digital display
