15years adhesive tape manufacture pvc electrical insulation tape

Product details
Tensile Strength:160%;Application:High Voltage,High Voltage;
core:38mm+4mm paper core;Model Number:LETO01;
Material:PVC,PVC;type:common tape,flame resistant tape ,lead free;
Type:Insulation Tape,Insulation Tape;color:black, white, red, yellow, green, blue, brown;
Port:tianjin;Rated Voltage:6.5kv,6.5KV;
adhesive:rubber sensitive glue;Payment Terms:L/C,T/T,Western Union,alipay, paypal;
Packaging Detail:tape packing in one roll a plastic wrap with a paper label, 10rolls a shrink ,500rolls a carton;Supply Ability:425000 Piece/Pieces per Week tape accept OEM manufacture;
finished:jumbo roll or cutting roll;Brand Name:LETO;
Place of Origin:Hebei China;width:15-1250mm(useable);
15years adhesive tape manufacture pvc electrical insulation tape







Product Description

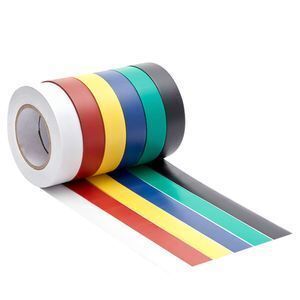

PVC Electrical Insulation Tape



(Flame Retardant Insulation Tape and Non Flame Retardant Insulation Tape)



PVC electrical tape is made from polyvinyl chlorade as backing material, and coated with rubber pressure-sensitive adhesive. Excellent insulation, good viscosity, withstand voltage, high-tensile, burn-resistance, cold-resistance etc. It's suitable for automotive wiring, wire/cable wrapped, insulation protection, etc.



Specification:

Backing material: PVC

Adhesive: Rubber pressure-sensitive adhesive

Colors: black, white, red, green, yellow, etc.



Thickness

Width

Length

Color

Grade

0.10-0.20mm

12-1250mm

4-50m

black/colored

A/B



Features:



+

Peel Strength

 1.6N/m

  Tensile Strength

 16-28N/cm

 Elongation

 180%

 Rated Voltage

 6.5-8.0KV



Advantage:



• Excellent insulation property, strong restoring force, good flame retardant capacity,  withstand voltage, significant adhesiveness, weatherproof.

• Self-adhesive,acid-resistant,alkali-resistant and anti-aging.

• Stable through the seasons.



Usage:



• PVC electrical tape is widely used for enlacing auto harness, wrapping electric wire/cable, and insulation protection.

• It is the main insulation material of automobile and household electrical apparatus.

• Wire and cable insulation, colour coding of electrical cables, loom harnessing, stopping off in plating, prevention of electrolytic corrosion, packaging applications, drum and tube sealing.





Packaging & Shipping

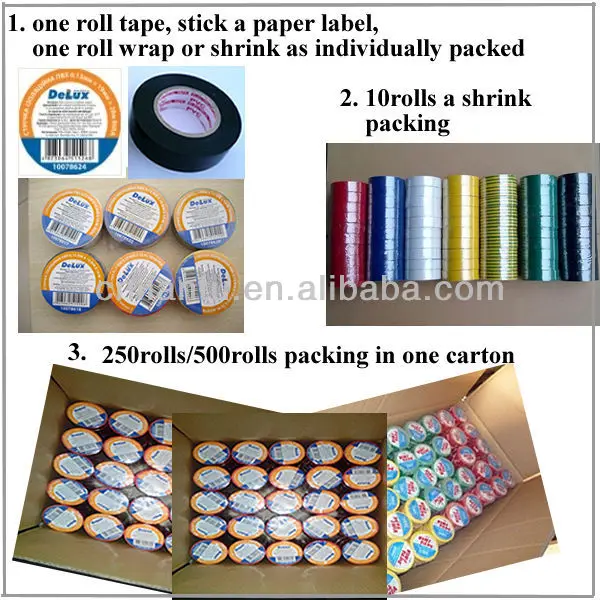

Packing:



• each roll wrapped individually, for small roll, 10 rolls a bunch, 200-500 rolls in a carton; for big rolls, 2-10rolls a carton.

• Or as customer's requirement

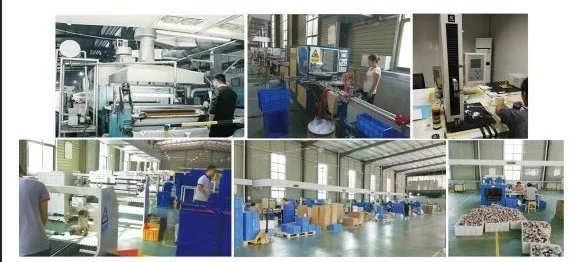

OEM Manufacture  and company informations



• OEM is available, as professional manufacturer, we can produce according to the customers' sample or requirement.

• All the packings are free of charge, based on at least one 20'ft, including paper label, paper core and carton design.

• We offer free samples, with shipping and taxes paid by the buyer.



ape for dgaussing coil wrapping





FAQ

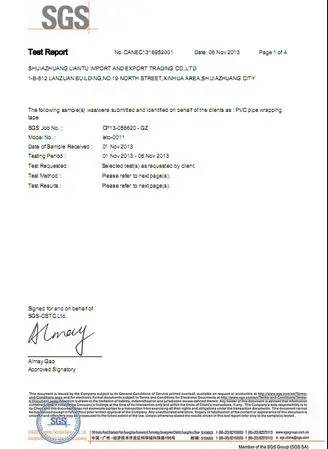

CERTIFICATION:
