Max. Power output: | 5.5 HP; | Payment Terms: | L/C,T/T,Western Union; |
Marketing Type: | Ordinary Product; | Compacting force: | 15 KN; |
Power: | 4000 / 4200; | Warranty of core components: | 2 years; |
Brand Name: | DYNAMIC; | After Warranty Service: | Video technical support,Spare parts; |
Condition: | New; | Warranty: | 1 year; |
Max. Forwards or backwards speed: | 20 m/min; | Working height of handle: | 680 mm; |
After-sales Service Provided: | Overseas third-party support available; | Packaging Detail: | plywood box pack 85*55*113; |
Core Components: | Engine; | Port: | Shanghai; |
Max. Plate size: | 630 m2/h; | Vibration frequency: | 97 HZ; |
Engine oil capacity: | 600 ml; | Max. Climbing angle: | 30°; |
Showroom Location: | none; | Local Service Location: | none; |
Certification: | CE; | Place of Origin: | Shanghai China; |
Engine oil type: | Recommended SAE10W-30; | Supply Ability: | 500 Piece/Pieces per Month; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Restaurant,Printing Shops,Construction works ,Advertising Company; | Video outgoing-inspection: | Provided; |
Machinery Test Report: | Provided; | Dimension(L*W*H): | 1100(43)*500(20)*950(37) mm (in); |
UNIQUE SELLING POINT: | Imported engine; | Application: | earth moving; |
Model Number: | HZR-80; |

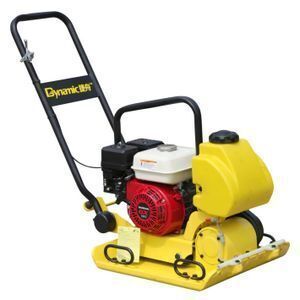

DYNAMIC Electrical/Gasoline hand vibratory plate compactor rammer HZR-80
This machine are ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works
and building construction. The asphalt models are suitable for hot or cold asphalt applications in confined areas.
Optimally suited for a variety of compaction applications due to high travel speeds and ease of maneuverability. Guide handle with patented vibration
dampening increase operator comfort and reduces fatigue. The large capacity water tank and the wide filler opening improve productivity. Tough

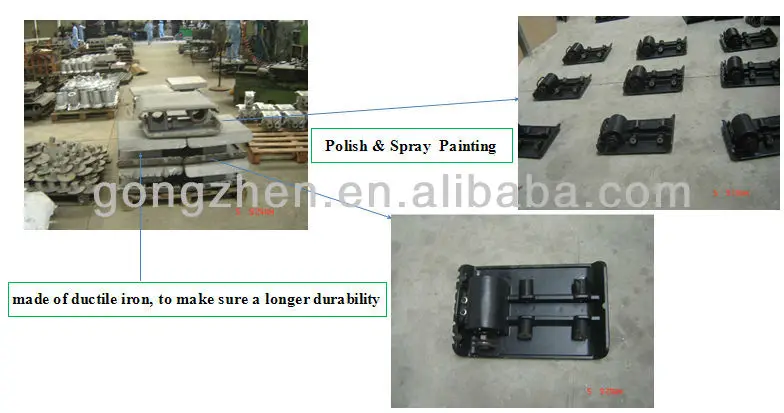

ductile iron baseplate is extremely durable even under extremely conditions and provides for long service. Optional wheel kit offer easier moving and transport.
Features:
1) The best choice for compaction of sandy soil, back fill and asphalt
2) Lowest vibration combined with highest compaction performance
3) Transport wheel available (option)
4) Rubber mat available for brick paving road (option)
Specification:
Model | HZR-80 |
Weight kg(lb) | 93 (205) |
Dimension mm (in) | 1100(43)*500(20)*950(37) |
Plate size mm (in) | 590(23)*500(20) |
Centrifugal force kn | 15 |
Vibration frequency vpm (hz) | 5500 (92) |
Forward travel m/min | 20-23 |
Engine | Air-cooled, 4-cycle, Gasoline |
Type | Honda GX160 Robin EX17 |
Max. output kw (hp) | 4.0 (5.5) 4.2 (5.7) |
Max. speed rpm | 3600 3600 |
Fuel Tank liter (gal) | 3.6 (0.95) 3.6 (0.95) |
Our Sevice:
1. We offer 1 years' warranty. And we will send you the free parts via EXPRESS such as DHL once the claim happen.
2.We will give you 5% discount for 1 piece as sample.
Introduction of our company:
Shanghai Jiezhou Engineering & Mechanism Co. Ltd(Shanghai DYNAMIC)
has specialized in light construction machinery for nearly 30 years in China, mainly
produces tamping rammers, power trowels, plate compactors, concrete cutters,
screeds, concrete vibrators, polers and spare parts for the machines. Our products
have CE certificates, been certified by ISO9001 amd designed by our own R&D department.
We enjoy good reputation among our overseas customers and in domestic industry, thanks to
high quality, good aftersale service and strong sense of responsibility. The products ordered by
customers are produced by talented technicians and tested before sending out.
We are looking forward to establish business relationship with you. Please kindly reply which product
you are interested in. It will be a great pleasure to receive your inquiry for any product.

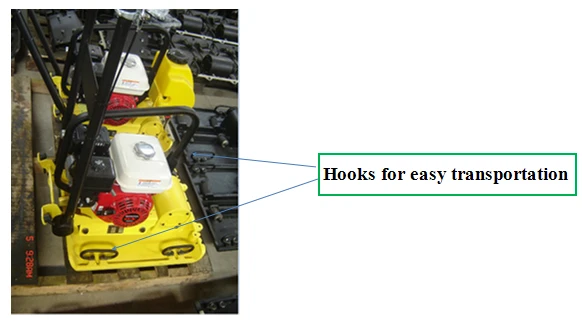

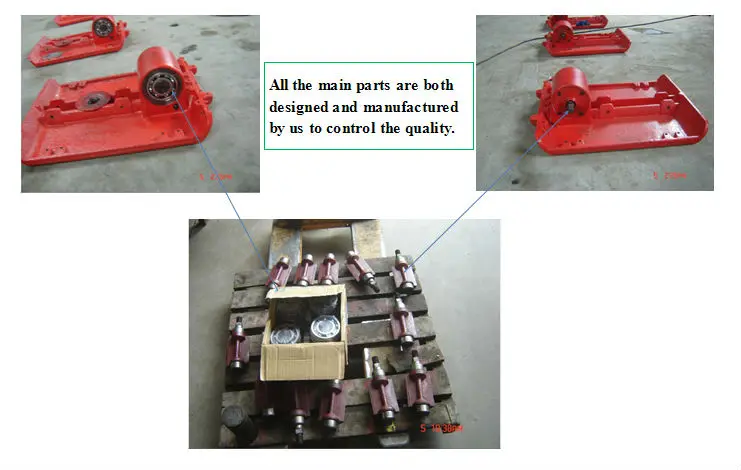

Details:

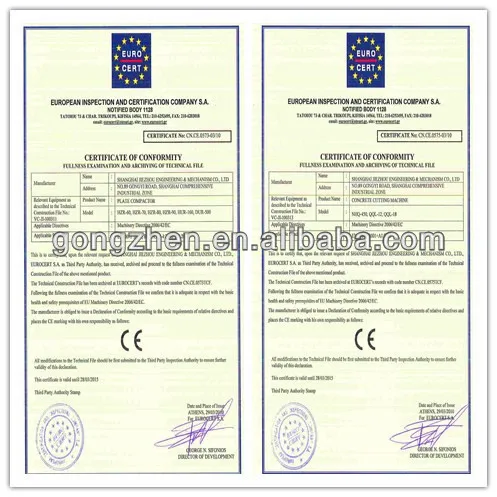

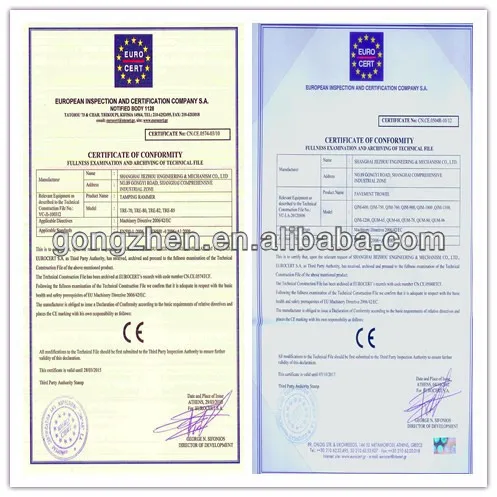

Certification:

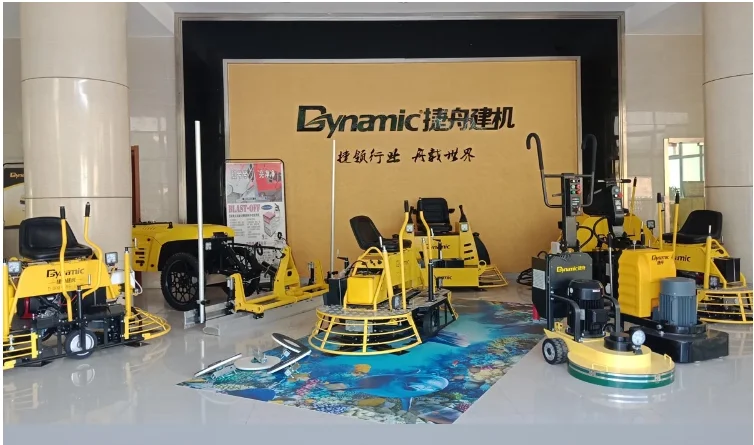

Carton Fair:
Office Building:
Our great workers:

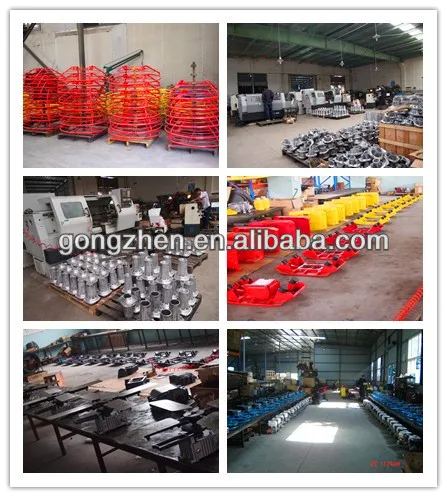

Assemble:
Packing:
